BY-3200S MacBook Logic Board Boot Power Cable

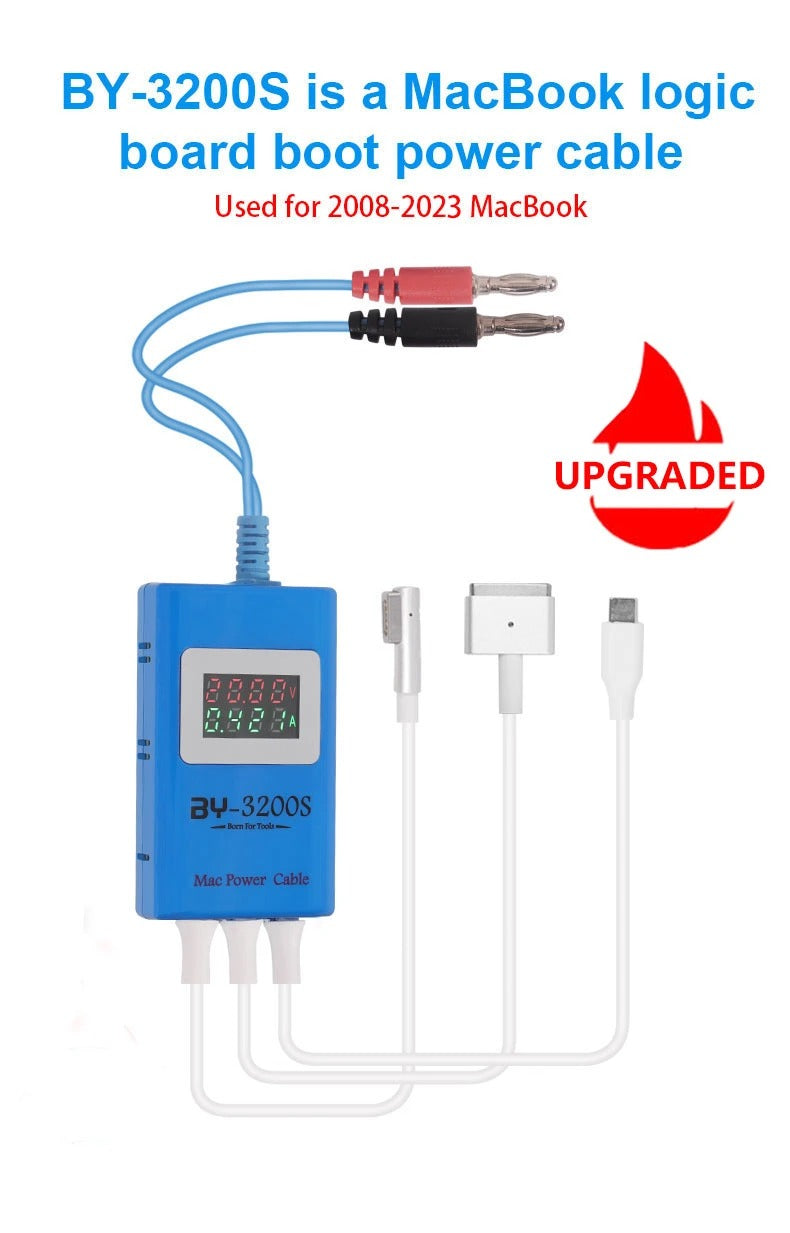

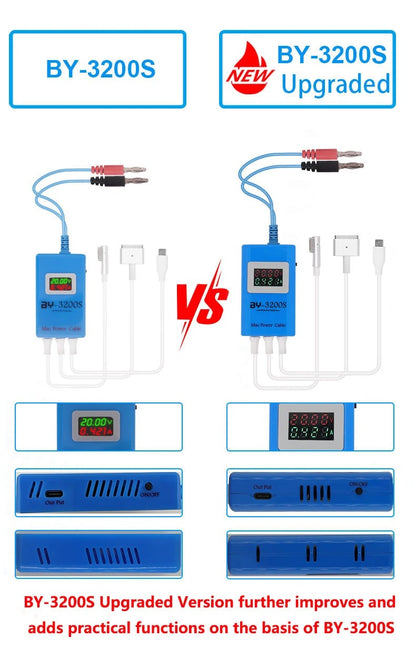

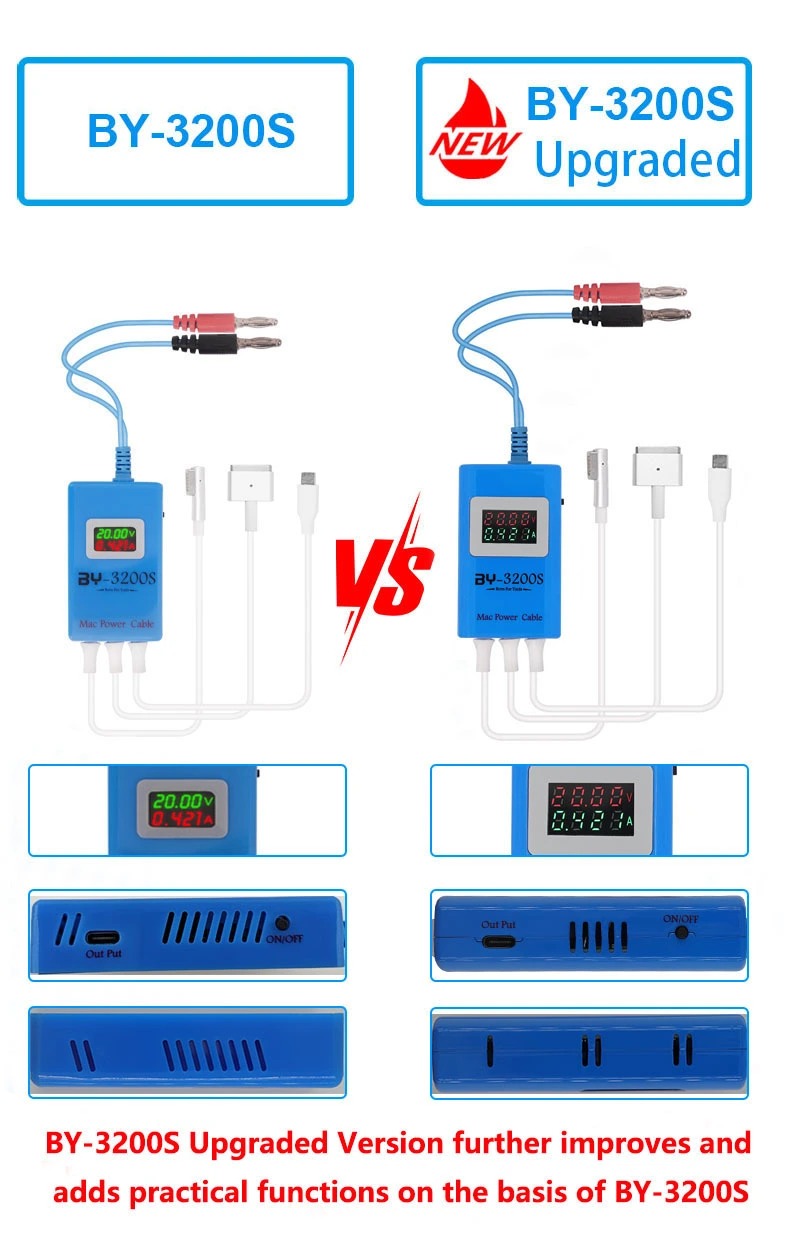

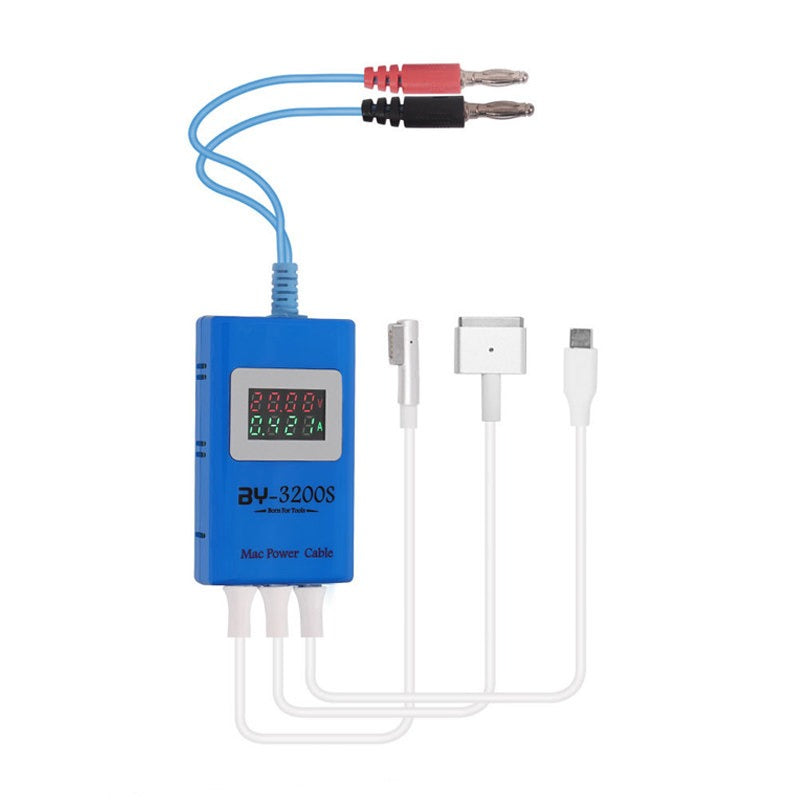

The BAIYI BY-3200S is an upgraded professional MacBook logic board startup power cable designed for 2008–2023 MacBooks. Featuring a real-time digital voltage and current display, dual power input modes (20A DC banana plug or 87W–140W Type-C fast charger), and built-in L-head, T-head, and Type-C connectors, it enables battery-free single-board booting and precise motherboard power fault diagnosis.

Key Features

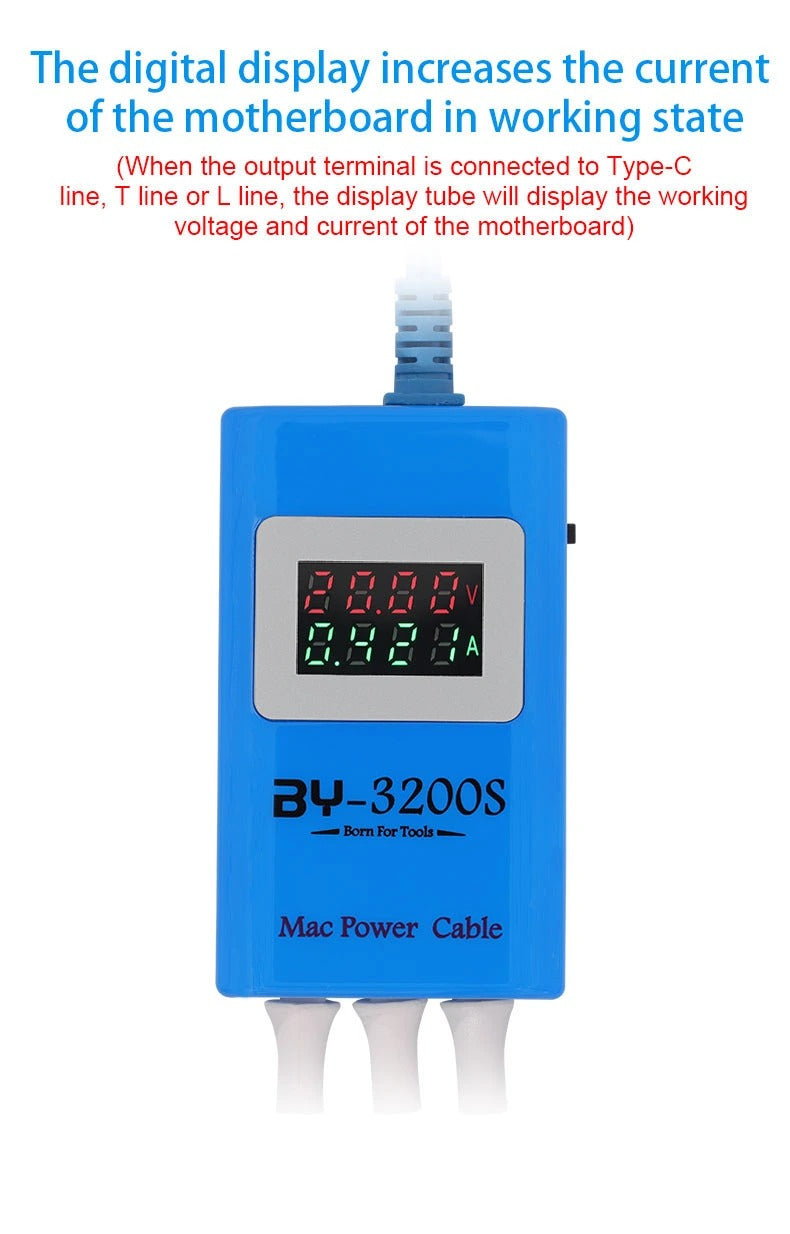

• Real-Time Voltage & Current Display: Integrated dual-color digital display monitors real-time motherboard operating voltage and current draw.
• Automatic Board Sensing: Display remains off by default and automatically activates upon detecting a connected logic board.

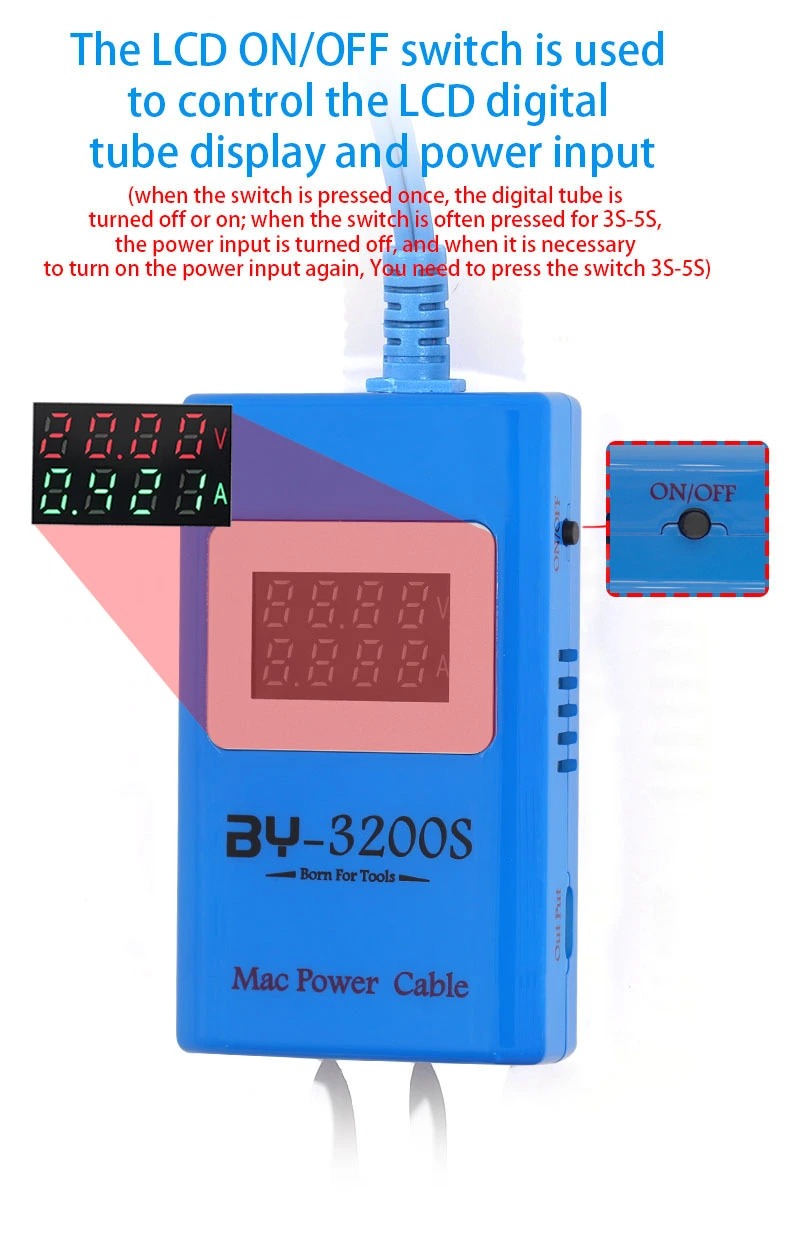

• Multi-Function Power Switch: One-press toggle for digital display on/off; long-press (3–5s) to shut down or restore power input safely.

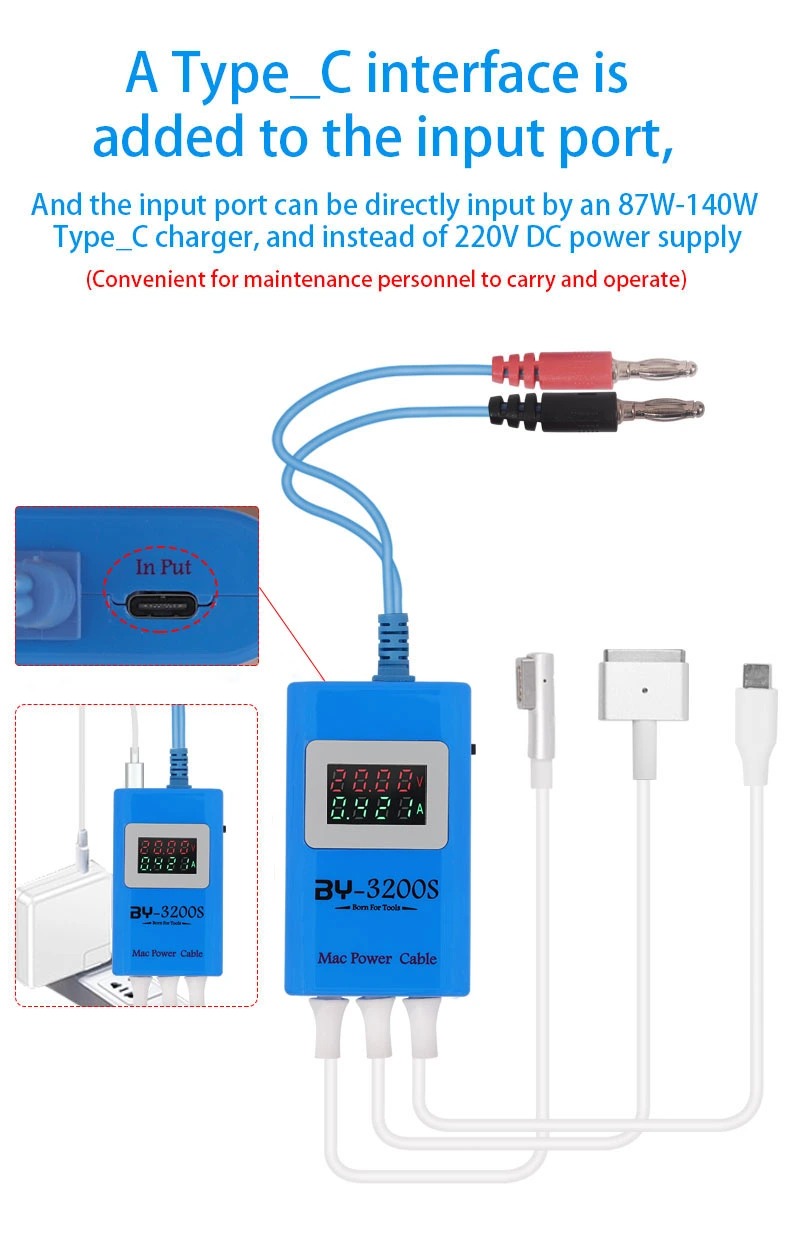

• Dual Input Options: Supports standard DC bench power supply (20V–21V / 20A max) or direct 87W–140W Type-C charger input for ultimate benchtop portability.

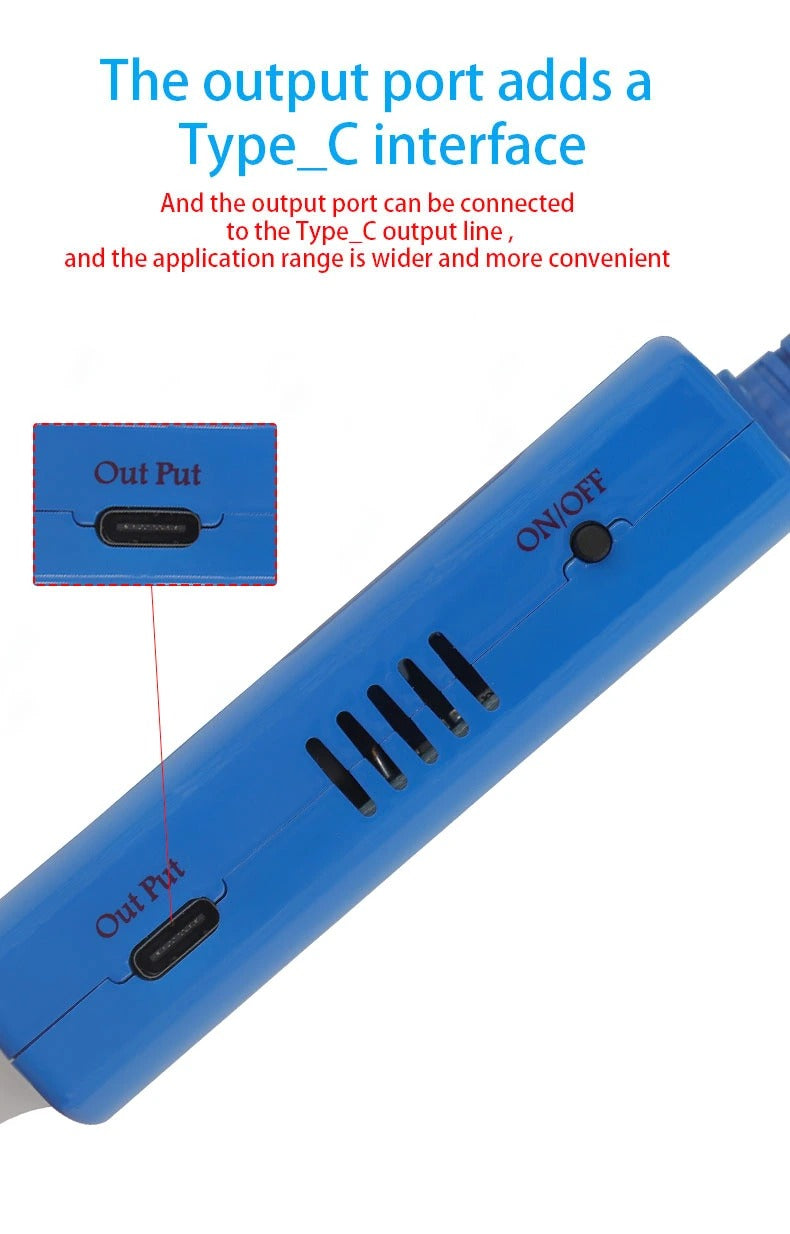

• Expanded Type-C Output: Integrated Type-C output port alongside native output cables for versatile diagnostic connections.

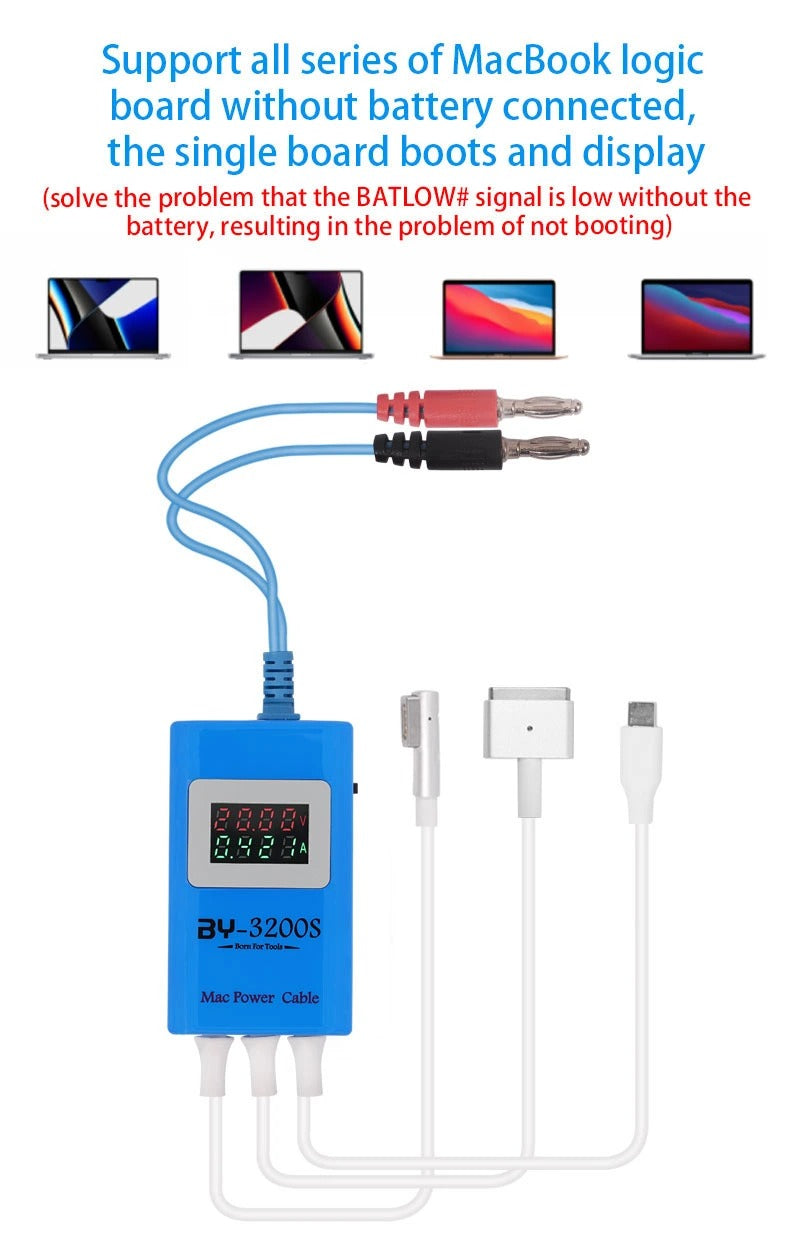

• Single-Board Boot Without Battery: Resolves no-boot failures caused by low BATLOW# signals, allowing single logic boards to boot straight into macOS without a connected battery.

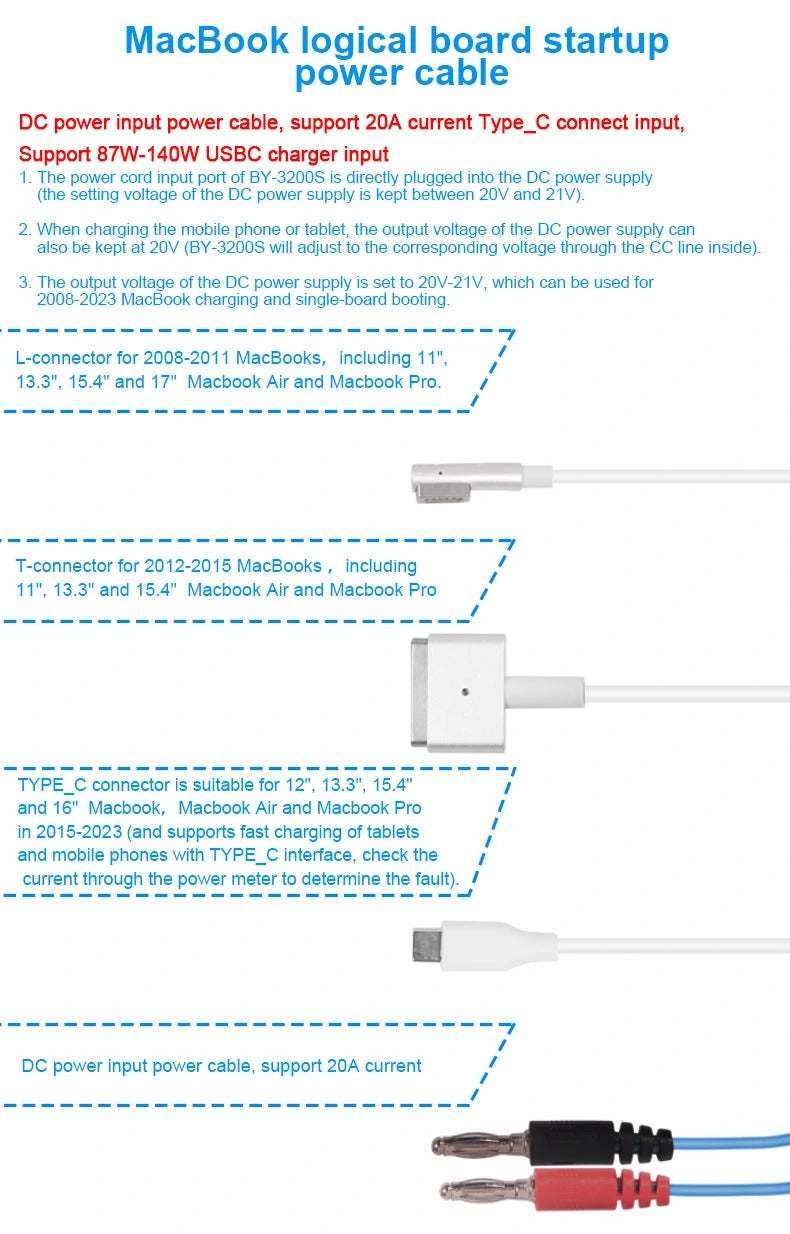

Connector & Model Compatibility

• L-Connector (MagSafe 1): Compatible with 2008–2011 MacBook, MacBook Air, and MacBook Pro (11", 13.3", 15.4", and 17"). Supports 45W, 60W, and 85W charging protocols.
• T-Connector (MagSafe 2): Compatible with 2012–2015 MacBook Air and MacBook Pro (11", 13.3", and 15.4"). Supports 45W, 60W, and 85W charging protocols.

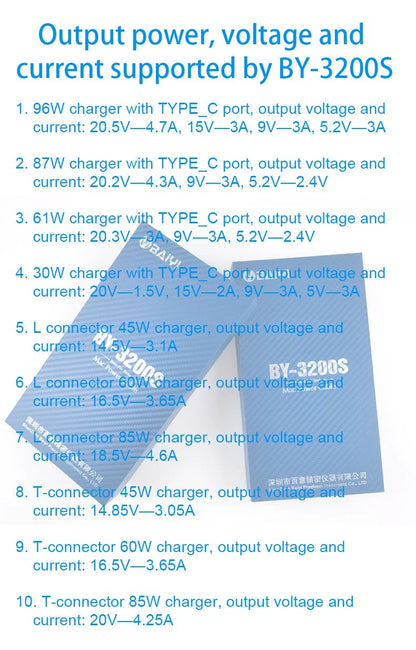

• Type-C Connector: Compatible with 2015–2023 MacBook, MacBook Air, and MacBook Pro (12", 13.3", 15.4", and 16"). Supports 30W, 61W, 87W, and 96W PD fast charging, as well as Type-C mobile phones and tablets.
• DC Power Input Cable: Pure copper banana plug leads supporting up to 20A current input.

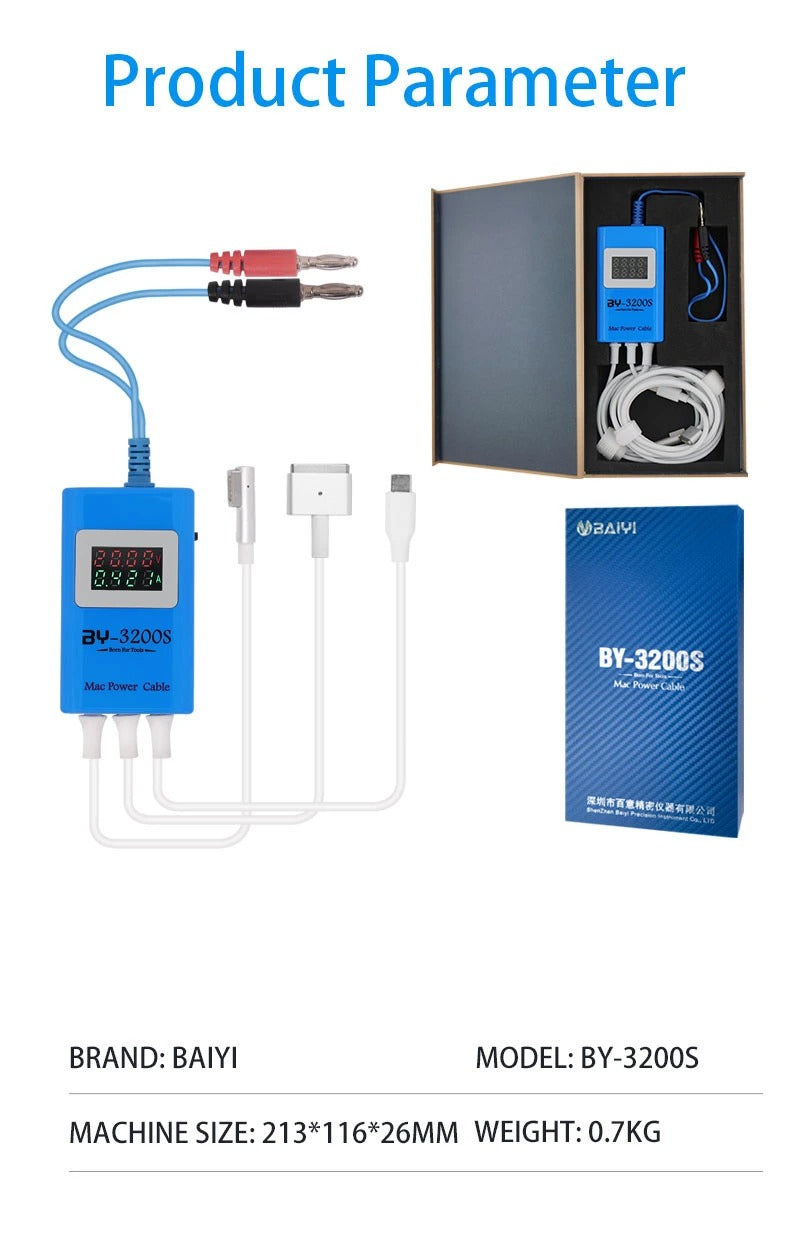

Product Specifications

• Brand: BAIYI
• Model: BY-3200S
• Machine Dimensions: 213 × 116 × 26 mm
• Total Weight: 0.7 kg
• Input Power: DC 20V–21V (Banana Plug) / 87W–140W Type-C Charger
• Output Connectors: MagSafe 1 (L-head), MagSafe 2 (T-head), Type-C, and auxiliary Type-C port
• Compatible Models: 2008–2023 Apple MacBook, MacBook Air, and MacBook Pro
• Primary Function: Motherboard boot power supply, battery-free boot, and current/voltage fault analysis

Package Includes

• 1 × BAIYI BY-3200S Mac Power Cable Host Unit with Integrated Connector Cables

Target Applications

An essential repair tool for Apple repair technicians, micro-soldering labs, and IT service shops diagnosing MacBook power circuits, sleep-wake cycles, and board-level boot failures.
