HMT-BT05 Laptop DDR4 & DDR5 RAM Tester

HMT-BT05 2-in-1 Laptop DDR4 & DDR5 SO-DIMM Memory Module Tester with LED Indicator

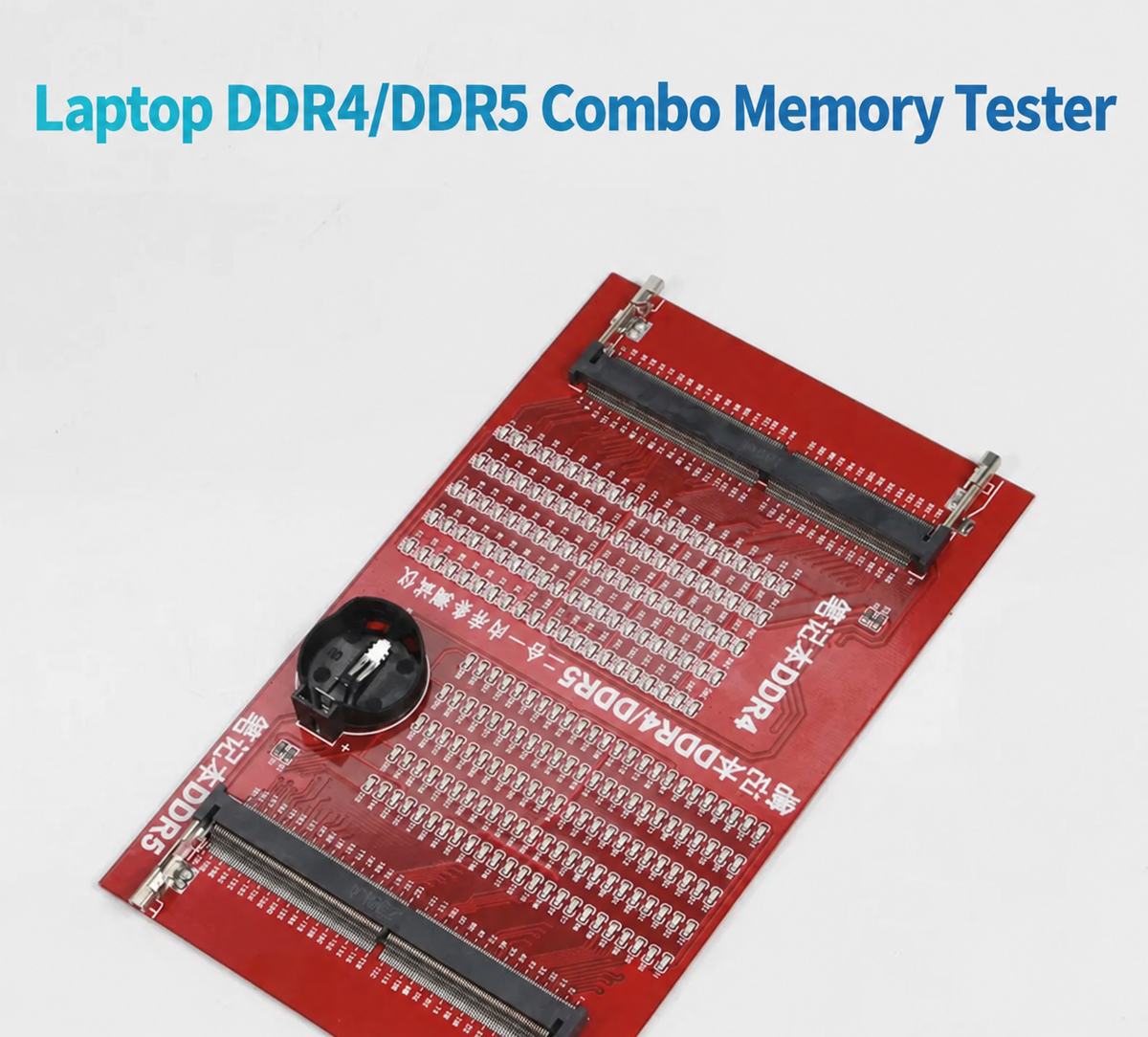

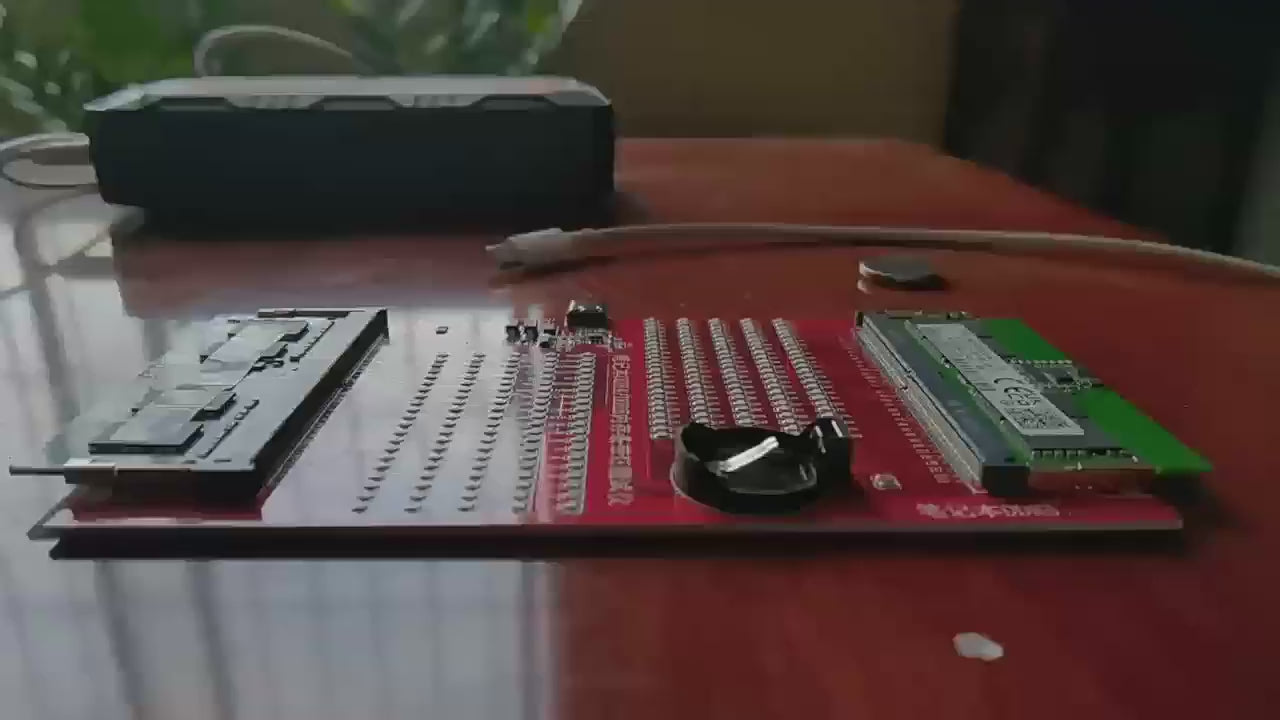

The HMT-BT05 Laptop DDR4 & DDR5 Combo Memory Tester by HuiMinTong is an advanced 2-in-1 diagnostic instrument engineered for computer repair shops, refurbishing centers, and IT hardware technicians. Combining dedicated 260-pin DDR4 and 262-pin DDR5 SO-DIMM slots on a single high-grade board, this tool enables rapid, offline continuity and fault diagnosis for both mainstream DDR4 and next-generation DDR5 laptop RAM sticks without needing a functional laptop motherboard.

Key Features:

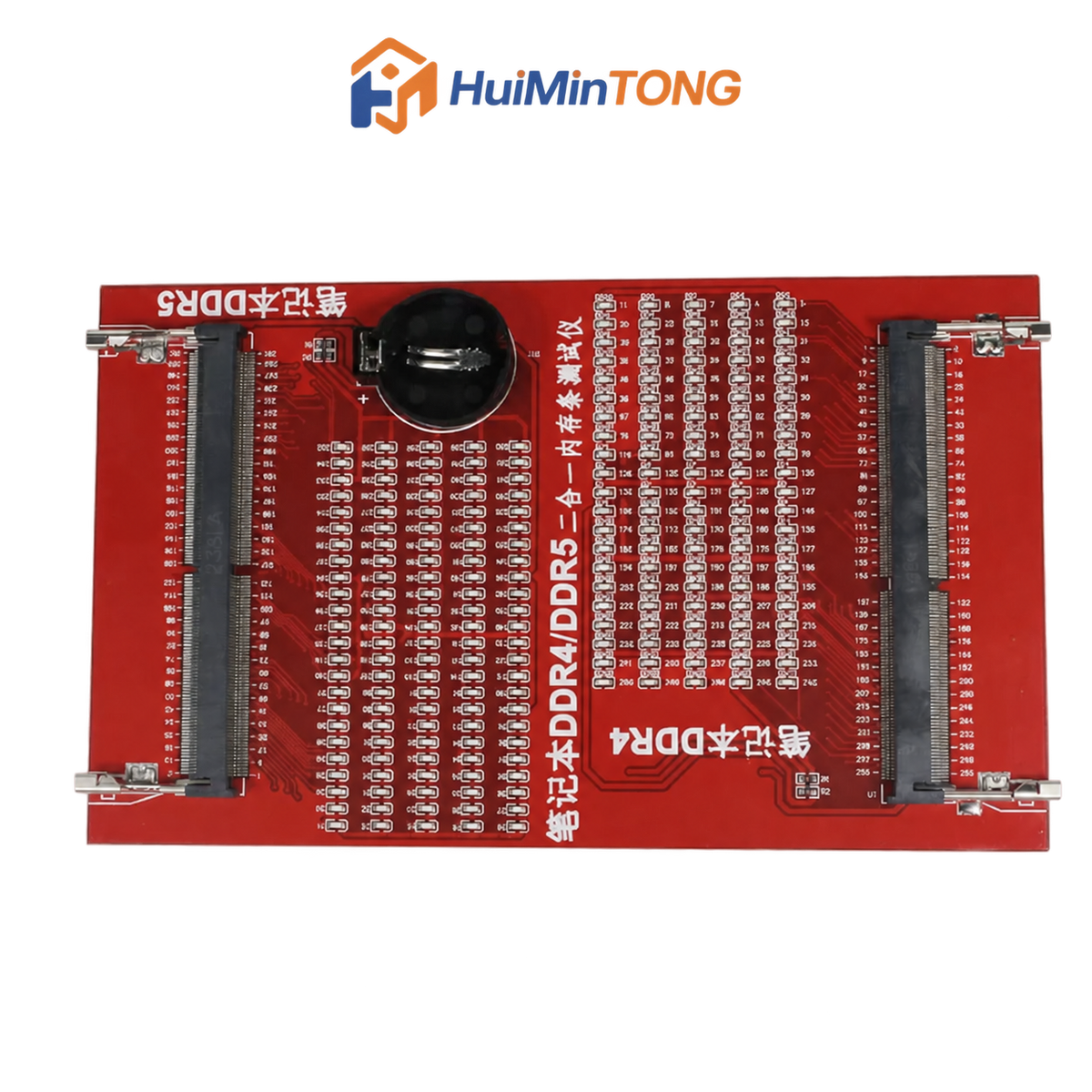

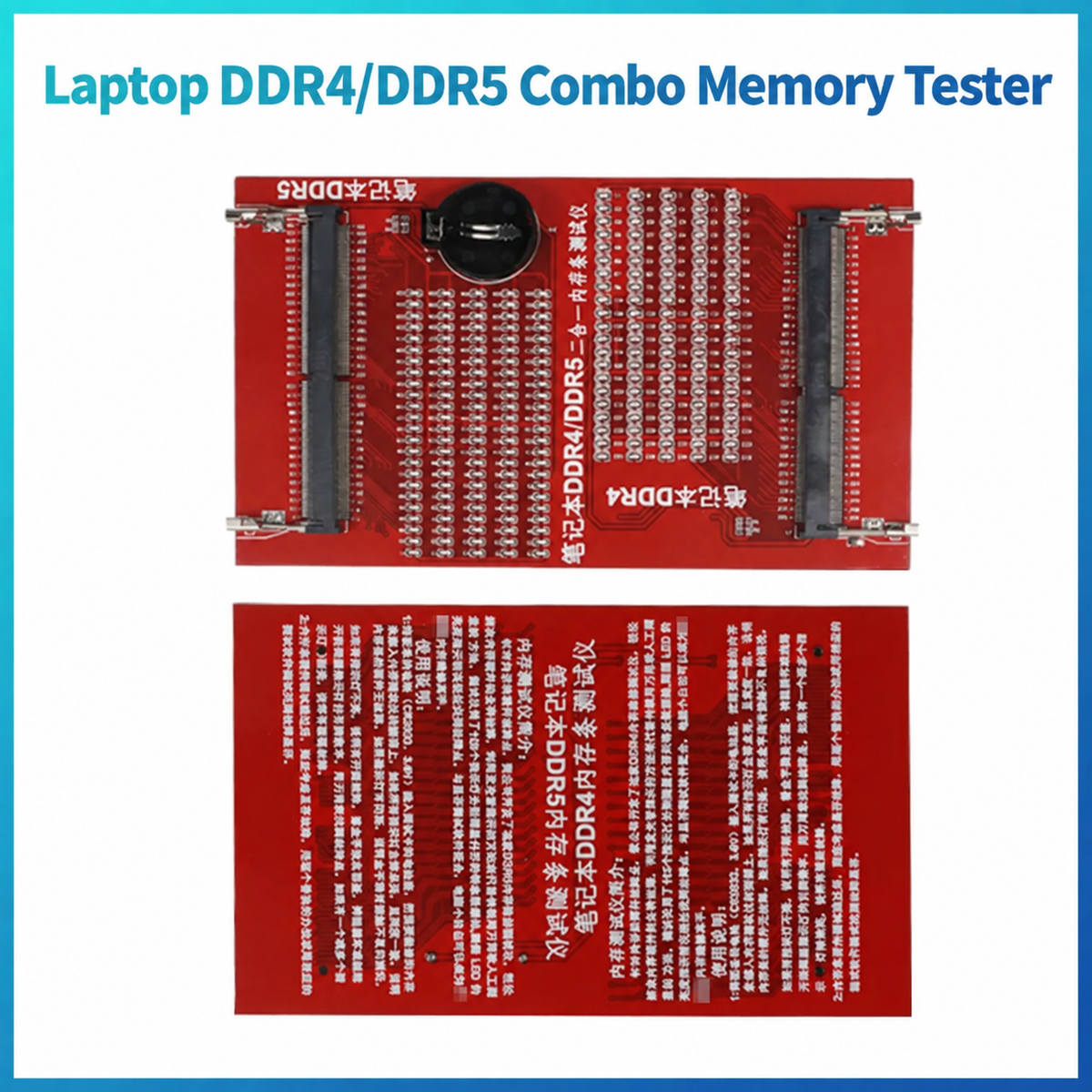

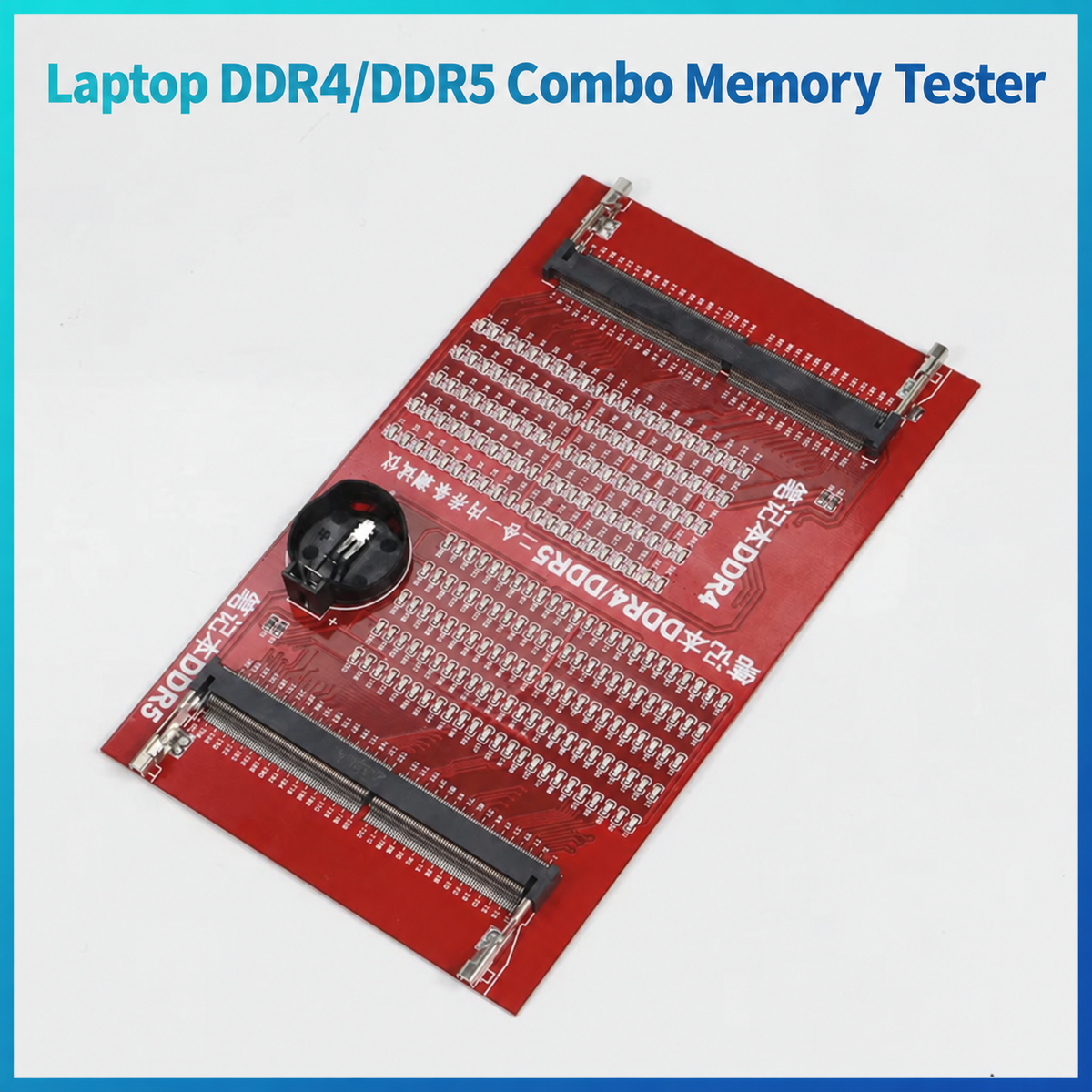

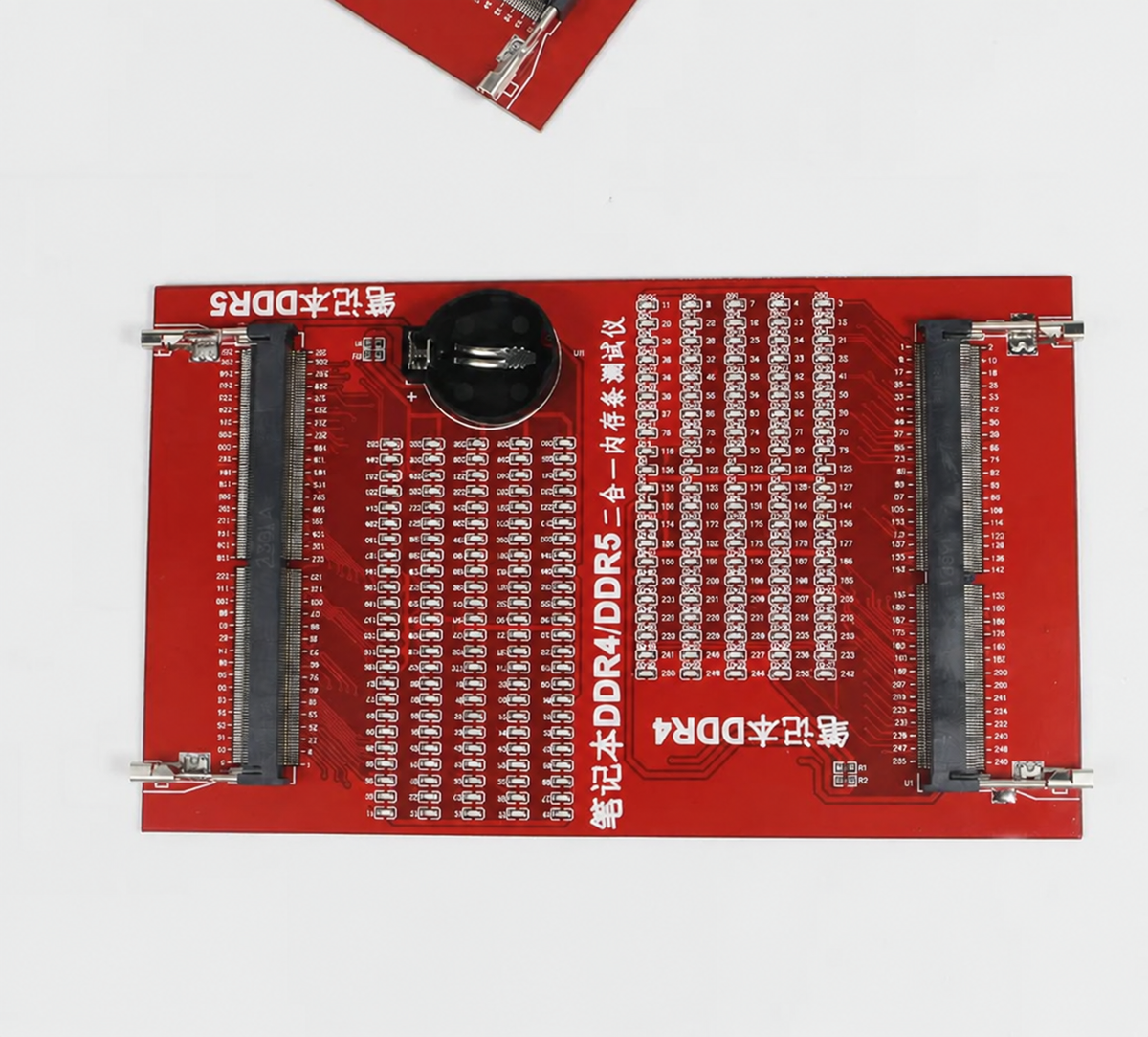

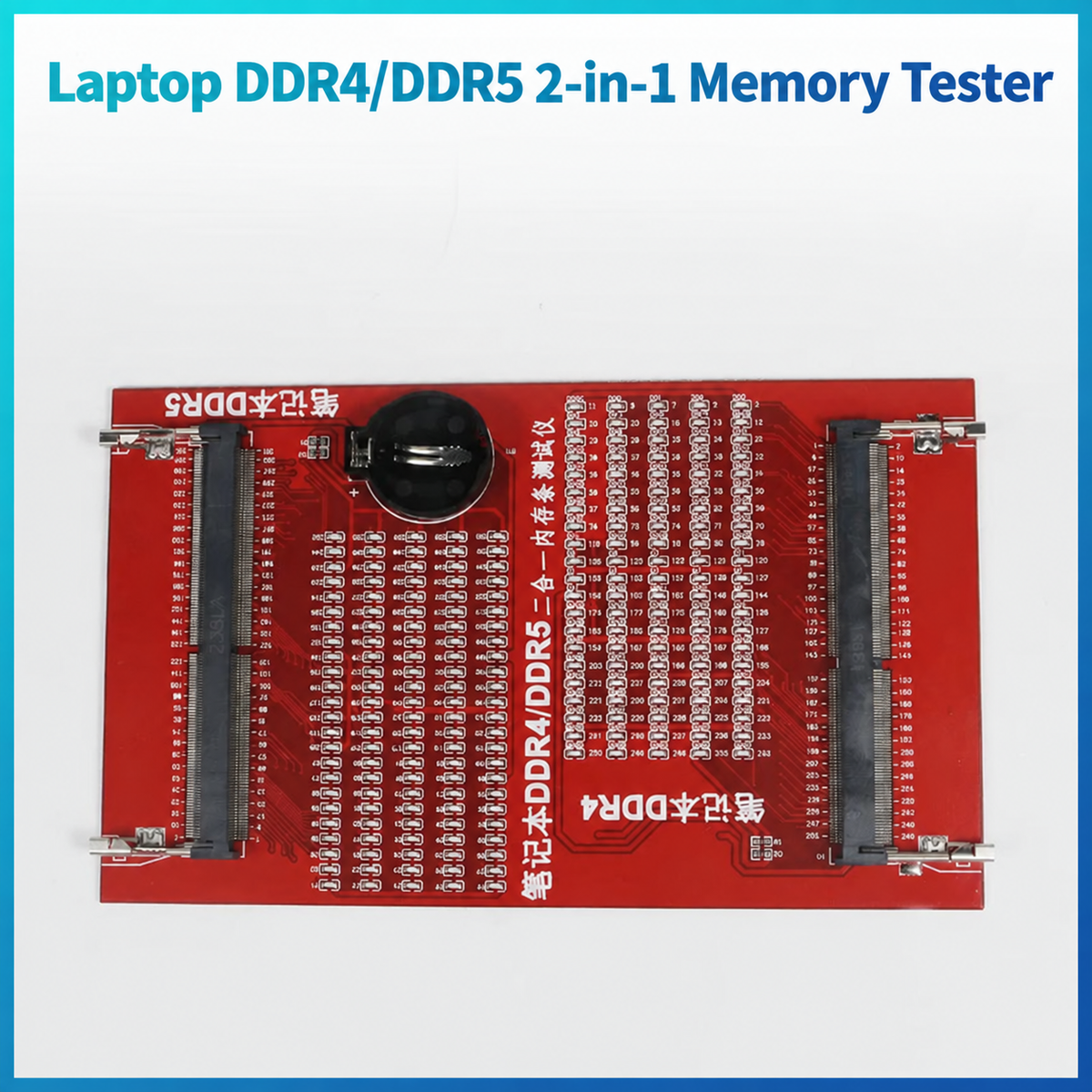

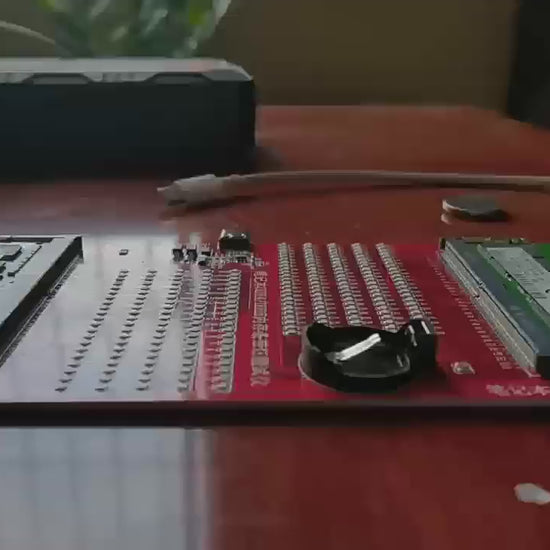

• 2-in-1 Combo Architecture: Integrates independent horizontal SO-DIMM sockets for both DDR4 (260-pin) and DDR5 (262-pin) laptop memory modules, providing comprehensive coverage across modern and legacy laptop systems in a single compact device.
• Comprehensive Dual LED Diagnostic Array: Dense surface-mount LED arrays map directly to individual data lines (DQ), data strobes (DQS), command/address (CA) buses, clock lines, and power rails, delivering instant visual feedback on line integrity.
• Rapid Open & Short Fault Detection: Instantly reveals broken traces, damaged resistor packs, fractured BGA solder balls beneath memory chips, and pin-to-pin shorts before installing RAM into client machines.
• Battery-Powered Standalone Testing: Operates on a standard onboard CR2032 3V/3.6V coin cell battery (BT1). Enables completely portable, unpowered offline testing without bulky external power supplies or cables.
• Heavy-Duty Metal-Latching Sockets: Features durable laptop SO-DIMM sockets with reinforced metal retention latches for secure module locking, low insertion force, and consistent contact over thousands of test cycles.
• Prevents System Boot Loops & BSODs: Quickly weeds out damaged, erratic, or degraded memory sticks responsible for blue screens of death, memory parity errors, random crashes, and "no display" boot failures.

Product Specifications:

• Model: HMT-BT05
• Brand: HuiMinTong (HMT)
• Compatible Memory: Laptop DDR4 SO-DIMM (260-Pin) & Laptop DDR5 SO-DIMM (262-Pin)
• Diagnostic Display: High-Density SMD LED Indicator Matrix
• Power Supply: 1 × CR2032 (3V / 3.6V) Coin Cell Battery (Not included)
• Socket Types: 1 × 260-Pin DDR4 SO-DIMM + 1 × 262-Pin DDR5 SO-DIMM with Metal Spring Latches

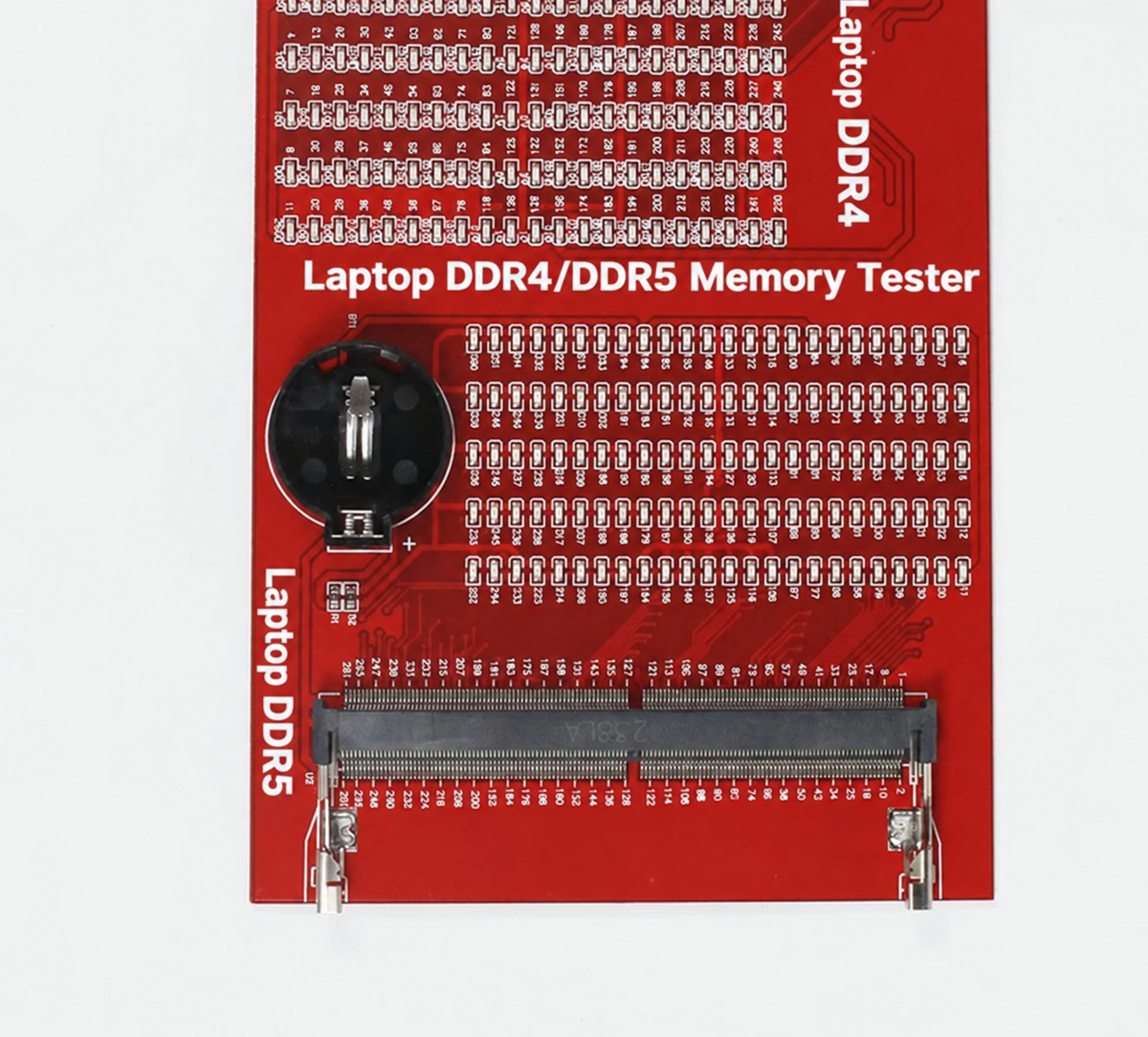

• PCB Build: High-Grade Multi-Layer Red Industrial PCB with Clear Silk-Screened Signal Labels
• SKU: 401156-05

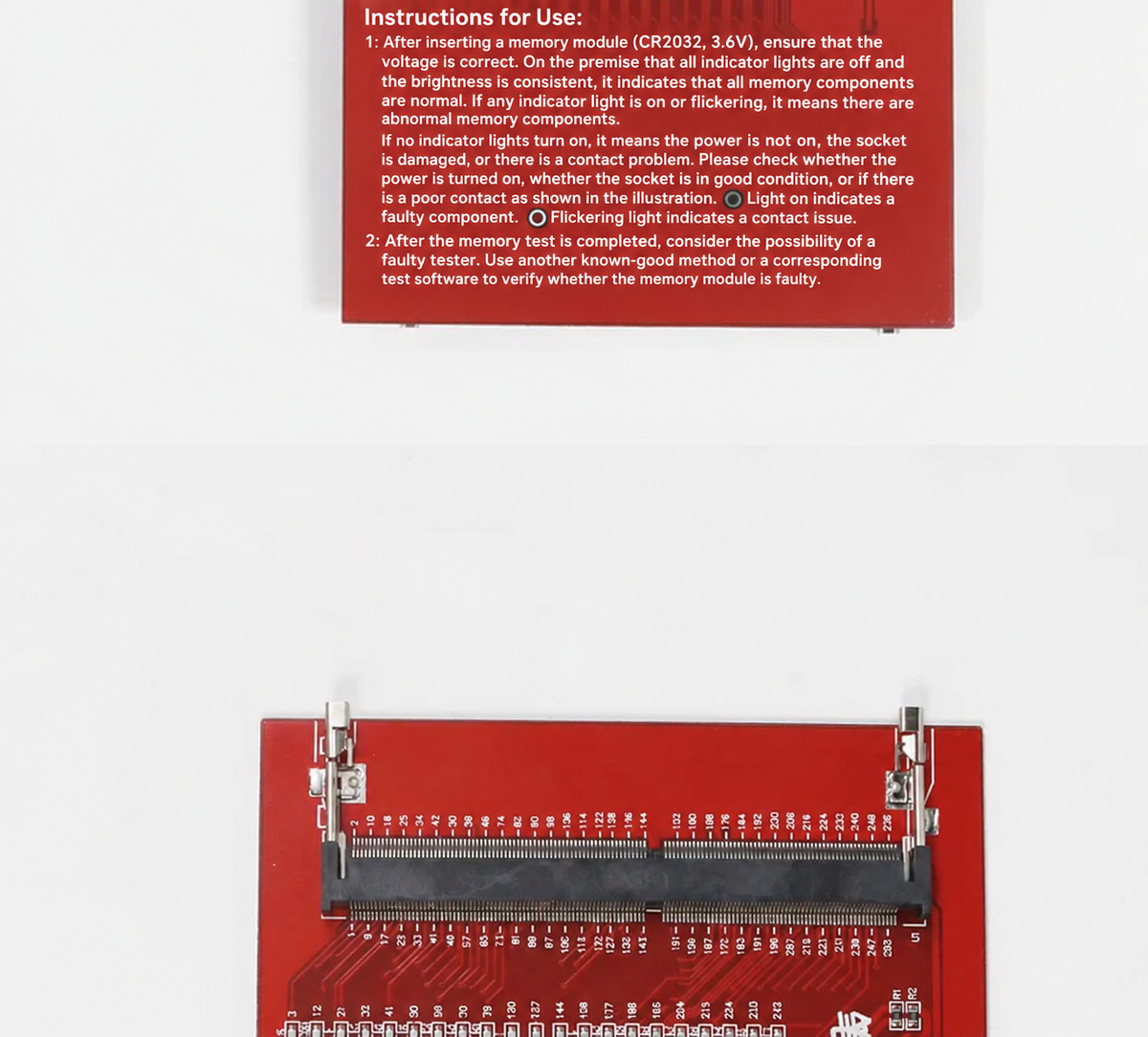

How It Works & LED Reading Guide:

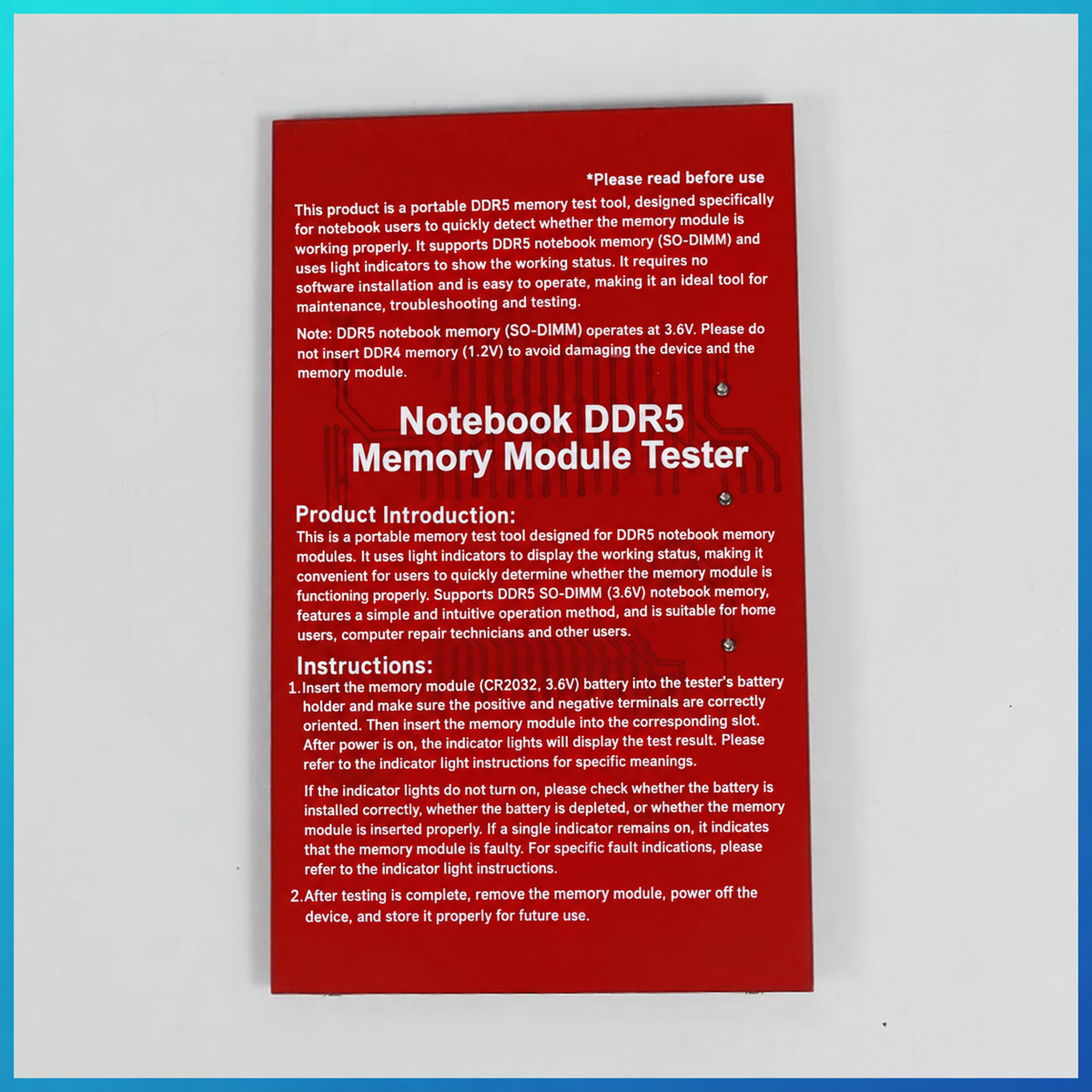

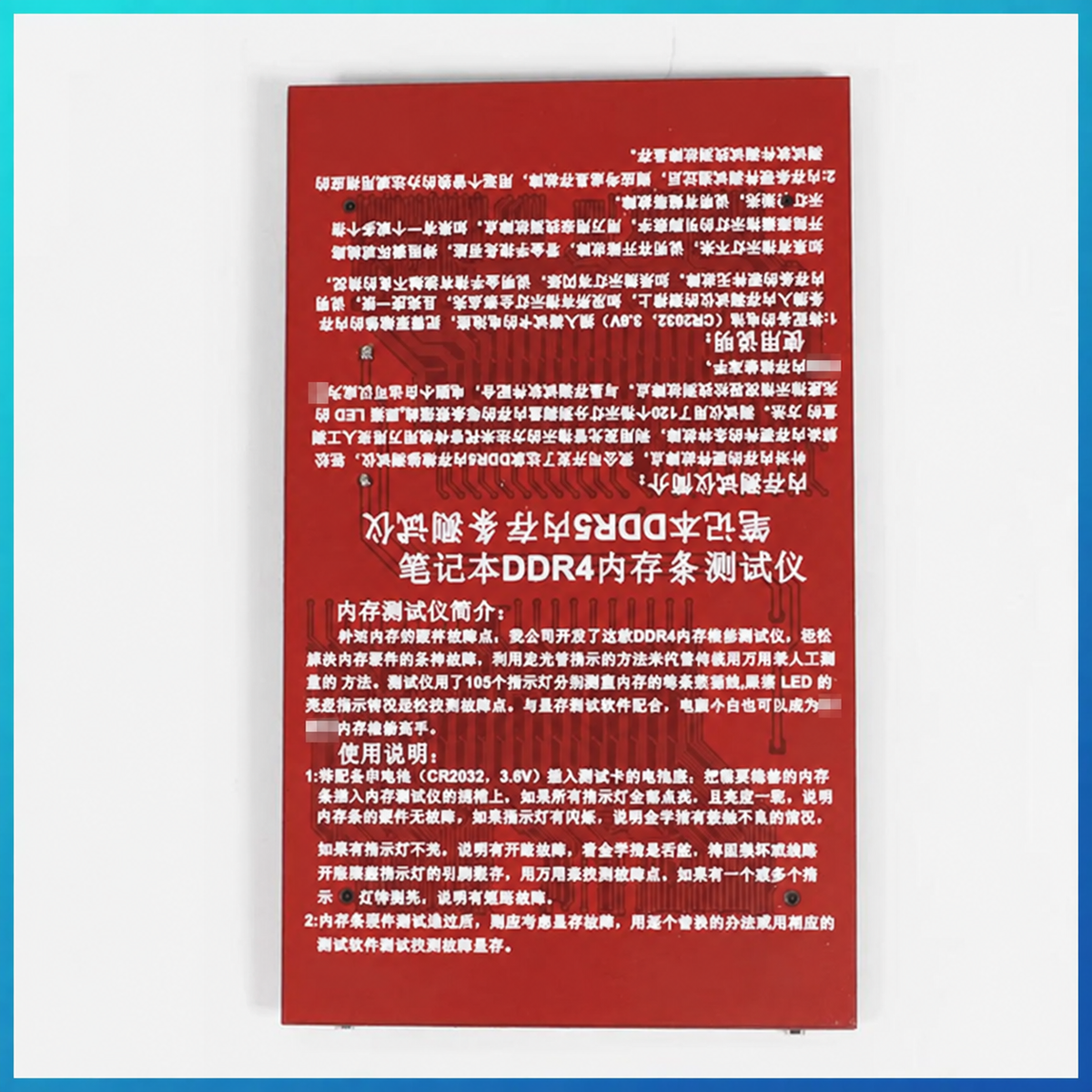

• Step 1: Install a CR2032 (3V or 3.6V) coin cell battery into the onboard battery holder (BT1) with positive (+) terminal facing up.
• Step 2: Insert the target DDR4 or DDR5 memory stick into its corresponding socket and press down firmly until the side metal clips lock into position.
• Step 3: Observe the LED indicator array:
  - All LEDs evenly and brightly lit: All data lines, address buses, resistor networks, and BGA chip connections are fully functional.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, damaged resistor pack, or cracked BGA ball beneath the corresponding memory chip.
  - Abnormally bright LED: Indicates a short circuit across gold fingers or an internal short within the memory IC.
  - Faint or flickering LED: Indicates poor solder contact, cold solder joint, or abnormal line resistance.

Package Includes:

• 1 × HMT-BT05 Laptop DDR4/DDR5 2-in-1 Memory Module Tester

Target Applications:

Essential for laptop repair technicians, hardware refurbishing facilities, IT recyclers, memory module quality inspection, and electronic diagnostic labs.
