HMT-TT01 Desktop DDR3 RAM Tester with LED Indicator

HMT-TT01 Desktop DDR3 DIMM Memory Module Tester with LED Indicator

The HMT-TT01 Desktop DDR3 Memory Tester by HuiMinTong is a professional standalone diagnostic tool engineered for computer repair technicians, IT recyclers, refurbishing centers, and PC hardware builders. Designed specifically for desktop DDR3 240-pin DIMM memory modules, this tester allows rapid, offline continuity and fault diagnosis to pinpoint open circuits, short circuits, damaged resistor networks, and BGA solder ball fractures on memory sticks without needing a functional PC motherboard.

Key Features:

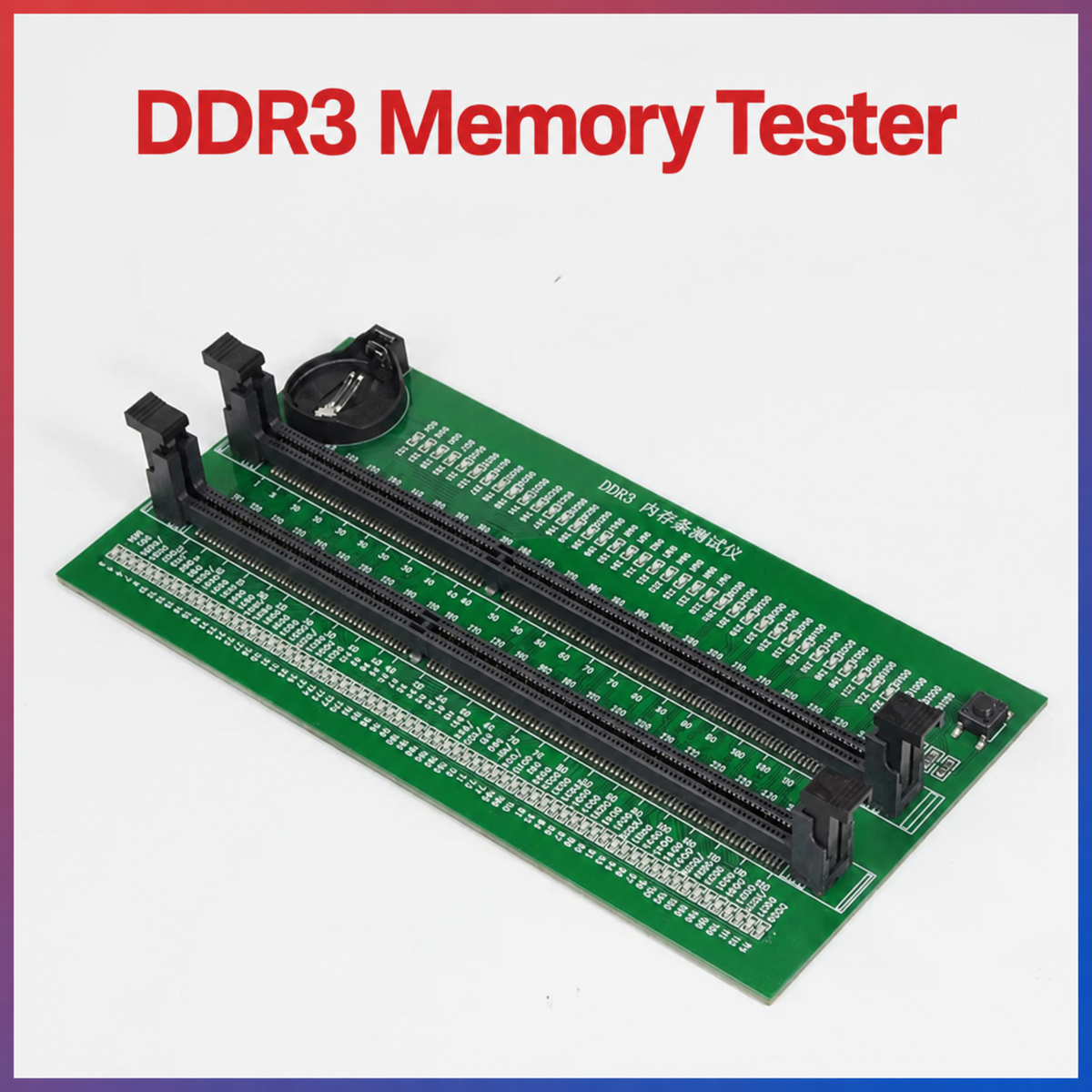

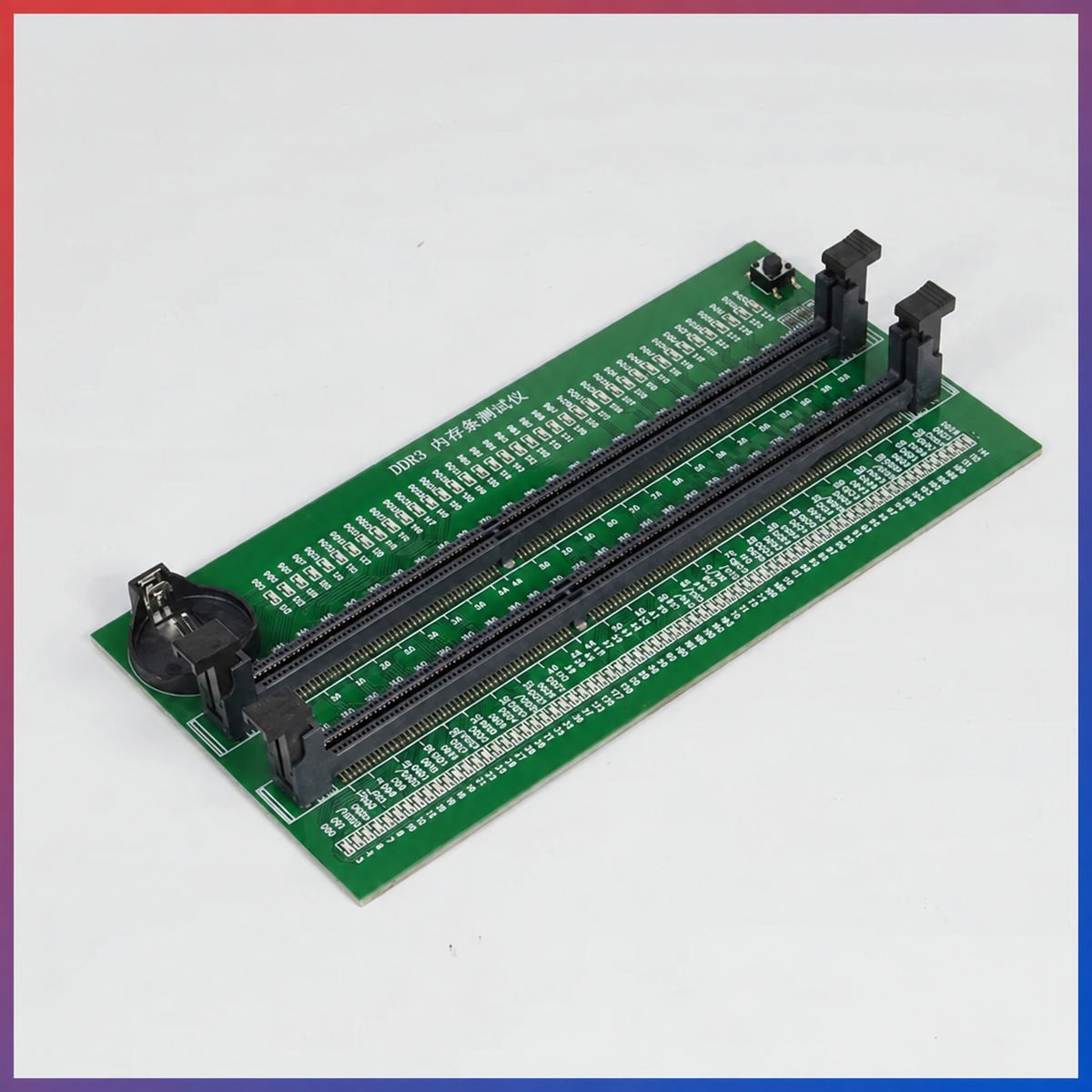

• Dual Desktop DDR3 DIMM Sockets: Features two standard 240-pin desktop DDR3 DIMM slots with dual heavy-duty locking latches, providing secure module seating and long-lasting durability across thousands of test insertions.
• Comprehensive LED Diagnostic Array: High-density surface-mount LED indicators correspond directly to data lines (DQ), strobe lines (DQS), address buses, clock lines, and control signals, delivering immediate visual verification of line integrity.
• Rapid Open & Short Circuit Detection: Quickly reveals broken copper traces, damaged pull-up/pull-down resistor packs, fractured BGA solder balls beneath memory ICs, and pin-to-pin shorts before installing RAM into client systems.
• Portable CR2032 Battery Operation: Powered by a single onboard CR2032 3V coin cell battery (holder located on the top left), enabling completely standalone, cable-free offline testing anywhere on the workbench.
• One-Touch Push-Button Testing: Integrated momentary tactile switch activates the test sequence instantly, allowing efficient batch testing of multiple memory modules in seconds.
• Prevents System Boot Failures & BSODs: Rapidly filters out defective, intermittent, or degraded DDR3 memory sticks responsible for black screens, memory error beeps, random crashes, and blue screen errors.

Product Specifications:

• Model: HMT-TT01
• Brand: HuiMinTong (HMT)
• Compatible Memory: Desktop DDR3 240-Pin DIMM Memory Modules
• Diagnostic Display: Multi-Channel SMD LED Indicator Matrix with Silk-Screened Pin Markings
• Power Supply: 1 × CR2032 3V Coin Cell Battery (Not included)
• Socket Configuration: 2 × Standard 240-Pin Desktop DDR3 DIMM Sockets with Retention Latches
• Testing Mode: One-Touch Tactile Push-Button Instant Test
• PCB Build: High-Density Multi-Layer Industrial Green PCB
• SKU: 401016-01

How It Works & LED Reading Guide:

• Step 1: Install a standard 3V CR2032 coin cell battery into the onboard battery holder with the positive (+) terminal facing up.
• Step 2: Ensure the gold fingers of the target DDR3 memory module are clean, align the notch, and firmly insert the RAM stick into the DIMM socket until both side latches snap into place.
• Step 3: Press the test button and observe the LED indicator array:
  - All LEDs evenly and brightly illuminated: All data lines, address buses, resistor networks, and BGA solder connections on the memory module are fully functional.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, burnt resistor pack, or cracked BGA solder joint on the corresponding data line.
  - Abnormally bright LED: Indicates a short circuit across gold fingers or an internal short within the memory IC.
  - Dim or flickering LED: Indicates poor gold finger contact, high line resistance, or a cold solder joint.

Package Includes:

• 1 × HMT-TT01 Desktop DDR3 Memory Module Tester Board

Target Applications:

Ideal for computer repair shops, PC recycling facilities, memory module sorting and refurbishment, electronic diagnostics, and IT hardware maintenance departments.
