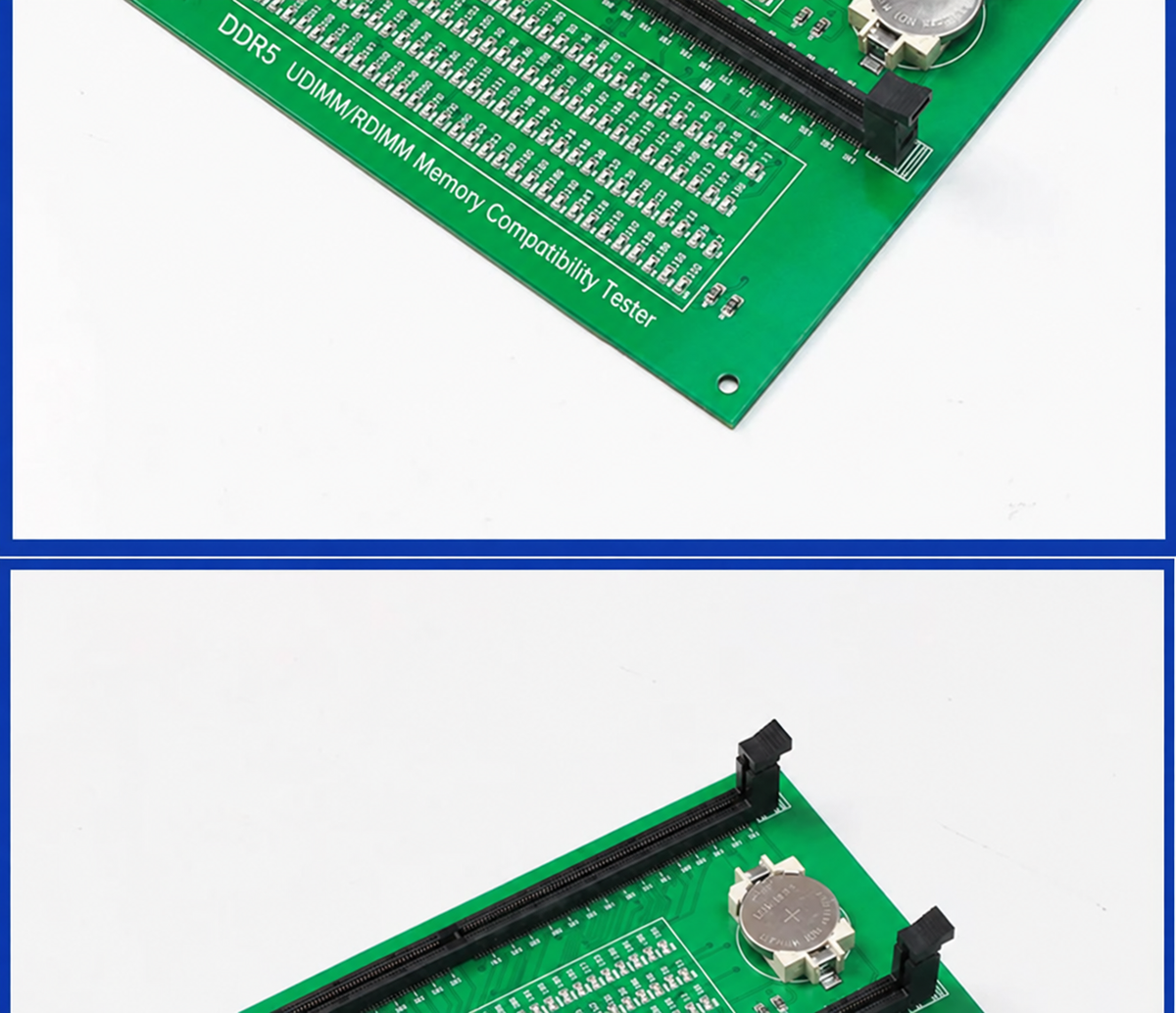

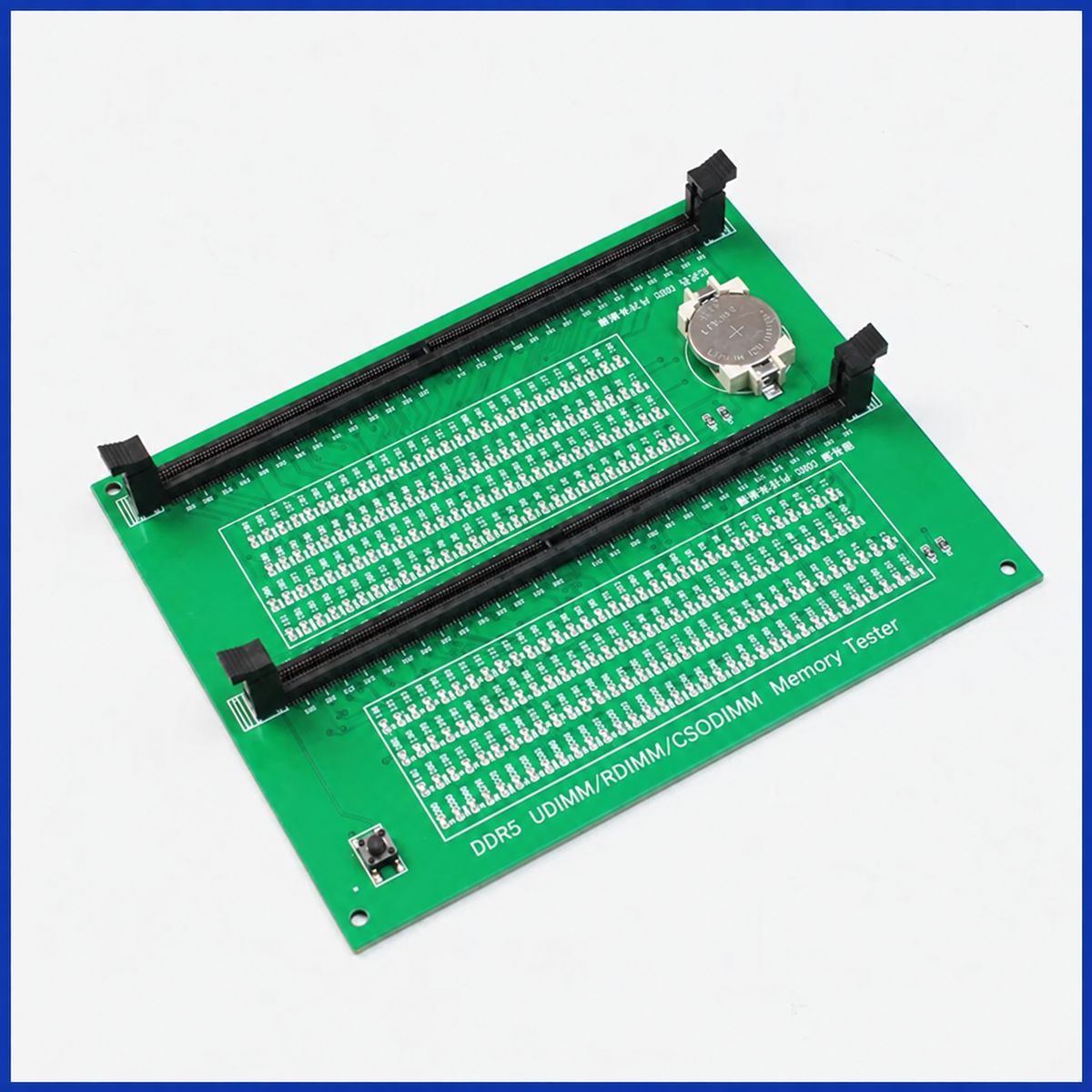

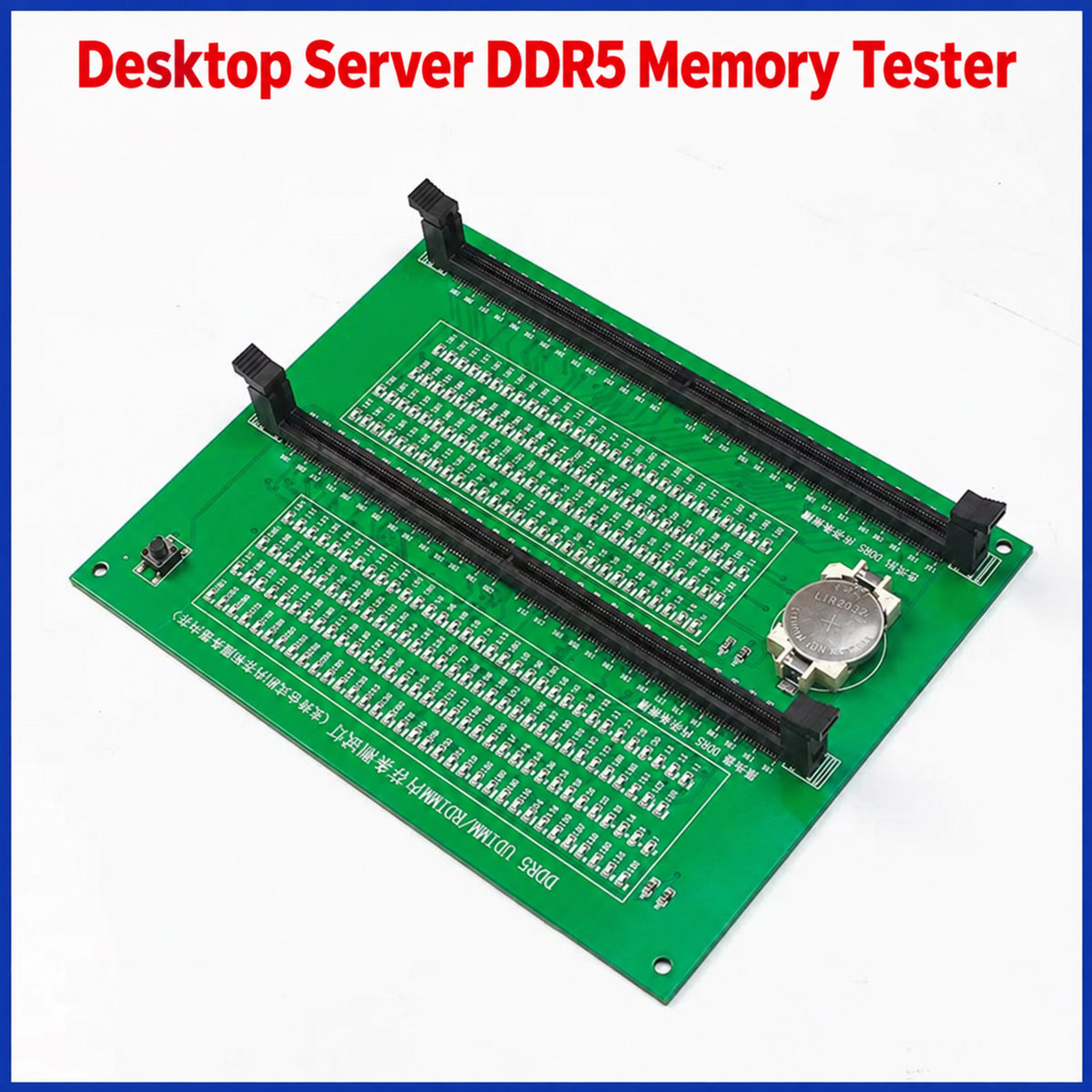

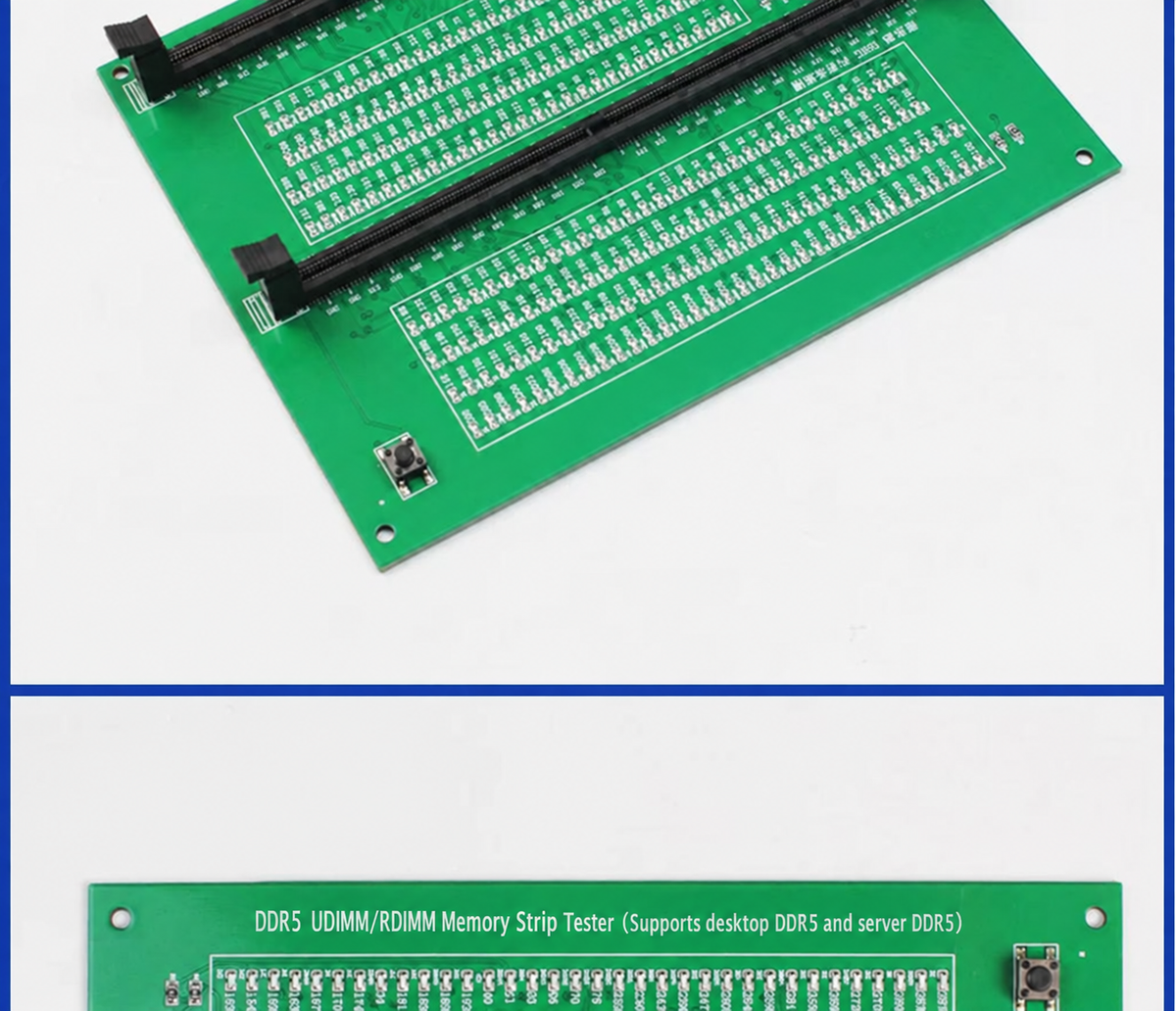

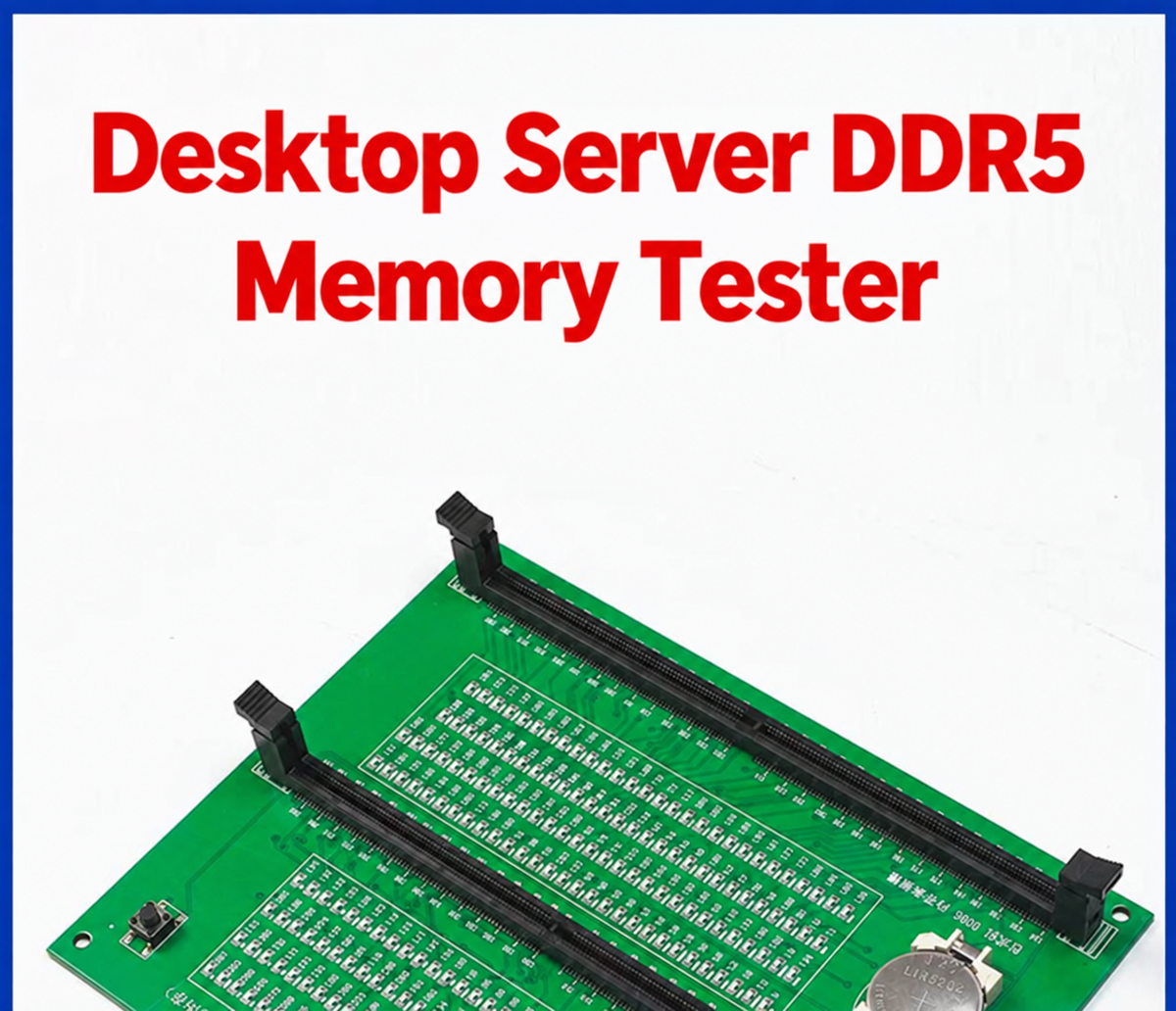

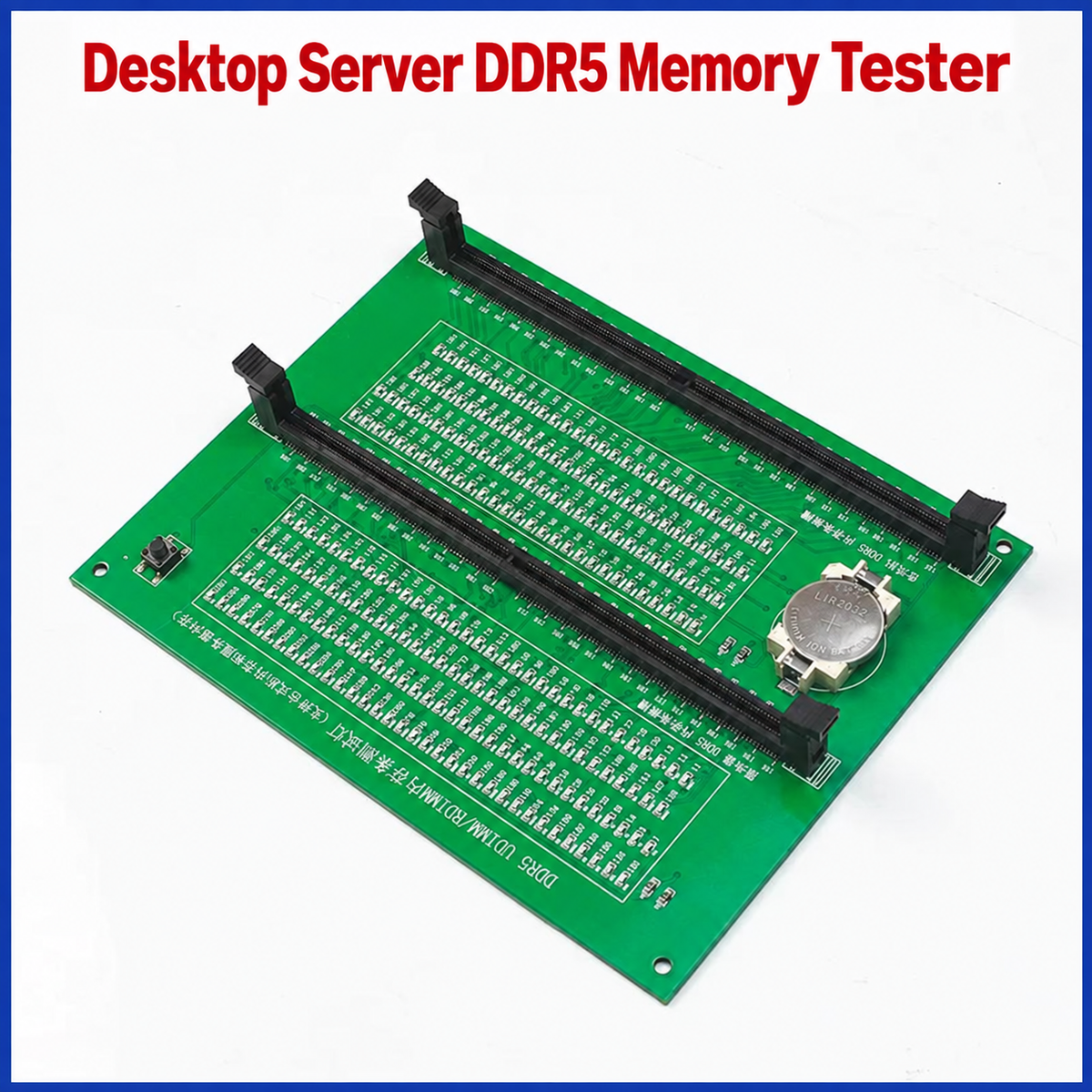

HMT-TT06 2-in-1 DDR5 Desktop & Server RAM Module Tester with LED Indicator

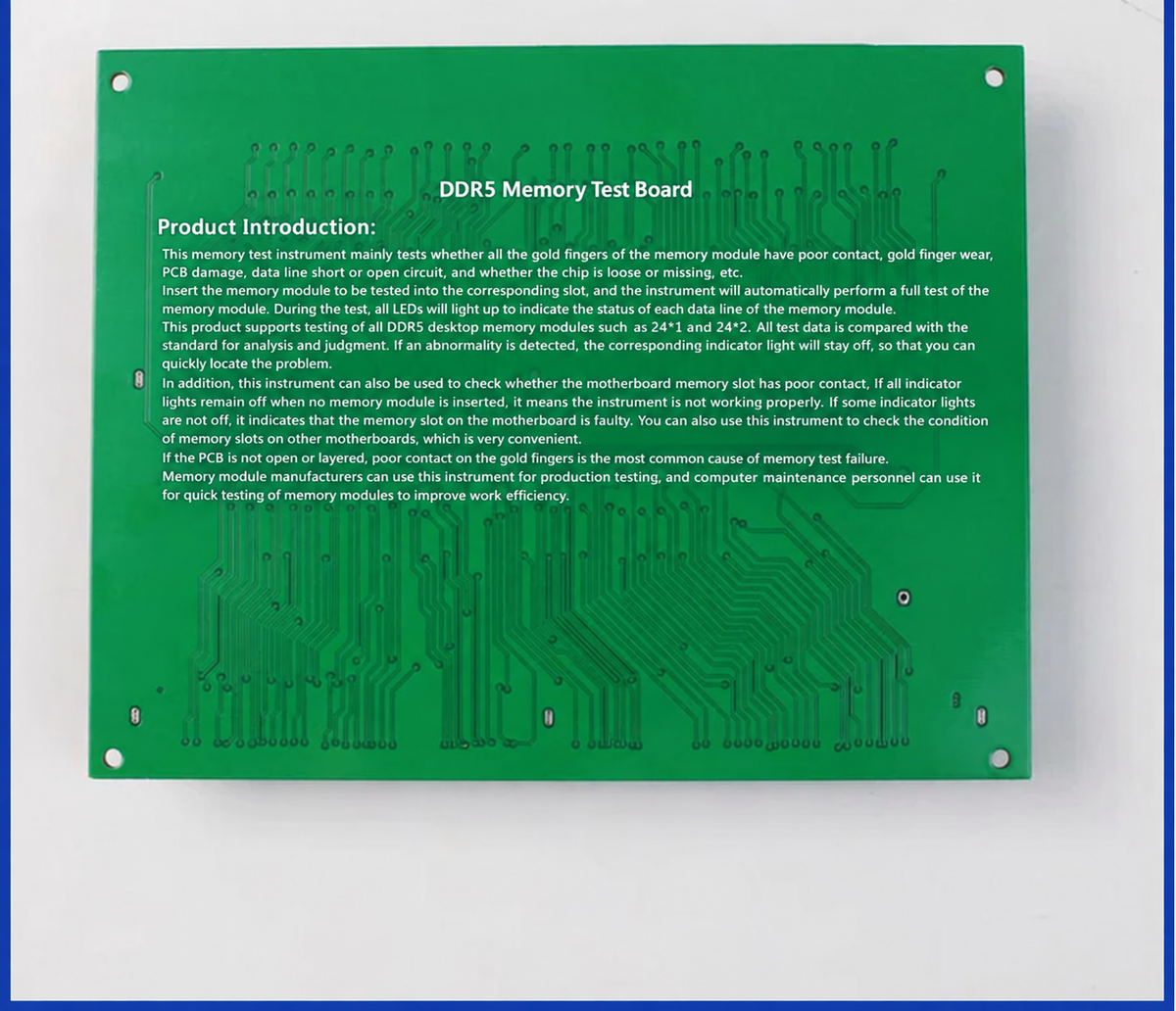

The HMT-TT06 2-in-1 DDR5 Desktop & Server Memory Tester by HuiMinTong is an advanced diagnostic instrument designed for computer repair shops, server maintenance technicians, IT recyclers, and electronics hardware engineers. Engineered specifically for next-generation DDR5 memory, this multi-functional diagnostic board enables rapid, offline continuity and fault diagnosis for both Desktop DDR5 UDIMMs and Enterprise Server DDR5 RDIMMs on a single high-precision testing platform.

Key Features:

• 2-in-1 Desktop & Server Dual Architecture: Seamlessly tests standard unbuffered desktop DDR5 (UDIMM) and enterprise registered ECC server DDR5 (RDIMM) modules, eliminating the need to carry separate diagnostic boards.

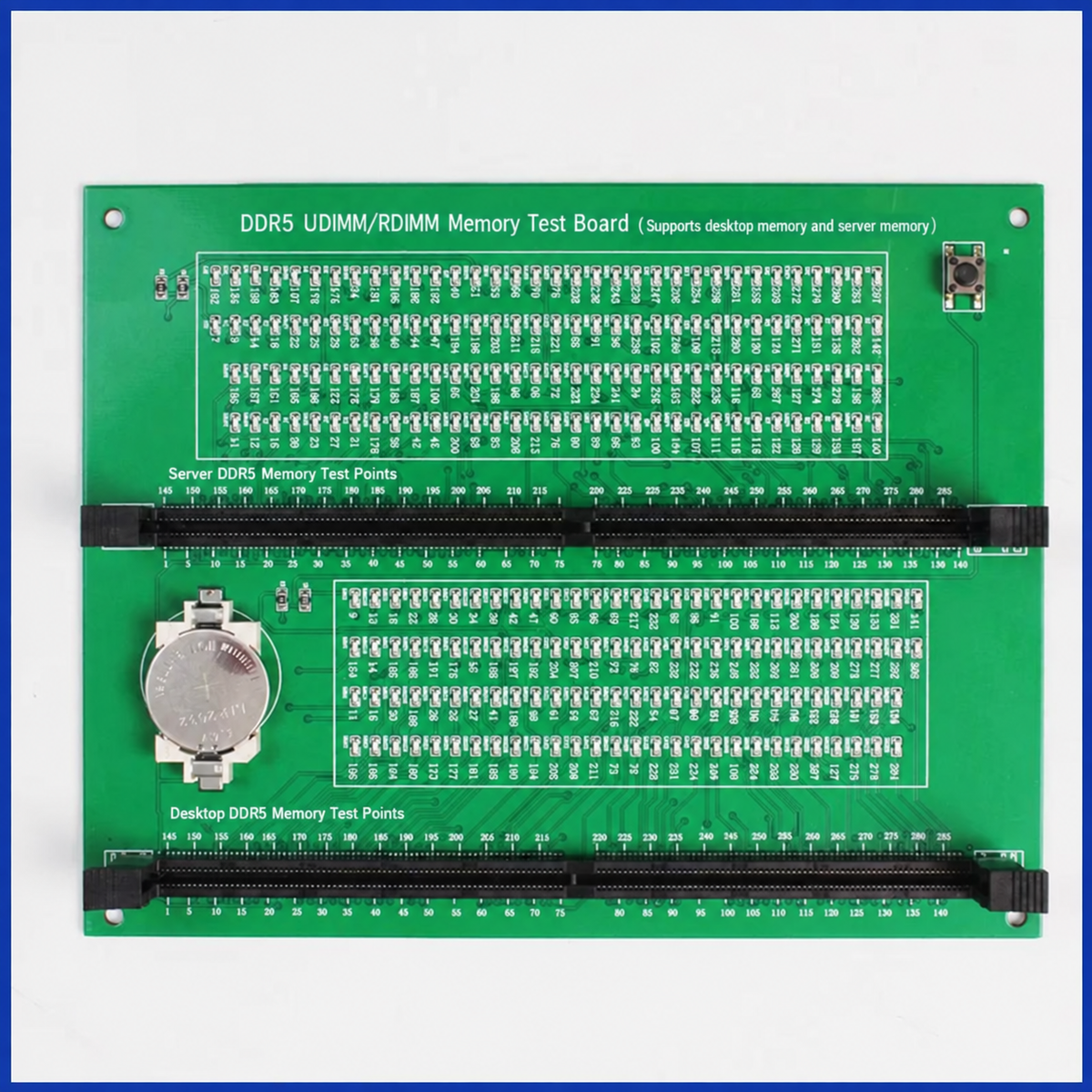

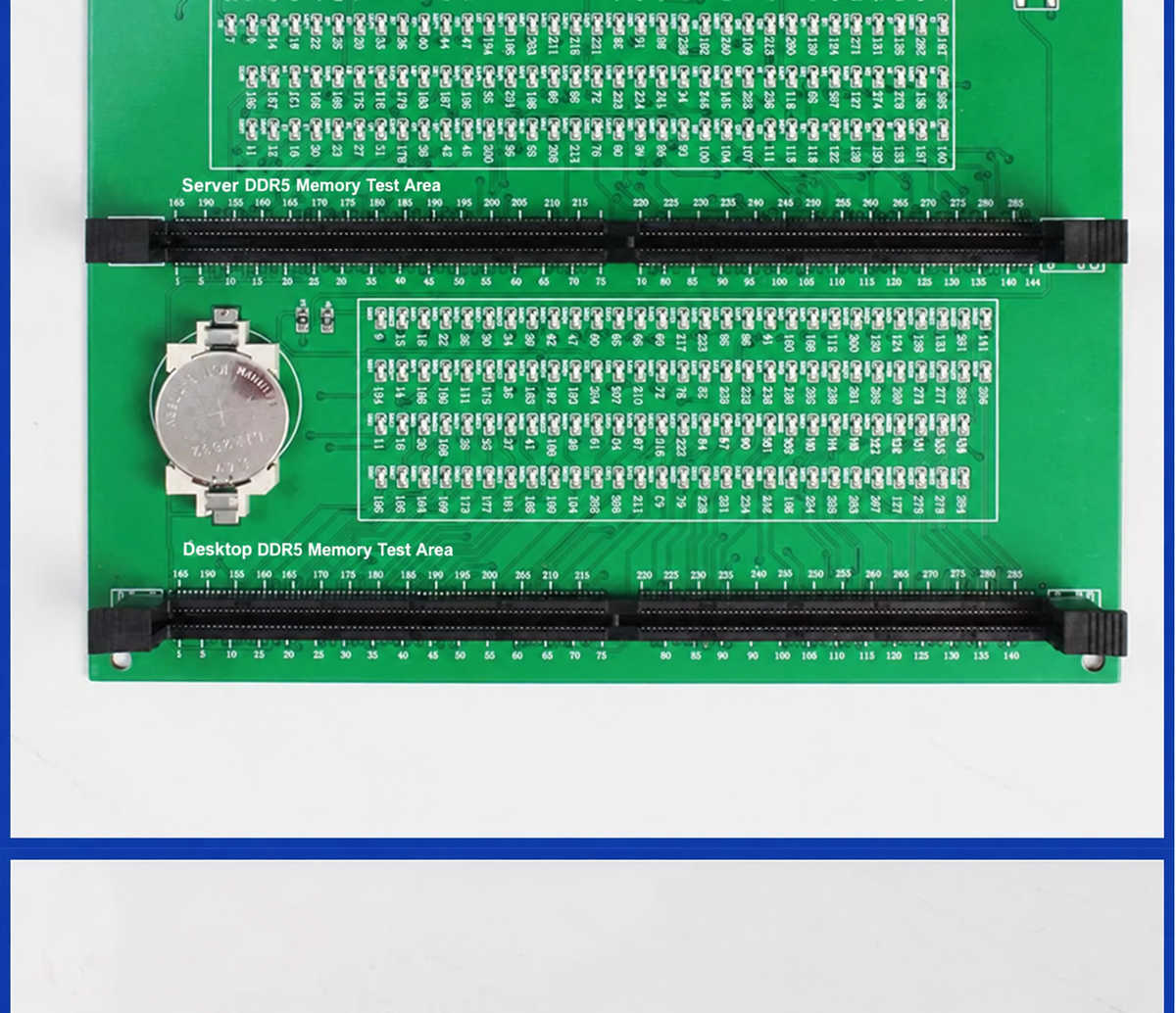

• Comprehensive LED Diagnostic Array: High-density surface-mount LED indicators map directly to individual data bus lines (DQ), data strobes (DQS), command/address (CA) lines, clock lines, and power/ground rails, providing immediate visual verification of line continuity.
• Rapid Open & Short Fault Detection: Instantly reveals broken copper traces, burnt pull-up/pull-down resistor networks, fractured BGA solder balls beneath memory ICs, and pin-to-pin shorts before installing RAM into valuable client motherboards or enterprise servers.
• Safe Standalone Offline Testing: Allows technicians to safely test questionable, pulled, or returned memory sticks completely offline without needing a functional PC or server motherboard, protecting expensive host hardware from potential short-circuit damage.
• Durable Industrial Locking Sockets: Equipped with robust 288-pin DDR5 memory sockets with reinforced mechanical locking clips for secure module retention, low insertion wear, and long-lasting durability across thousands of test cycles.
• Prevents System Boot Loops & BSODs: Efficiently filters out damaged, erratic, or degraded DDR5 memory sticks responsible for "no display" boot hangs, continuous memory beeping codes, server post errors, and blue screen crashes.

Product Specifications:

• Model: HMT-TT06
• Brand: HuiMinTong (HMT)
• Compatible Memory: Desktop DDR5 UDIMM (288-Pin) & Server DDR5 RDIMM (288-Pin)

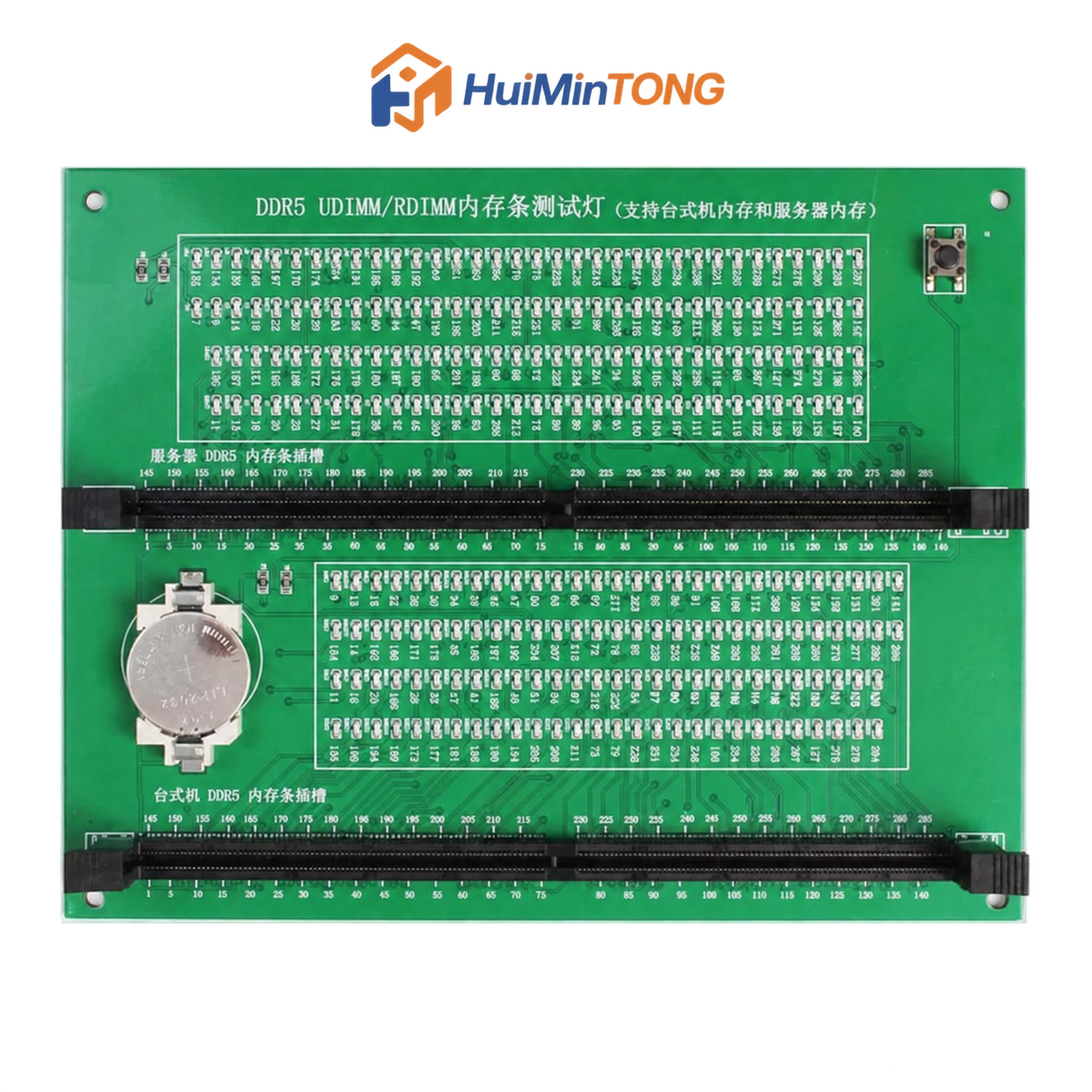

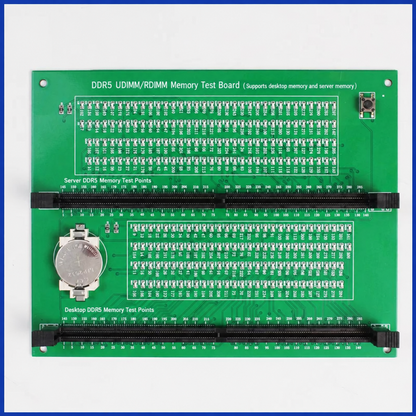

• Diagnostic Display: Multi-Channel High-Density SMD LED Indicator Matrix
• Socket Type: Precision 288-Pin DDR5 Sockets with Locking Retention Clips

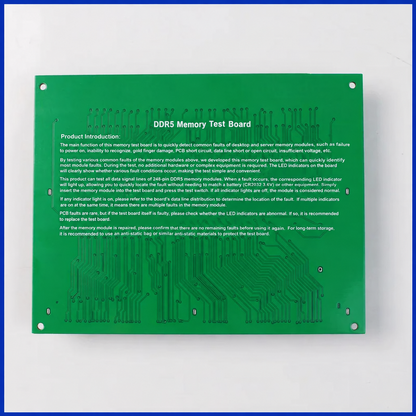

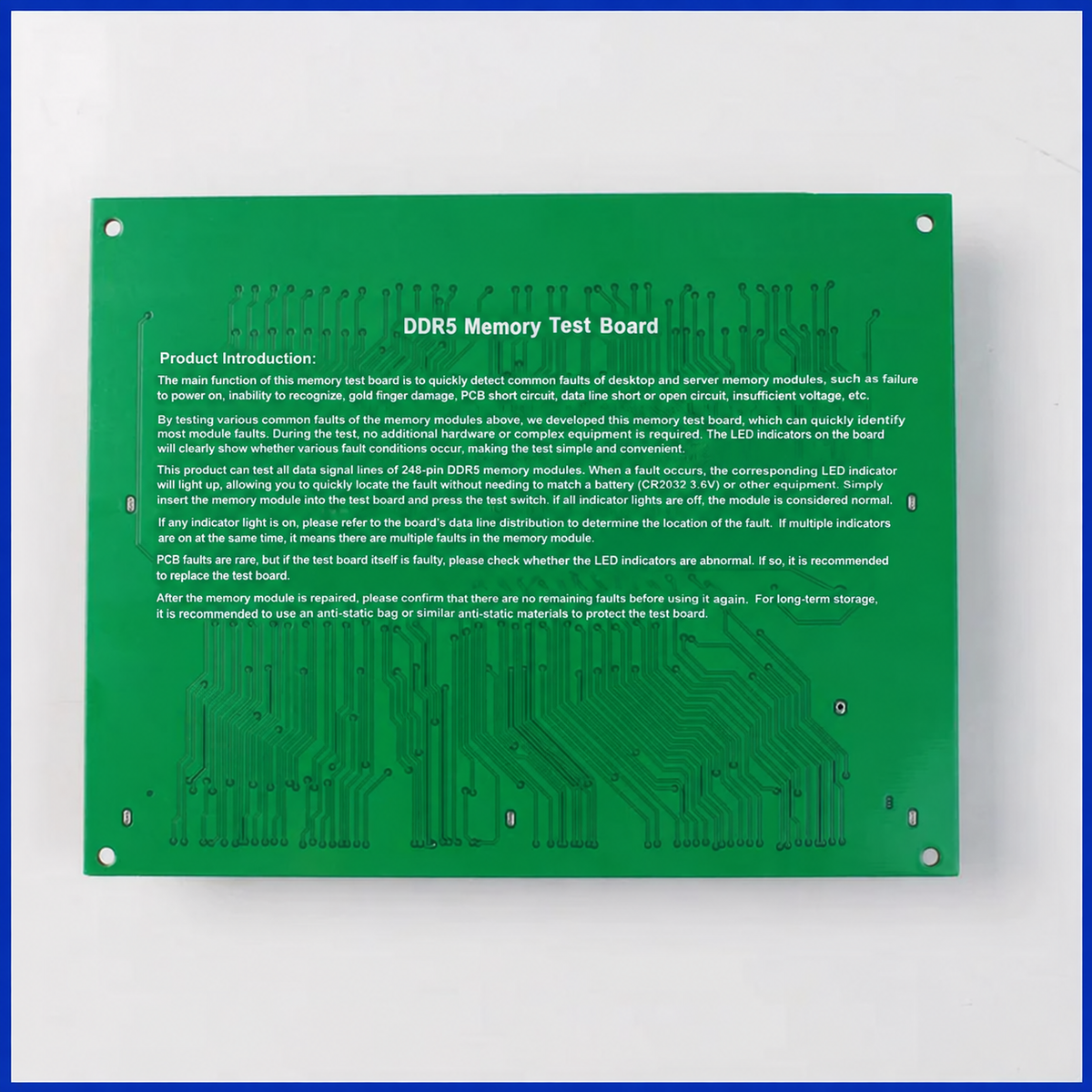

• PCB Build: Multi-Layer Industrial PCB with Silk-Screened Signal Identification
• SKU: 401016-06

How It Works & LED Reading Guide:

• Step 1: Supply power to the tester board using the onboard power interface.
• Step 2: Ensure the gold contacts of the target DDR5 memory module are clean, align the key notch, and firmly press the module into the socket until the side latches snap into place.
• Step 3: Observe the LED indicator array:
  - All LEDs brightly and evenly lit: All data lines, address buses, resistor networks, and BGA chip solder connections are intact and fully functional.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, burnt resistor pack, or cracked BGA solder joint on the corresponding signal line.
  - Abnormally bright LED: Indicates a short circuit across gold fingers or an internal short within the memory IC.
  - Dim or flickering LED: Indicates high line resistance, poor gold finger contact, or a cold solder joint.

Package Includes:

• 1 × HMT-TT06 2-in-1 DDR5 Desktop & Server Memory Tester Board

Target Applications:

Ideal for computer repair technicians, enterprise server maintenance teams, IT hardware recyclers, memory module sorting and refurbishment centers, and electronics diagnostic labs.
