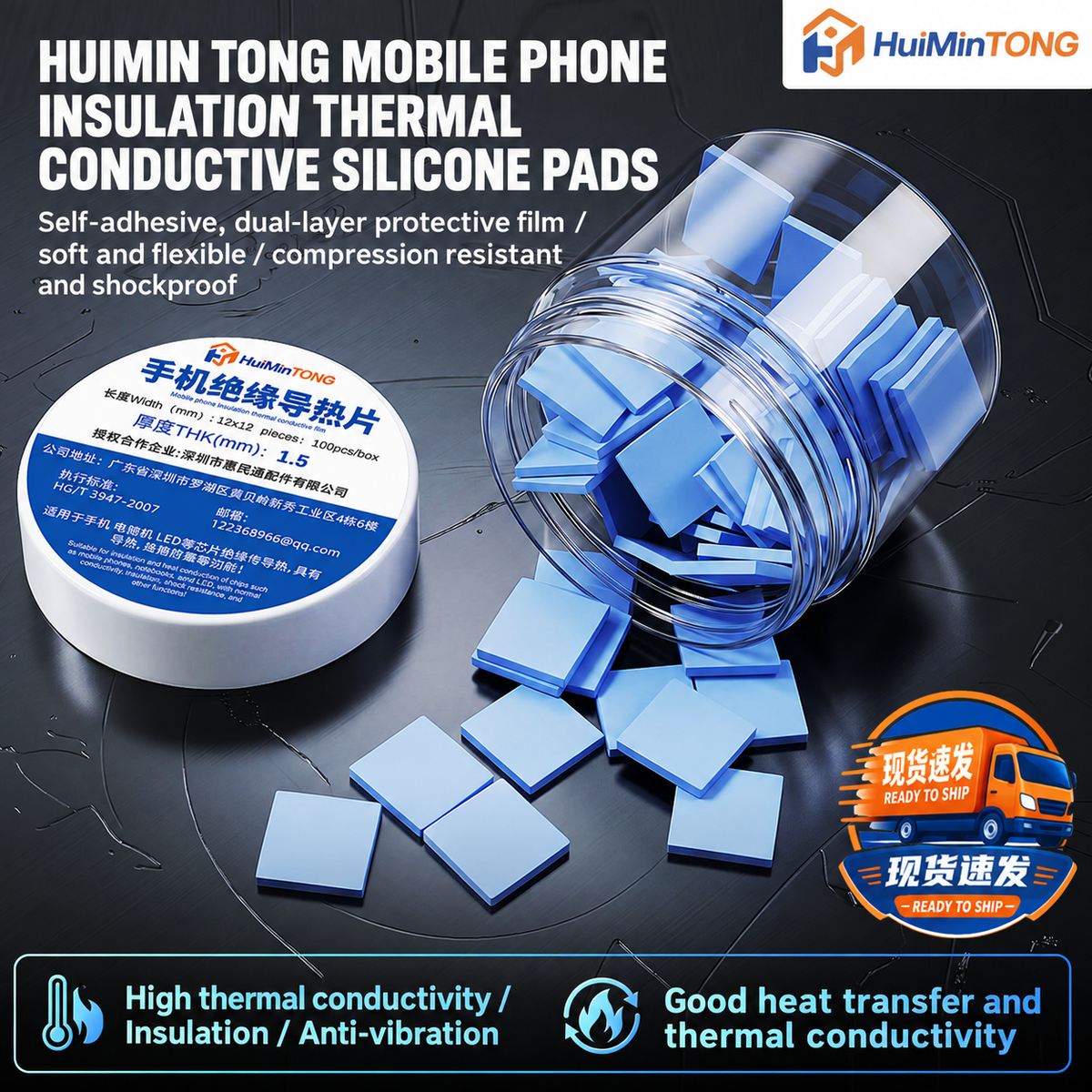

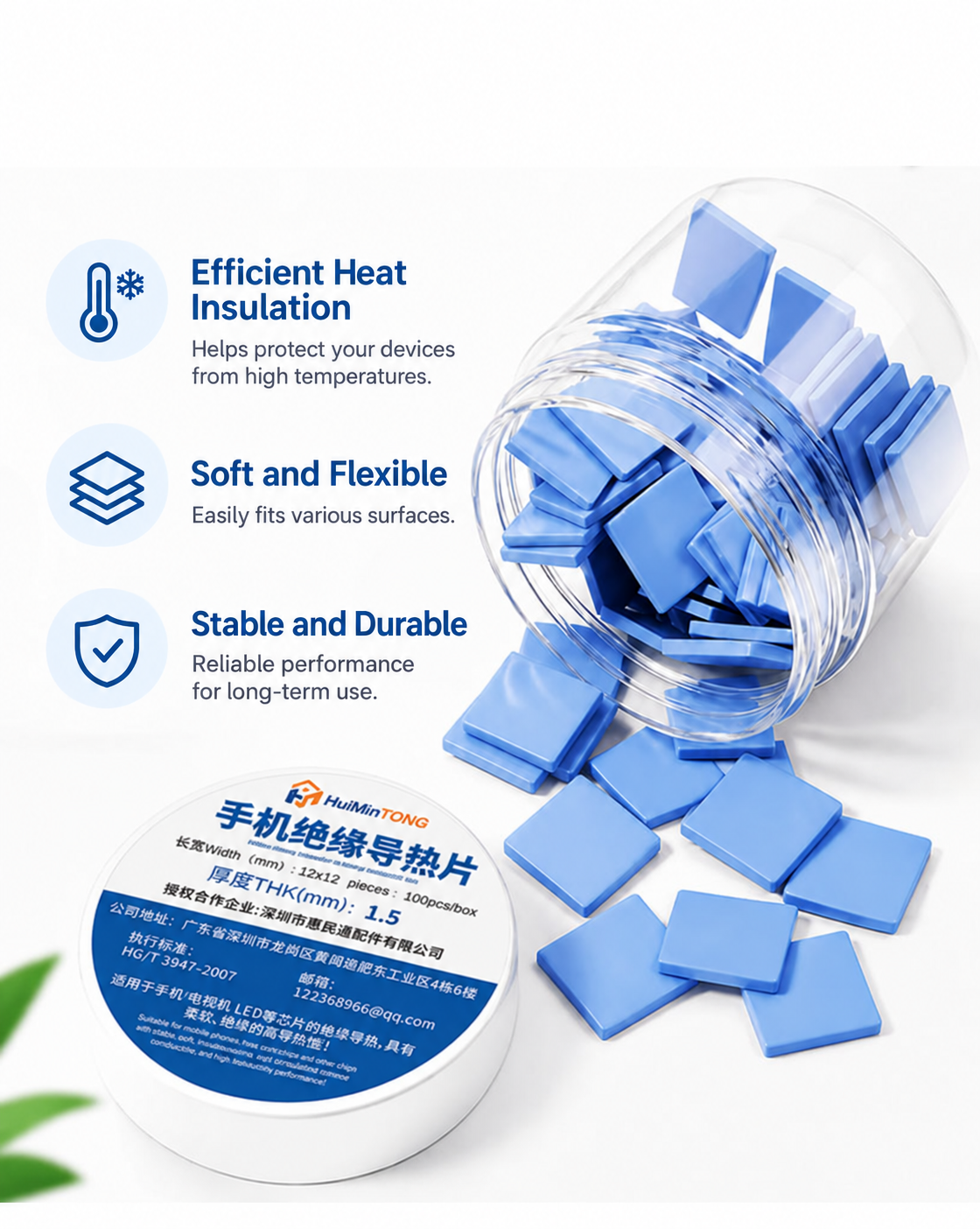

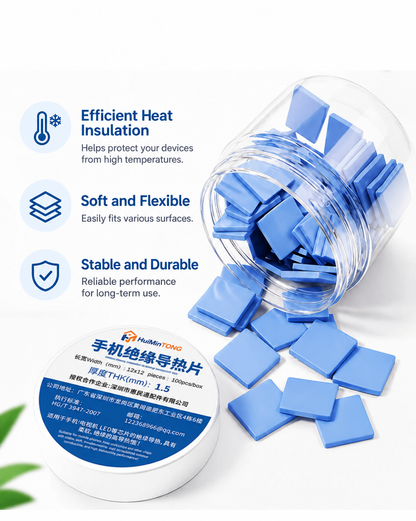

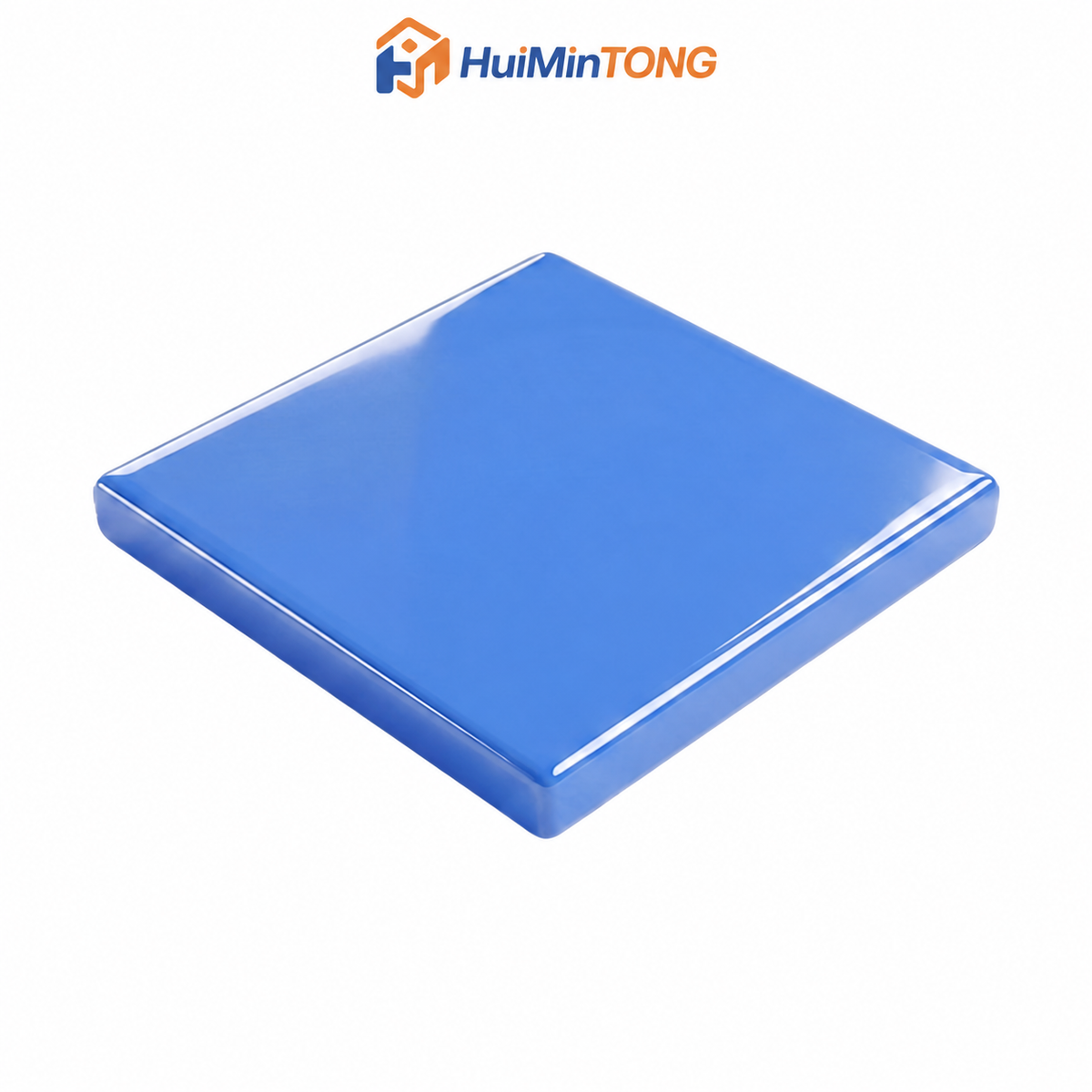

Some boards come back from a repair running warm, and the fix is rarely more paste. It is a clean layer between the chip and the shield that moves heat without shorting anything. That is what this HuiMinTong Insulated Thermal Silicone Sheet does. The pad is soft and slightly tacky, so it stays where you place it, fills the uneven gap between a chip and the metal above it, and keeps the two electrically apart while heat passes through.
Because it is a sheet and not a paste, you cut the shape you need with a blade or scissors, drop it in, and close the phone up. No mess on the board, no cleanup, no waiting for it to cure.
Why You'll Like It
Heat Out, Current Blocked - conducts heat away from the chip while staying electrically insulating.
Cut To Fit - trim any shape with scissors or a blade for CPU, PMIC or shield areas.
Soft And Conformable - presses into uneven gaps so contact stays full across the surface.
Clean To Work With - no paste smear, no curing time, easy to lift and reposition.
Reusable - holds its shape and tack, so a test fit does not waste the pad.

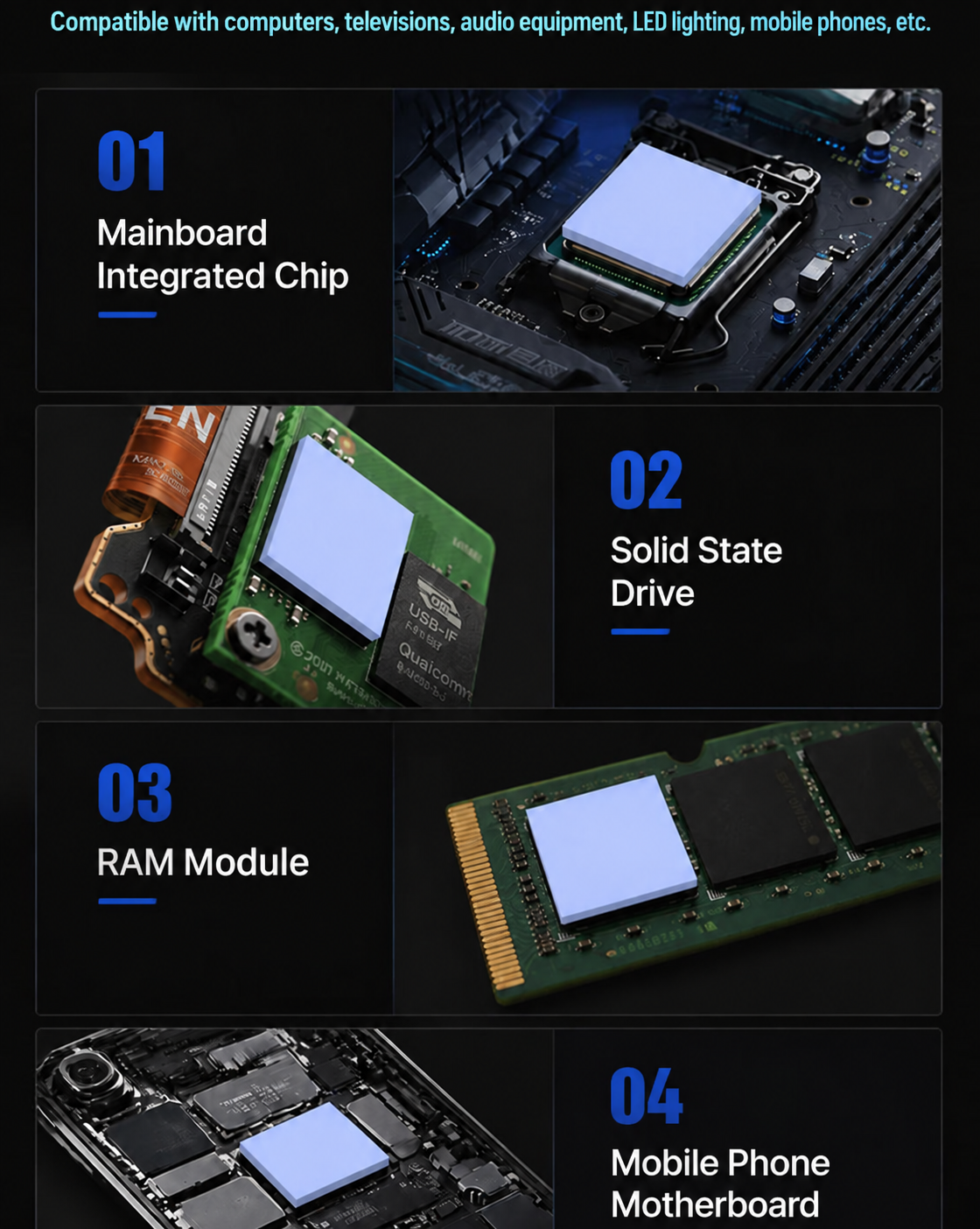

Made For
Phone and tablet board-level thermal repair
Insulating between chips, shields and metal frames
Laptop, console and small electronics rework benches
Specifications
Brand: HuiMinTong
Material: thermal silicone
Type: insulated thermal pad sheet

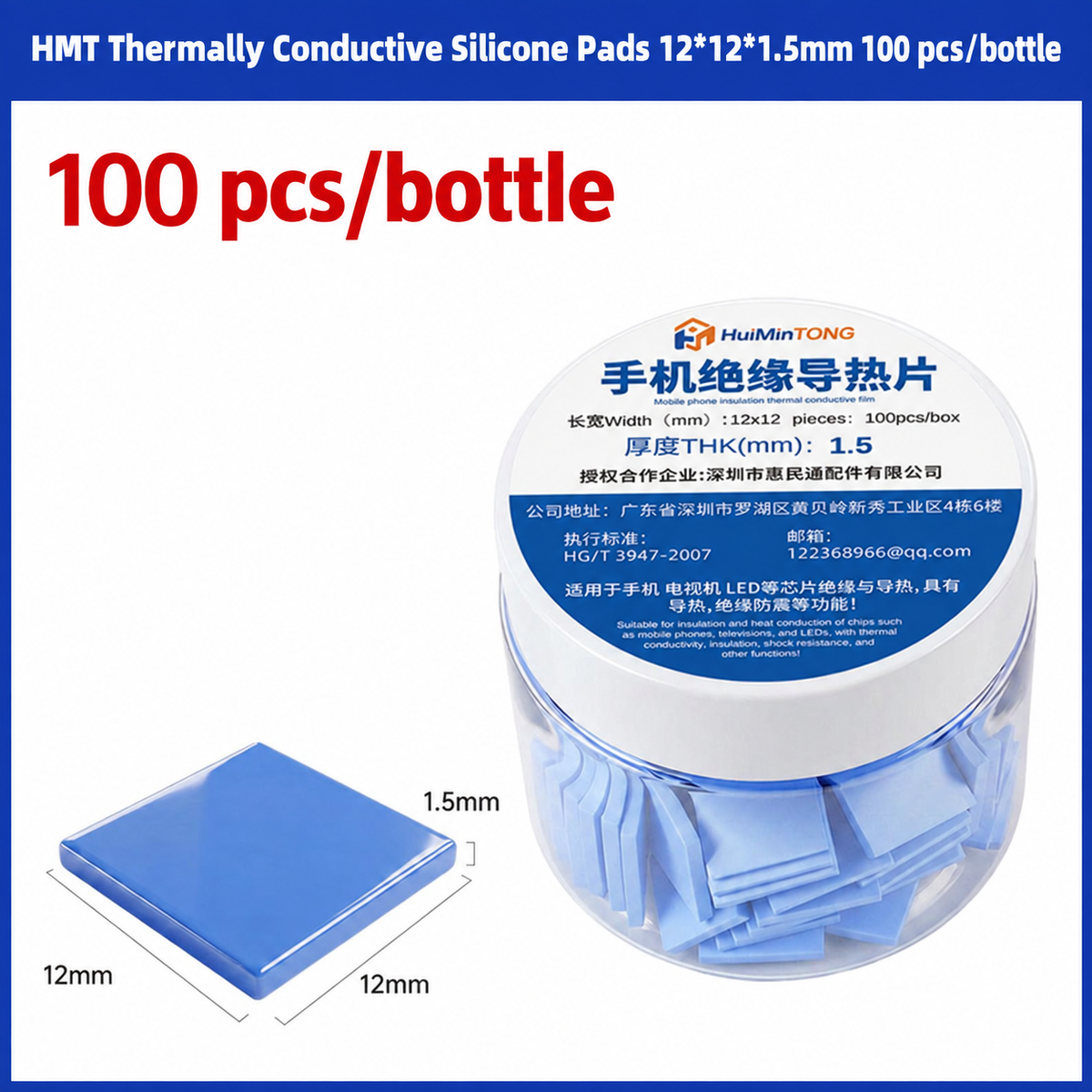

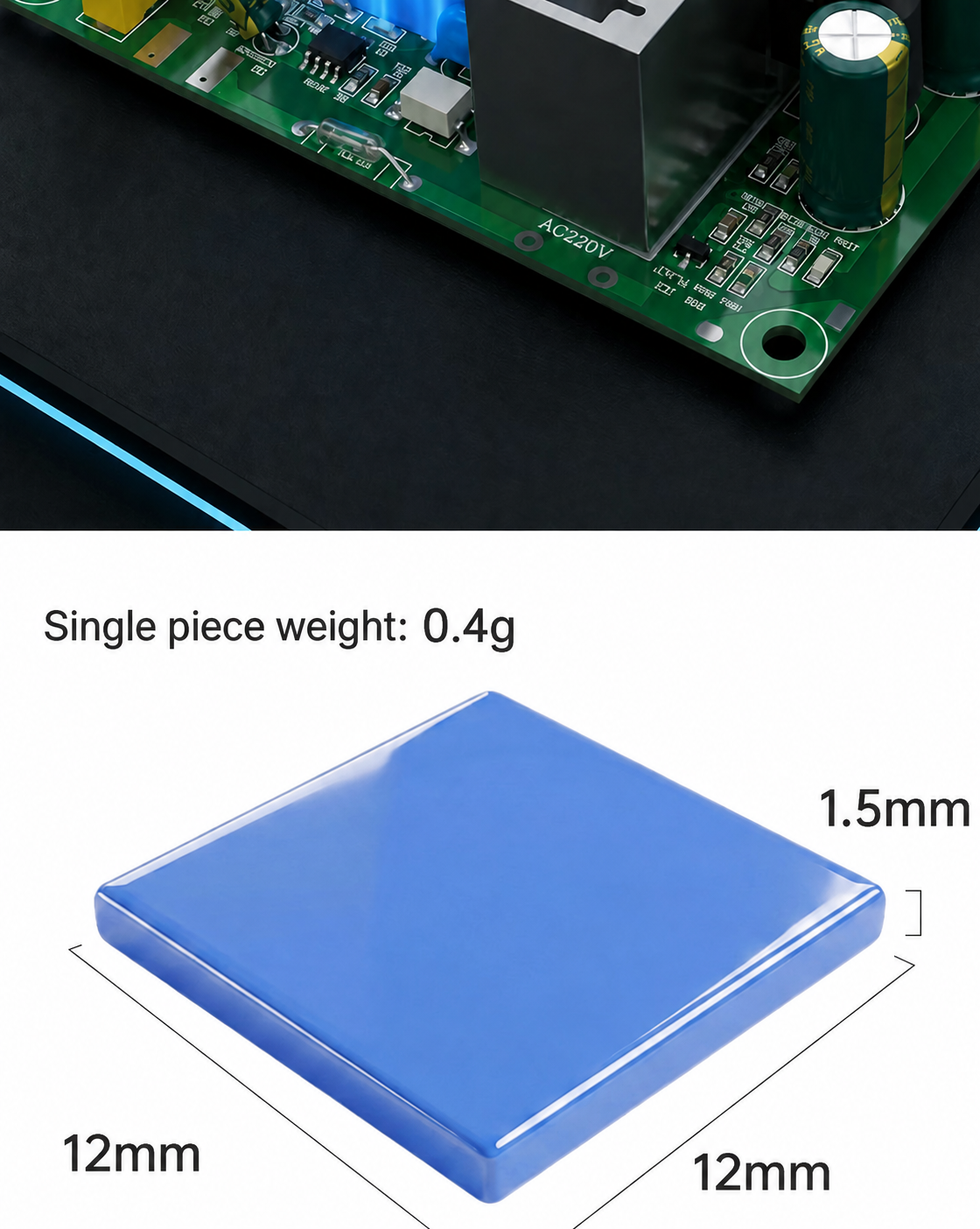

Size: 12×12×1.5mm
100 pieces per bottle
In The Box
1 x insulated thermal silicone sheet

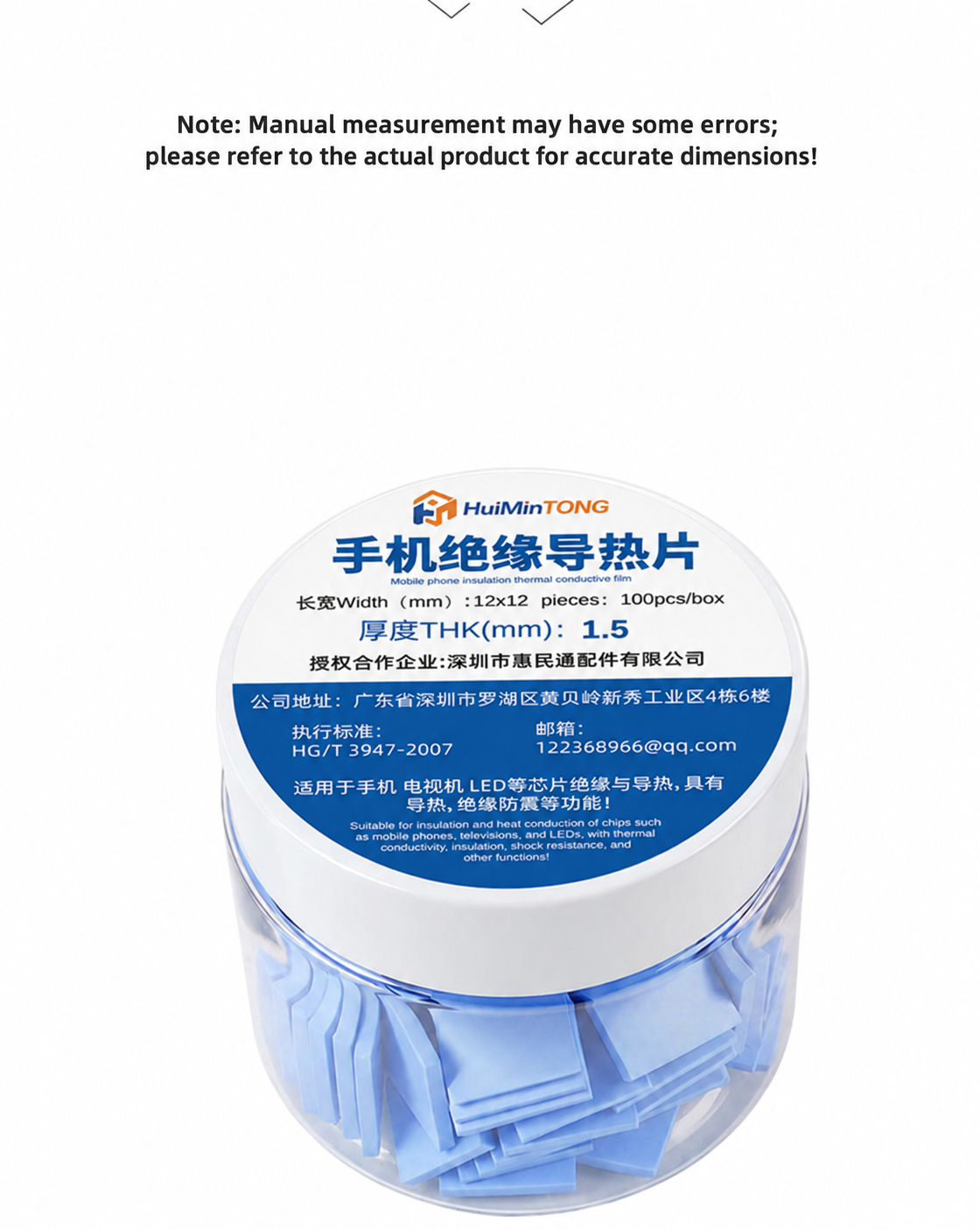

Note: manual measurement may have a slight error. Please refer to the actual product for exact dimensions.
