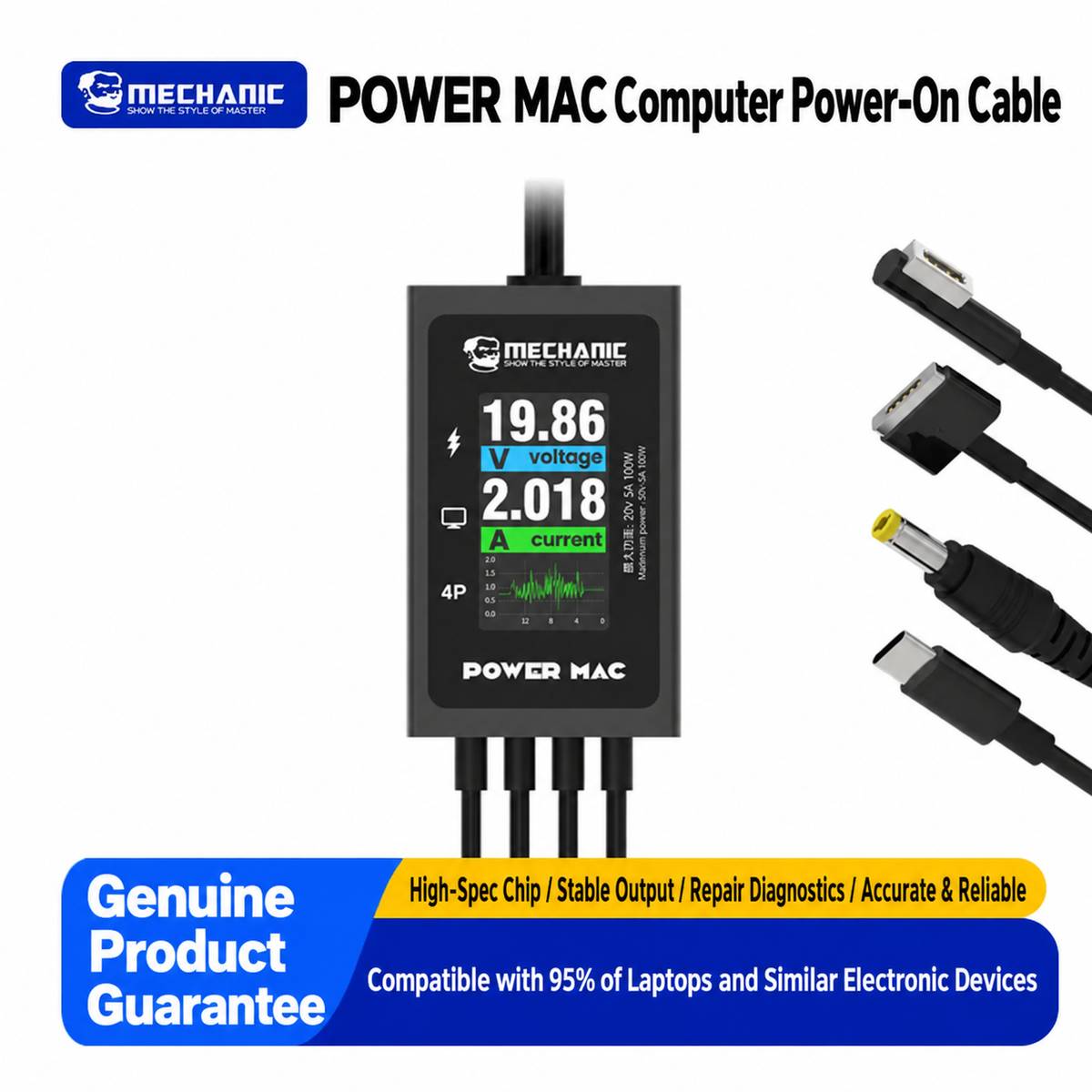

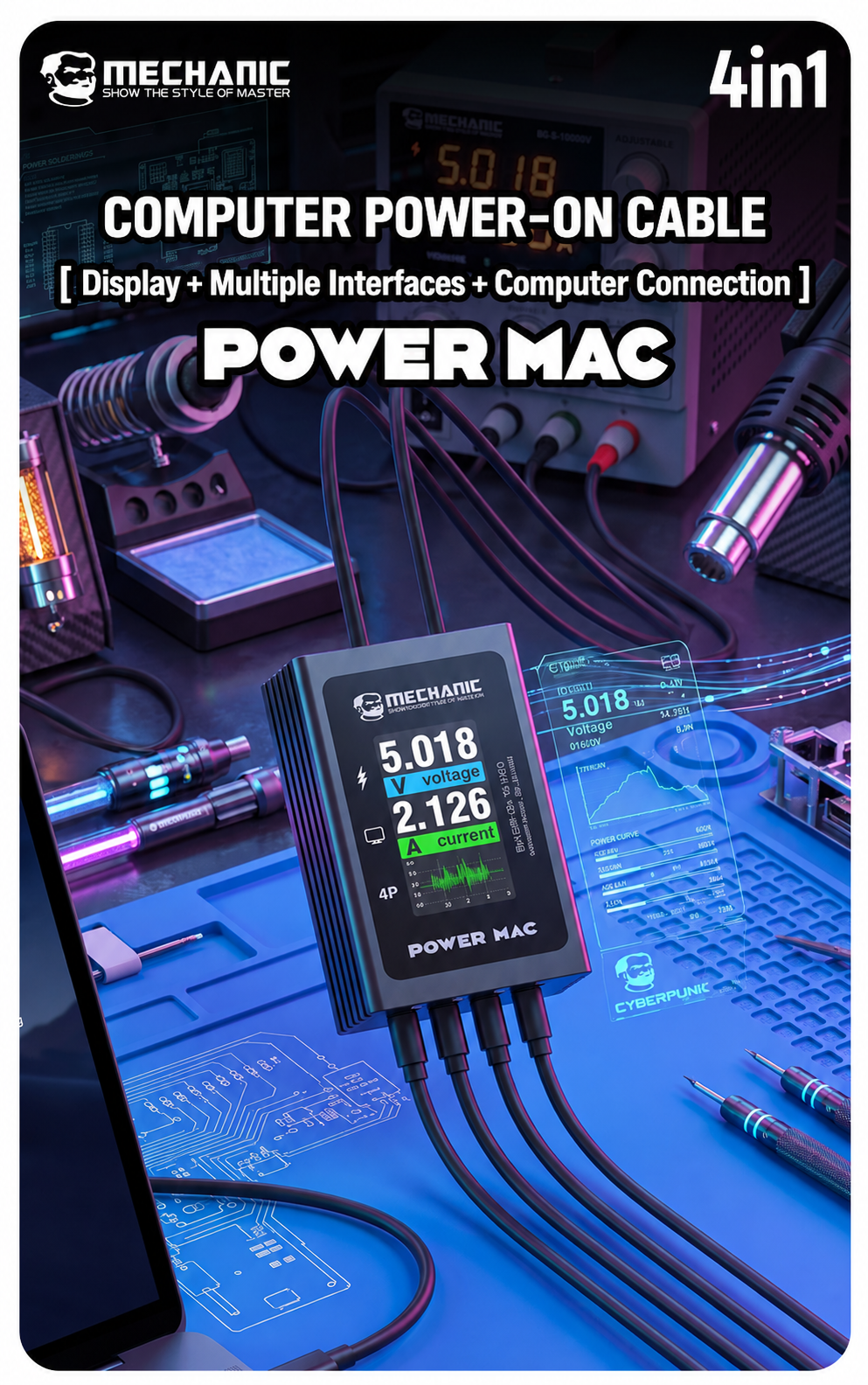

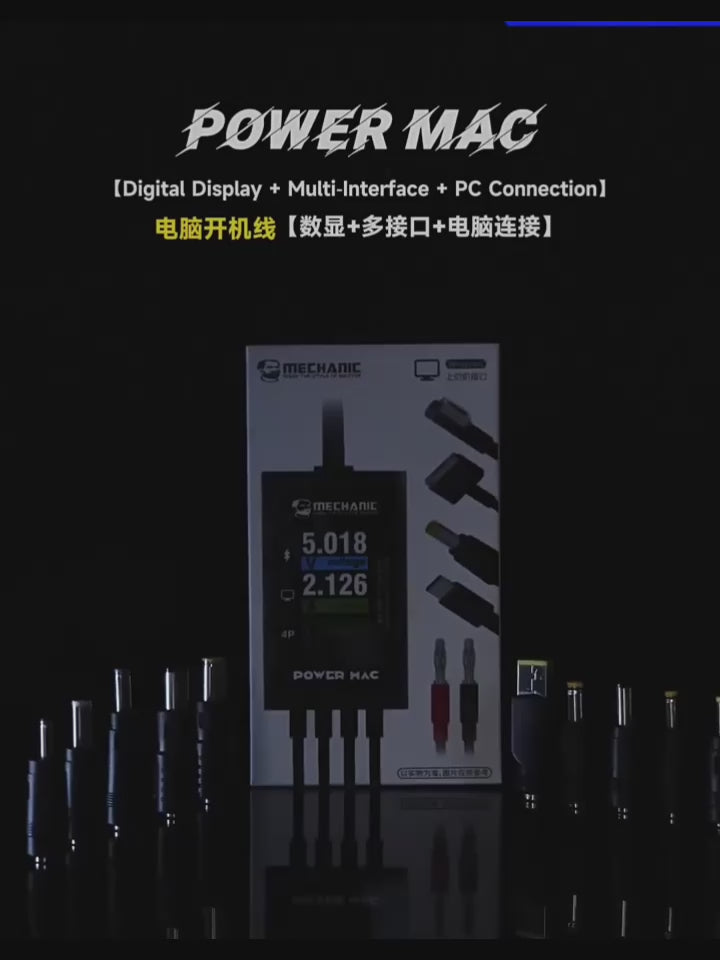

MECHANIC POWER MAC Laptop Power Boot Cable & Multifunctional Diagnostic Tester
The MECHANIC POWER MAC is an integrated laptop power-on boot cable and inline diagnostic tester engineered for computer motherboard repair and power troubleshooting. Featuring an onboard 1.9-inch TFT color display, dual power input options, and real-time PC software synchronization, it delivers precise real-time voltage, current, and dynamic boot waveform monitoring up to 100W (20V/5A).
Key Features

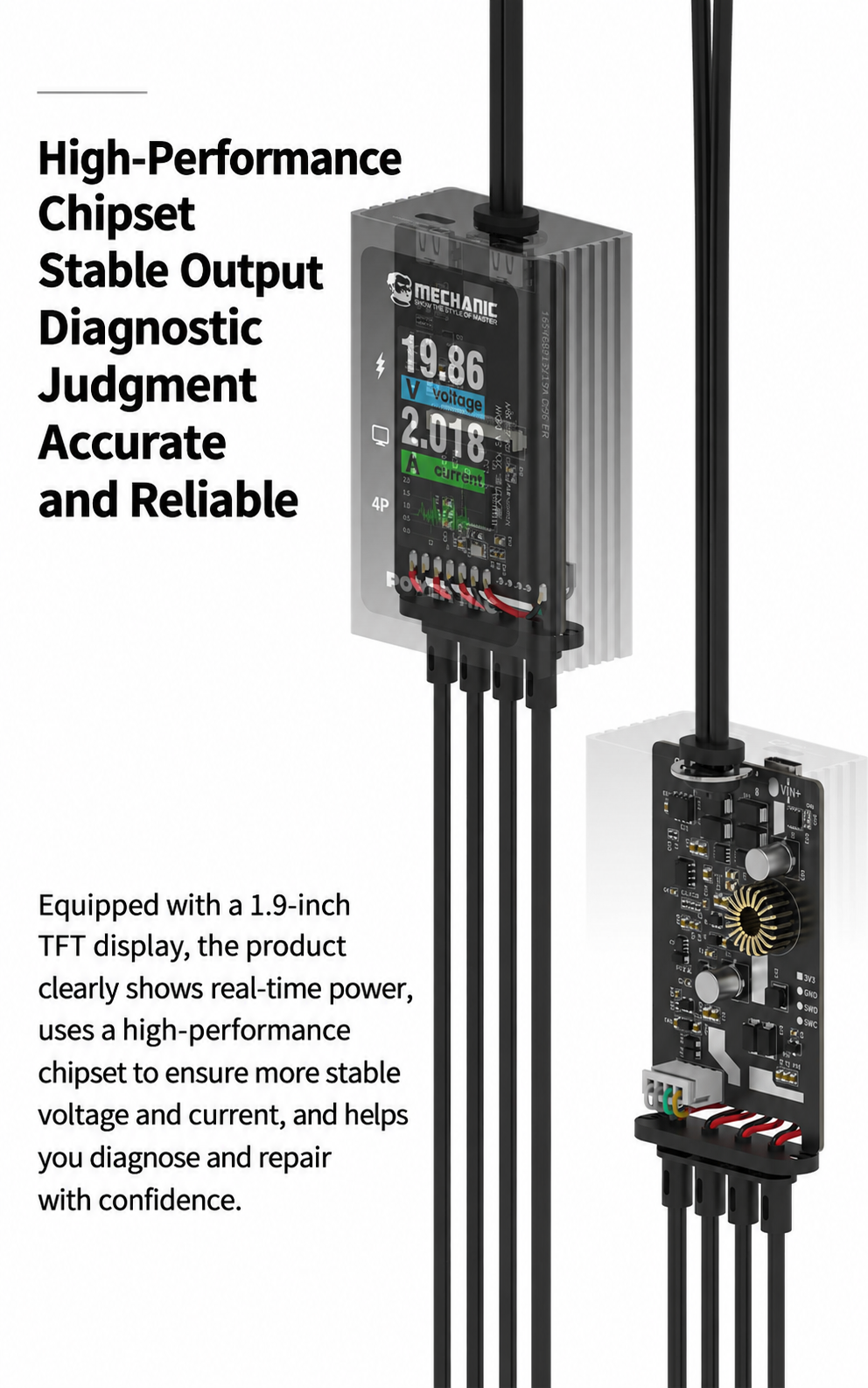

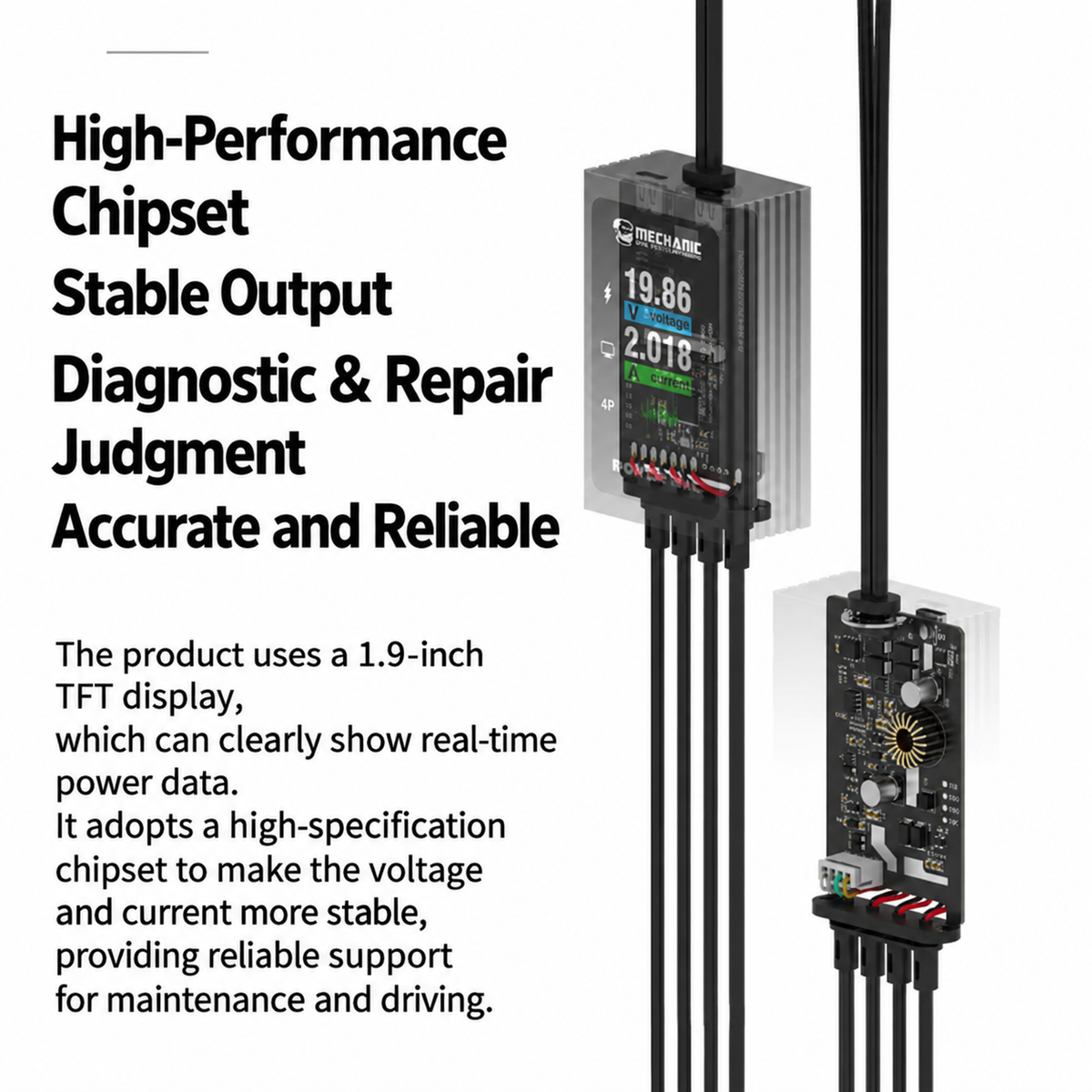

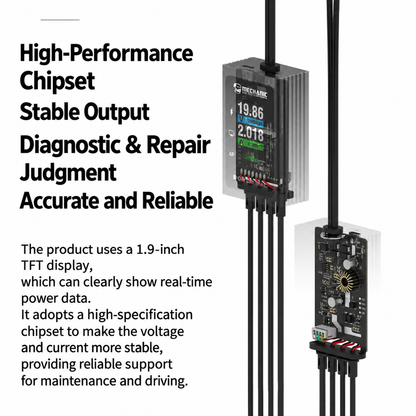

1.9-Inch TFT Color Display: Real-time visual monitoring of operating voltage, current, and dynamic boot current waveform curves directly on the tester.

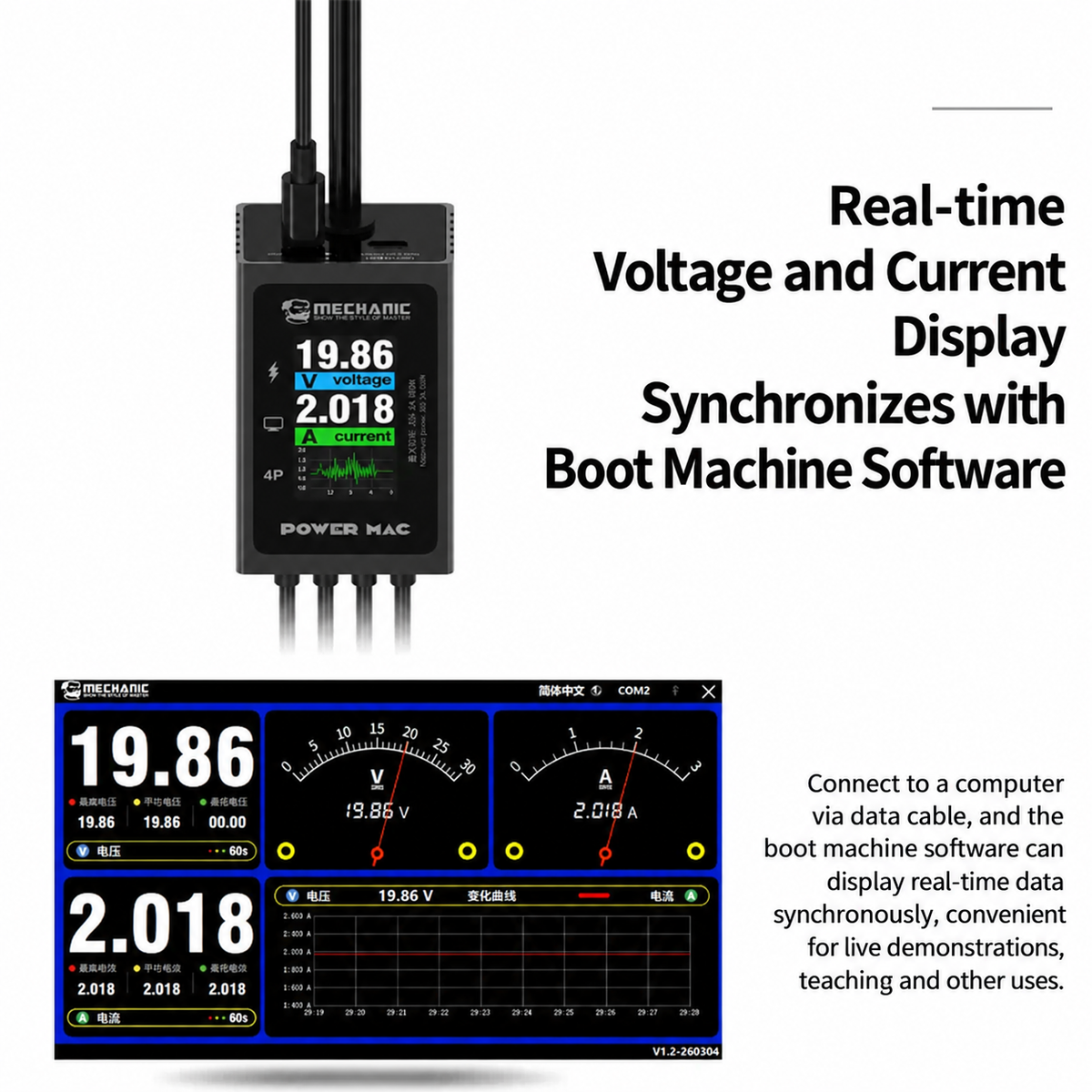

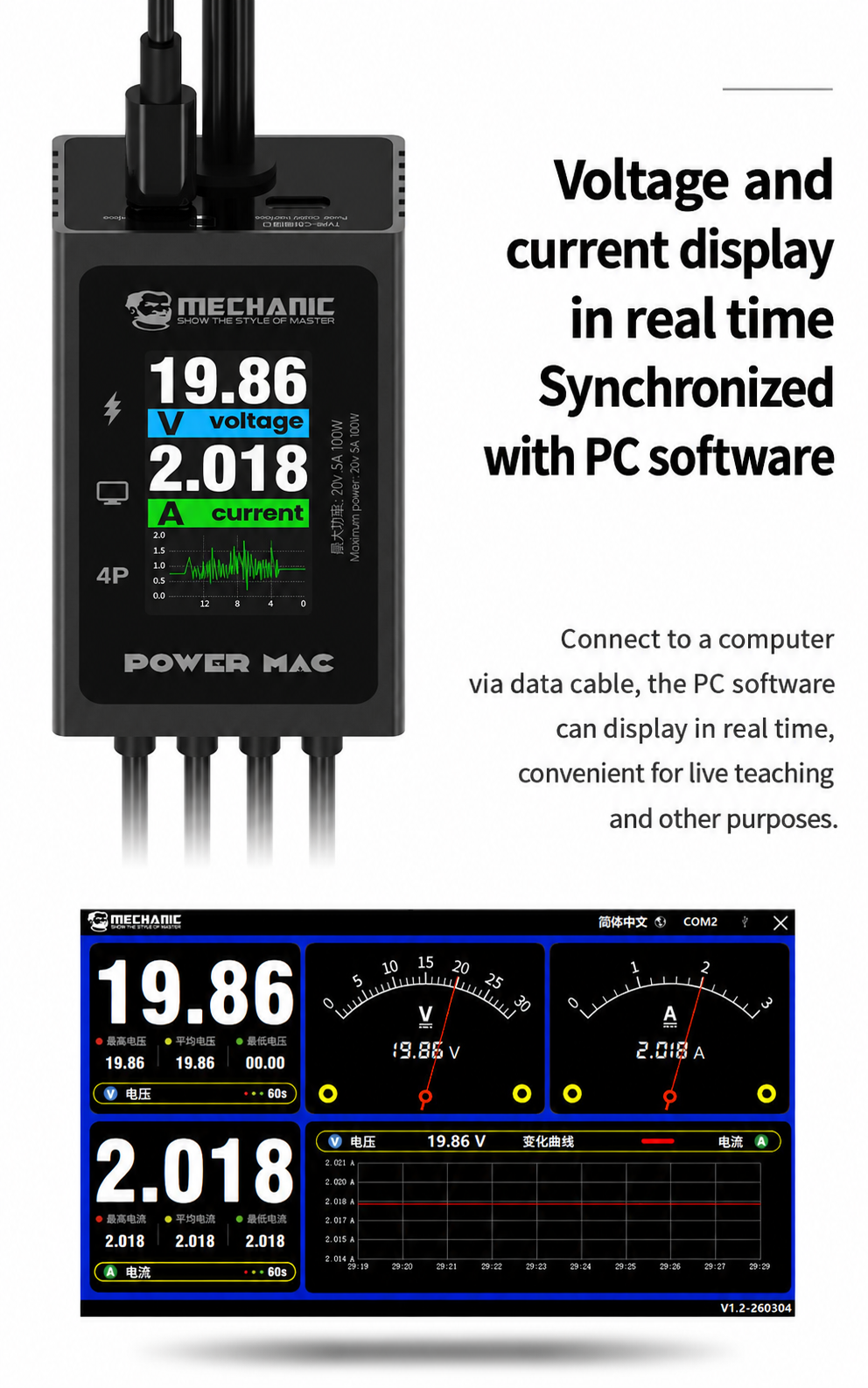

Synchronized PC Software Interface: Dedicated Type-C computer data port connects to PC software for synchronized analog dial meters, real-time waveform tracking, and data logging.

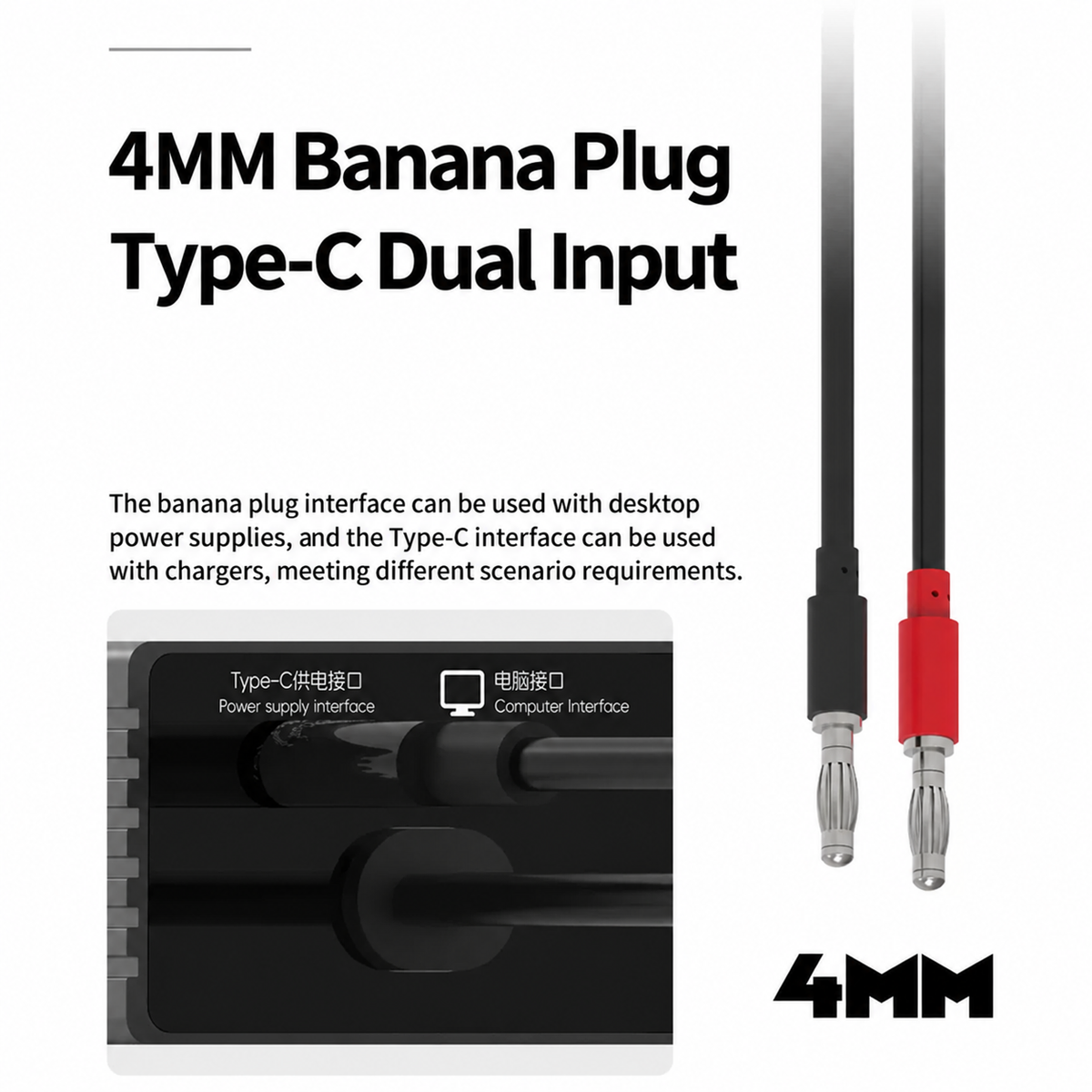

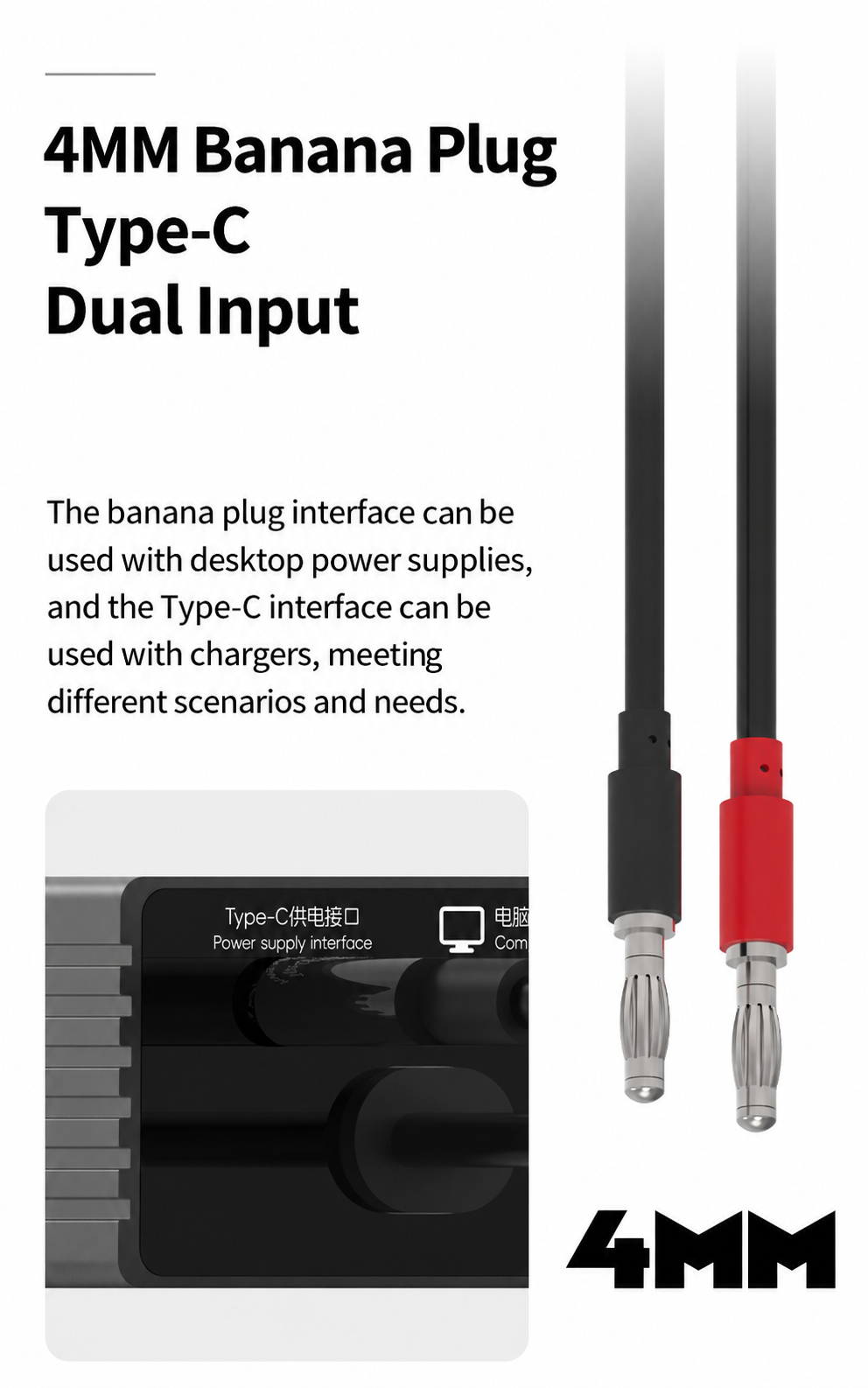

Dual Power Input Design: Supports both 4mm banana plugs for benchtop DC power supplies and a Type-C input port for standard USB-PD chargers.

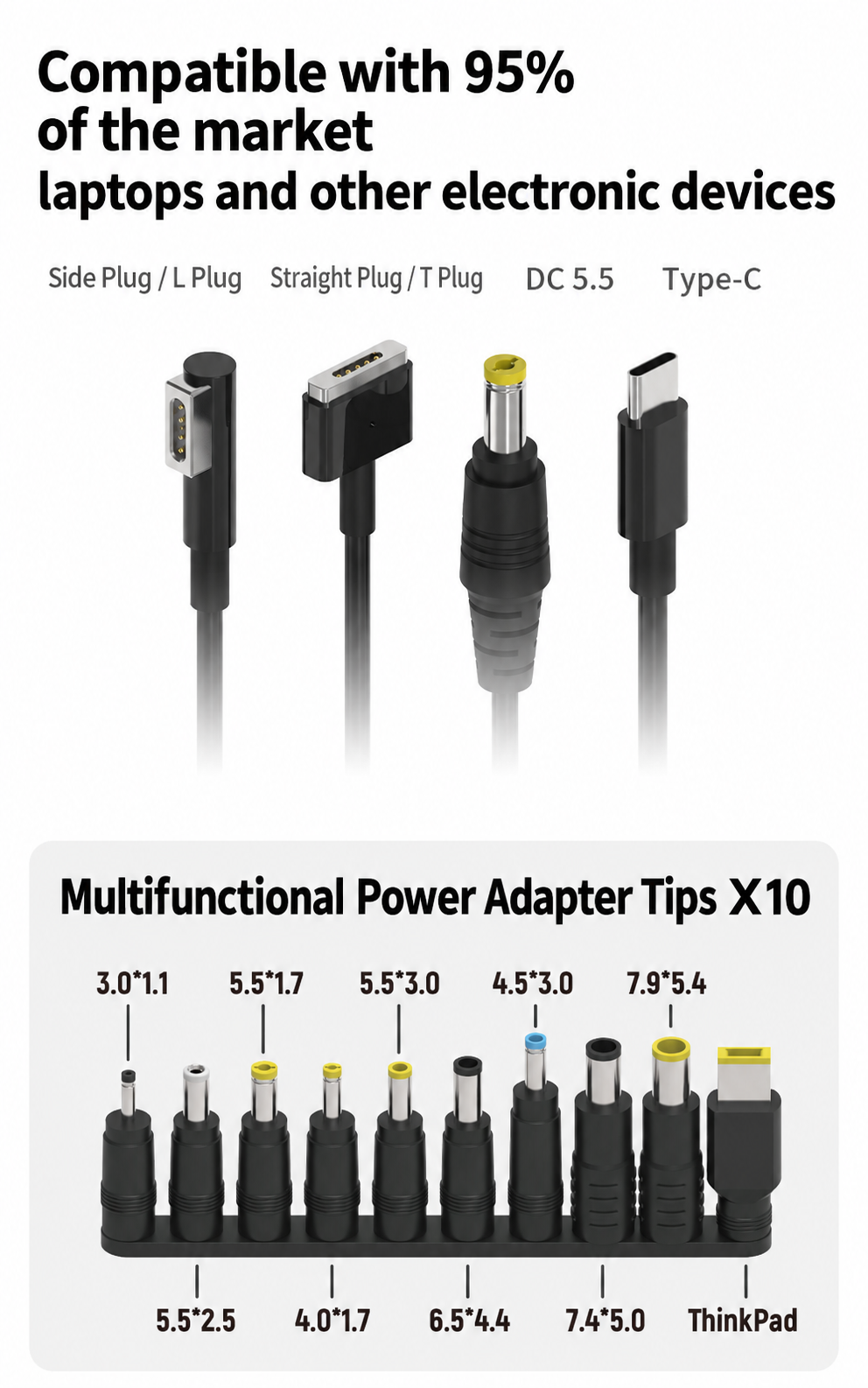

4-in-1 Integrated Output Harness: Features MagSafe 1 L-plug, MagSafe 2 T-plug, DC 5.5mm plug, and Type-C plug on a 100cm lead for comprehensive MacBook and laptop coverage.

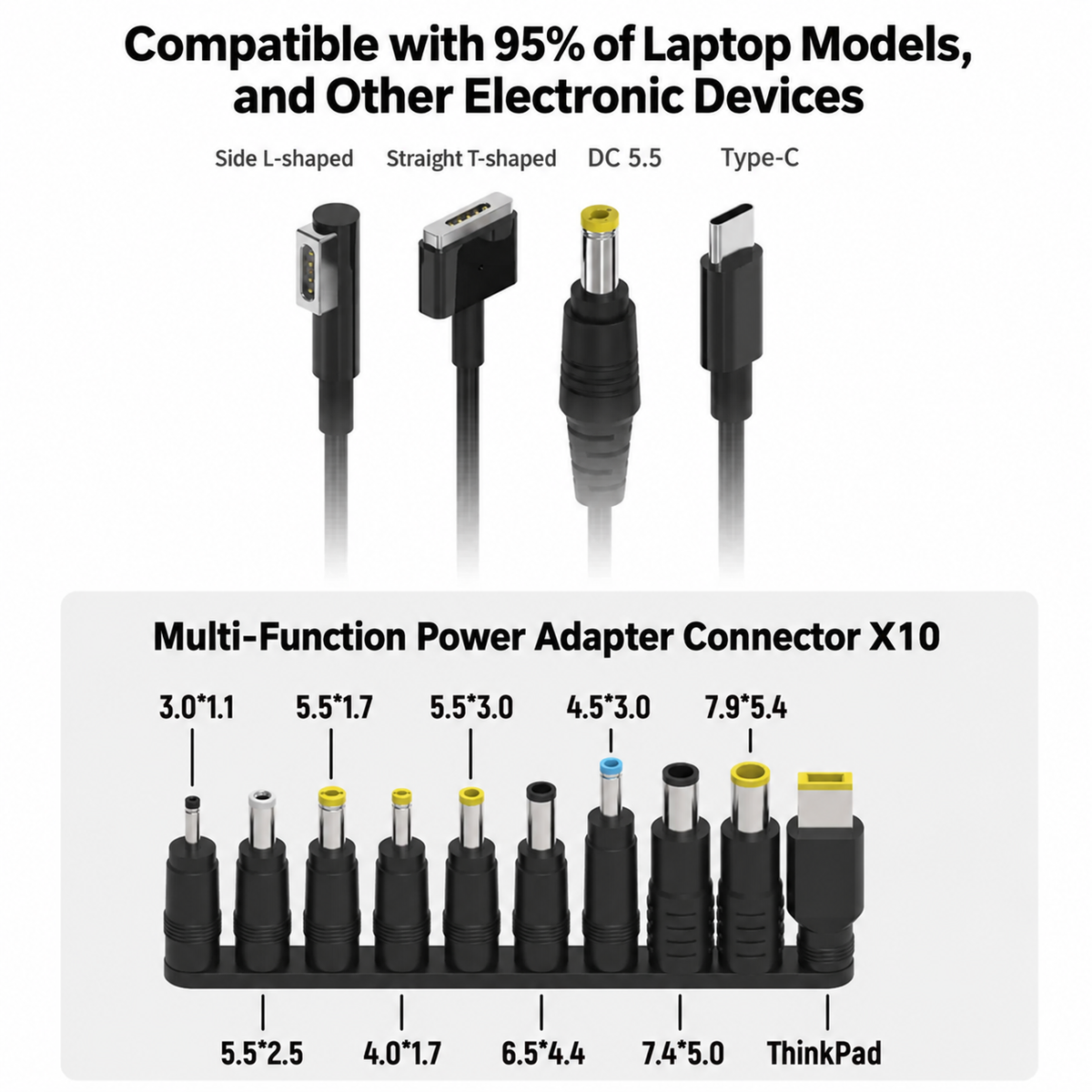

10-in-1 DC Adapter Tip Set: Includes 10 interchangeable DC barrel and square connectors to support ThinkPad, Dell, HP, ASUS, Lenovo, and other major PC laptop brands.

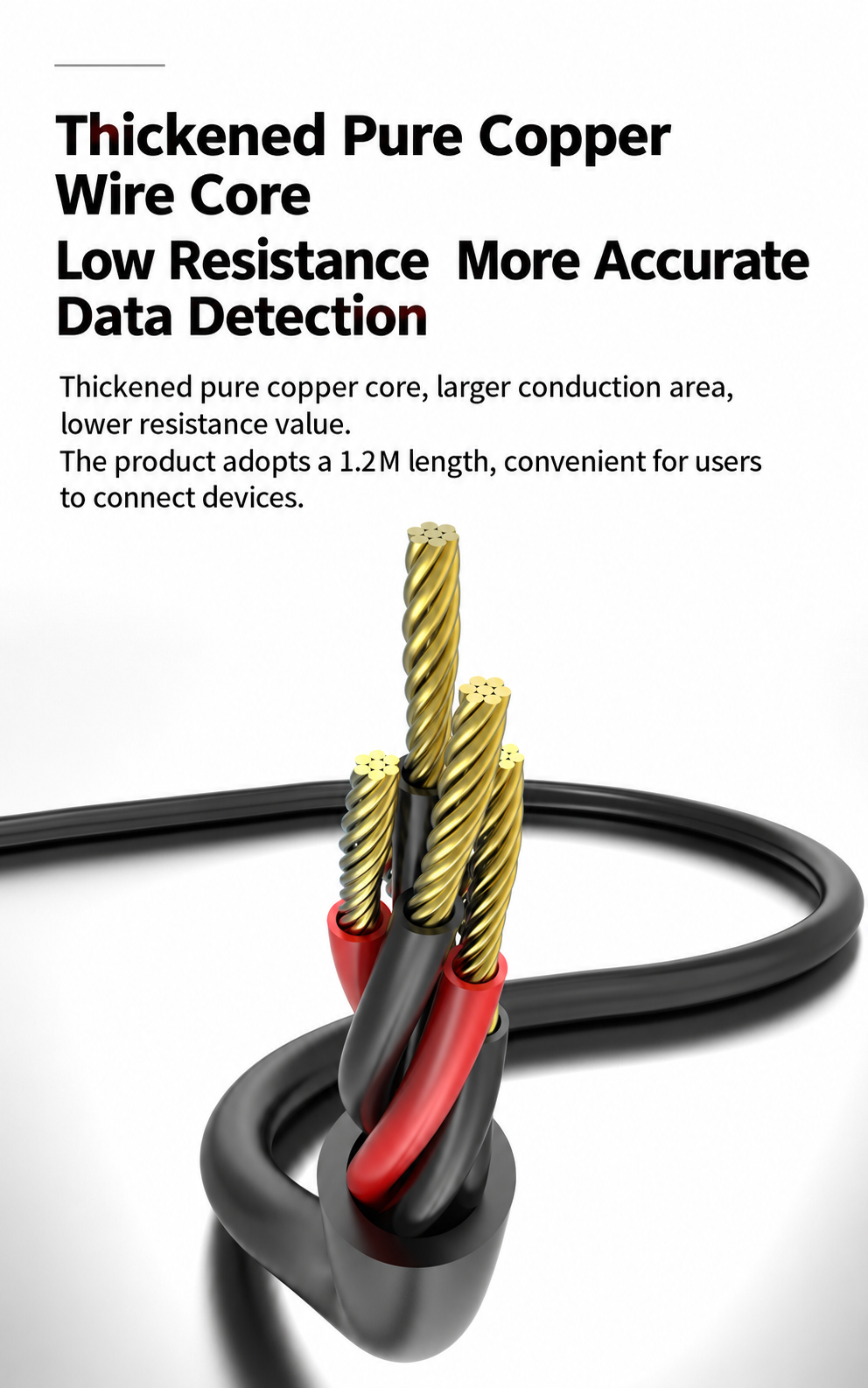

Thickened Pure Copper Core: Low-resistance internal wiring ensures high-current stability up to 100W (20V/5A) and accurate fault diagnosis.

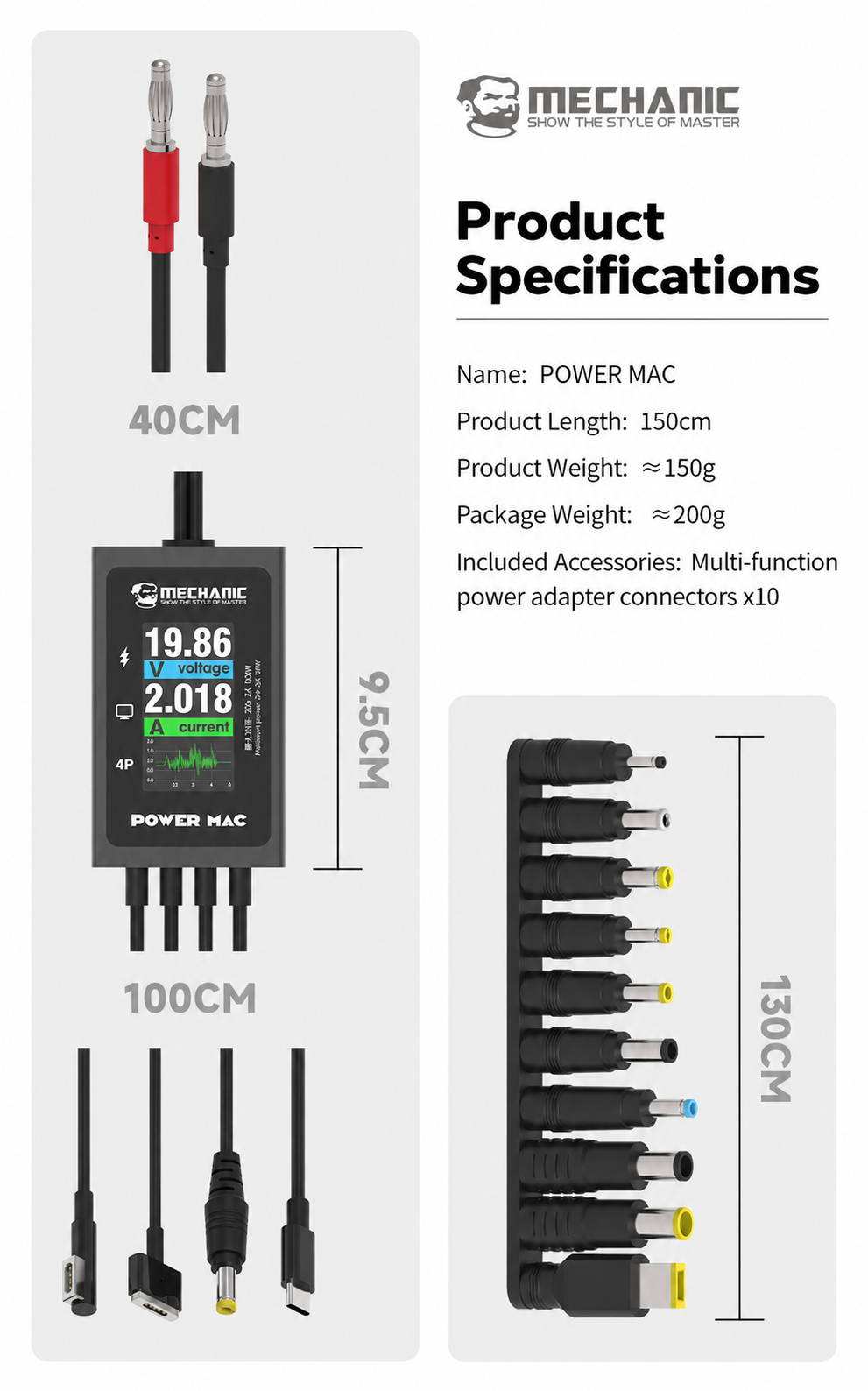

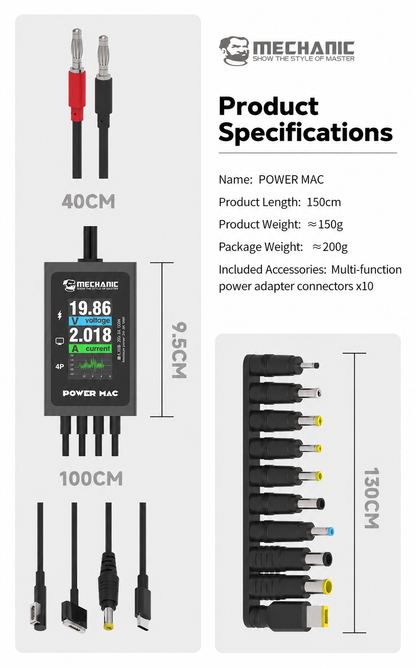

Product Specifications
Brand: MECHANIC
Model: POWER MAC
Display: 1.9-inch TFT color screen (voltage, current, live waveform)

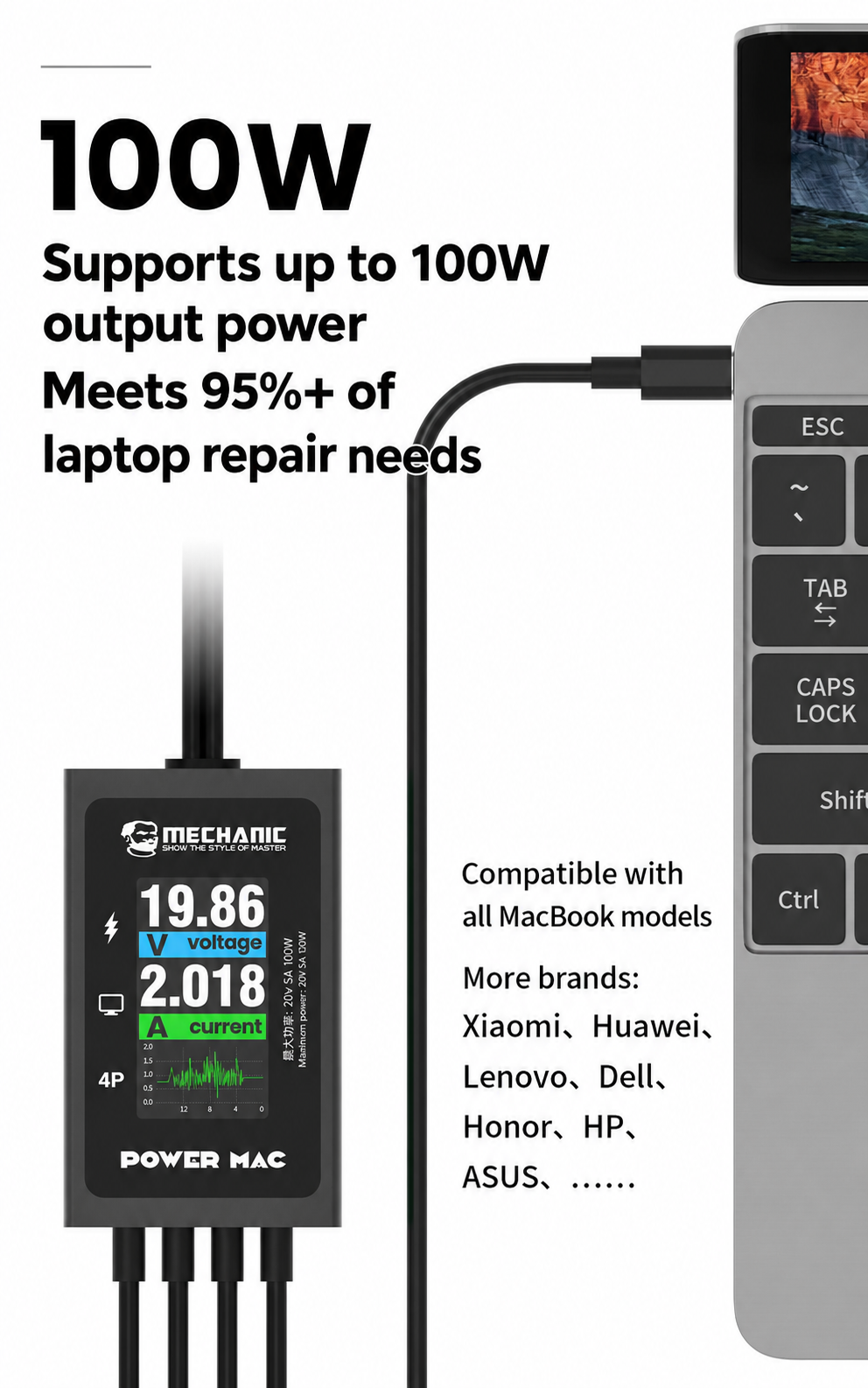

Maximum Power Rating: 100W (20V / 5A)
Power Input: 4mm Red/Black Banana Plugs (40cm lead) + Type-C Power Input Port
PC Interface: Type-C Computer Sync Port
Integrated Output Plugs: Side L-shaped (MagSafe 1), Straight T-shaped (MagSafe 2), DC 5.5×2.5mm, Type-C
Included DC Adapter Tips (10 Types): 3.0×1.1mm, 5.5×1.7mm, 5.5×3.0mm, 4.5×3.0mm, 7.9×5.4mm, 5.5×2.5mm, 4.0×1.7mm, 6.5×4.4mm, 7.4×5.0mm, ThinkPad square tip
Overall Cable Length: Approx. 150 cm (Input: 40 cm, Main Unit: 9.5 cm, Output: 100 cm)
Product Weight: Approx. 150 g (Package Weight: Approx. 200 g)
Target Applications
Motherboard boot-up current diagnostics and standby leak detection for MacBooks and PC laptops
Bench testing and power injection using regulated DC power supplies or USB-PD chargers
Live repair demonstration, classroom teaching, and waveform analysis via PC software
Hardware repairs across Apple MacBooks, Lenovo/ThinkPad, Dell, HP, ASUS, Huawei, Xiaomi, and other laptops
Package Includes

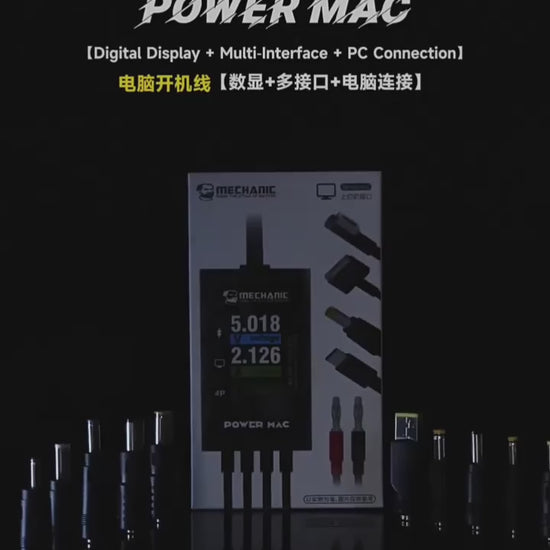

1 × MECHANIC POWER MAC Host Unit with Integrated 4mm Banana Plugs and 4-in-1 Output Cables
1 × 10-in-1 Multi-Function DC Power Adapter Connector Tip Set on Storage Holder
