OSS TEAM T5 Data Cable Test Board

OSS TEAM T5 Multi-Interface Data Cable Tester Board

The OSS TEAM T5 Data Cable Test Board is a fast, reliable diagnostic fixture designed to detect open circuits and broken internal wires across data and charging cables. Powered via a standard 5V Type-C input, it provides instant pin-by-pin continuity verification across 6 common cable types using dual LED indicator zones.

Key Features

• 6-in-1 Cable Testing: Compatible with Type-C to Type-C, Type-C to Lightning, USB-A to Type-C, USB-A to Lightning, USB-A to Micro-USB, and USB-A to Type-B cables.

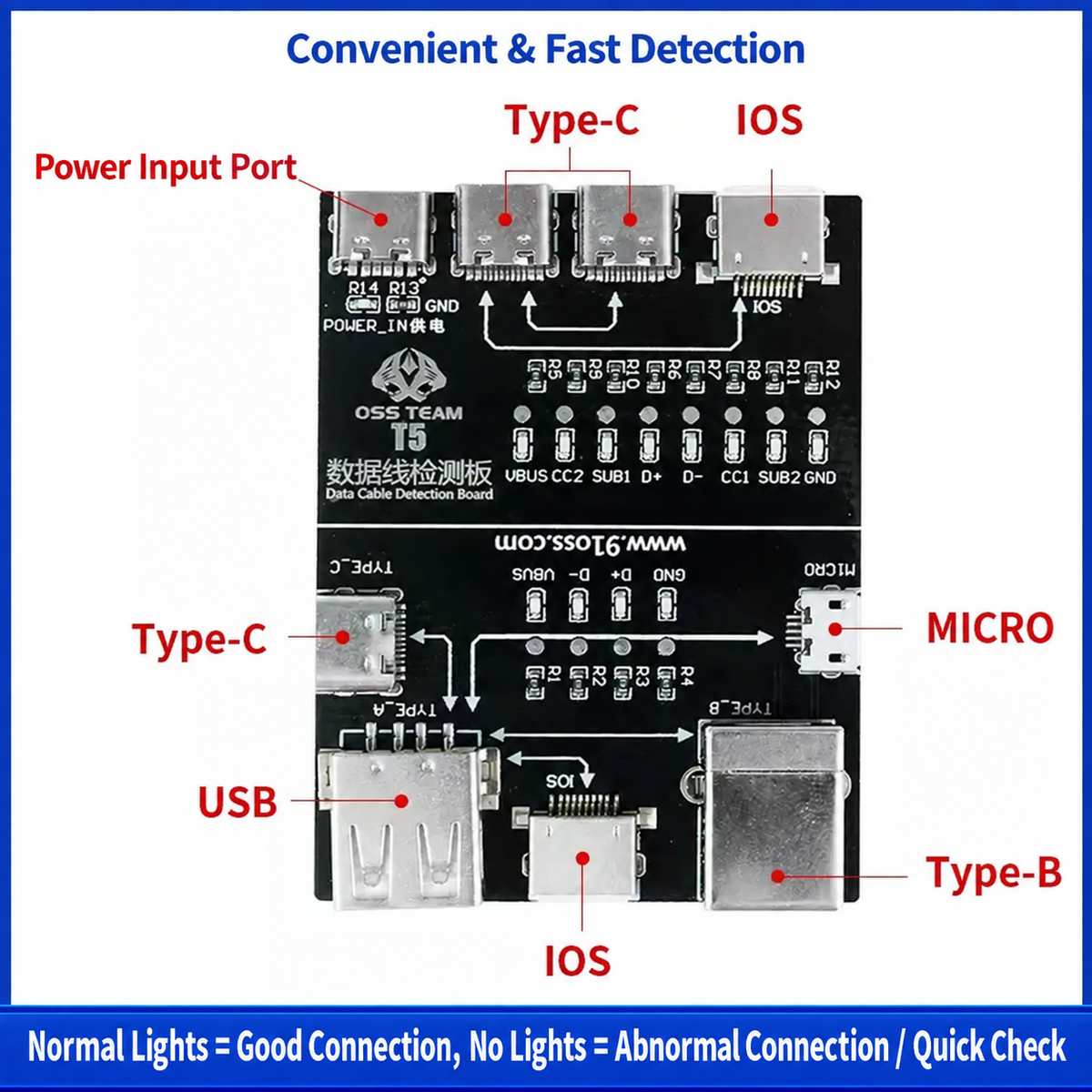

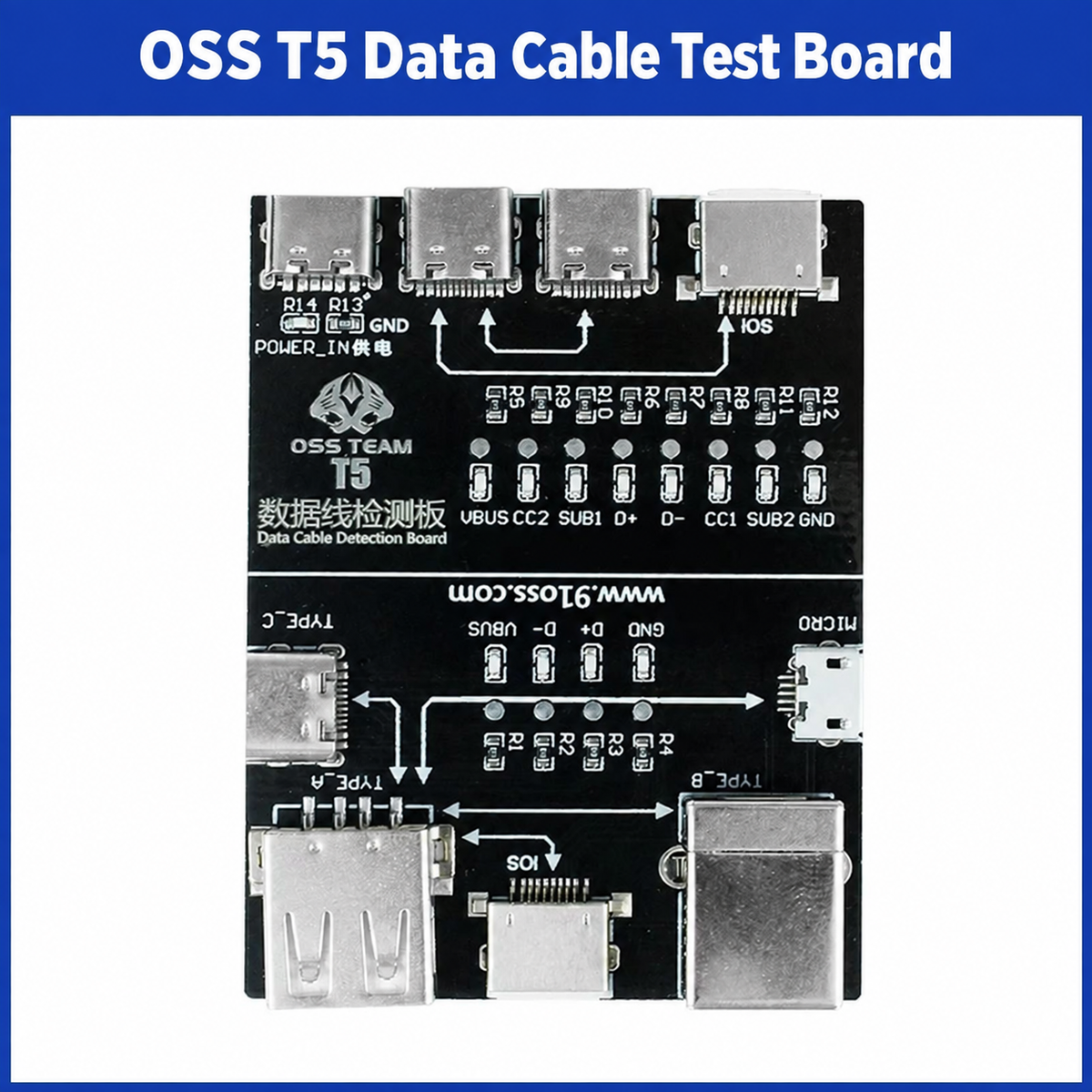

• Dual LED Indicator Zones: Top high-speed zone (8 LEDs: VBUS, CC2, SUB1, D+, D-, CC1, SUB2, GND) and bottom standard zone (4 LEDs: VBUS, D-, D+, GND) provide full pin continuity feedback.

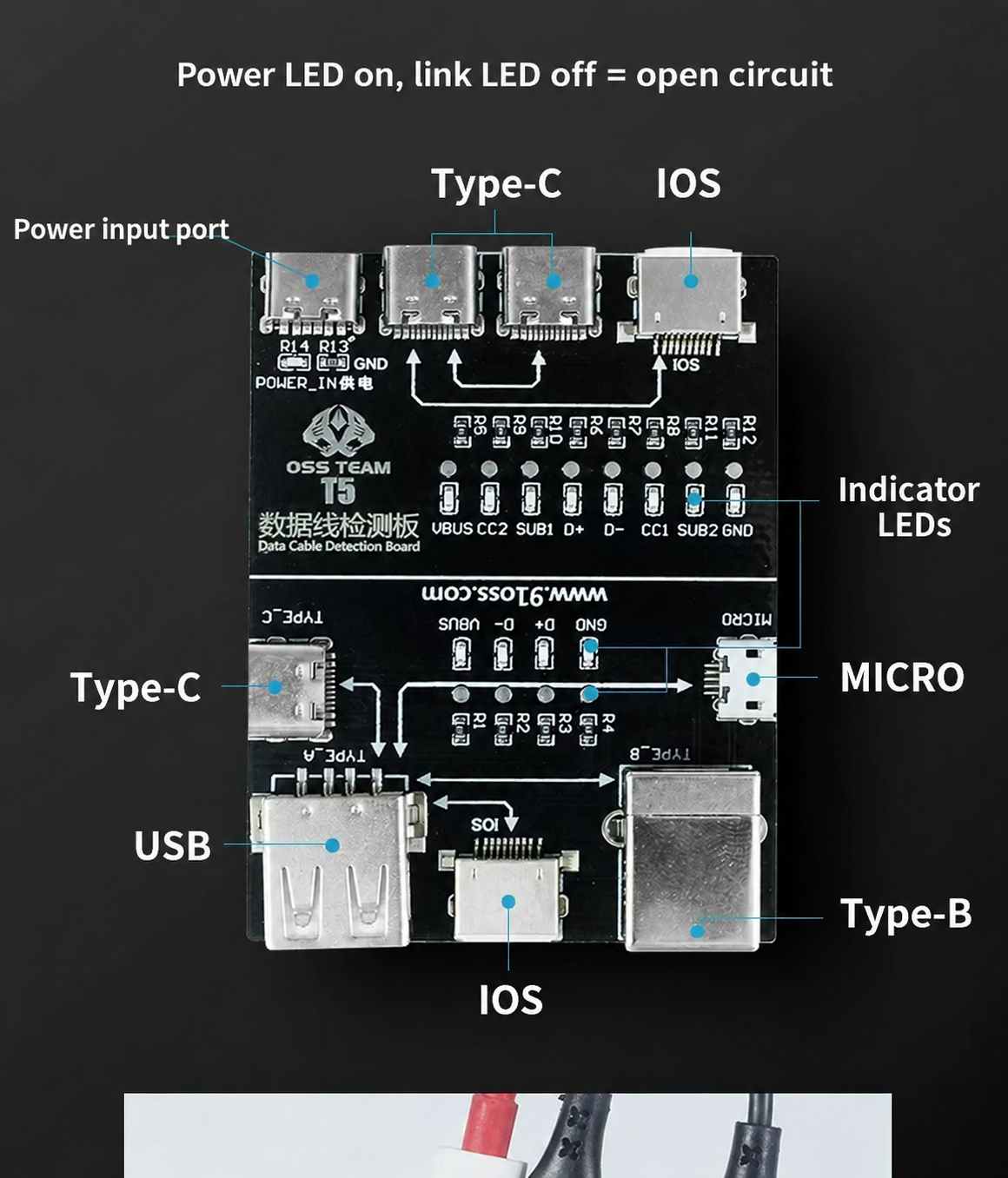

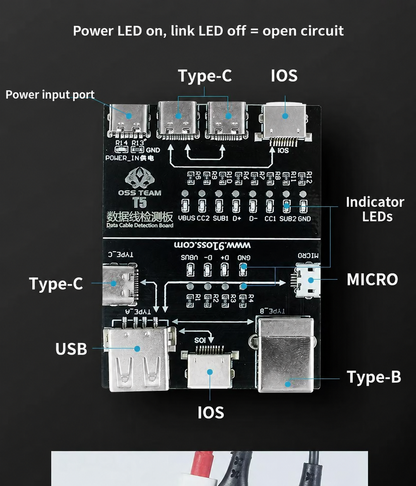

• Instant Diagnostic Logic: Lit LED confirms a healthy pin connection; unlit LED instantly pinpoints an internal break or disconnected wire.
• Plug-and-Play Simplicity: No buttons or setup required—connect 5V power and plug in both cable ends for immediate visual testing.
• Convenient 5V Type-C Power: Operates easily from any standard 5V Type-C charger, PC USB port, or power bank.

Product Specifications

• Brand: OSS TEAM
• Model: T5
• Power Input: USB Type-C (5V DC)
• Supported Interfaces: Type-C, Lightning, Micro-USB, USB-A, USB-B (Square)
• LED Indicators: 8 LEDs (Top Zone) + 4 LEDs (Bottom Zone)
• Test Indication: LED ON = Good Connection / LED OFF = Open Circuit
• SKU: 101098-04

Package Includes

• 1 × OSS TEAM T5 Data Cable Test Board

Target Applications

Cable quality control, mobile repair shop screening, broken line troubleshooting, and electronics workbench cable diagnostics.
