eMMC Socket Adapter, BGA169 BGA153 Read & Write Adapter

eMMC Socket Adapter (BGA153 / BGA169)

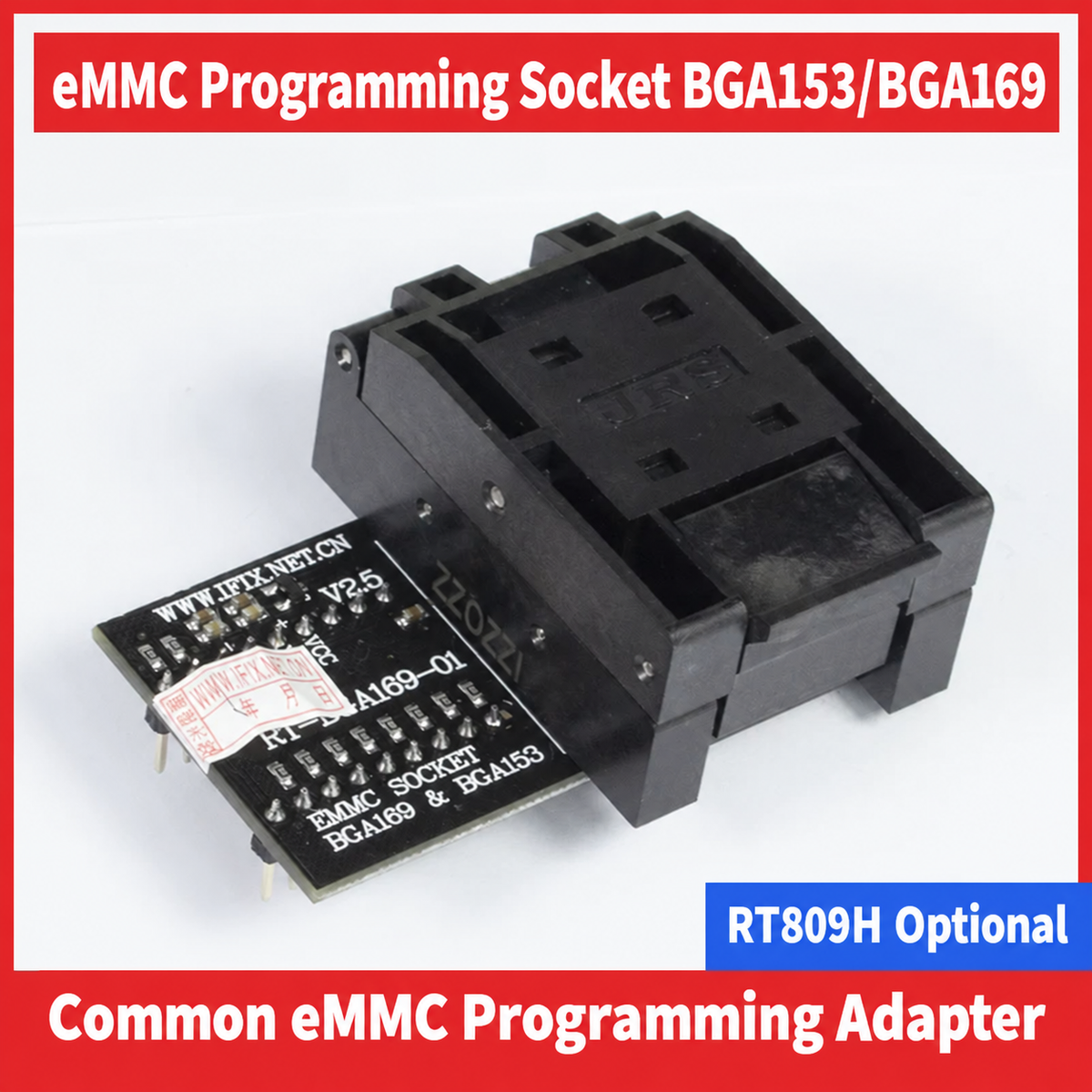

The HMT eMMC Socket Adapter (RT-BGA169-01 V2.5) is a dedicated read and write programming socket designed for eMMC BGA153 and BGA169 memory chips. Built with a spring-latch clamshell test socket and standard programmer pin headers, it enables reliable chip reading, writing, programming, and data recovery when paired with compatible programmers such as the RT809H.

Key Features

• Dual Package Compatibility: Directly supports both eMMC BGA153 and BGA169 chip formats.

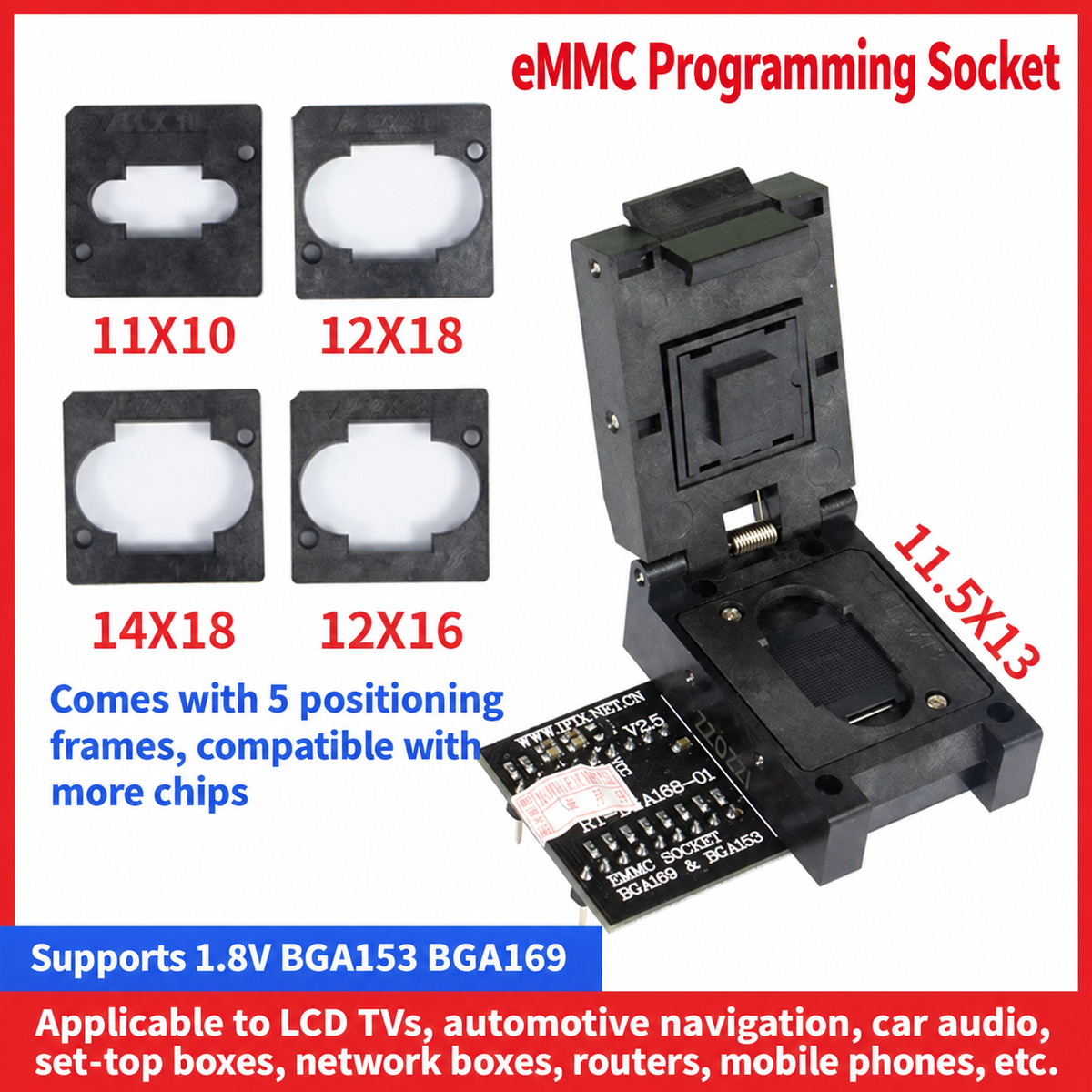

• 5 Interchangeable Limit Frames: Includes five dedicated positioning frames (11×10mm, 11.5×13mm, 12×16mm, 12×18mm, and 14×18mm) to accommodate different IC package dimensions.
• 1.8V Low Voltage Support: Compatible with 1.8V operating environments for safe read/write operations.

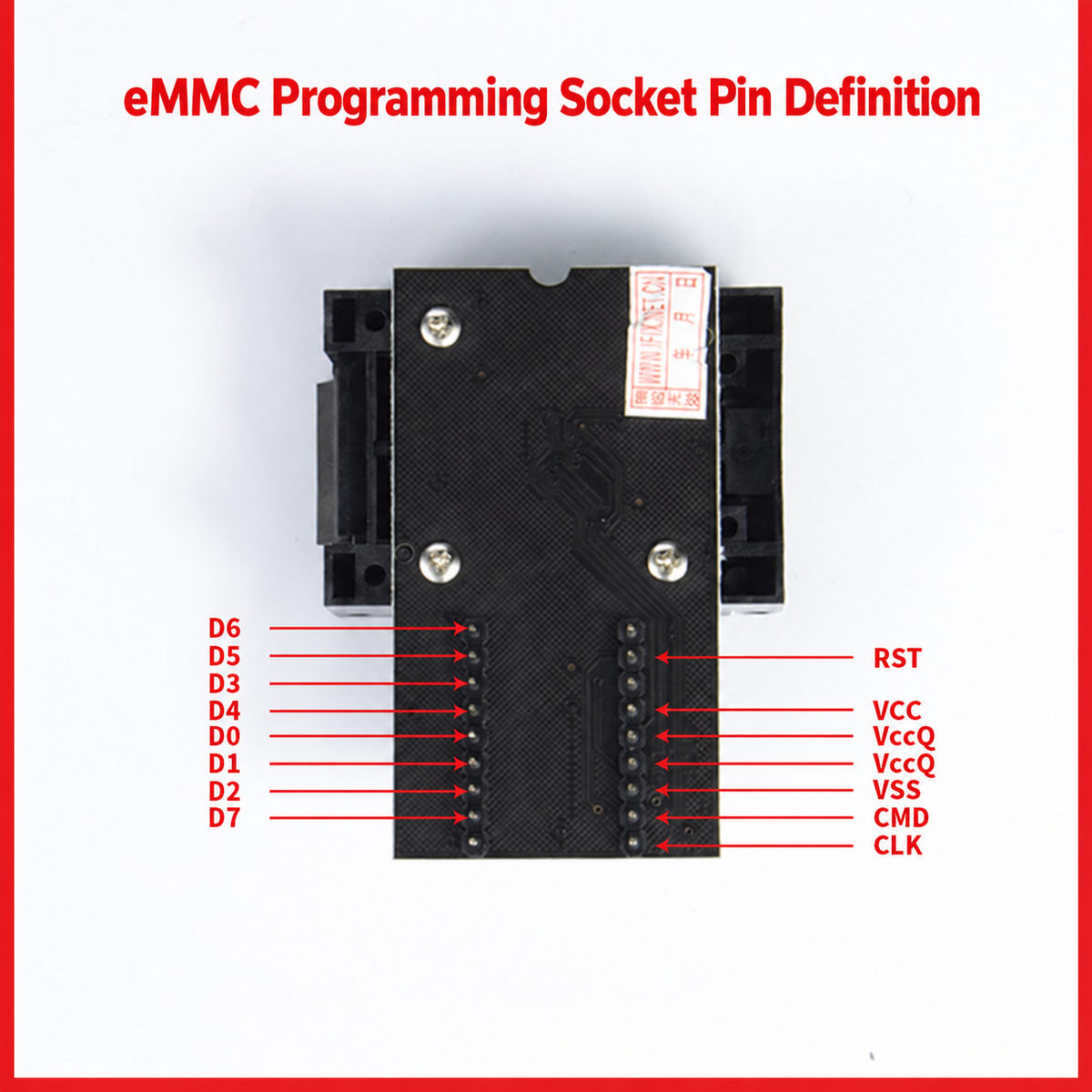

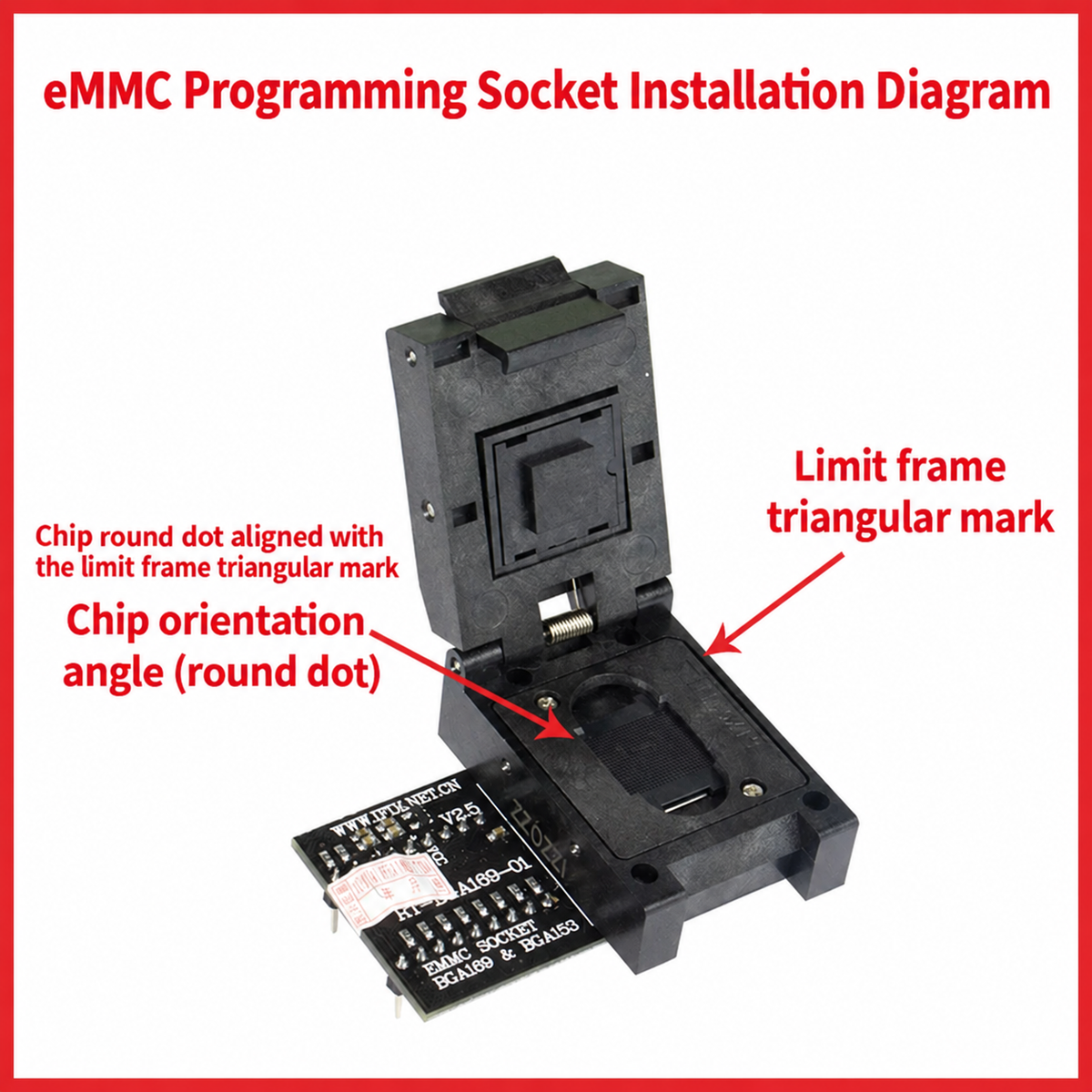

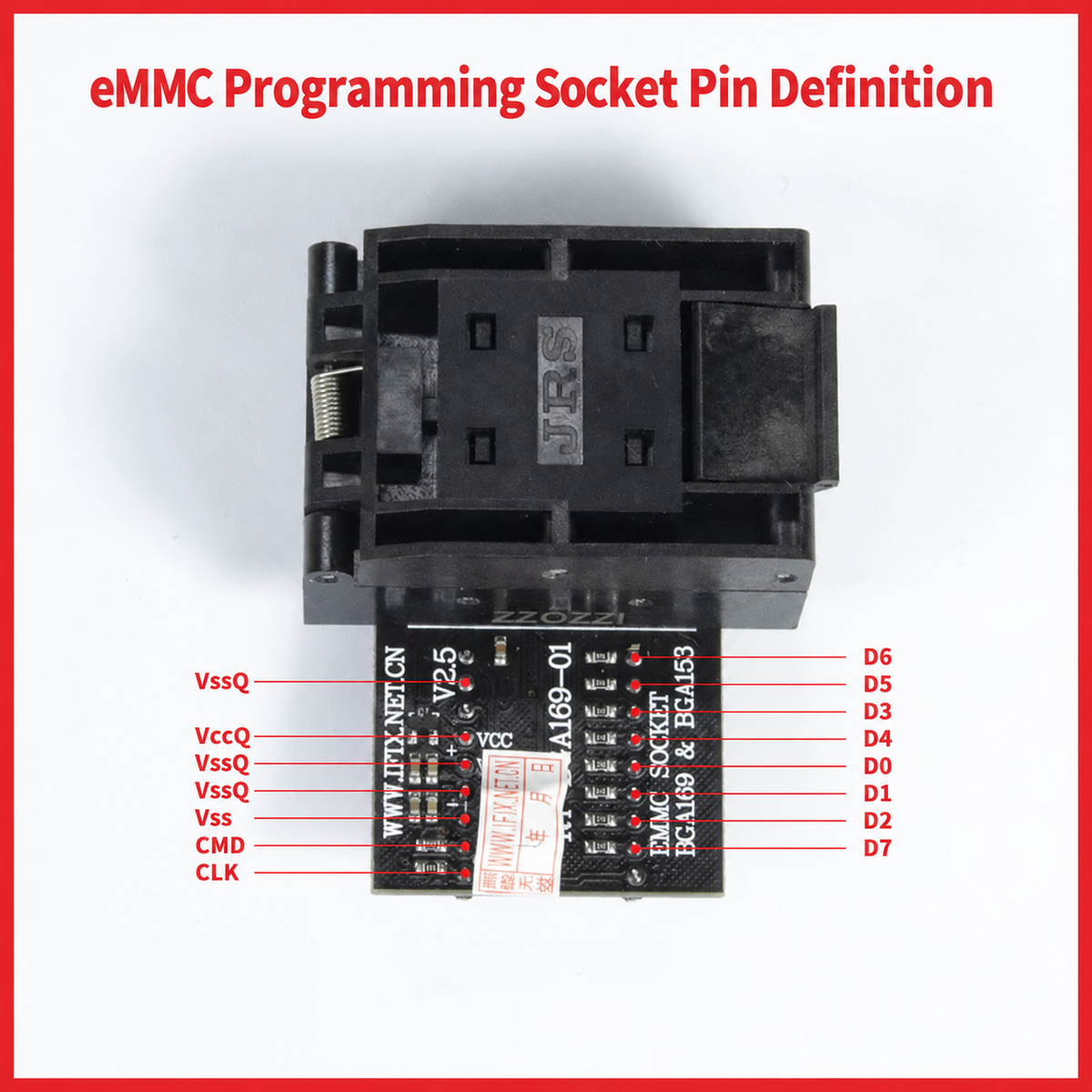

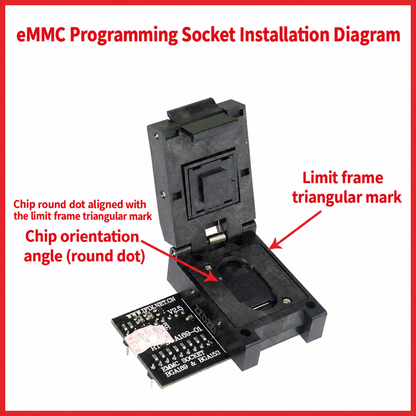

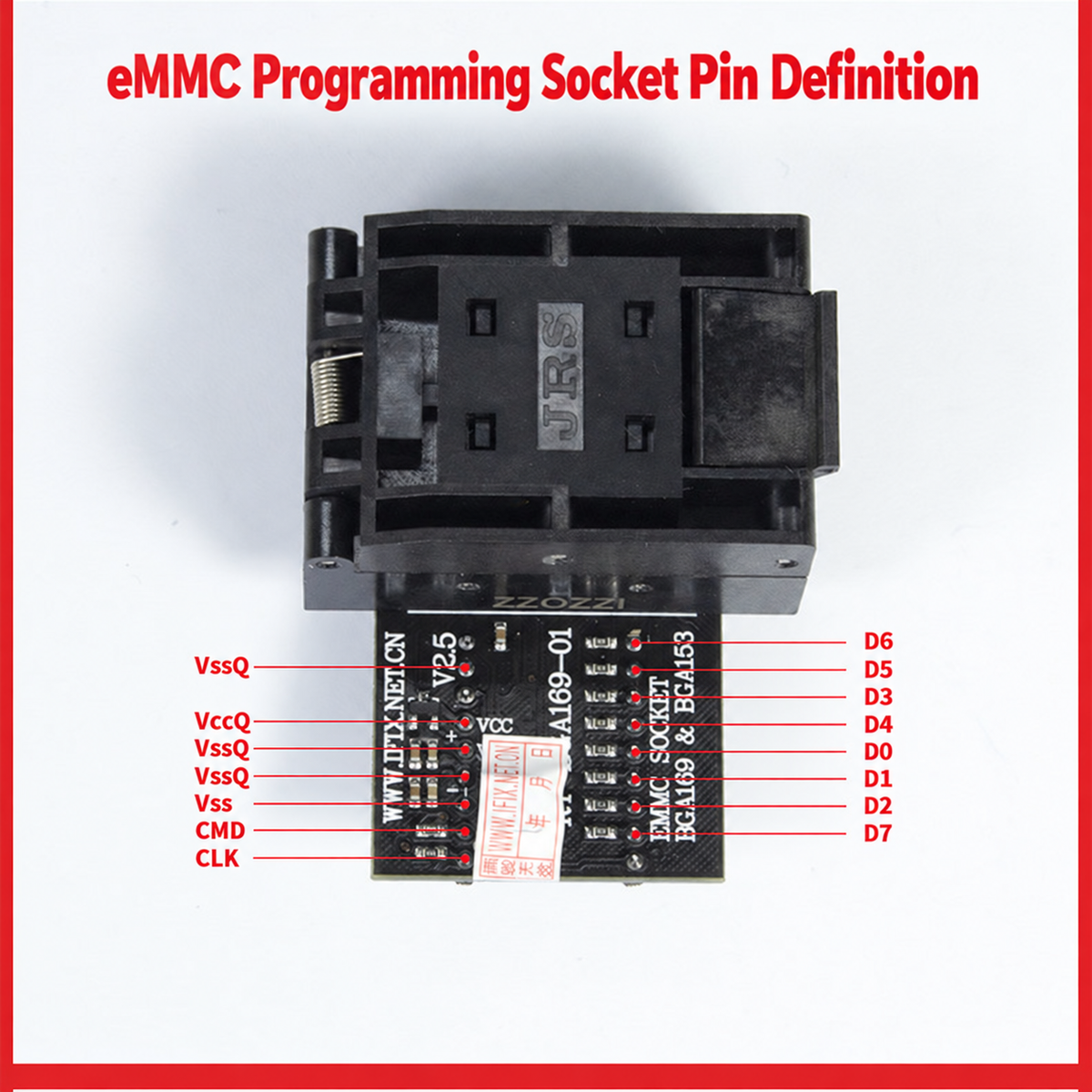

• Clear Pinout & Alignment Guide: Features printed PCB pin definitions (D0–D7 data bus, CLK, CMD, RST, VCC, VCCQ, VSS) and clear triangular index markers for error-free chip orientation.

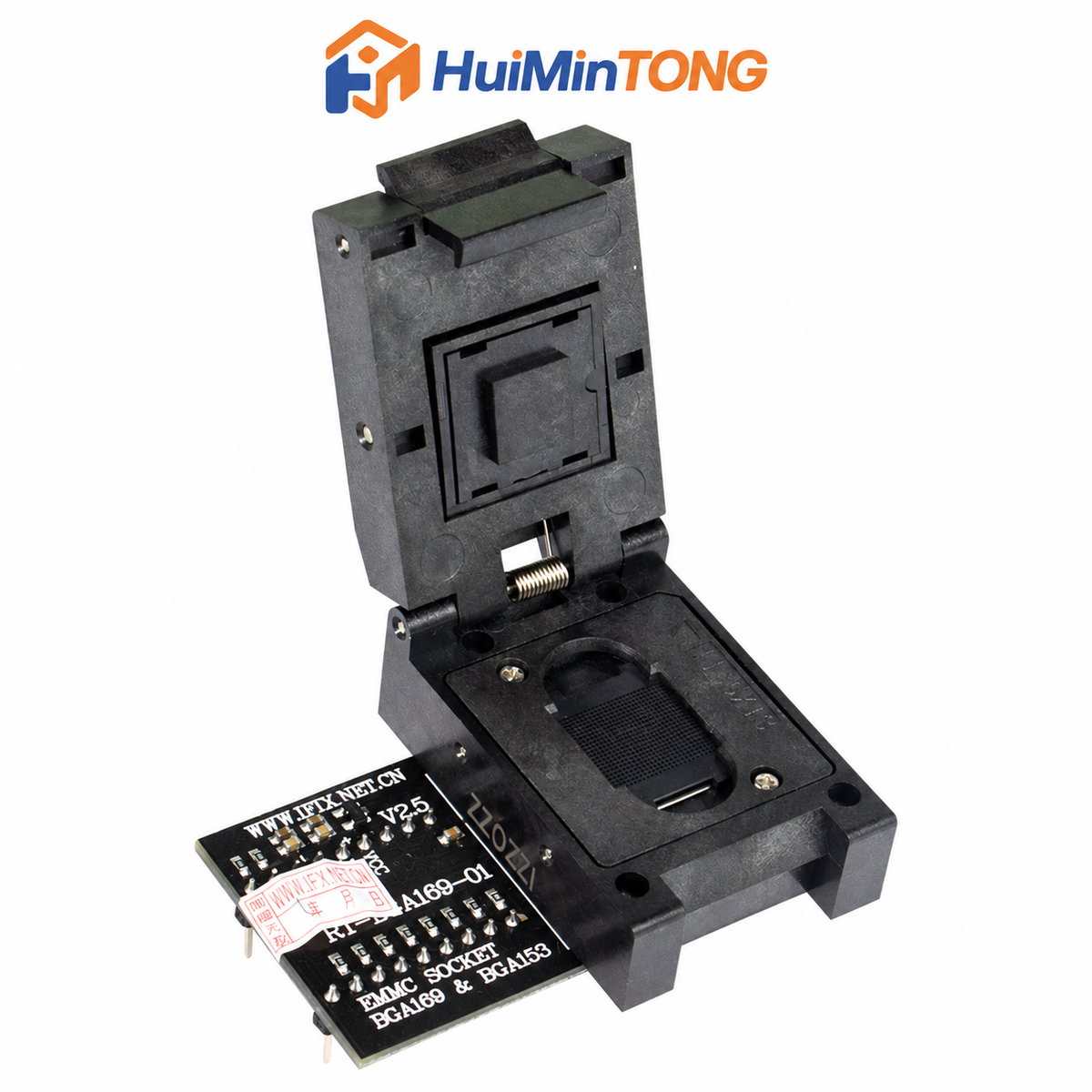

• Durable Clamshell Socket: Spring-loaded press-and-latch mechanism provides consistent pin contact and easy chip placement.

Product Specifications

• Product Model: RT-BGA169-01 (PCB V2.5)
• Supported Chip Types: eMMC BGA153, eMMC BGA169
• Operating Voltage: Supports 1.8V (VCC, VCCQ, VSS, VSSQ)
• Bus Interface: 8-Bit Data Bus (D0, D1, D2, D3, D4, D5, D6, D7), CLK, CMD, RST
• Programmer Interface: Standard 16-pin dual-row header (RT809H compatible)
• Limit Frame Sizes: 11×10 mm, 11.5×13 mm, 12×16 mm, 12×18 mm, 14×18 mm

Target Applications

• LCD TV mainboard firmware programming and repair
• Automotive navigation systems and car audio head units
• Set-top boxes (STB) and network media boxes
• Network routers and communication gateways
• Mobile phones and tablets eMMC chip testing and data recovery

Package Includes

• 1 × eMMC BGA153 / BGA169 Programming Socket Adapter Board (RT-BGA169-01 V2.5)
• 1 × 11 × 10 mm Limit Frame
• 1 × 11.5 × 13 mm Limit Frame
• 1 × 12 × 16 mm Limit Frame
• 1 × 12 × 18 mm Limit Frame
• 1 × 14 × 18 mm Limit Frame
