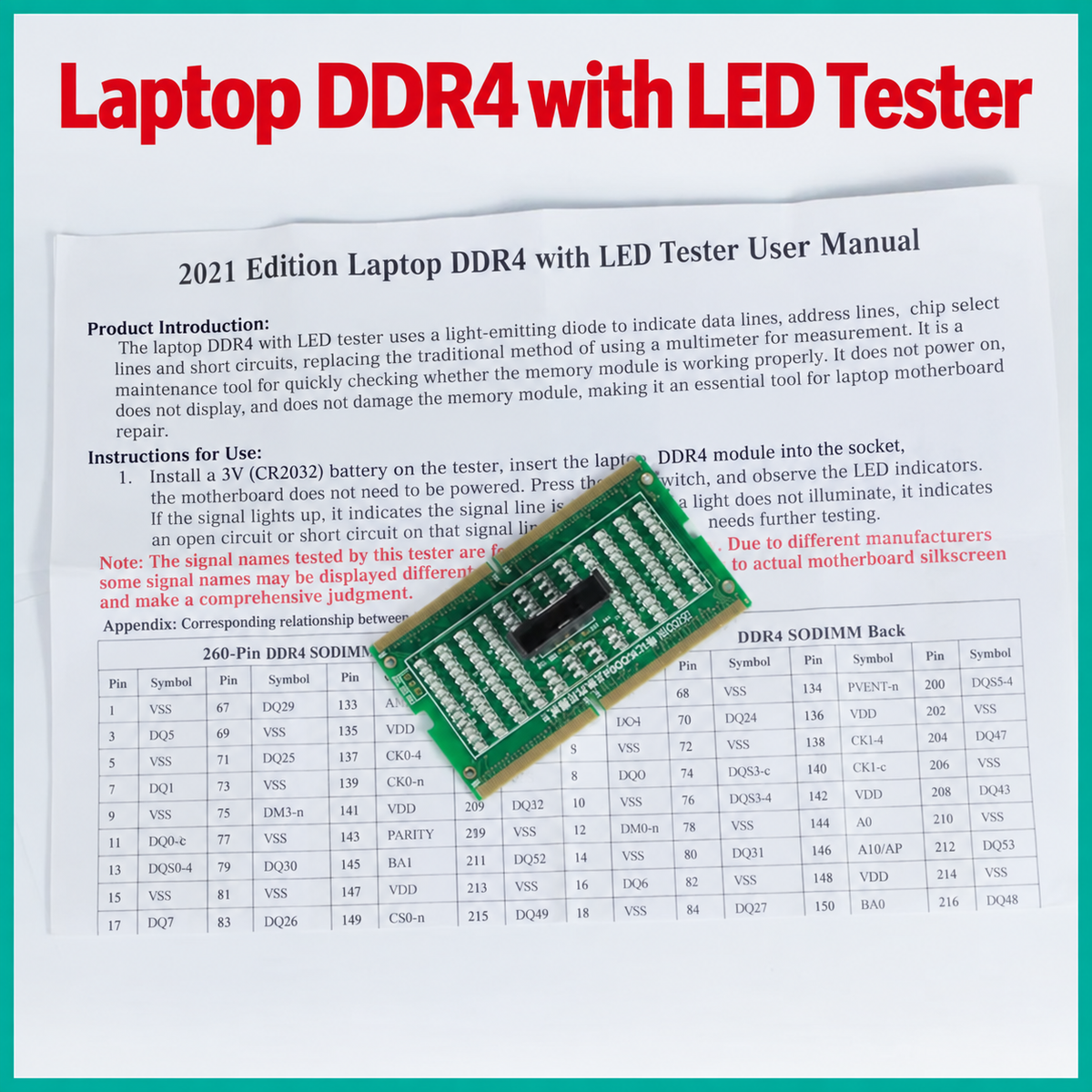

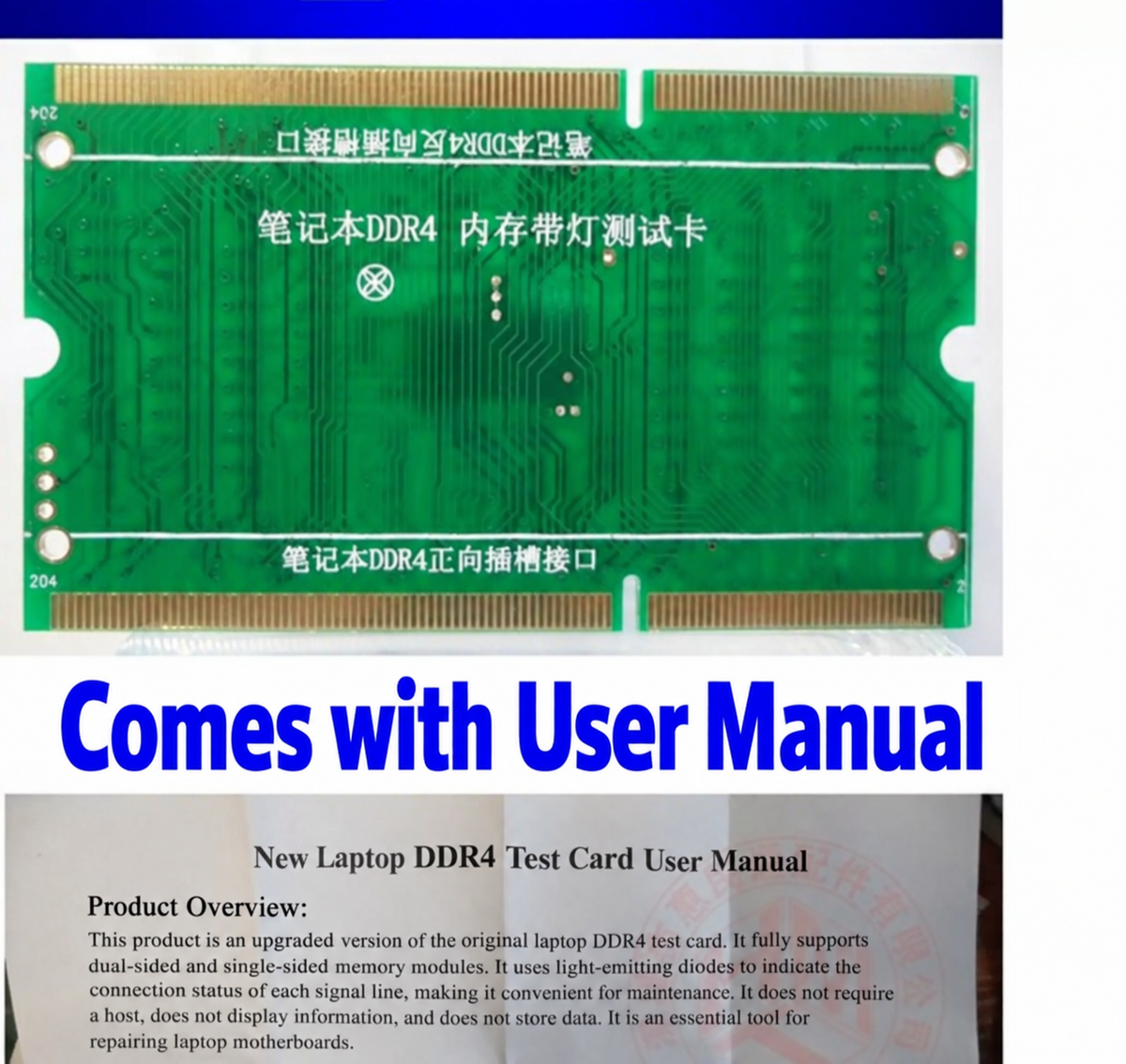

HMT-BC02 DDR4 Laptop Memory Tester with LED Indicator

HMT-BC02 Dual-Purpose DDR4 Laptop Memory Tester Card with LED Indicator

The HMT-BC02 Laptop DDR4 Memory Tester by HuiMinTong is an essential diagnostic tool engineered for computer repair technicians, hardware engineers, and laptop motherboard repair specialists. Featuring an intelligent dual-interface design supporting both forward and reverse SO-DIMM slot orientations, this diagnostic card delivers instant visual feedback on data and address bus continuity without needing to boot the laptop or connect complex external power adapters.

Key Features:

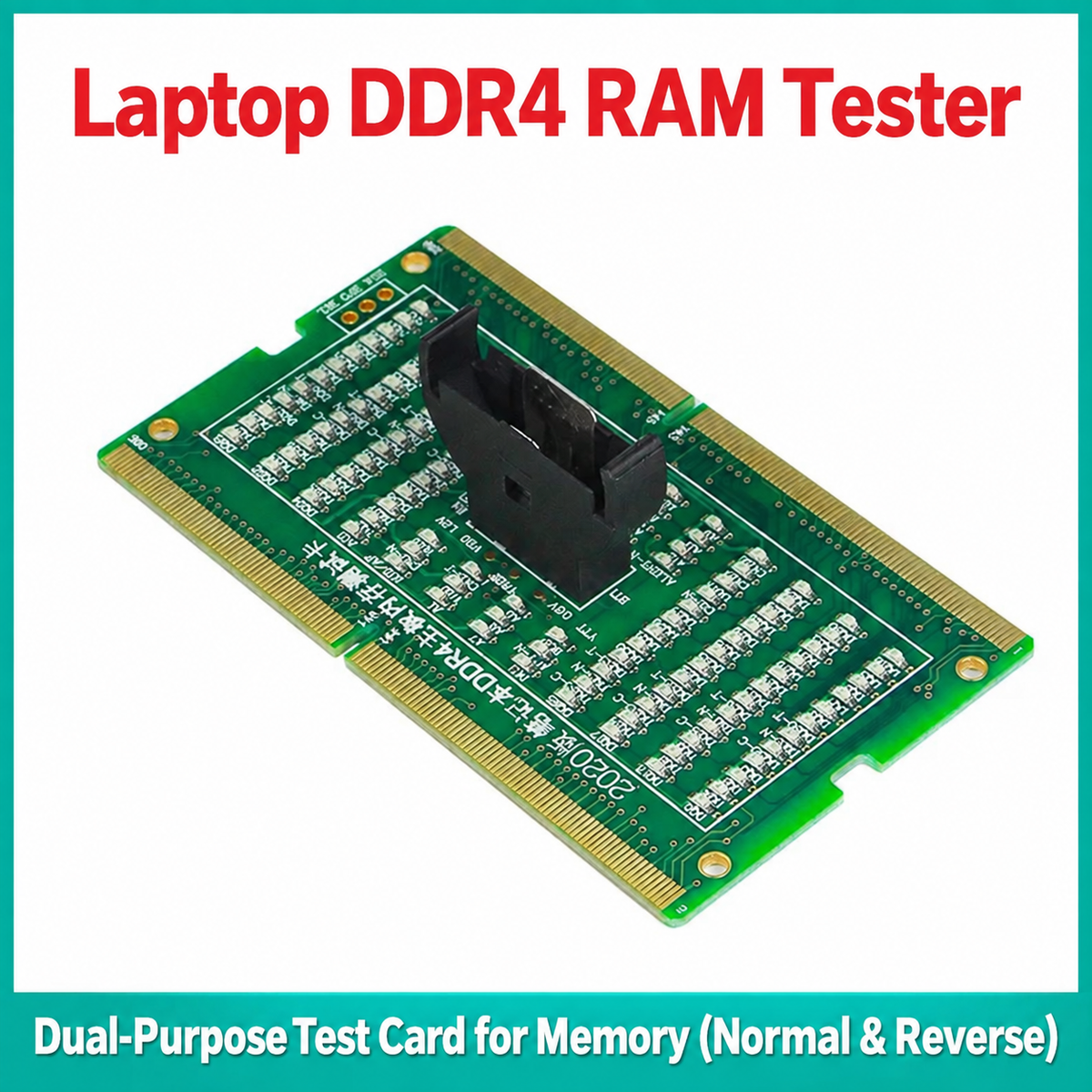

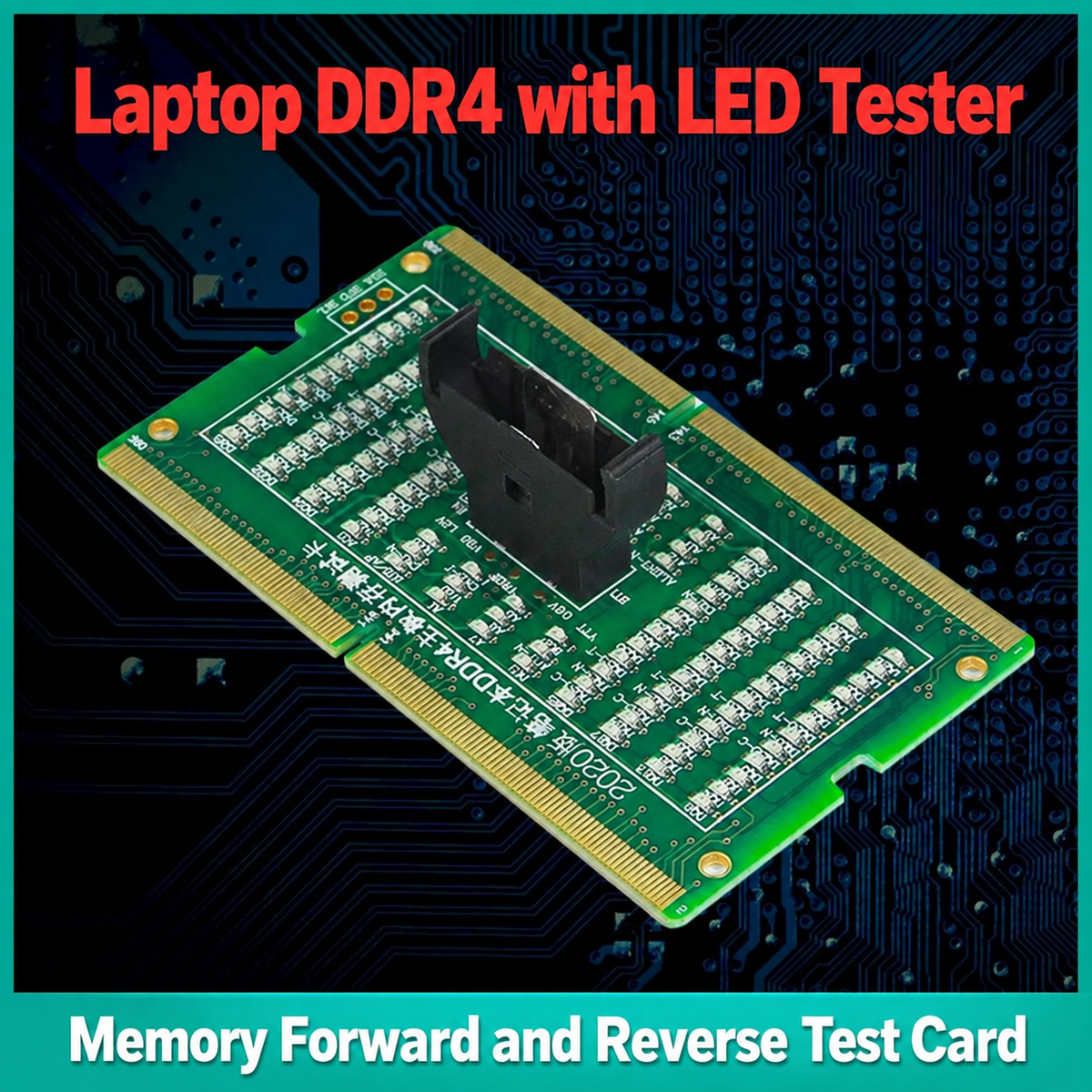

• Dual-Purpose (Normal & Reverse) Interface: Designed with dual SO-DIMM contact edges to accommodate both standard (forward) and inverted (reverse) laptop DDR4 memory slots, common in multi-slot or stacked motherboard architectures.

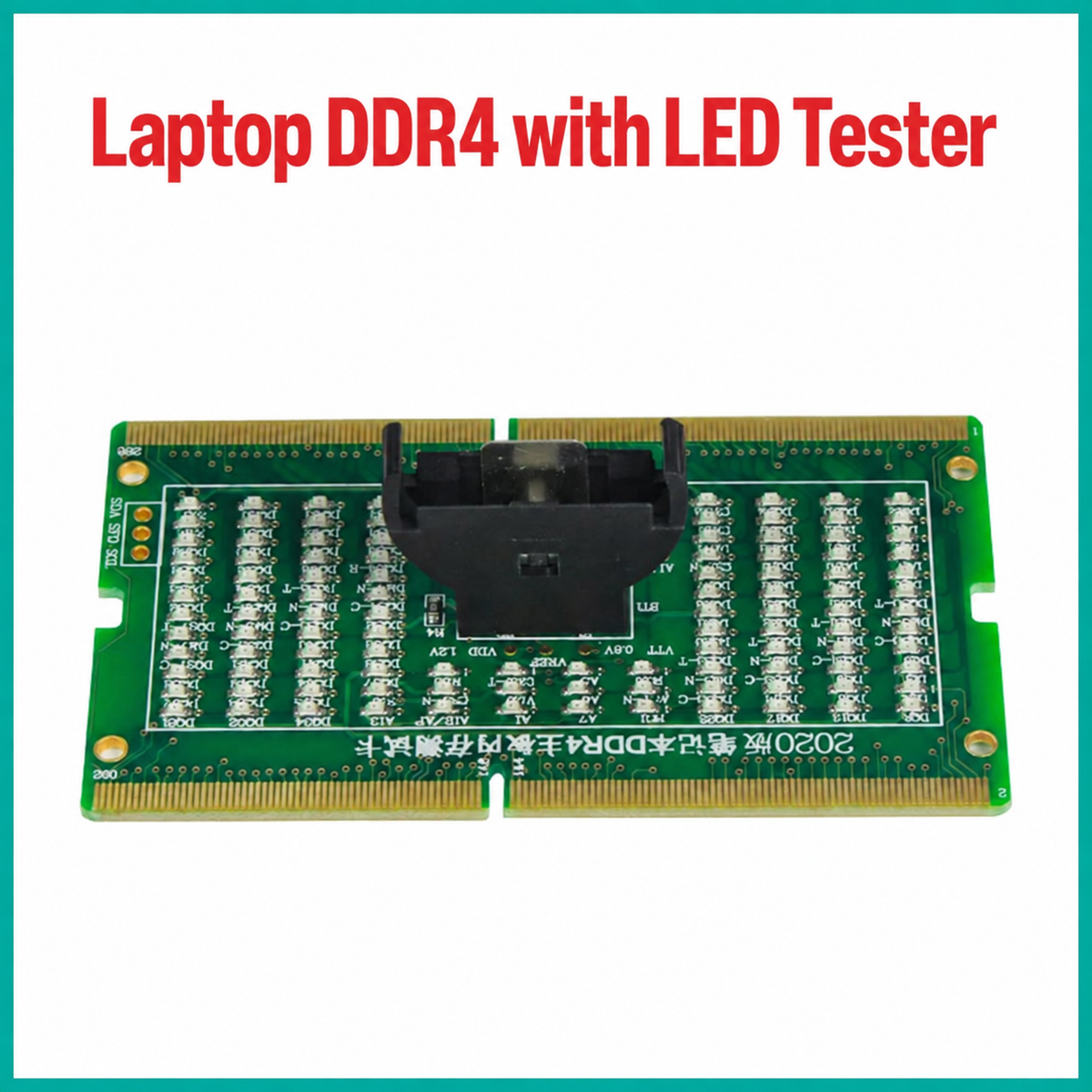

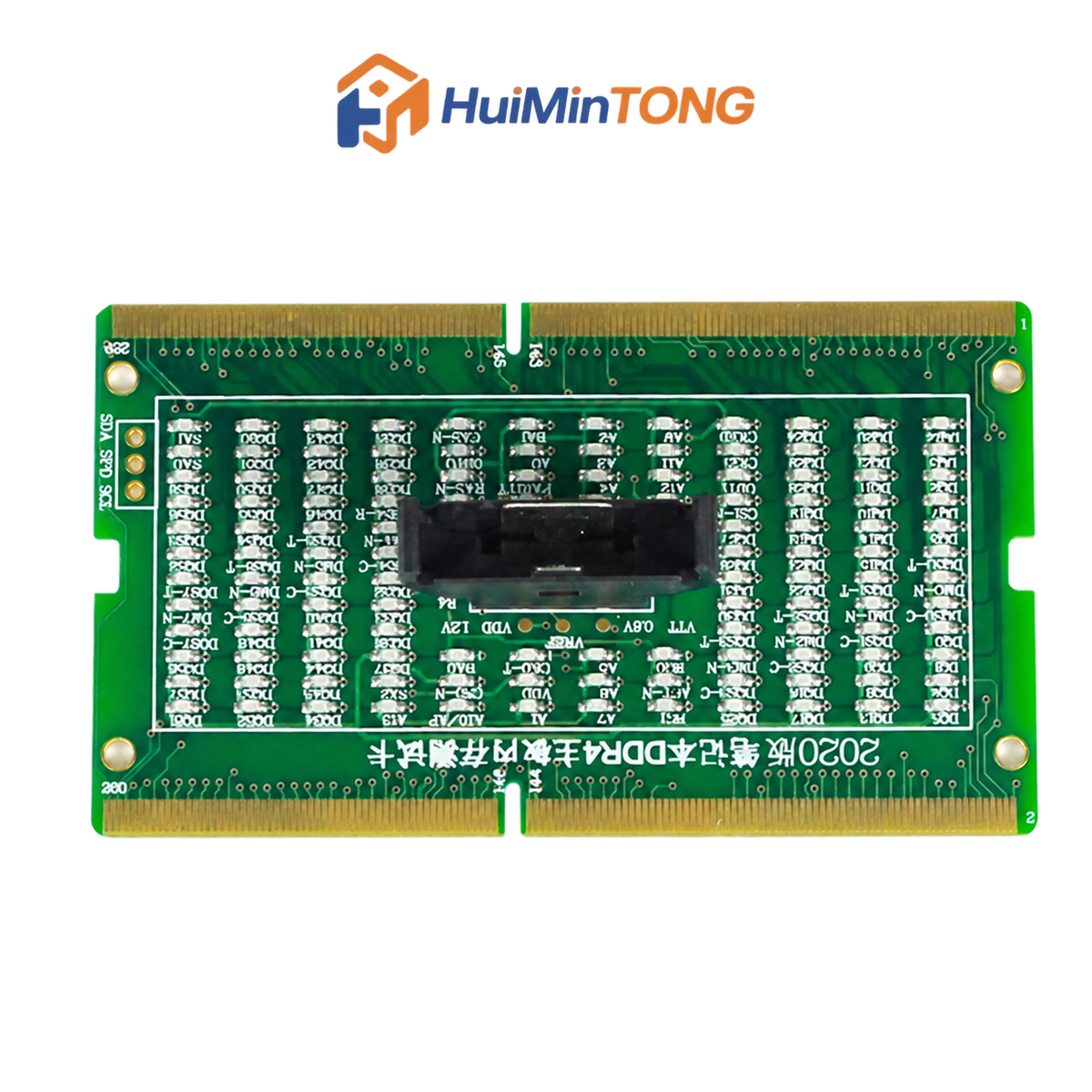

• Instant Visual LED Diagnostics: High-density surface-mount LED array maps directly to DDR4 data (DQ/DQS) and address bus lines, power rails (VDD 1.2V, VTT 0.6V), and control signals, pinpointing open circuits, solder bridging, and cold solder joints in seconds.
• Battery-Powered Cold-Board Testing: Powered by a standard 3V CR2032 coin cell battery inserted into the onboard vertical battery holder. Allows safe, offline motherboard diagnostics with the laptop powered off, preventing further damage to sensitive components.

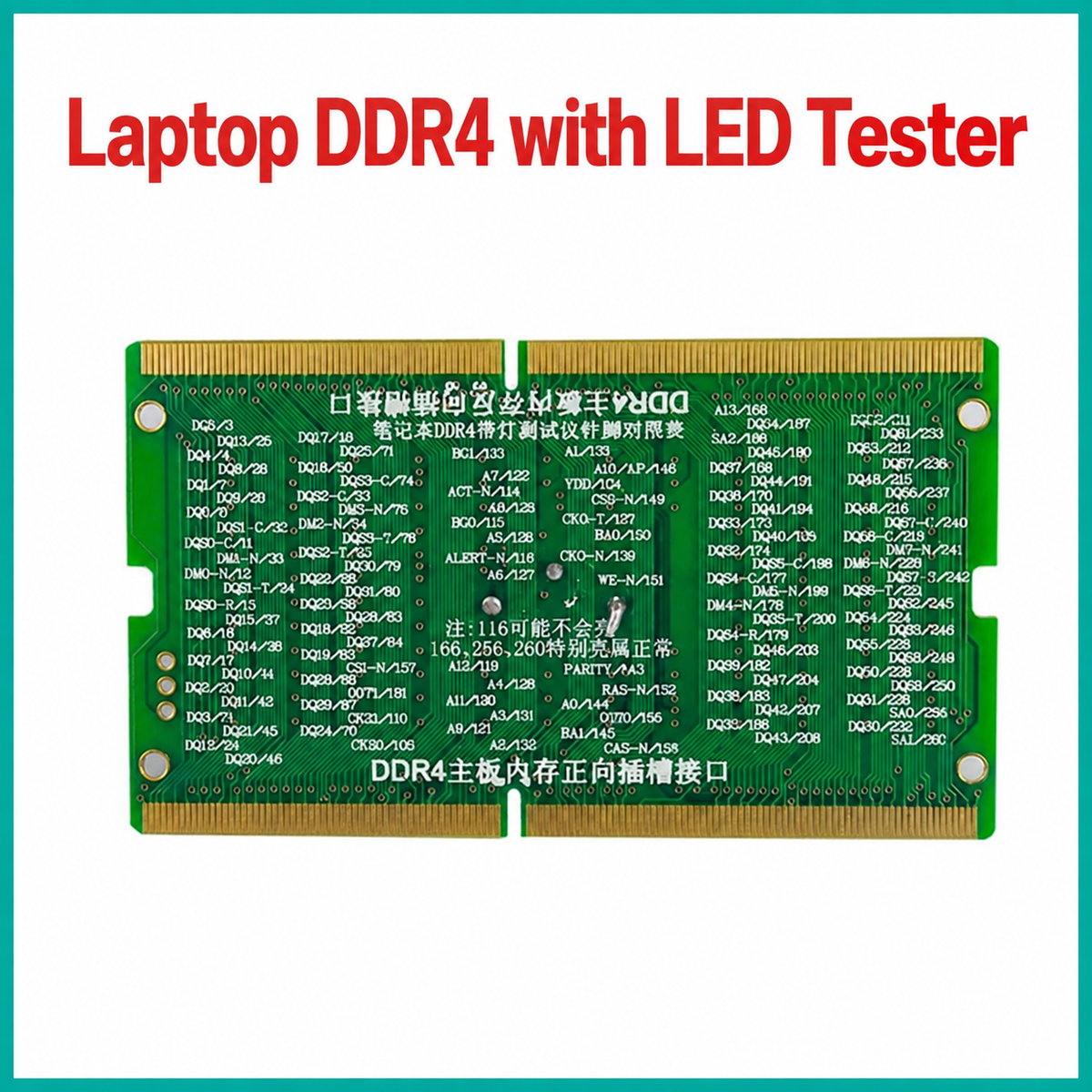

• Durable Gold-Plated Fingers: Built with precision multi-layer PCB substrate and wear-resistant gold-plated contact fingers for repeated insertions and reliable signal integrity during frequent testing.
• Time-Saving Motherboard Troubleshooting: Rapidly diagnoses classic laptop symptoms including "no display / black screen," "RAM not detected," "continuous reboot loops," and post-code halts during memory initialization.

Product Specifications:

• Model: HMT-BC02 (2020 Version)
• Brand: HuiMinTong (HMT TOOLS)
• Compatibility: Laptop DDR4 SO-DIMM Memory Slots (Normal & Reverse)
• Indicators: Multi-Line SMD LED Array (Data Lines, Address Lines, VDD, VTT, Control Signals)
• Power Supply: 1 × CR2032 3V Coin Cell Battery (Not included)
• Operating Mode: Cold-Board / Unpowered Motherboard Test
• SKU: 401027-02

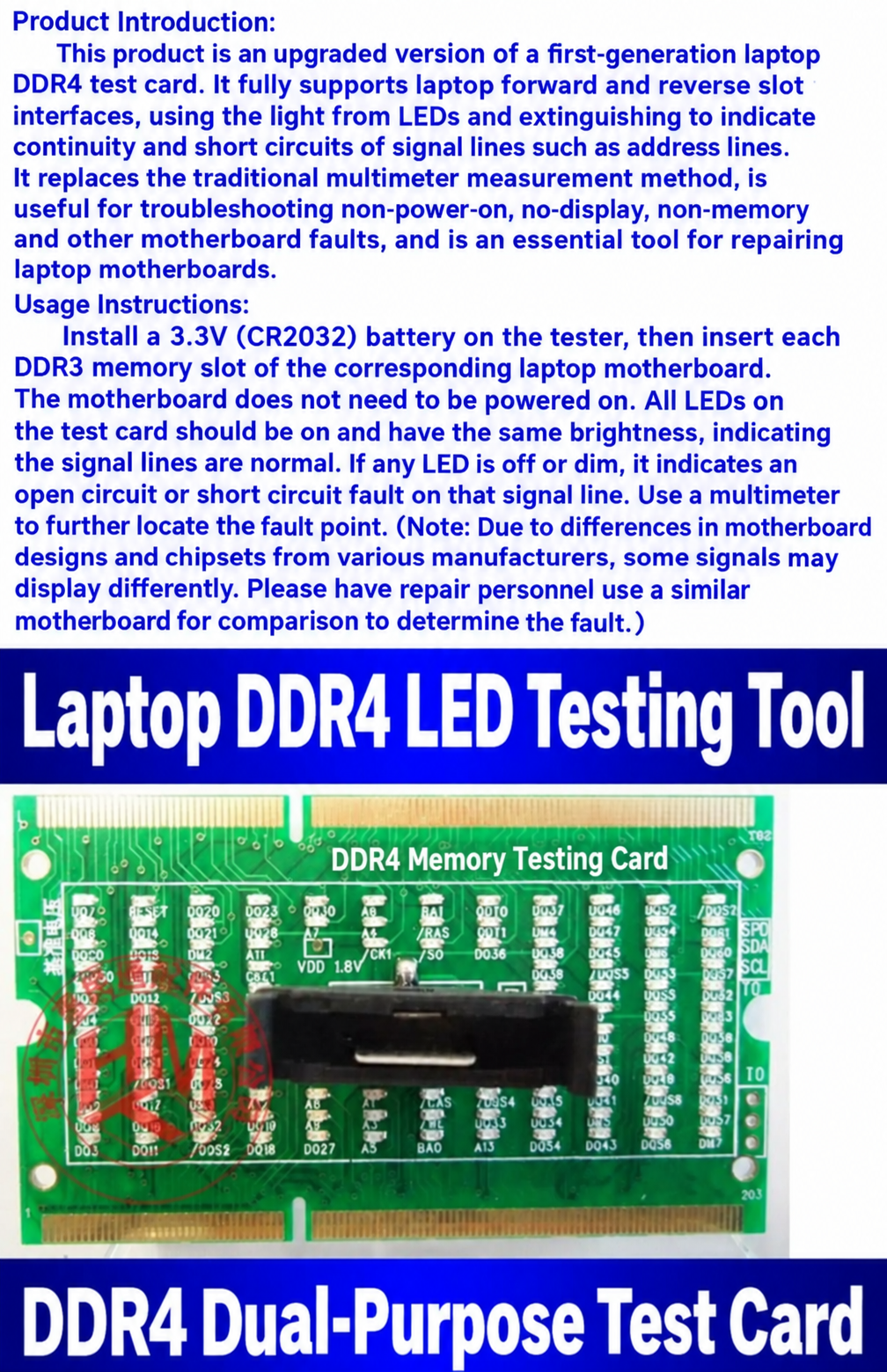

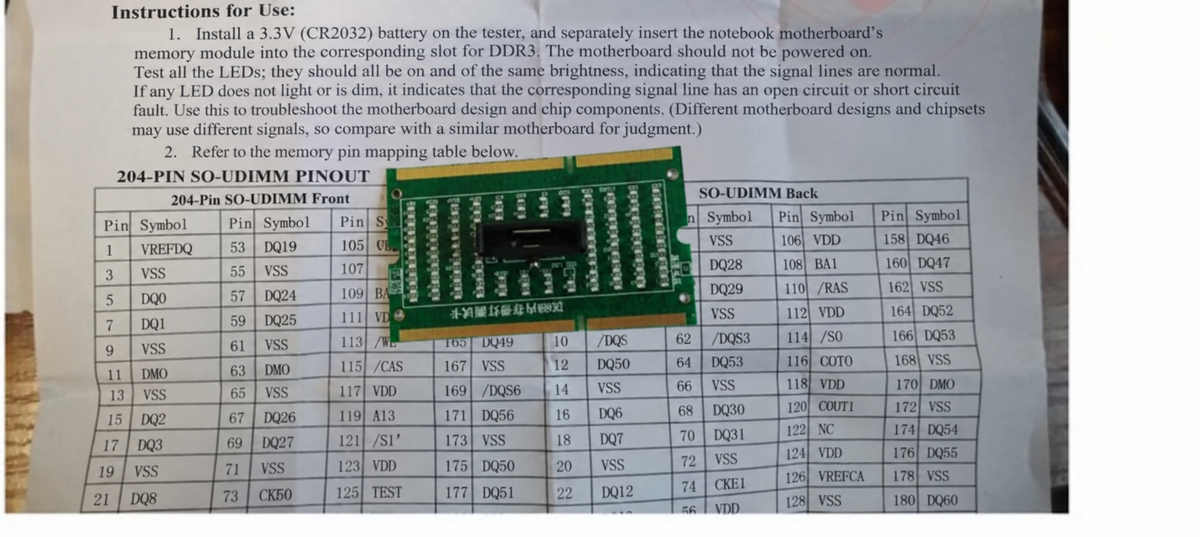

How It Works & Diagnostic Guide:

• Step 1: Ensure the laptop is completely powered off and disconnected from the charger and internal battery.
• Step 2: Insert a CR2032 3V coin cell battery into the card's vertical battery holder (BT1).
• Step 3: Insert the HMT-BC02 test card into the laptop DDR4 memory slot (select the normal or reverse edge according to slot key notch orientation).
• Diagnostic Interpretation:
  - All LEDs uniformly lit: Memory bus traces and BGA solder connections to the CPU/chipset are intact.
  - Unlit LED: Indicates an open circuit, severed PCB trace, or broken/cold BGA solder ball under the CPU or RAM slot pin.
  - Abnormally bright or dim LED: Indicates a short circuit, abnormal pull-up resistance, or signal leakage.

Package Includes:

• 1 × HMT-BC02 Laptop DDR4 Memory Slot Tester Card

Target Applications:

Ideal for laptop repair shops, electronics refurbishing facilities, technician training institutes, and computer motherboard hardware testing.
