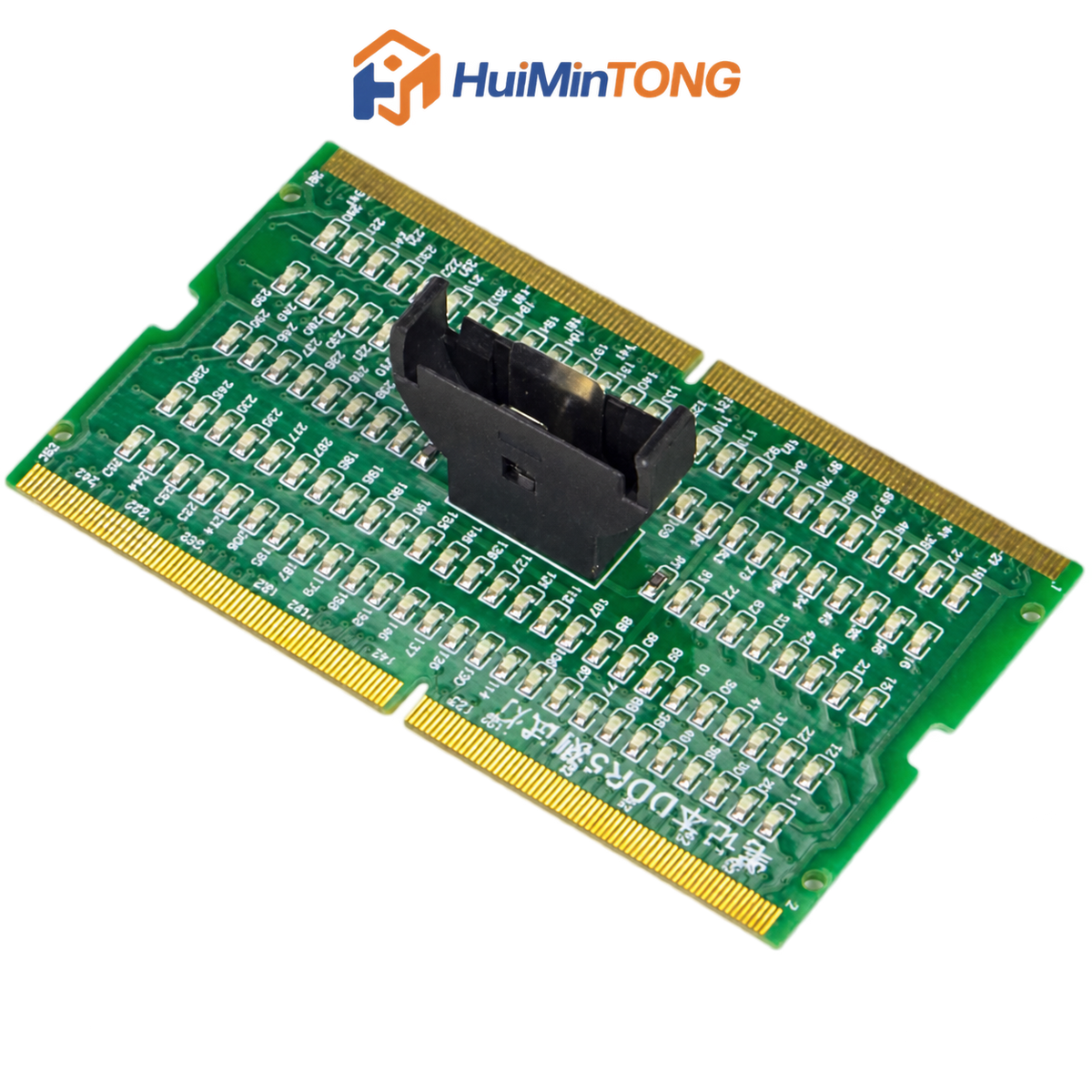

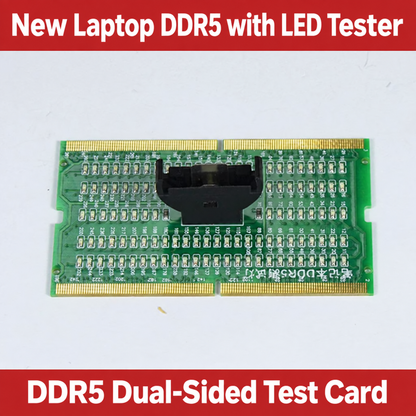

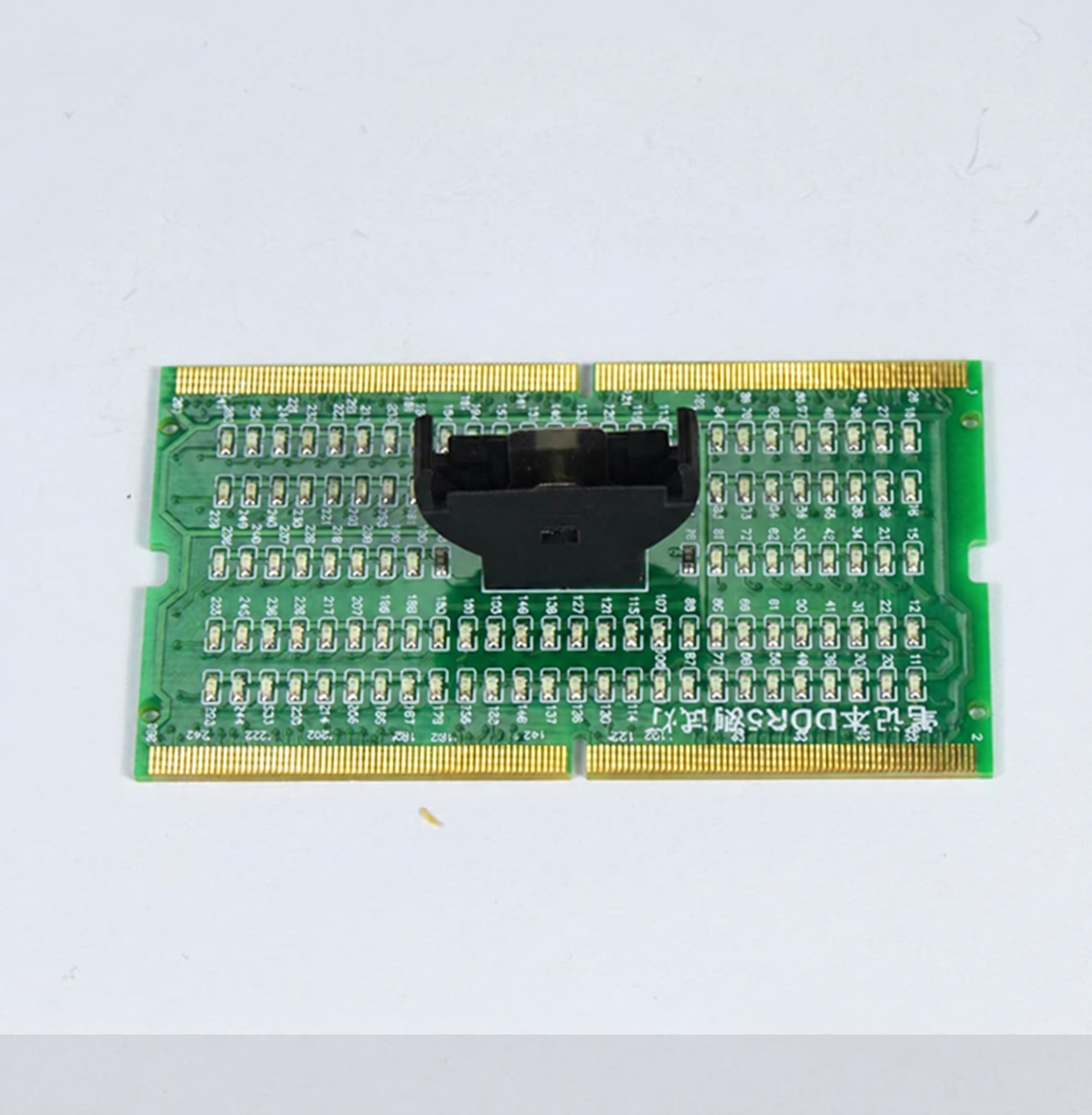

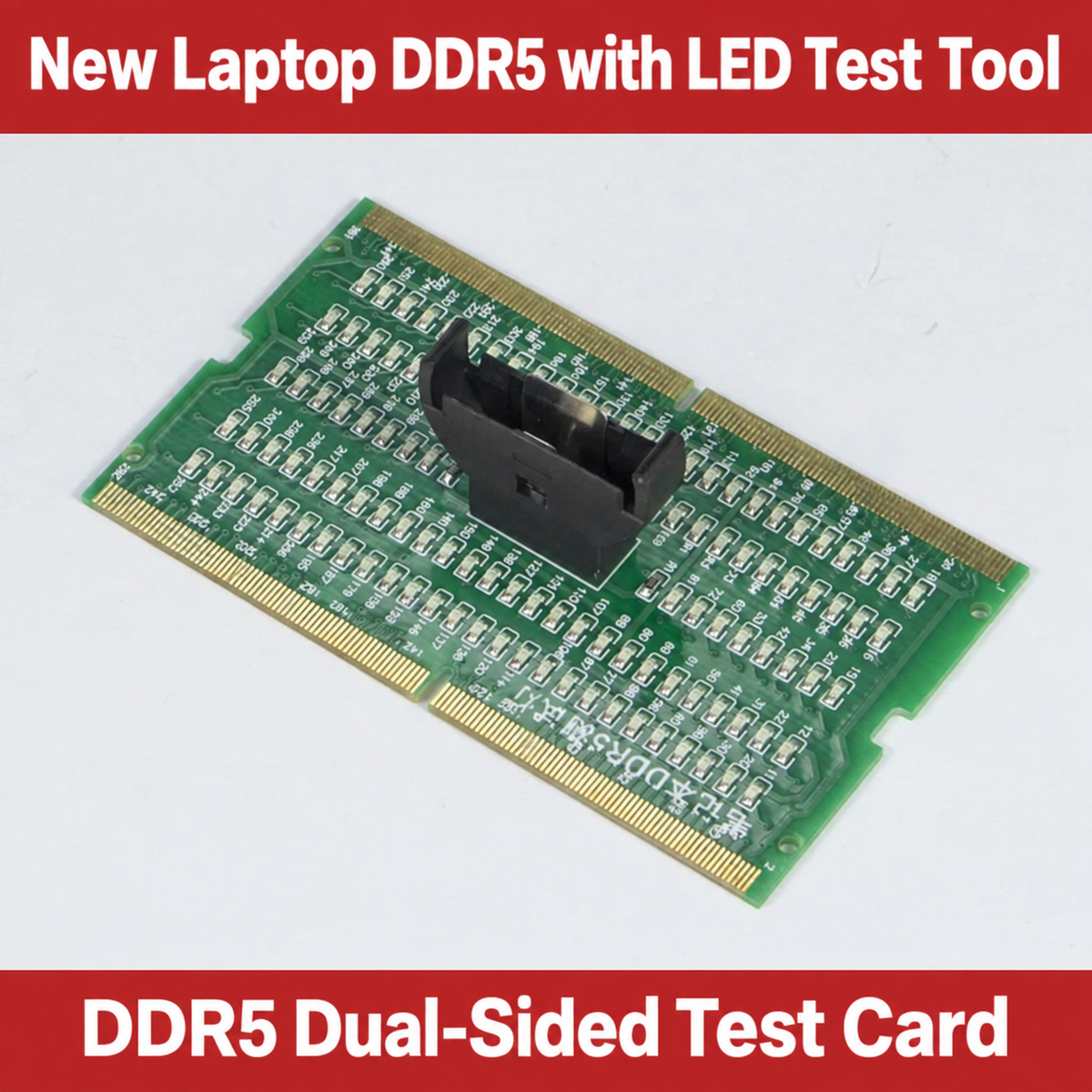

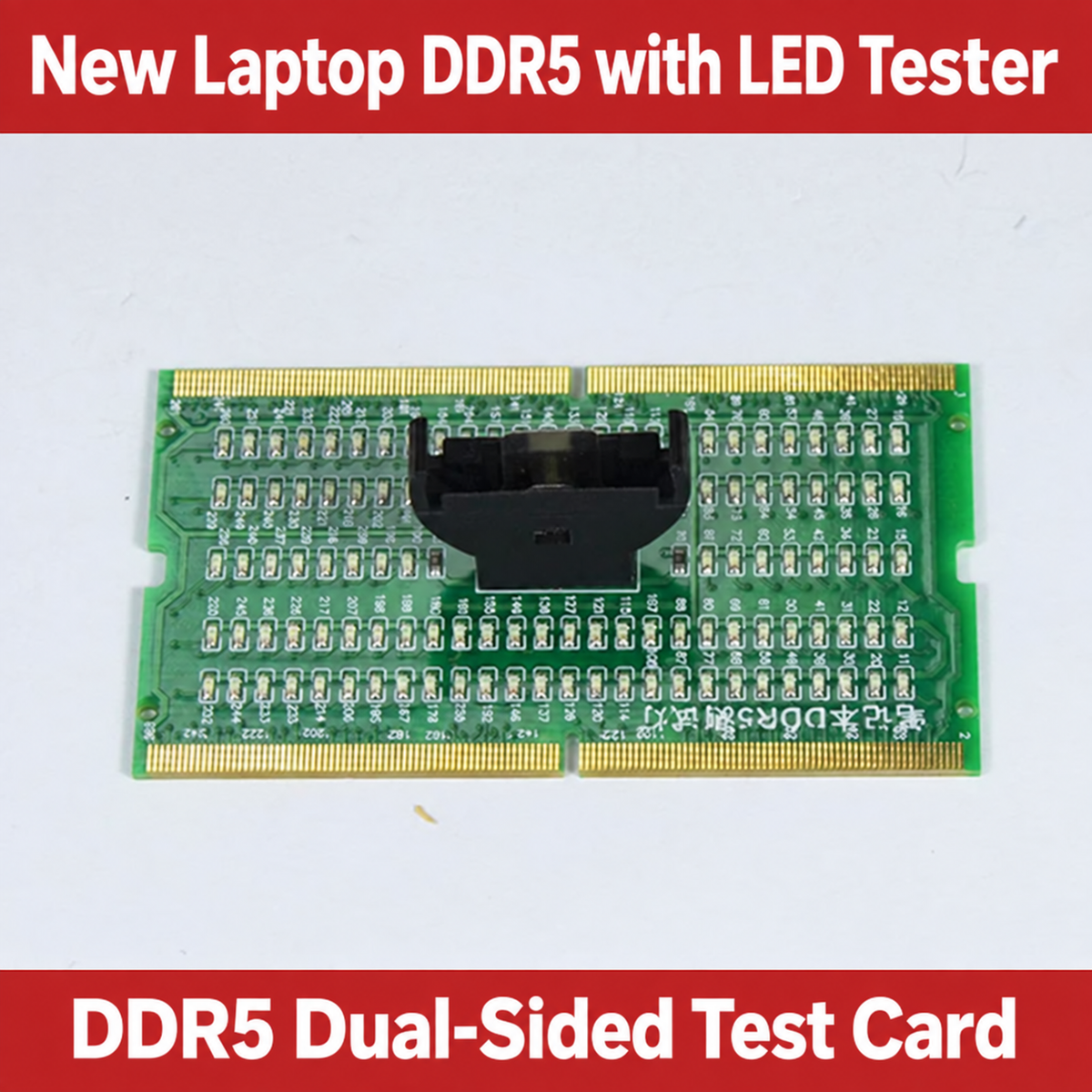

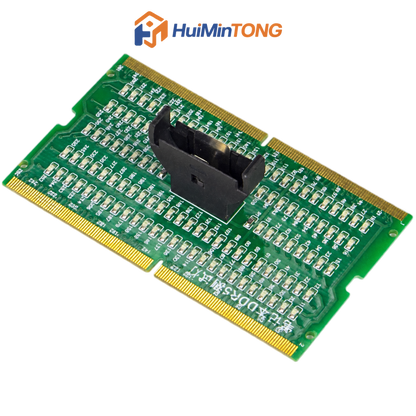

HMT-BC04 Laptop DDR5 RAM Tester with LED Indicator

HMT-BC04 Laptop DDR5 Memory Slot Diagnostic Tester Card with LED Indicator

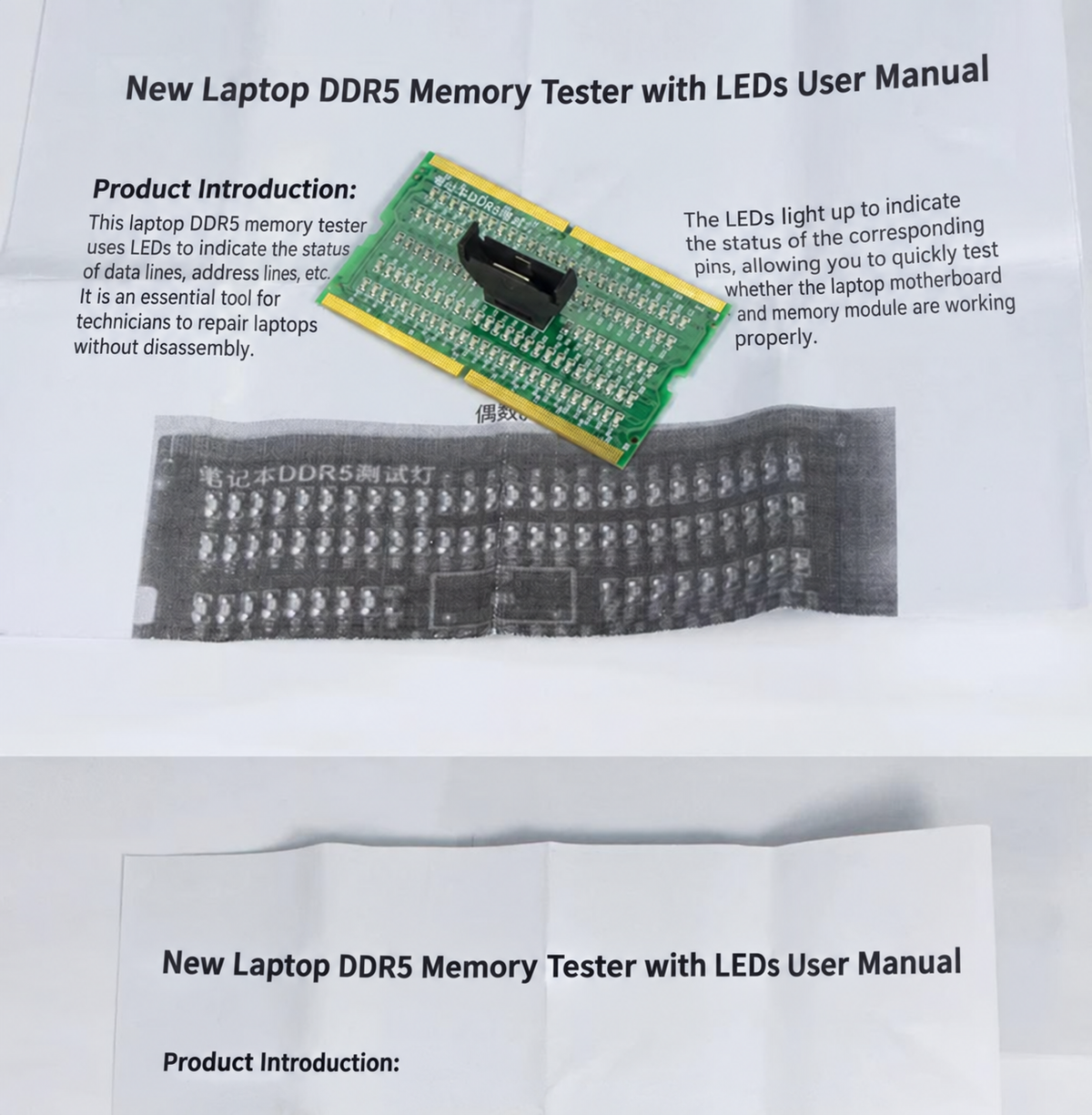

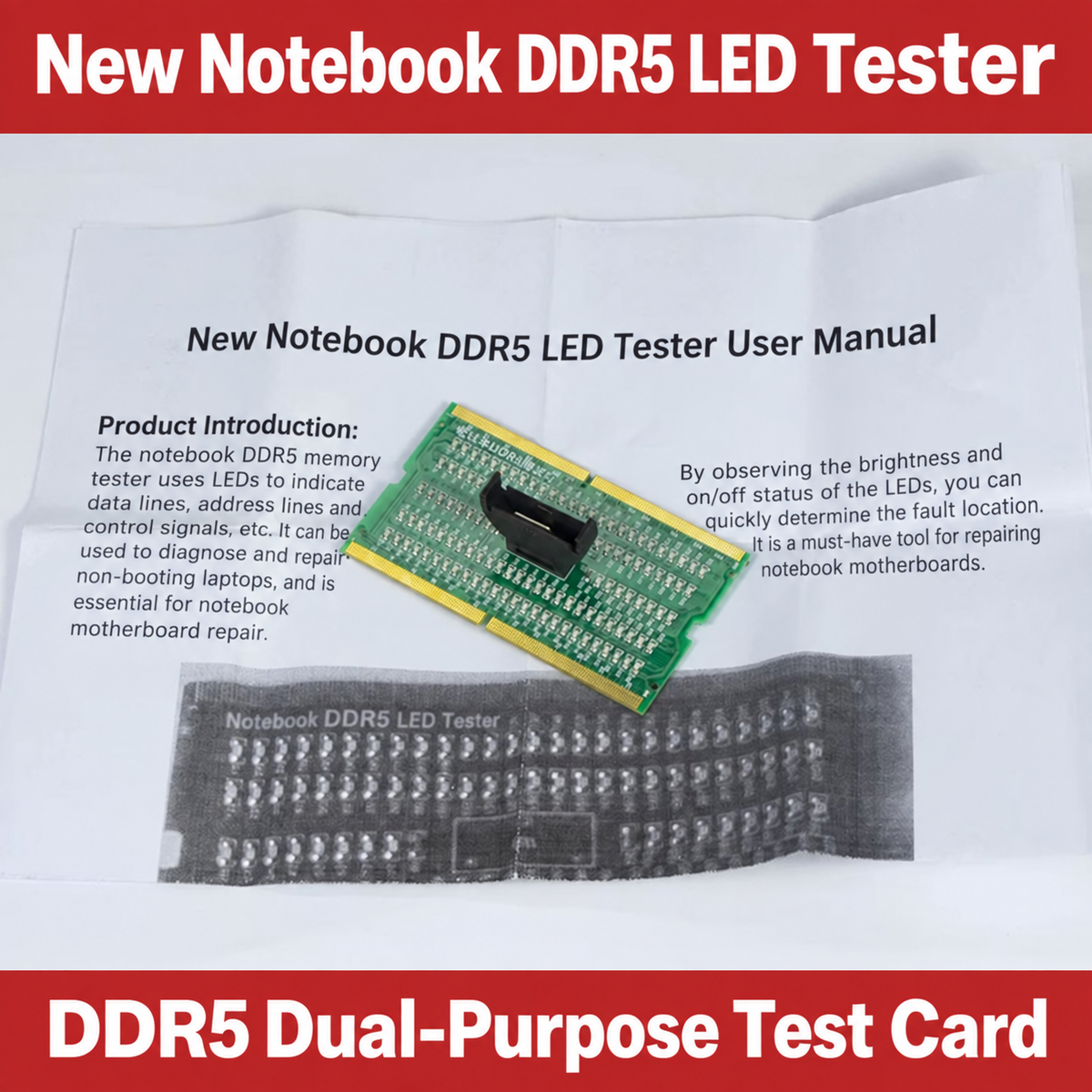

The HMT-BC04 Laptop DDR5 Memory Tester by HuiMinTong is an advanced hardware diagnostic card engineered specifically for laptop motherboard repair technicians, IT refurbishers, and electronics engineers. Designed for next-generation DDR5 SO-DIMM laptop memory slots, this precision test card provides fast, visual LED-based fault isolation for open circuits, short circuits, and cold solder joints between the motherboard's RAM slot and the CPU or chipset ball grid array (BGA).

Key Features:

• Dedicated Laptop DDR5 Architecture: Specifically tailored for DDR5 SO-DIMM laptop motherboard slots, fully accommodating the dual 32-bit subchannel data layout, Command/Address (CA) bus, and high-frequency signal lines.

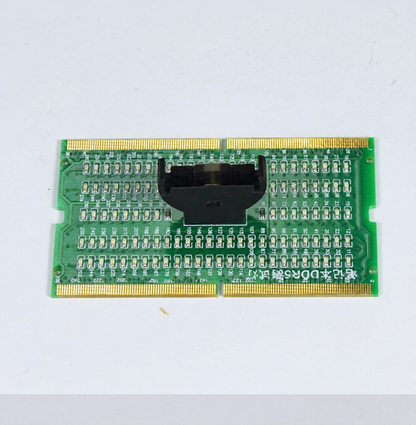

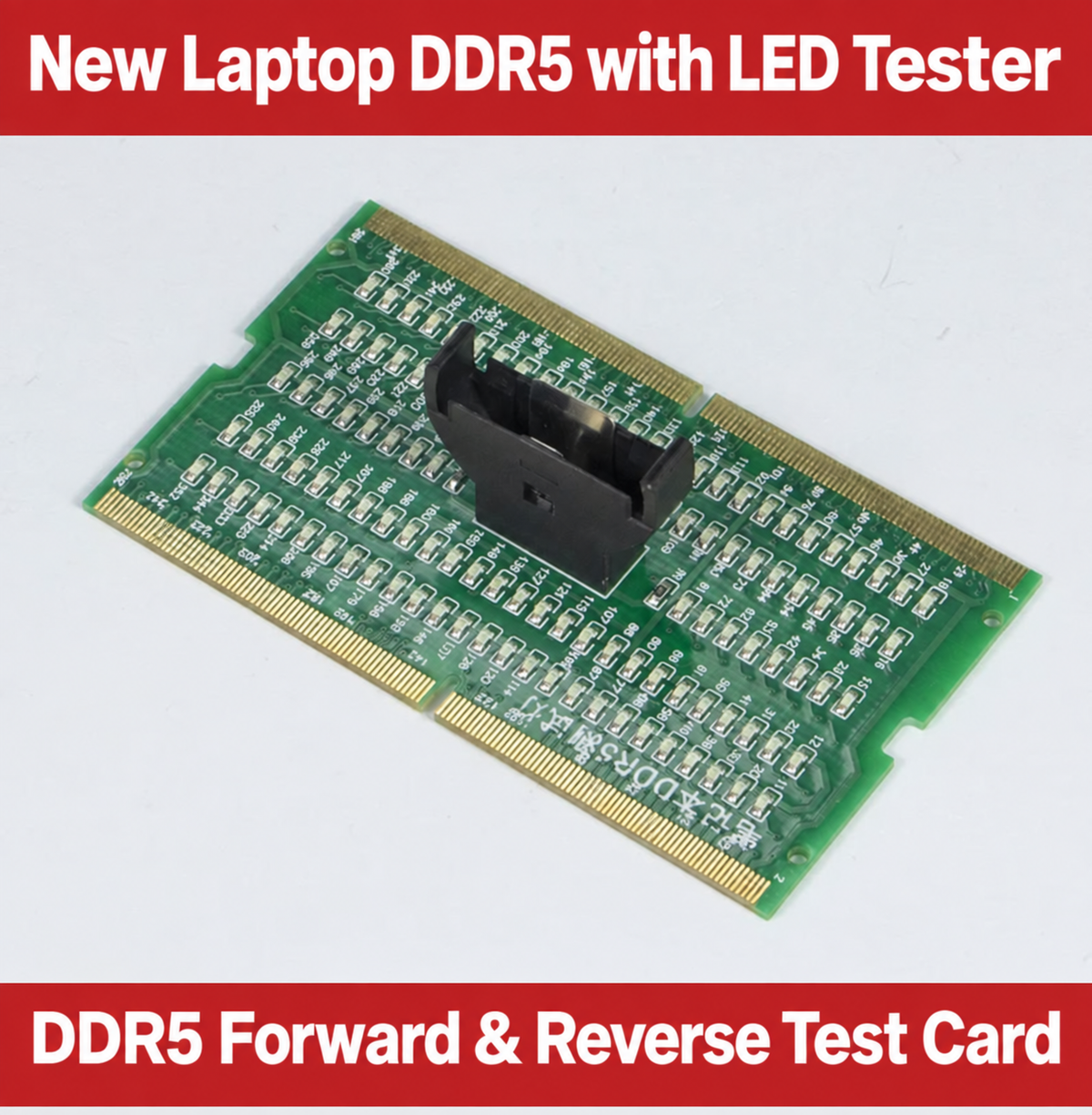

• Comprehensive LED Diagnostic Array: Integrated with an ultra-dense array of surface-mount LEDs corresponding to individual data lines (DQ/DQS), Command/Address (CA) lines, clock signals (CLK/CLKB), and power rails, delivering instant visual identification of signal anomalies.
• Rapid Open & Short Fault Detection: Detects open traces, fractured BGA solder balls, and solder bridge shorts without boot power, drastically reducing motherboard diagnostic time from hours to seconds.
• Cold-Board Offline Diagnostics: Designed for safe, unpowered motherboard testing to protect sensitive motherboard chips and power delivery ICs from further damage caused by existing short circuits.

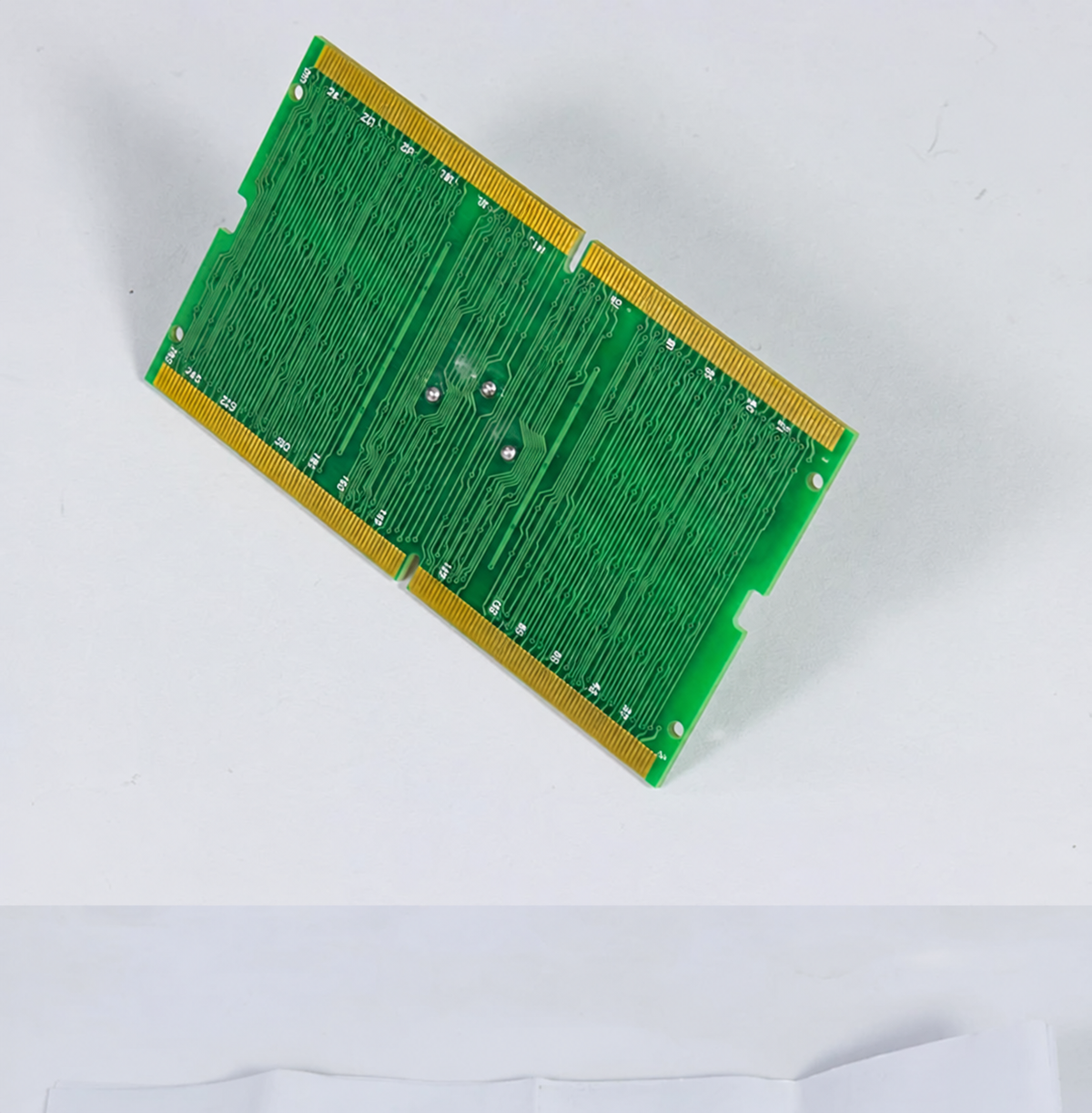

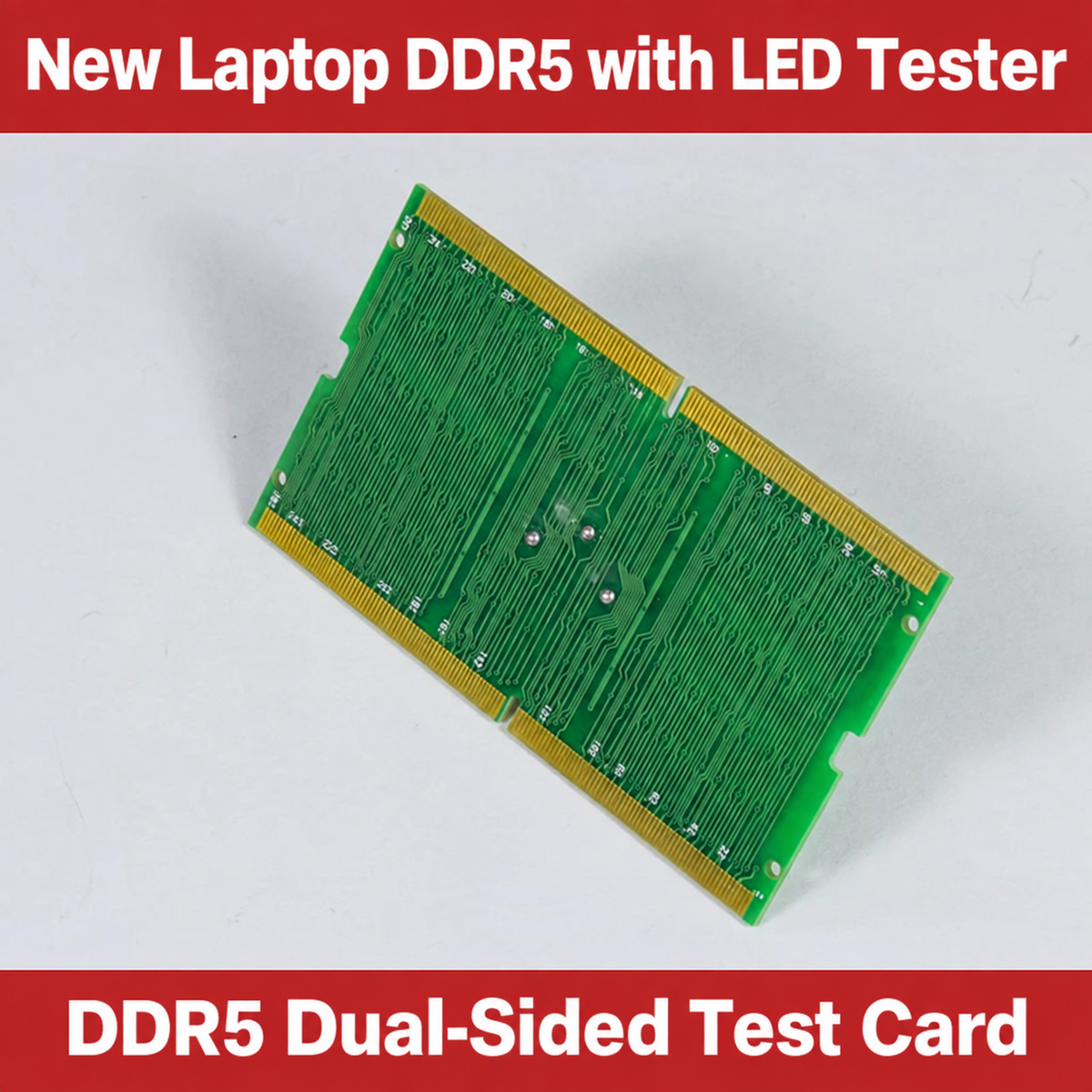

• Precision Gold Finger Interface: Features durable, wear-resistant gold-plated contact fingers engineered to standard DDR5 SO-DIMM dimensions, ensuring reliable connectivity and long service life across hundreds of test cycles.
• Essential Troubleshooting Companion: Solves complex laptop motherboard symptoms including "no display / black screen," "memory post code halt," "random reboot loops," and "RAM slot unrecognized."

Product Specifications:

• Model: HMT-BC04
• Brand: HuiMinTong (HMT)
• Supported Slot Type: Laptop DDR5 SO-DIMM Memory Slot
• Diagnostic Display: Multi-Channel High-Density SMD LED Array
• Monitored Signals: Data Lines (DQ/DQS), Command/Address Bus (CA), Clock (CLK), Control Signals & Power Lines
• Testing Mode: Cold-Board / Unpowered Motherboard Resistance & Continuity Test
• SKU: 401027-04

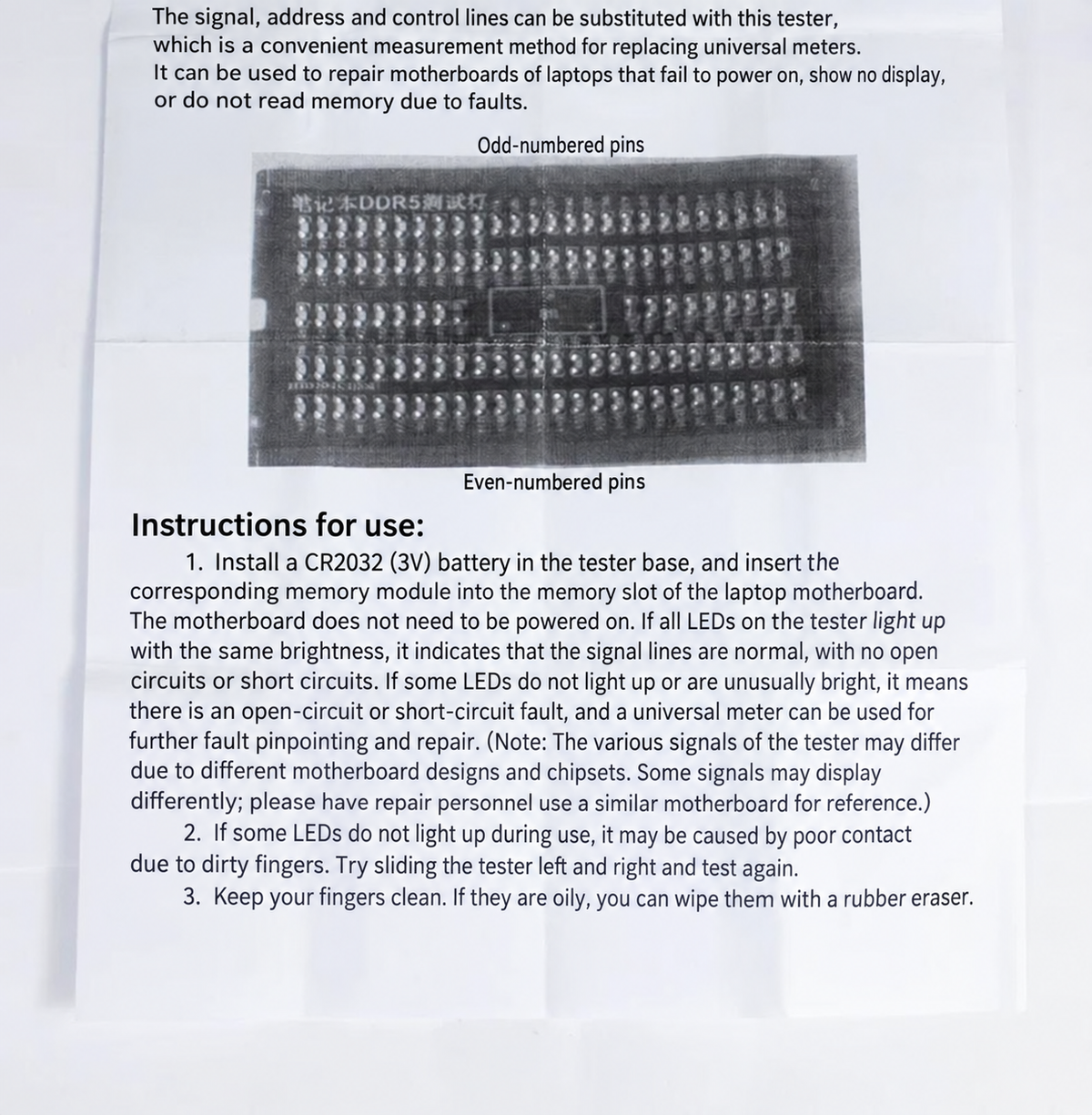

Diagnostic Instructions & LED Reading Guide:

• Preparation: Completely disconnect the laptop from the AC charger and internal battery. Ensure the motherboard is fully discharged.
• Operation: Align and gently insert the HMT-BC04 diagnostic card into the target DDR5 SO-DIMM slot.
• Result Interpretation:
  - All LEDs evenly illuminated: The circuit loop between the memory slot contact pins, PCB routing, and the CPU BGA balls is intact and normal.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, bent slot pin, or cracked/pseudo BGA solder ball under the processor.
  - Abnormally bright or dim LED: Indicates a short circuit to adjacent traces, ground leakage, or abnormal pull-up/pull-down impedance.

Package Includes:

• 1 × HMT-BC04 Laptop DDR5 Memory Tester Card

Target Applications:

Indispensable for laptop maintenance facilities, computer refurbishing centers, repair technician training academies, and hardware R&D laboratories.
