HMT-BT01 Laptop DDR3 RAM Tester

HMT-BT01 Laptop DDR3 SO-DIMM Memory Module Tester with LED Indicator

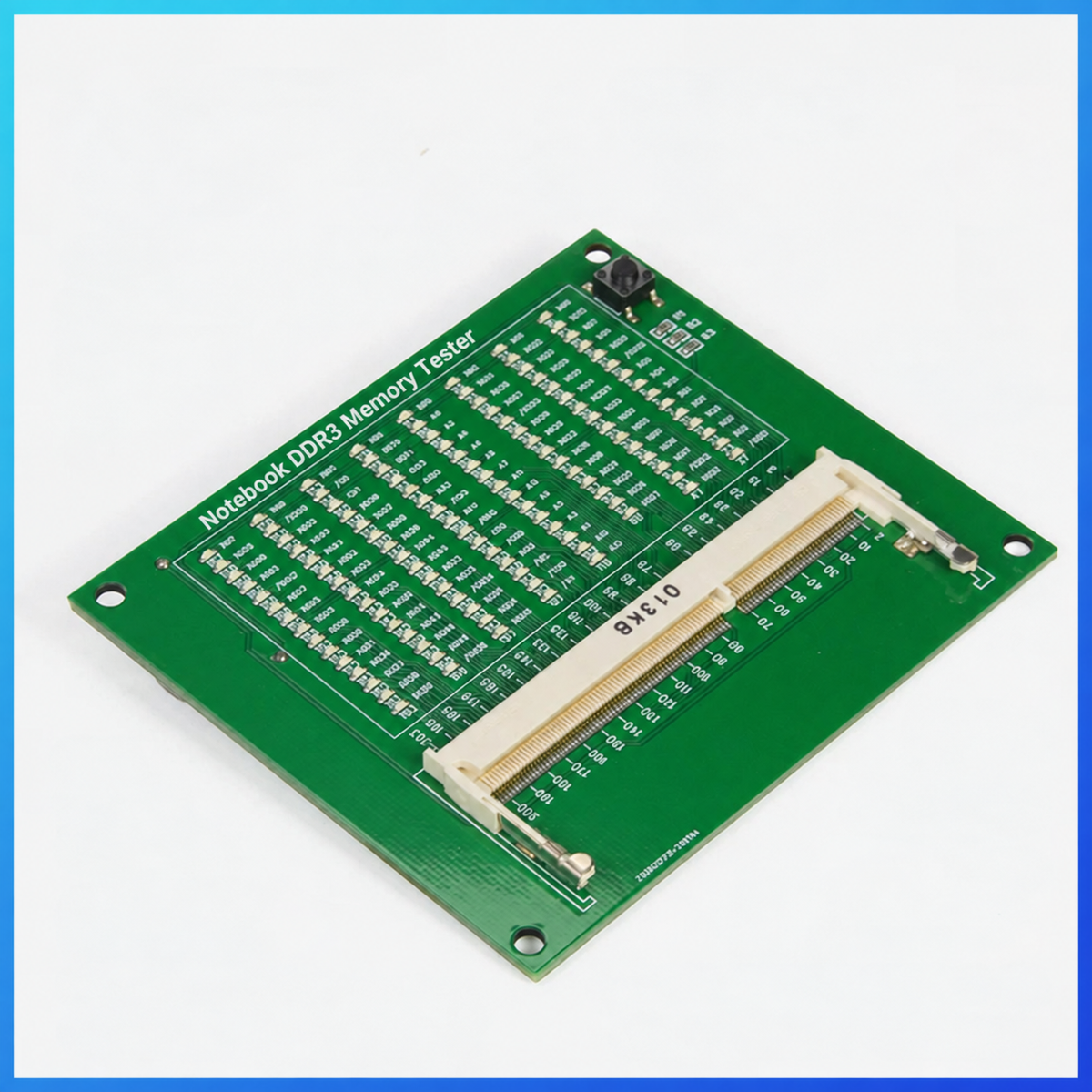

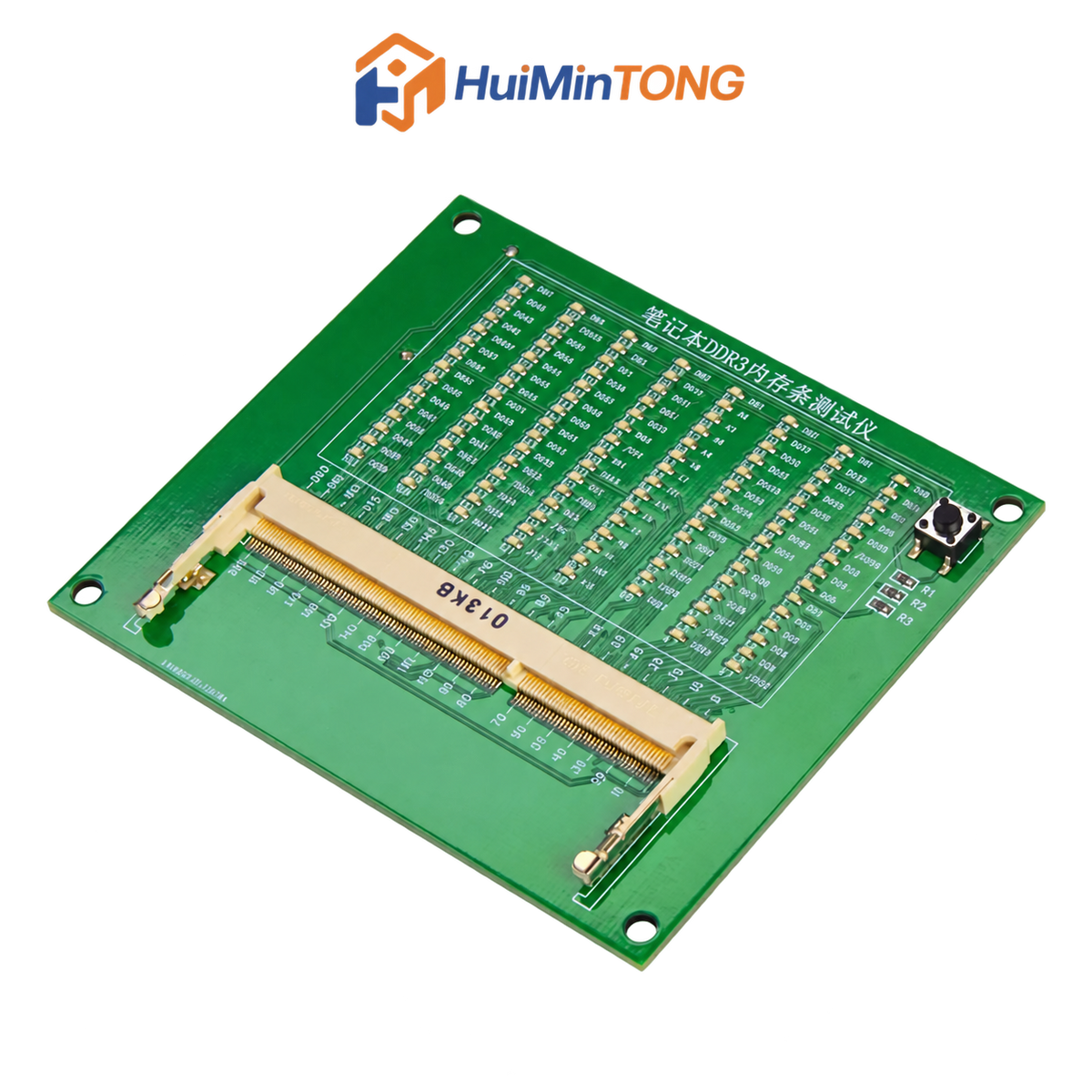

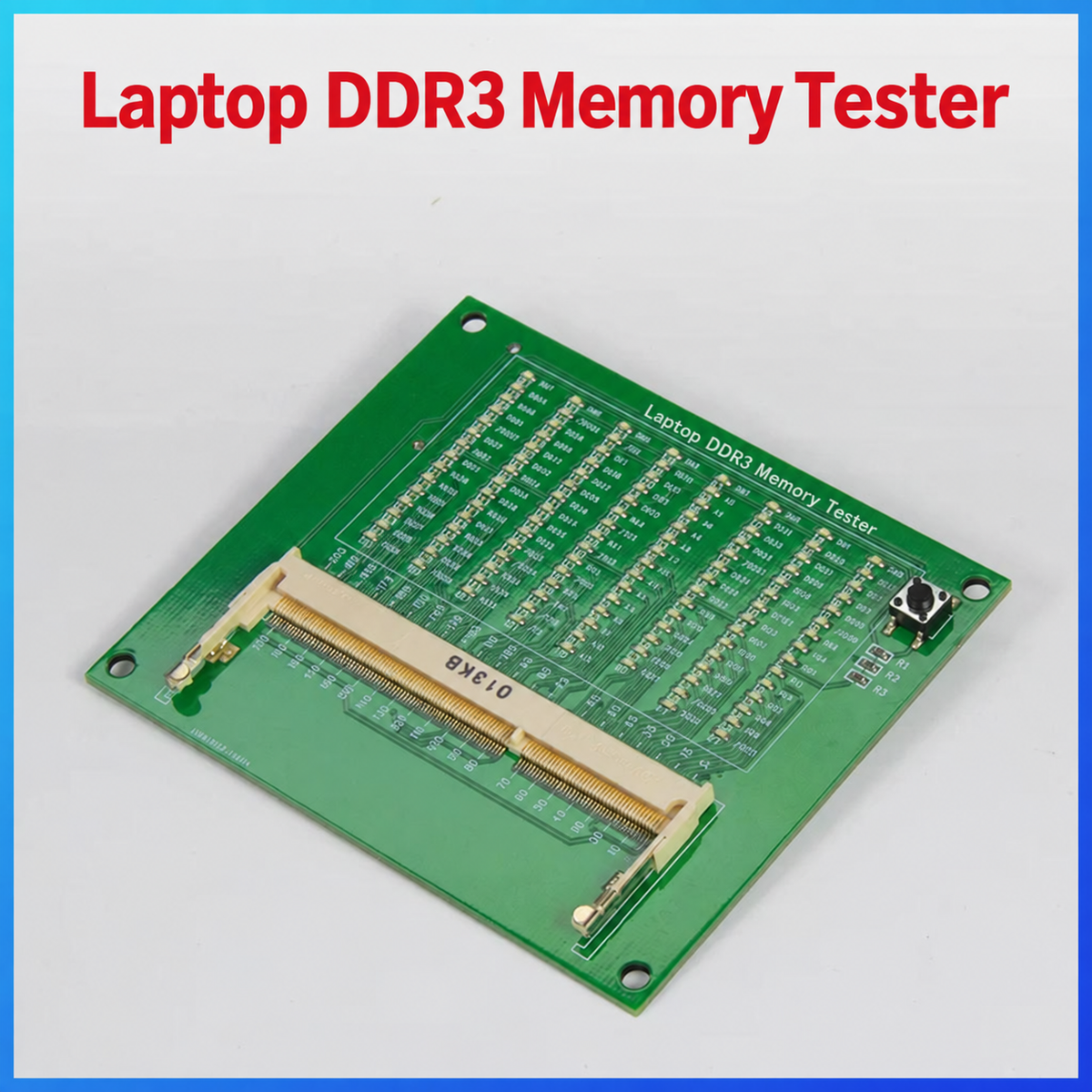

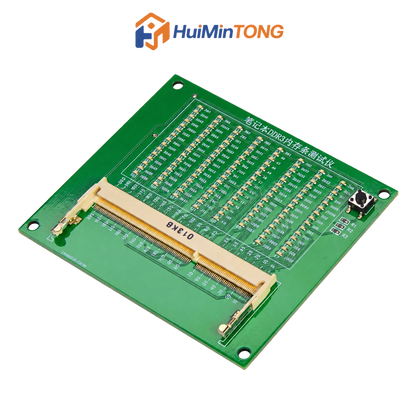

The HMT-BT01 Laptop DDR3 RAM Tester by HuiMinTong is a professional standalone memory diagnostic instrument engineered for computer repair shops, refurbishing centers, and hardware diagnostic technicians. Featuring a durable 204-pin DDR3 SO-DIMM latching socket and a multi-line LED indicator array, this tool allows you to thoroughly verify the integrity of laptop DDR3 RAM sticks without requiring a functional laptop motherboard or complex bench testing setups.

Key Features:

• Dedicated Laptop DDR3 SO-DIMM Testing: Specifically designed for 204-pin DDR3 laptop memory modules. Tests RAM sticks independently before installing them into client laptops, saving hours of system-level troubleshooting.

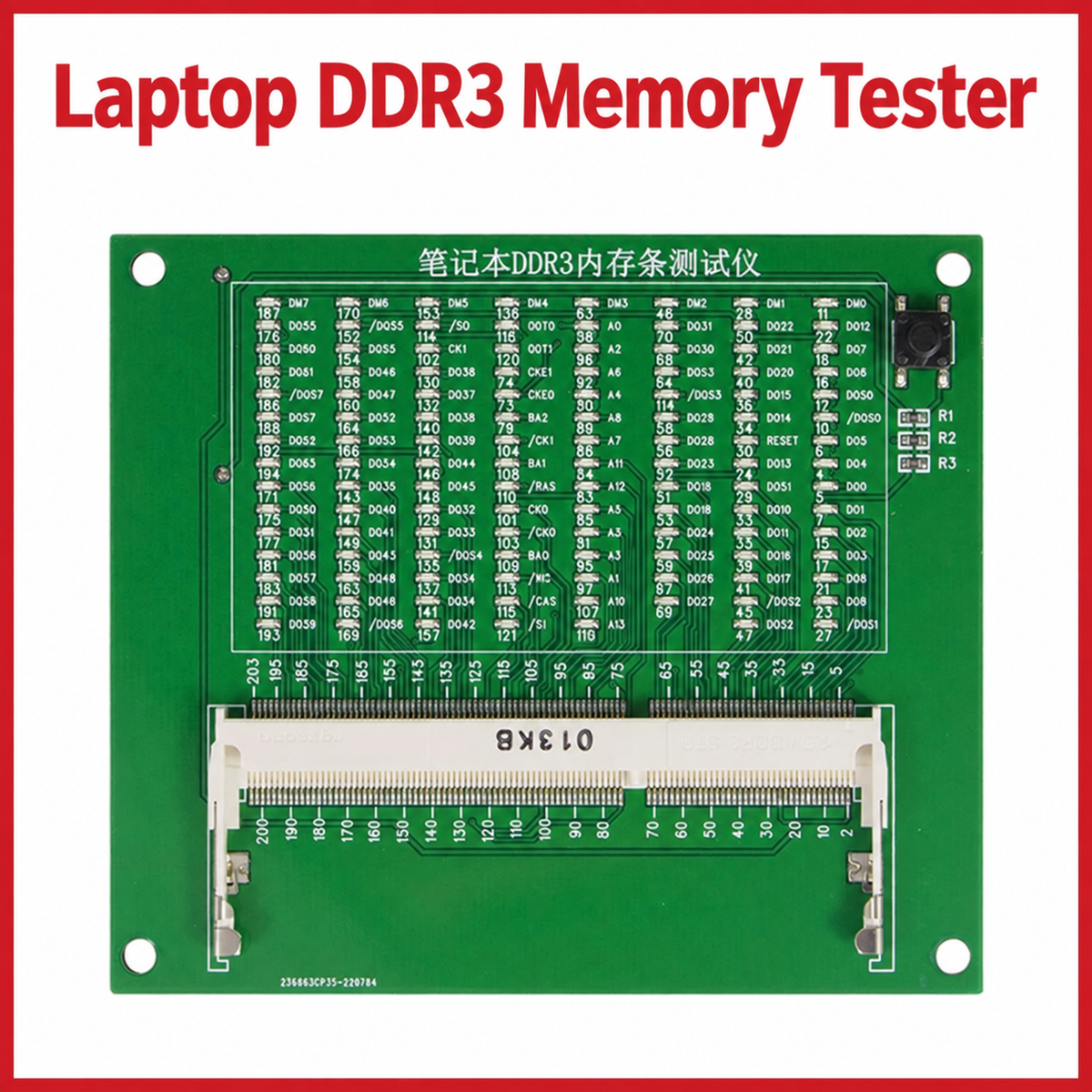

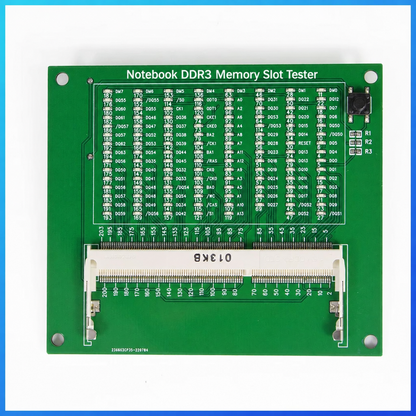

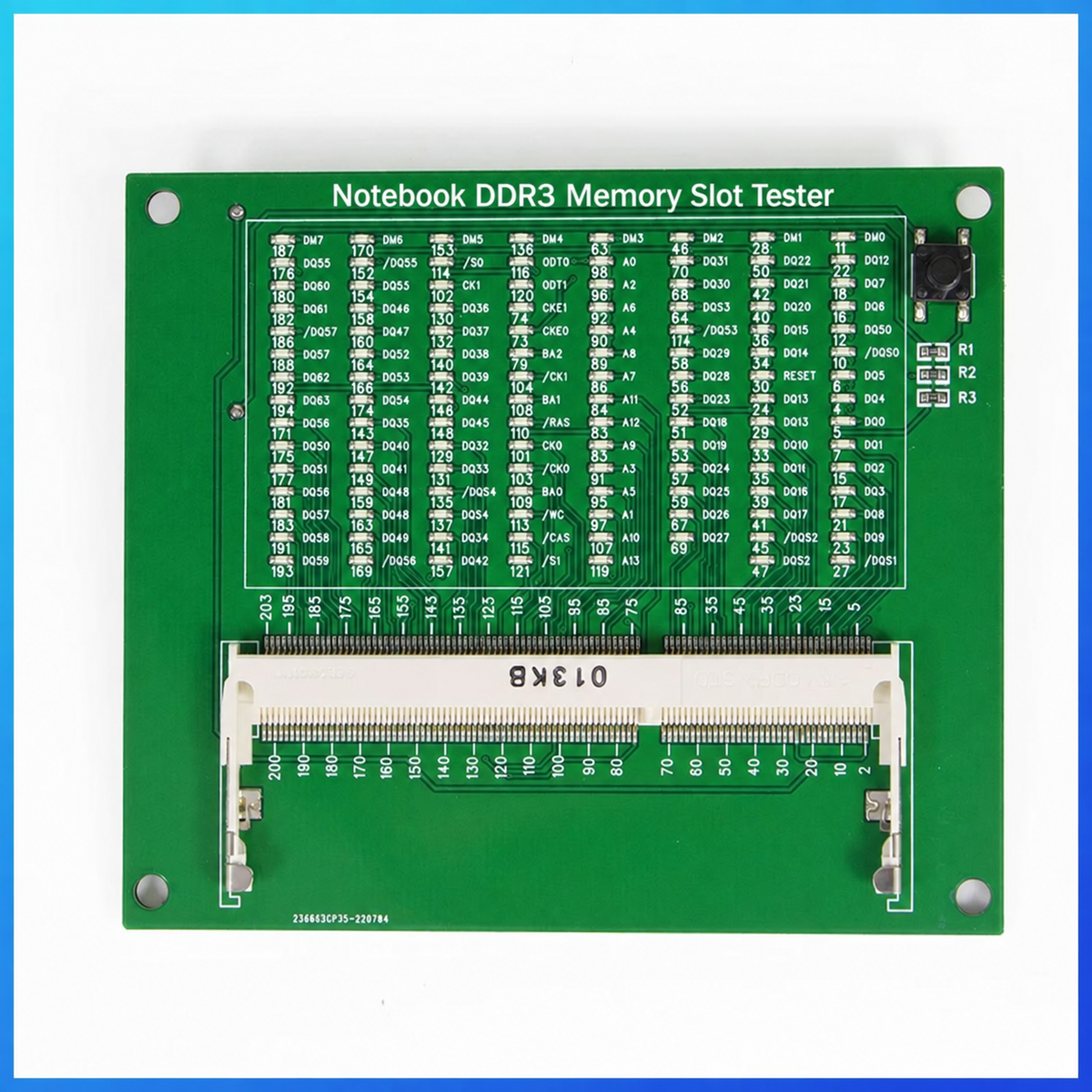

• Comprehensive LED Diagnostic Matrix: High-density surface-mount LED array covers every essential memory bus line, including 64 data lines (DQ0–DQ63), data strobes (DQS/DQSB), data masks (DM), address bus (A0–A15), bank addresses (BA0–BA2), clocks (CK/CKB), and critical control signals (/RAS, /CAS, /WE, /CS, /S0, /S1, CKE, ODT, RESET).
• Instant Open & Short Fault Detection: Press the test button to instantly identify open circuits, broken internal bond wires, cold or cracked BGA solder balls under memory chips, and trace-to-trace shorts.
• Durable Latching SO-DIMM Socket: Equipped with a heavy-duty laptop RAM slot with metal retaining arms for secure module seating, low insertion resistance, and reliable contact across thousands of test cycles.
• One-Button Push-to-Test Operation: Simple and intuitive testing workflow—insert the RAM module, press the integrated test switch, and read the LED array immediately.
• Prevents System Boot Failures & BSODs: Weeds out defective, unstable, or damaged DDR3 RAM modules responsible for random reboots, blue screens of death, memory parity errors, and "no display" boot failures.

Product Specifications:

• Model: HMT-BT01
• Brand: HuiMinTong (HMT)
• Compatible Memory: Laptop DDR3 SO-DIMM (204-Pin)
• Diagnostic Display: Multi-Line SMD LED Array (Data, Address, Control, Clock & Power Lines)
• Operation Interface: Momentary Push-Button Test Switch
• Connector: Standard Laptop DDR3 SO-DIMM Horizontal Socket with Metal Retaining Latches
• SKU: 401156-01

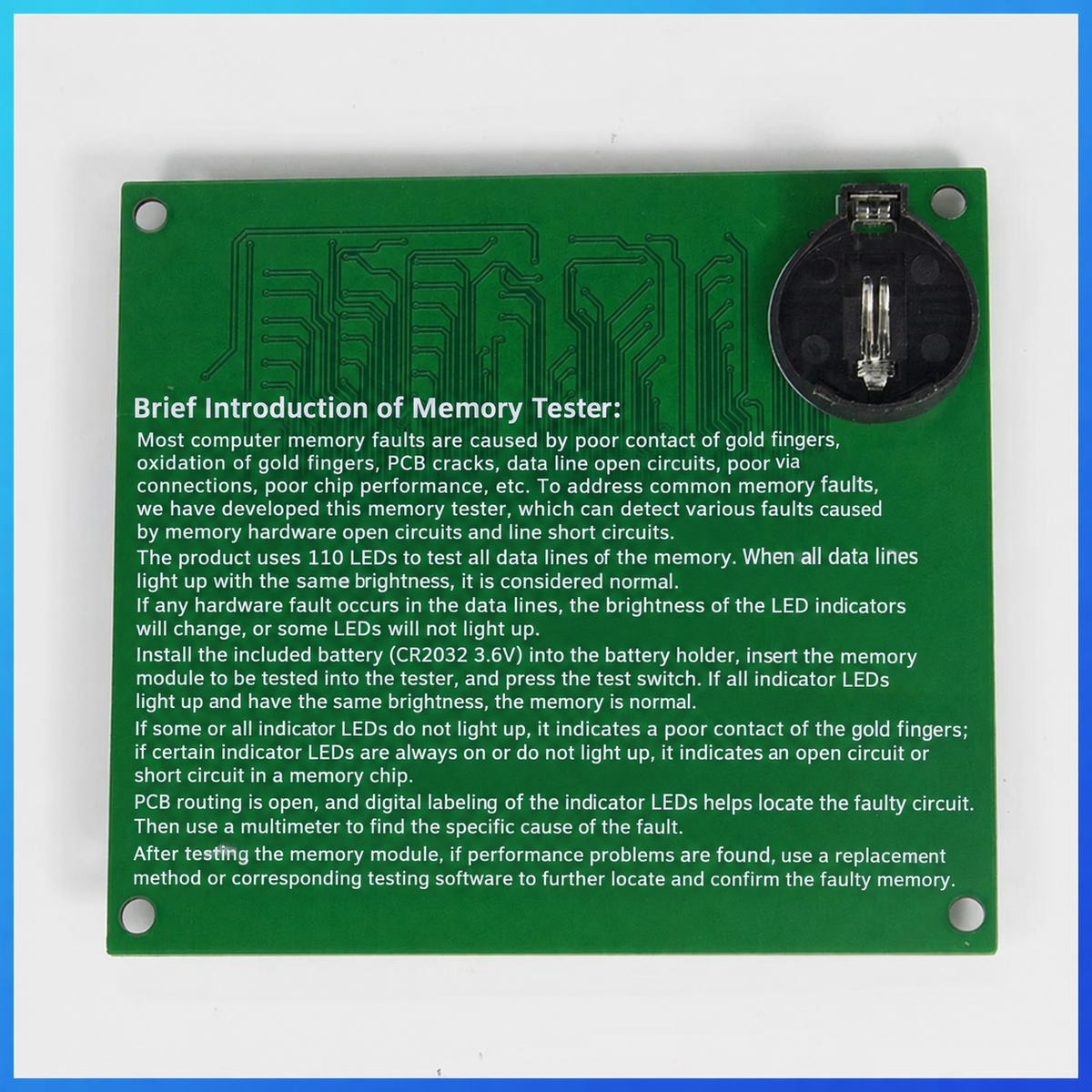

How It Works & LED Reading Guide:

• Step 1: Ensure the tester is properly powered and placed on an anti-static workbench.
• Step 2: Insert the laptop DDR3 memory module into the 204-pin slot and press down until the side retaining clips lock firmly into place.
• Step 3: Press and hold the test button on the upper-right corner of the PCB, then observe the LED indicator matrix.
• Diagnostic Interpretation:
  - All LEDs fully and uniformly illuminated: All data, address, and control lines are intact and properly connected to the memory ICs.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, damaged resistor, or fractured BGA ball beneath the corresponding memory chip.
  - Abnormally bright or dim LED: Indicates a short circuit to an adjacent line, abnormal pull-up resistance, or signal leakage.

Package Includes:

• 1 × HMT-BT01 Laptop DDR3 Memory Module Tester

Target Applications:

Essential for computer repair technicians, IT recycling and refurbishment facilities, memory module sorting and grading, and vocational electronics training institutes.
