HMT-BT03 Laptop DDR5 RAM Tester

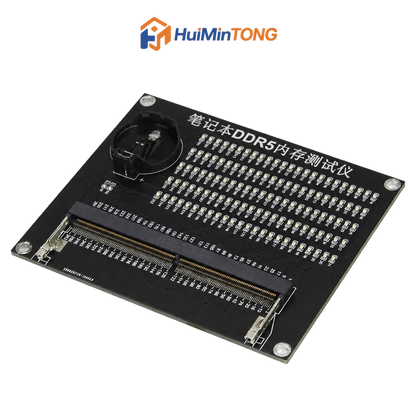

HMT-BT03 Laptop DDR5 SO-DIMM Memory Module Tester with LED Indicator

The HMT-BT03 Laptop DDR5 RAM Tester by HuiMinTong is a professional standalone memory diagnostic instrument developed for electronics repair technicians, IT refurbishers, and computer hardware diagnostic specialists. Equipped with a heavy-duty 262-pin DDR5 SO-DIMM latching socket and a high-density LED indicator array, this tool allows for fast, offline verification of laptop DDR5 memory modules without needing a functional laptop motherboard or risking damage from short-circuited RAM sticks.

Key Features:

• Dedicated Laptop DDR5 SO-DIMM Testing: Specifically engineered to test standard 262-pin DDR5 laptop memory modules. Independently tests RAM sticks before installation into client computers, saving countless hours of motherboard-level troubleshooting.

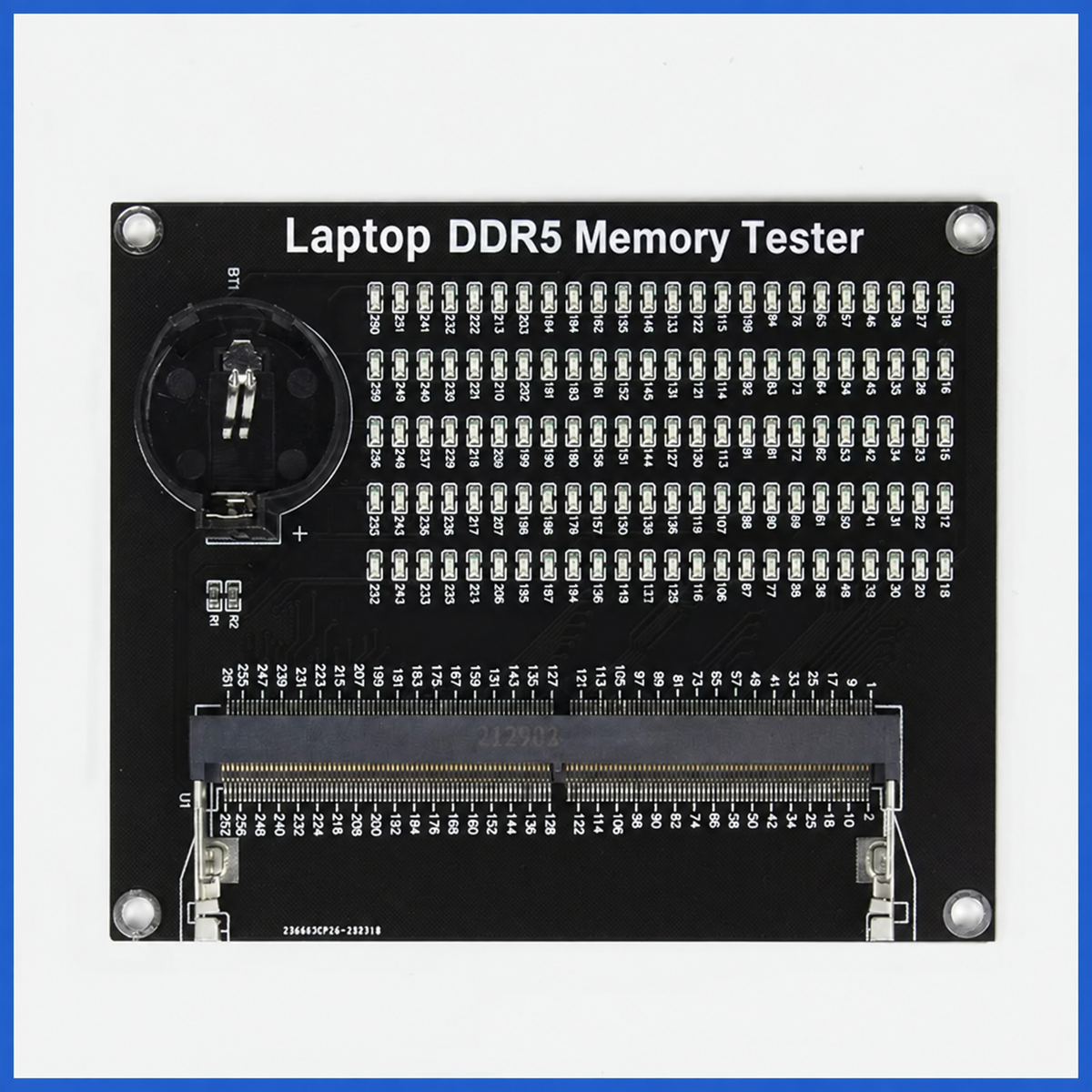

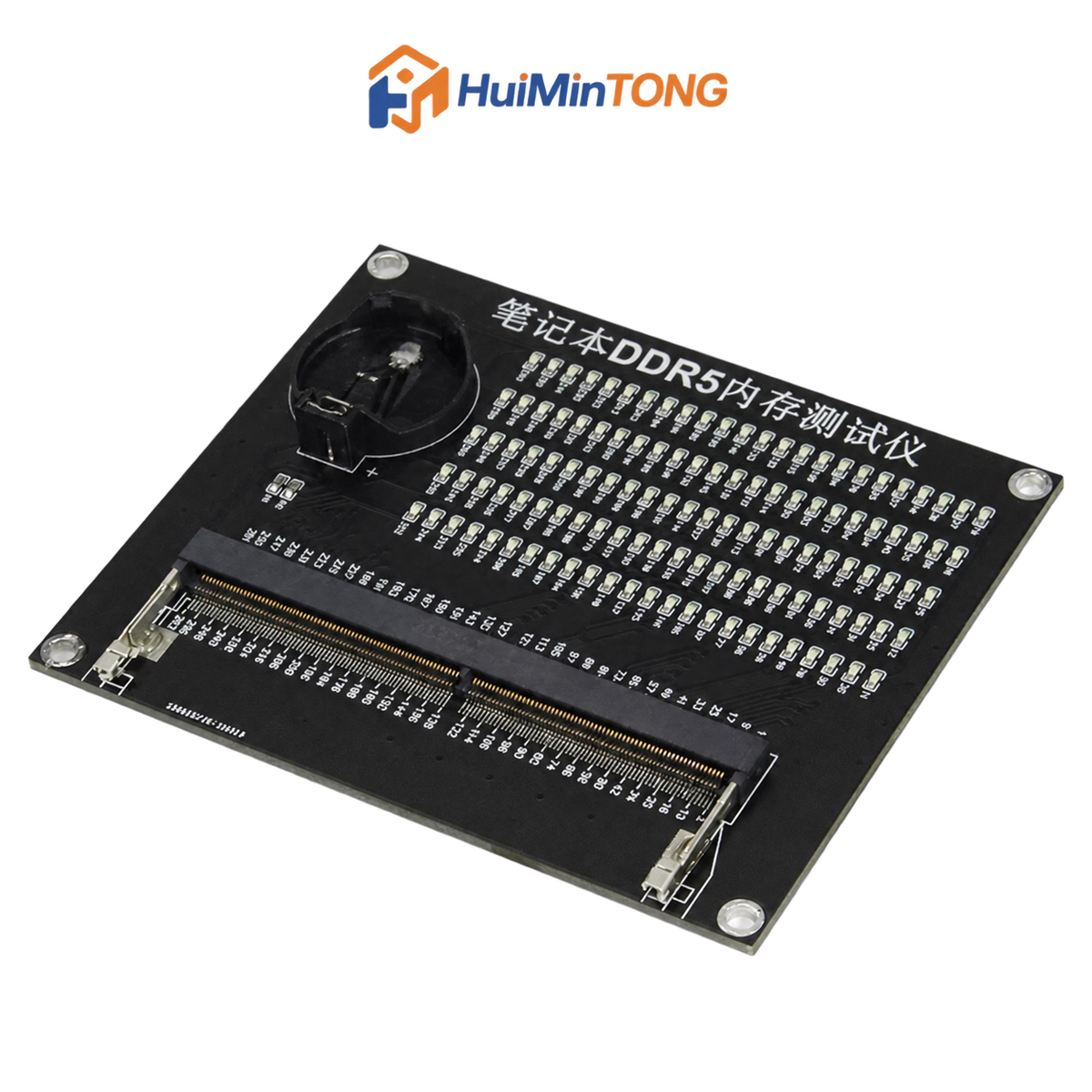

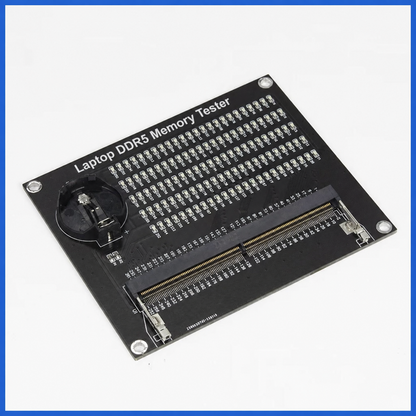

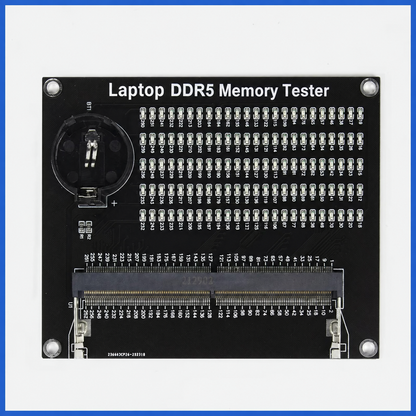

• Comprehensive LED Diagnostic Array: Features a dense surface-mount LED matrix mapped to individual pin connections across DDR5 data lines (DQ/DQS), Command/Address (CA) buses, clock lines, and power rails for instant visual fault isolation.
• Rapid Open & Short Fault Detection: Instantly identifies broken PCB traces, severed wire bonds, fractured BGA solder balls under memory ICs, and pin-to-pin shorts on the RAM stick.
• Battery-Powered Standalone Operation: Powered by a single onboard CR2032 3V coin cell battery (BT1). Enables safe, portable, offline memory screening anywhere without bulky external power cords.

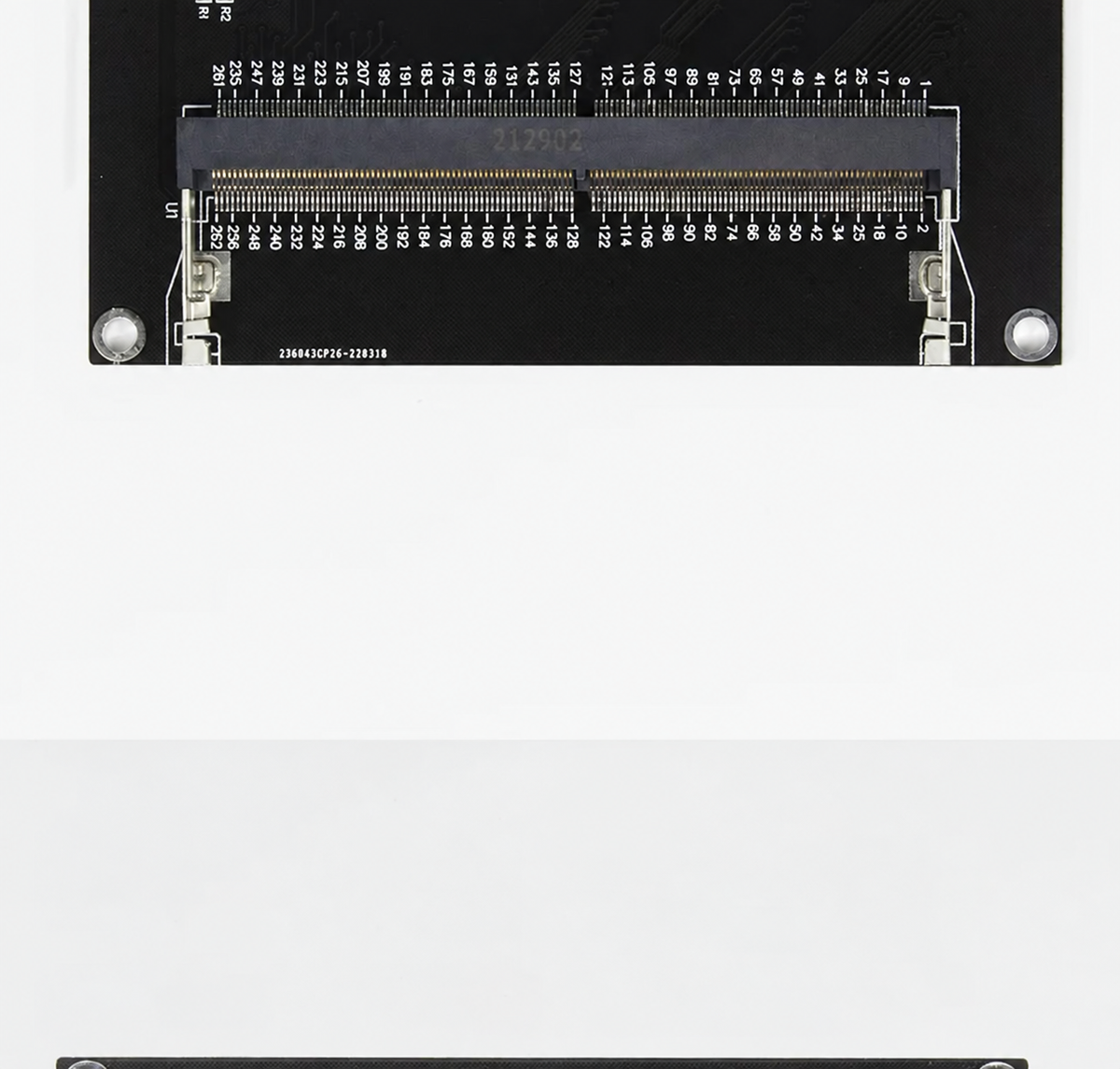

• Durable Latching SO-DIMM Socket: High-grade 262-pin horizontal memory slot with dual metal retaining clips ensures secure seating, low insertion resistance, and reliable contact across thousands of testing cycles.
• Eliminates Boot Loops & Blue Screens: Quickly screens out defective, unstable, or damaged DDR5 RAM modules responsible for BSOD crashes, random reboot loops, and "no display" boot failures.

Product Specifications:

• Model: HMT-BT03
• Brand: HuiMinTong (HMT)
• Compatible Memory: Laptop DDR5 SO-DIMM (262-Pin)
• Diagnostic Display: Multi-Pin SMD LED Indicator Array
• Power Supply: 1 × CR2032 3V Coin Cell Battery (Not included)
• Connector Type: Standard Laptop DDR5 SO-DIMM Horizontal Socket with Metal Retaining Latches
• PCB Finish: Matte Black Industrial PCB with Silk-Screened Pin Markings
• SKU: 401156-03

How It Works & LED Reading Guide:

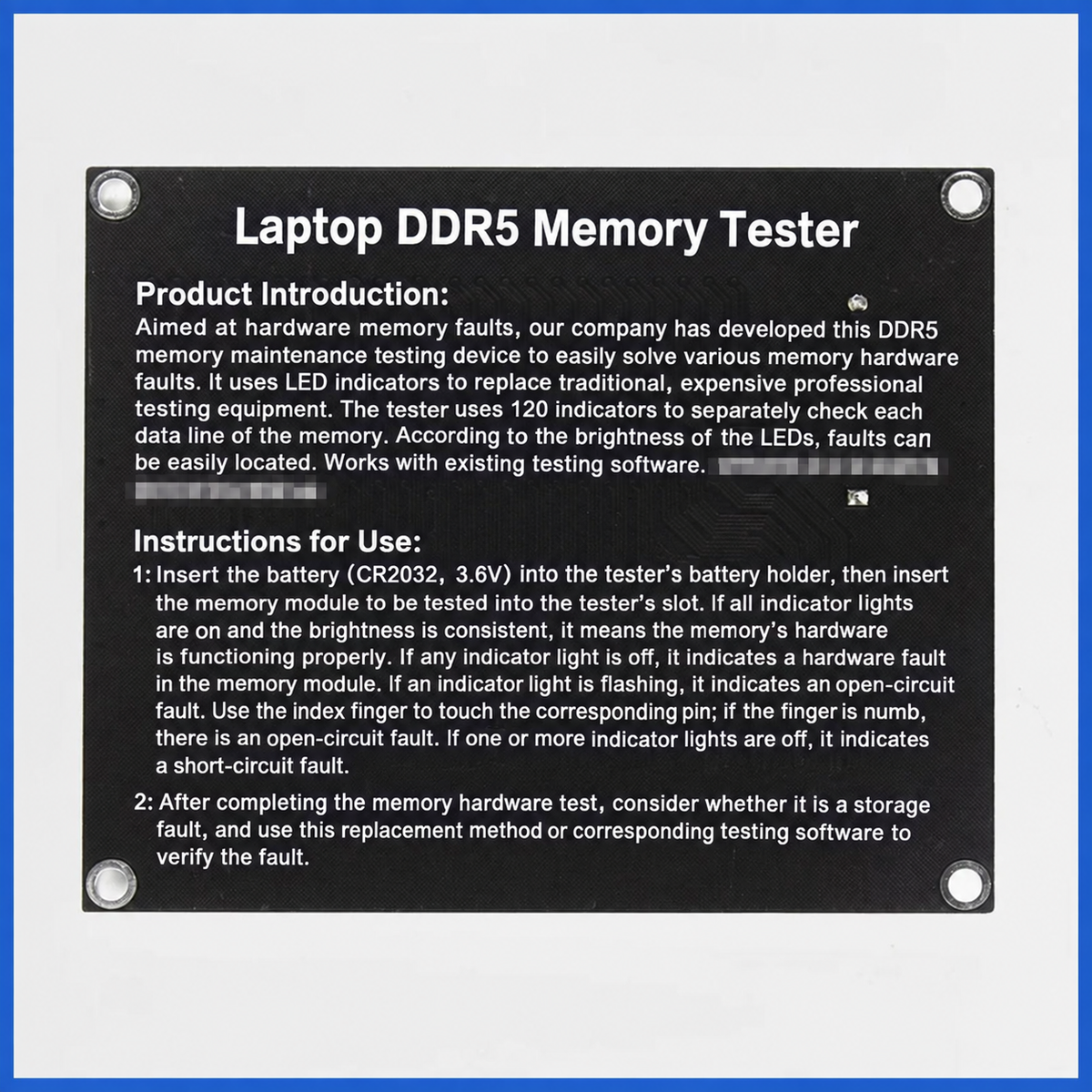

• Step 1: Insert a CR2032 3V coin cell battery into the onboard battery holder (BT1) with the positive (+) side facing up.
• Step 2: Carefully align and insert the laptop DDR5 memory stick into the 262-pin socket, pressing down gently until the dual metal latches click into place.
• Step 3: Observe the LED indicator array on the board:
  - All LEDs evenly illuminated: The signal traces, passive arrays, and BGA solder connections to the memory chips are normal and intact.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, failed component, or cracked BGA ball beneath the corresponding memory chip.
  - Abnormally bright or dim LED: Indicates a short circuit to an adjacent pin, abnormal resistance, or internal silicon leakage.

Package Includes:

• 1 × HMT-BT03 Laptop DDR5 Memory Module Tester

Target Applications:

Essential for computer repair centers, IT hardware recycling and refurbishment facilities, memory module sorting and grading, and electronic engineering labs.
