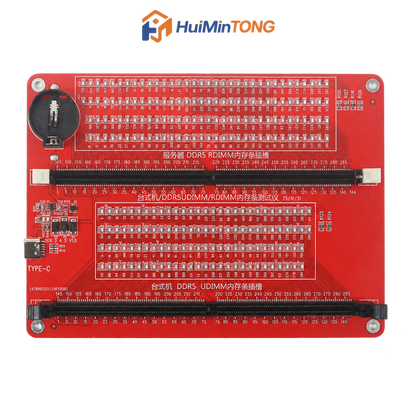

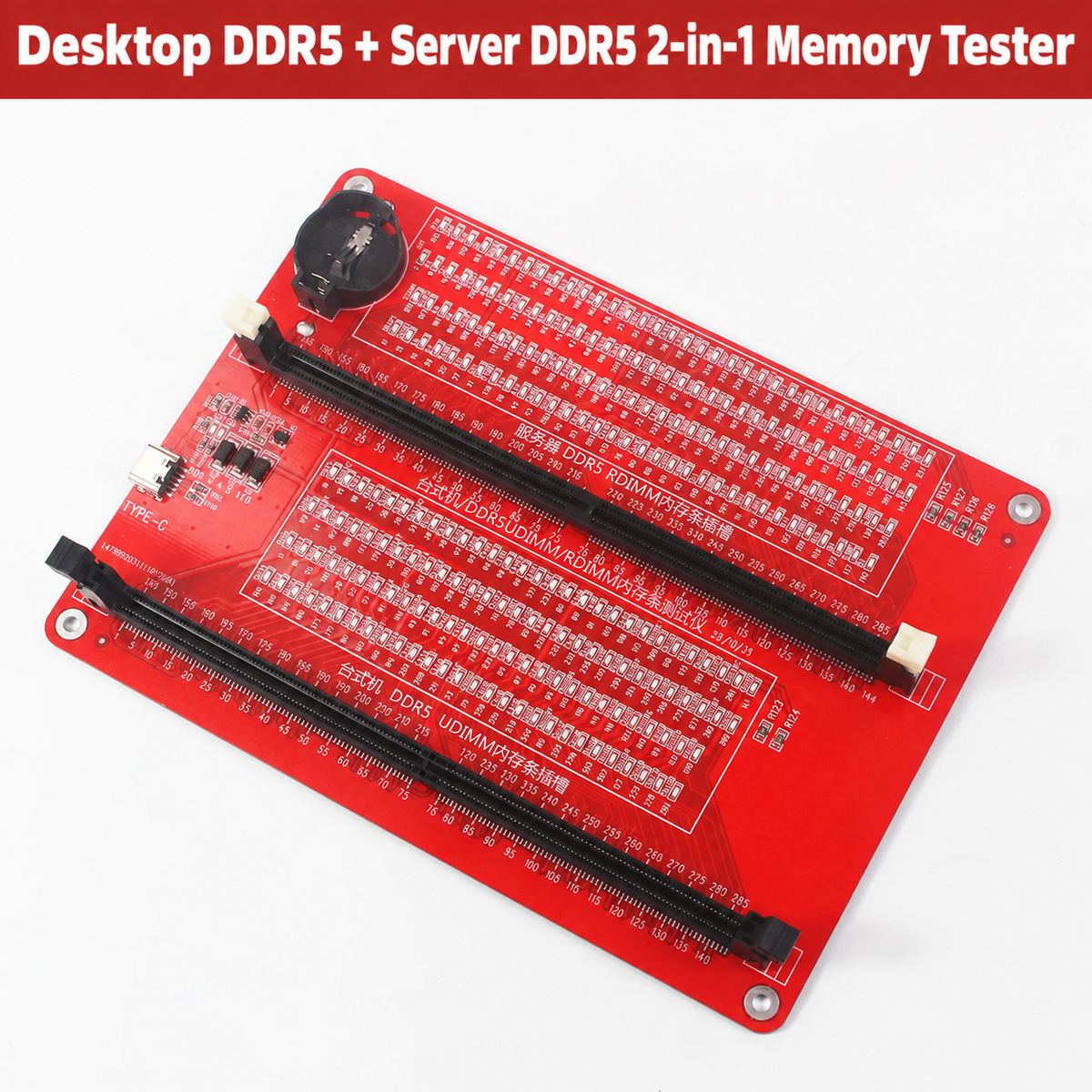

HMT-TT05 2-in-1 DDR5 Desktop & Server RAM Tester (Dual Power Supply)

HMT-TT05 2-in-1 DDR5 Desktop & Server RAM Tester with Dual Power Supply & LED Indicator

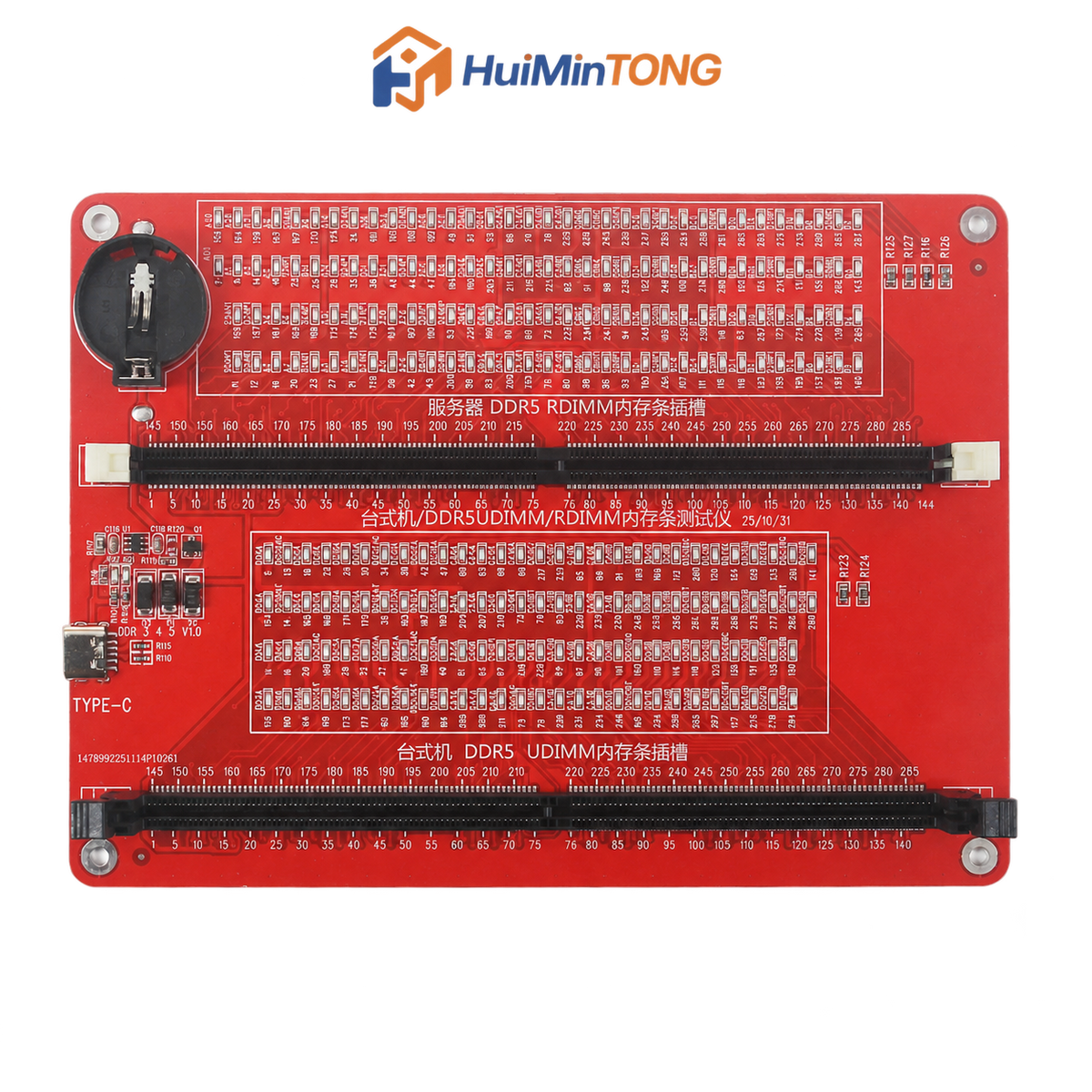

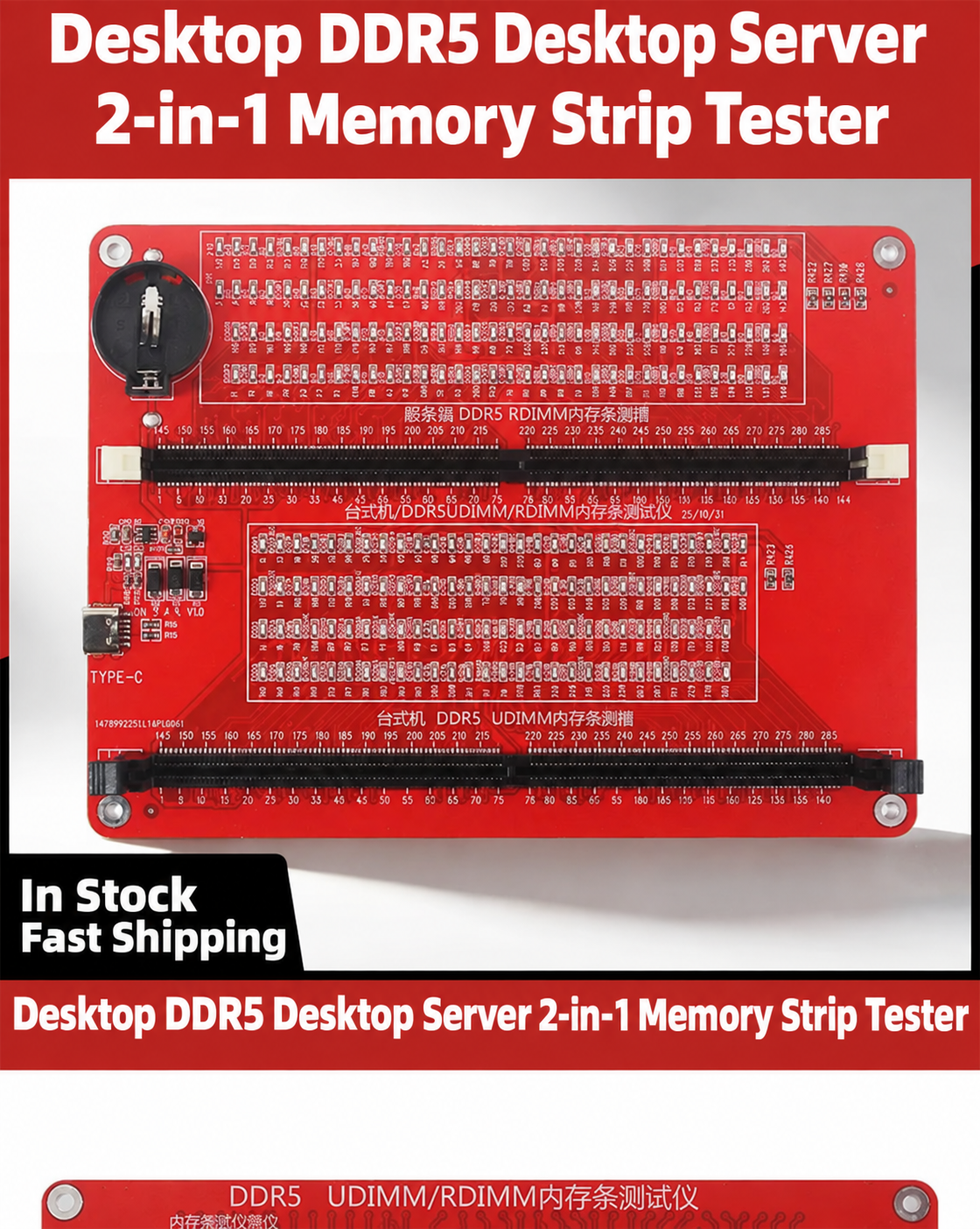

The HMT-TT05 2-in-1 DDR5 Memory Module Tester by HuiMinTong is an advanced diagnostic instrument engineered for computer repair shops, server maintenance teams, IT recyclers, and electronics hardware technicians. Designed to test next-generation DDR5 memory modules, this multi-functional tester provides comprehensive open/short circuit and continuity diagnosis for both Desktop DDR5 UDIMMs and Enterprise Server DDR5 RDIMMs on a single versatile testing board.

Key Features:

• 2-in-1 Dual Compatibility: Seamlessly tests both standard desktop DDR5 unbuffered DIMM (UDIMM) and enterprise server DDR5 registered ECC memory (RDIMM) modules, eliminating the need for multiple separate testing units.
• Dual Power Supply Architecture: Supports flexible dual power inputs—use the standard 5V Type-C USB port for continuous workstation bench testing, or insert an onboard CR2032 3V coin cell battery for completely portable, cable-free offline diagnosis in warehouses and field environments.

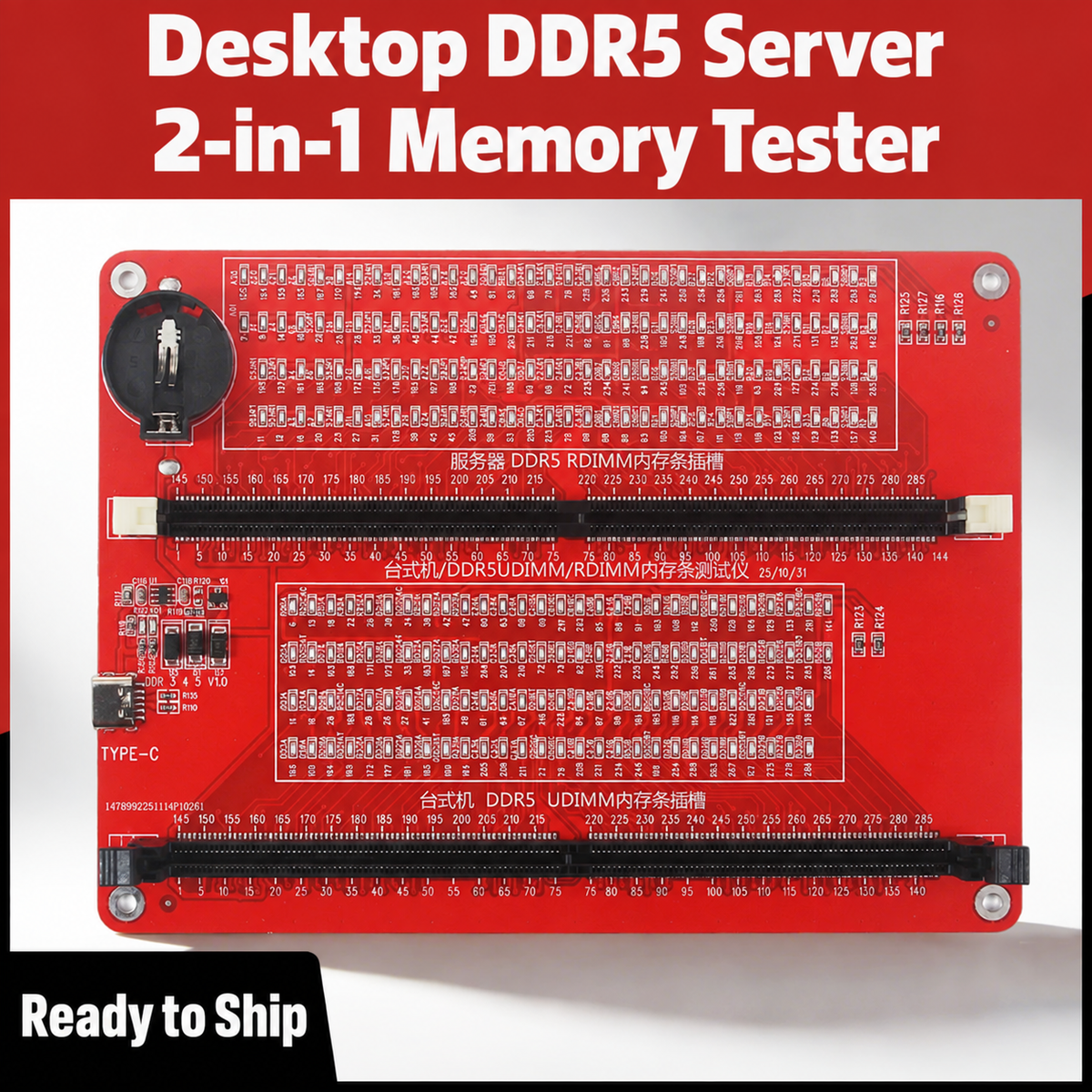

• Comprehensive LED Diagnostic Matrix: High-density surface-mount LED array maps directly to data bus lines (DQ), data strobes (DQS), command/address (CA) lines, clock signals, and power/ground rails, providing immediate visual feedback on hardware line integrity.
• Rapid Open & Short Fault Detection: Instantly identifies broken copper traces, damaged resistor networks, fractured BGA solder balls beneath memory ICs, and pin-to-pin short circuits before installing RAM into valuable client motherboards or enterprise servers.
• Heavy-Duty Latching Sockets: Equipped with precision-engineered 288-pin DDR5 memory sockets with reinforced mechanical locking clips for secure module retention, low insertion resistance, and long service life.
• Prevents System Boot Failures & BSODs: Efficiently isolates defective, erratic, or degraded DDR5 memory sticks causing "no display" boot hangs, continuous memory beeping codes, server post errors, memory frequency drops, and blue screen crashes.

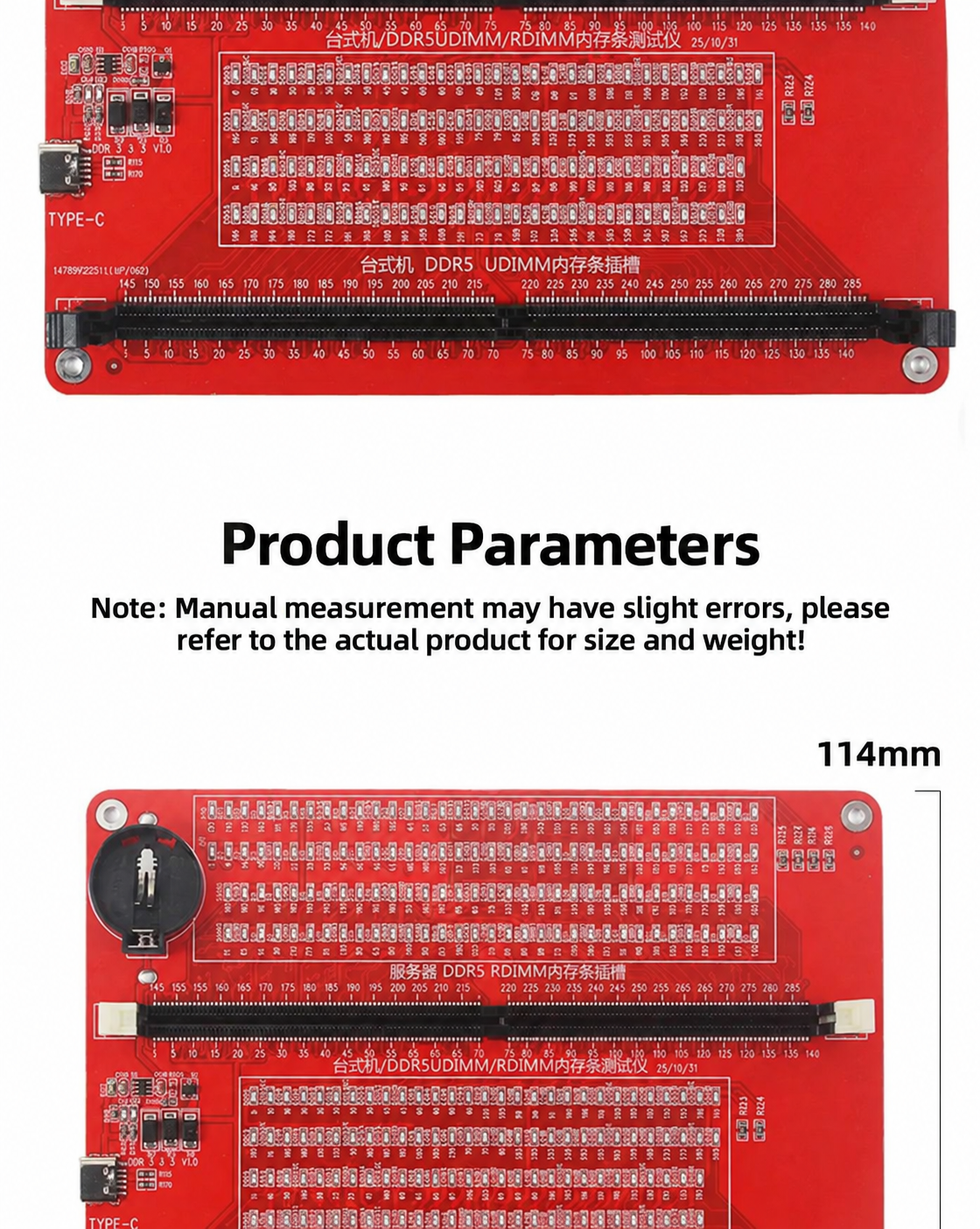

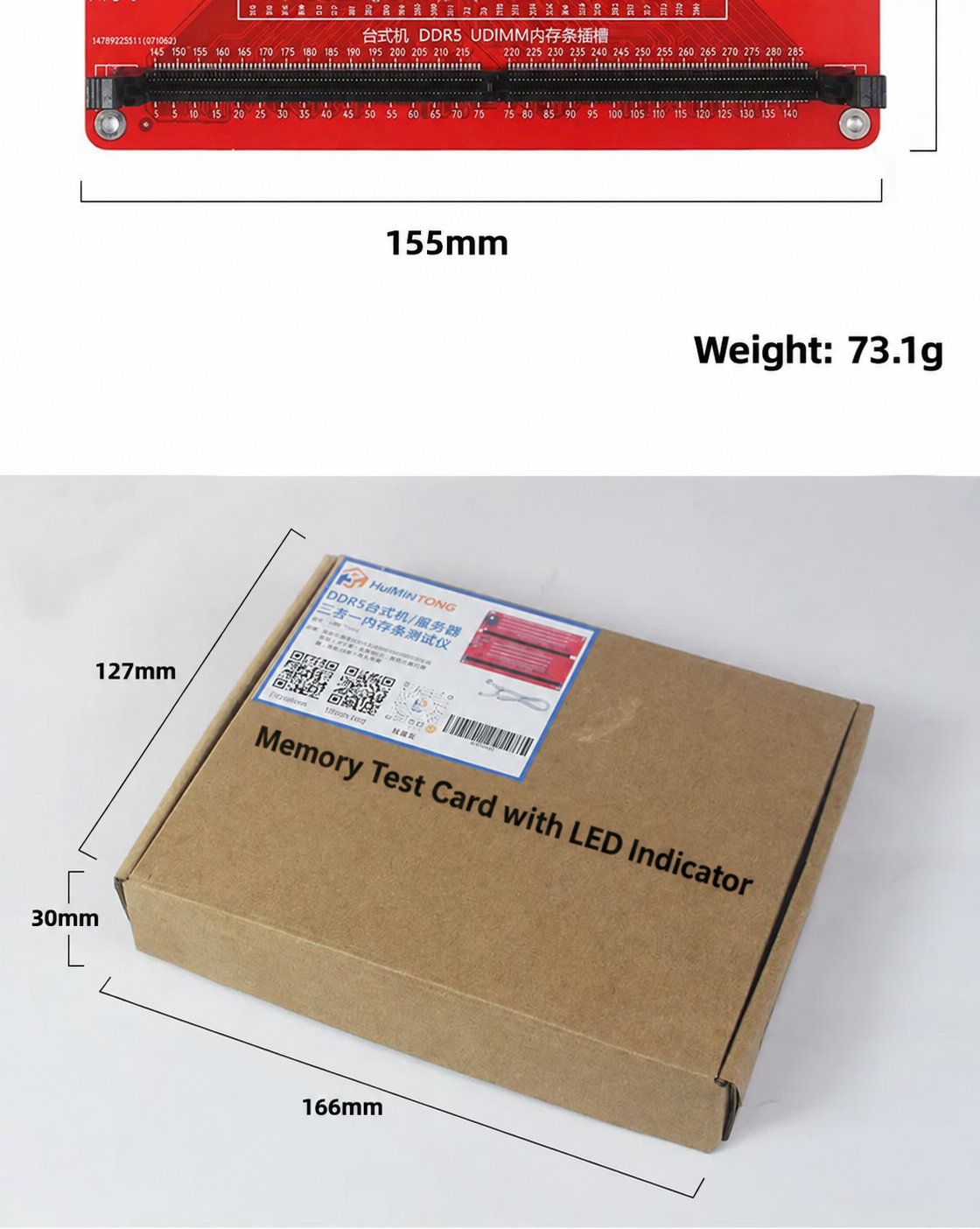

Product Specifications:

• Model: HMT-TT05
• Brand: HuiMinTong (HMT)
• Compatible Memory: Desktop DDR5 UDIMM (288-Pin) & Server DDR5 RDIMM (288-Pin)
• Diagnostic Display: Multi-Channel High-Density SMD LED Indicator Array
• Power Supply Options: 5V Type-C USB Interface / 1 × CR2032 3V Coin Cell Battery (Battery not included)
• Socket Type: Precision 288-Pin DDR5 Sockets with Locking Retention Clips
• PCB Build: Multi-Layer Industrial PCB with Clear Silk-Screened Signal Identification
• SKU: 401016-05

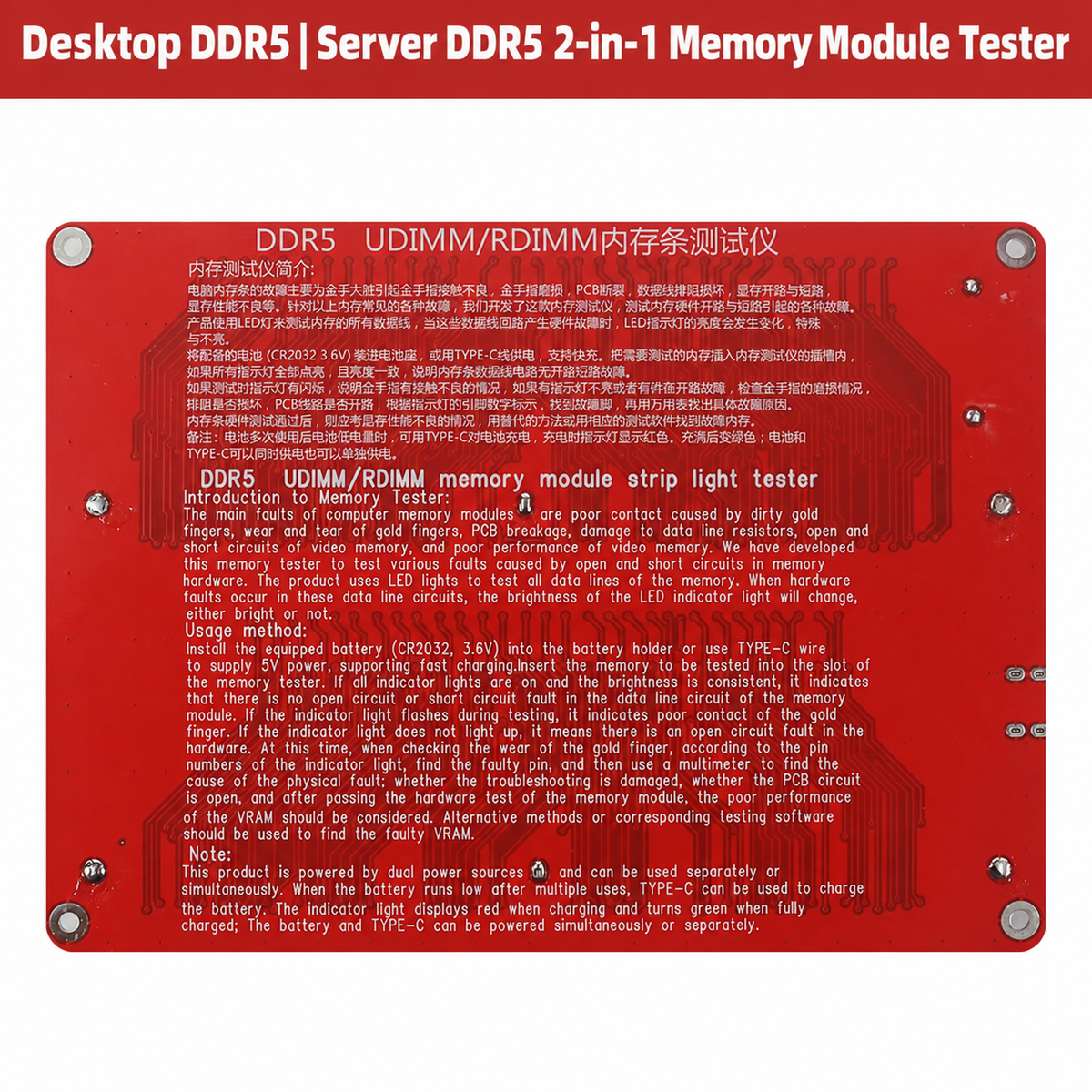

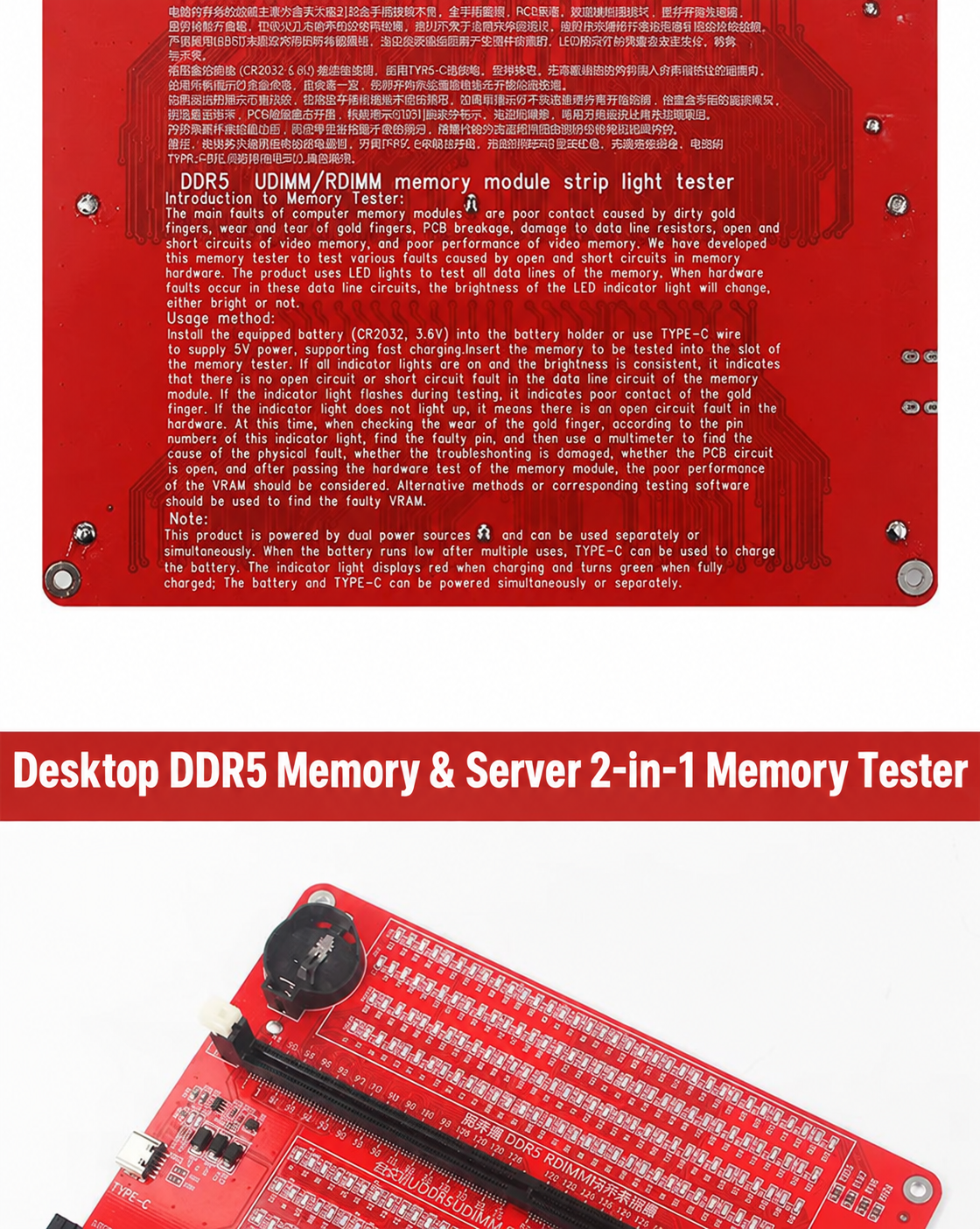

How It Works & LED Reading Guide:

• Step 1: Power the device by connecting a 5V Type-C cable or installing a CR2032 coin cell battery into the onboard battery holder.
• Step 2: Ensure the gold contacts of the target DDR5 memory module are clean, align the key notch, and firmly press the module into the socket until the side latches engage.
• Step 3: Observe the LED indicator array:
  - All LEDs brightly and evenly lit: All data lines, address buses, resistor networks, and BGA chip solder connections are normal and fully functional.
  - Unlit LED (Dark): Indicates an open circuit, severed PCB trace, burnt resistor pack, or cracked BGA solder joint on the corresponding signal line.
  - Abnormally bright LED: Indicates a short circuit across gold fingers or an internal short within the memory IC.
  - Dim or flickering LED: Indicates high line resistance, poor gold finger contact, or a cold solder joint.

Package Includes:

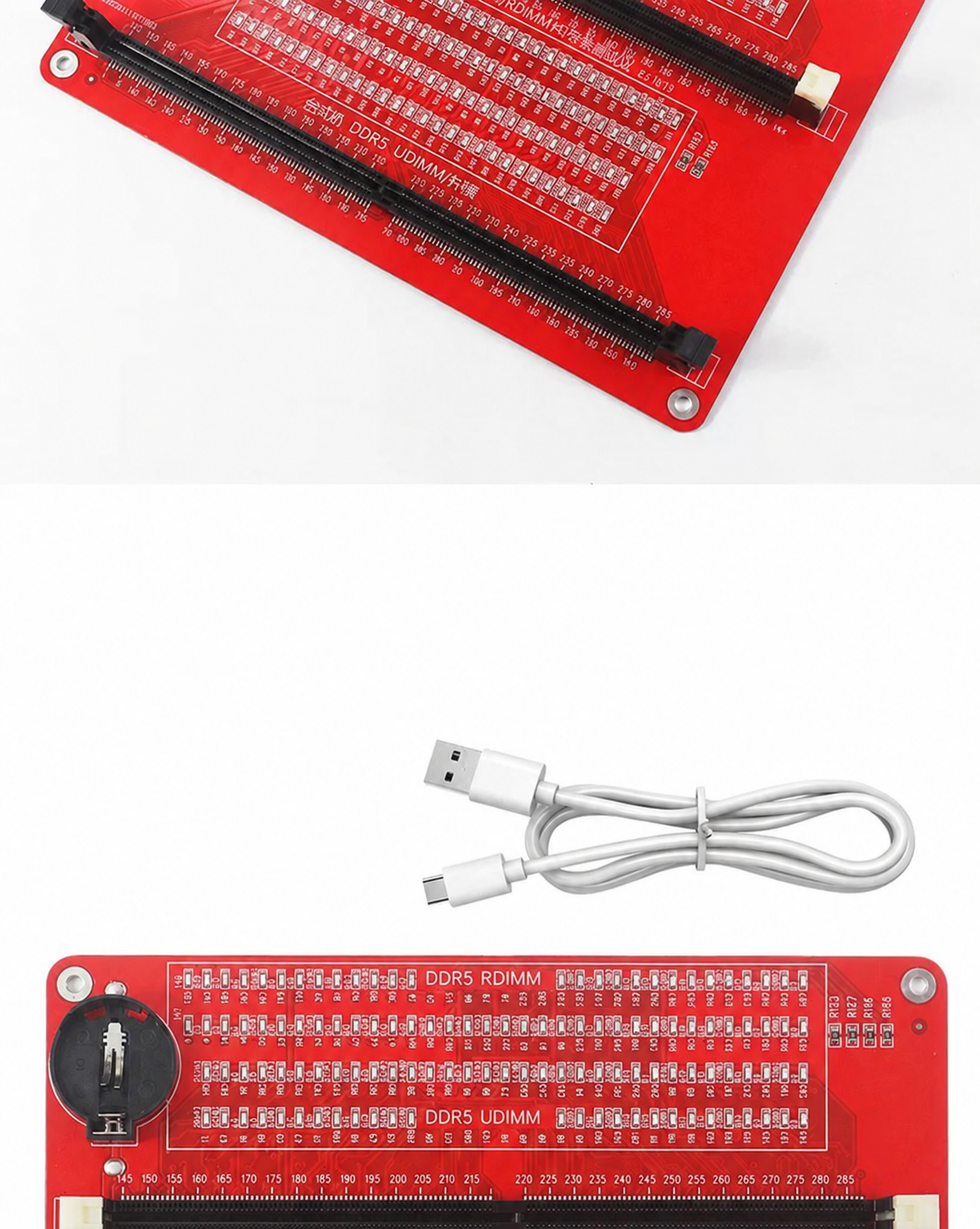

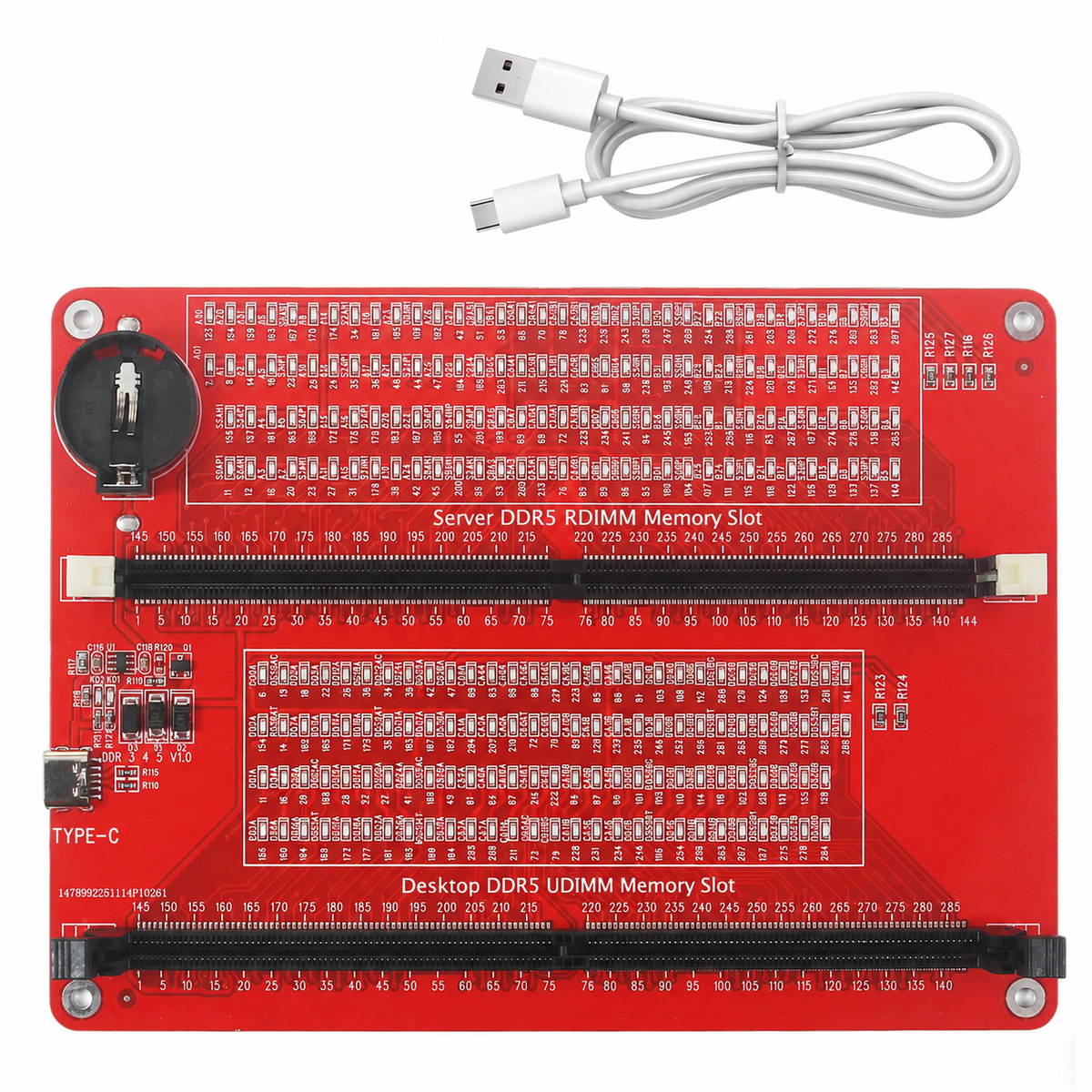

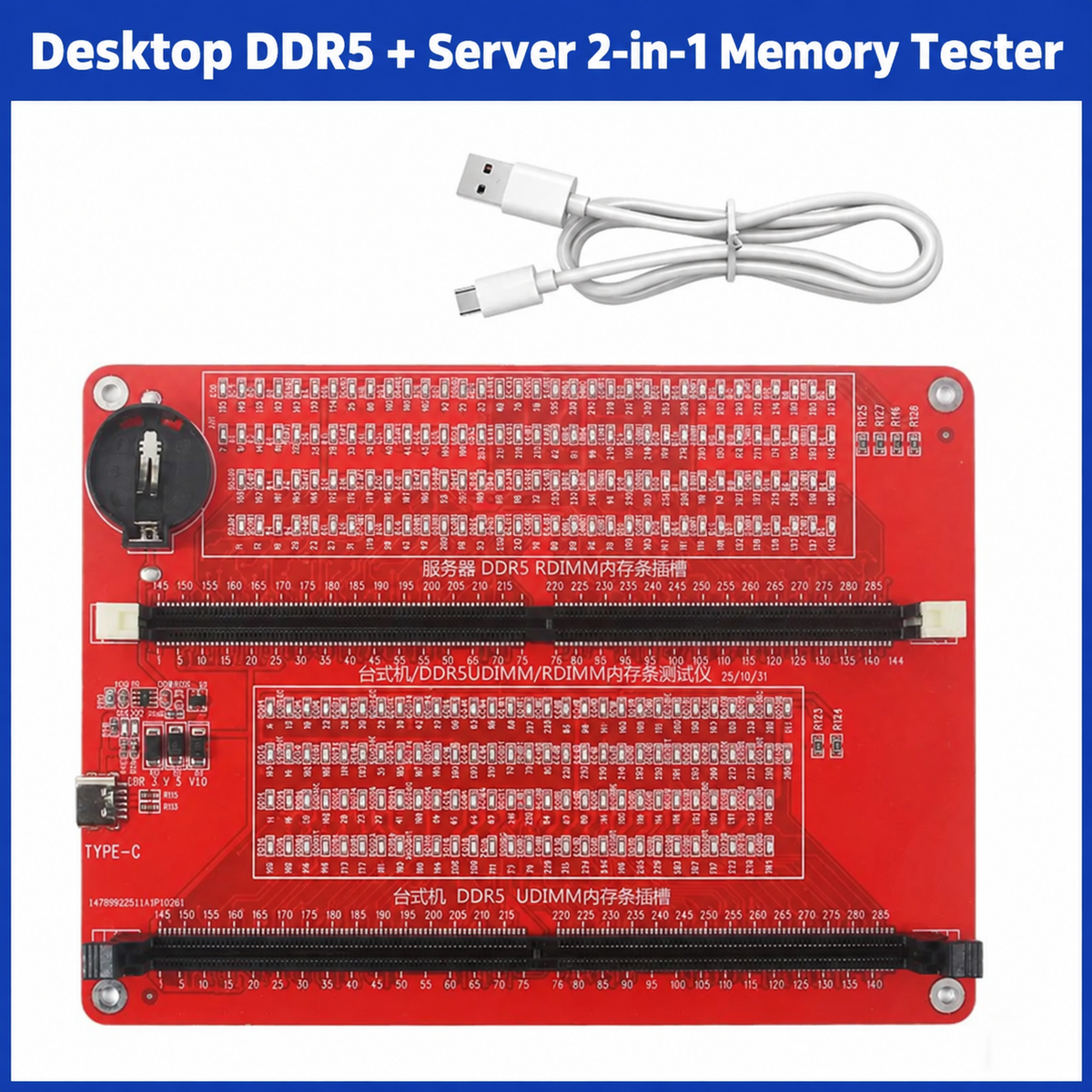

• 1 × HMT-TT05 2-in-1 DDR5 Desktop & Server Memory Tester Board

Target Applications:

Ideal for computer repair technicians, server maintenance engineers, IT equipment recyclers, memory module sorting and refurbishment centers, and hardware testing laboratories.
