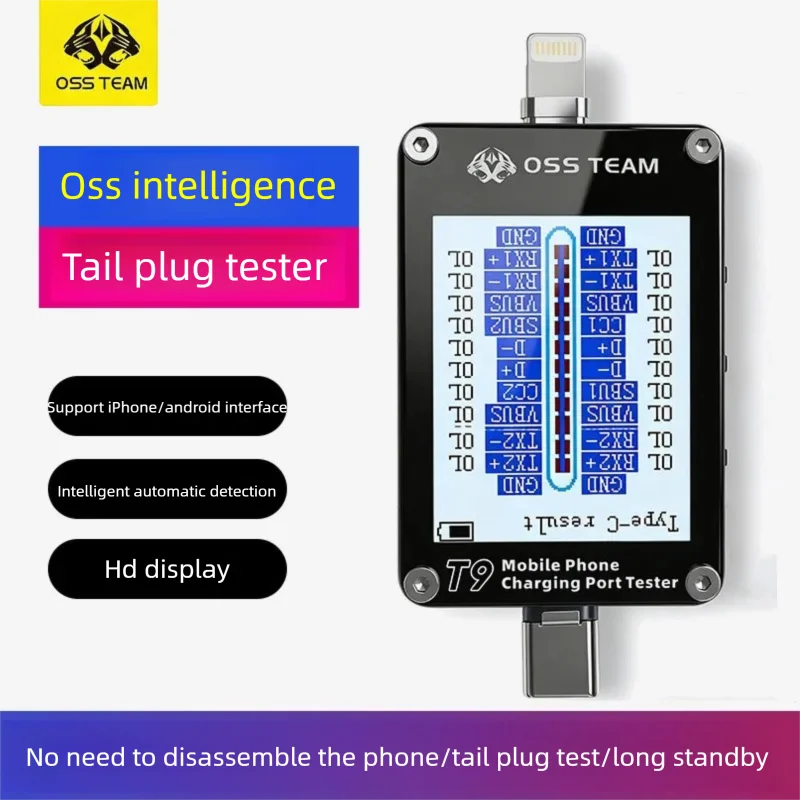

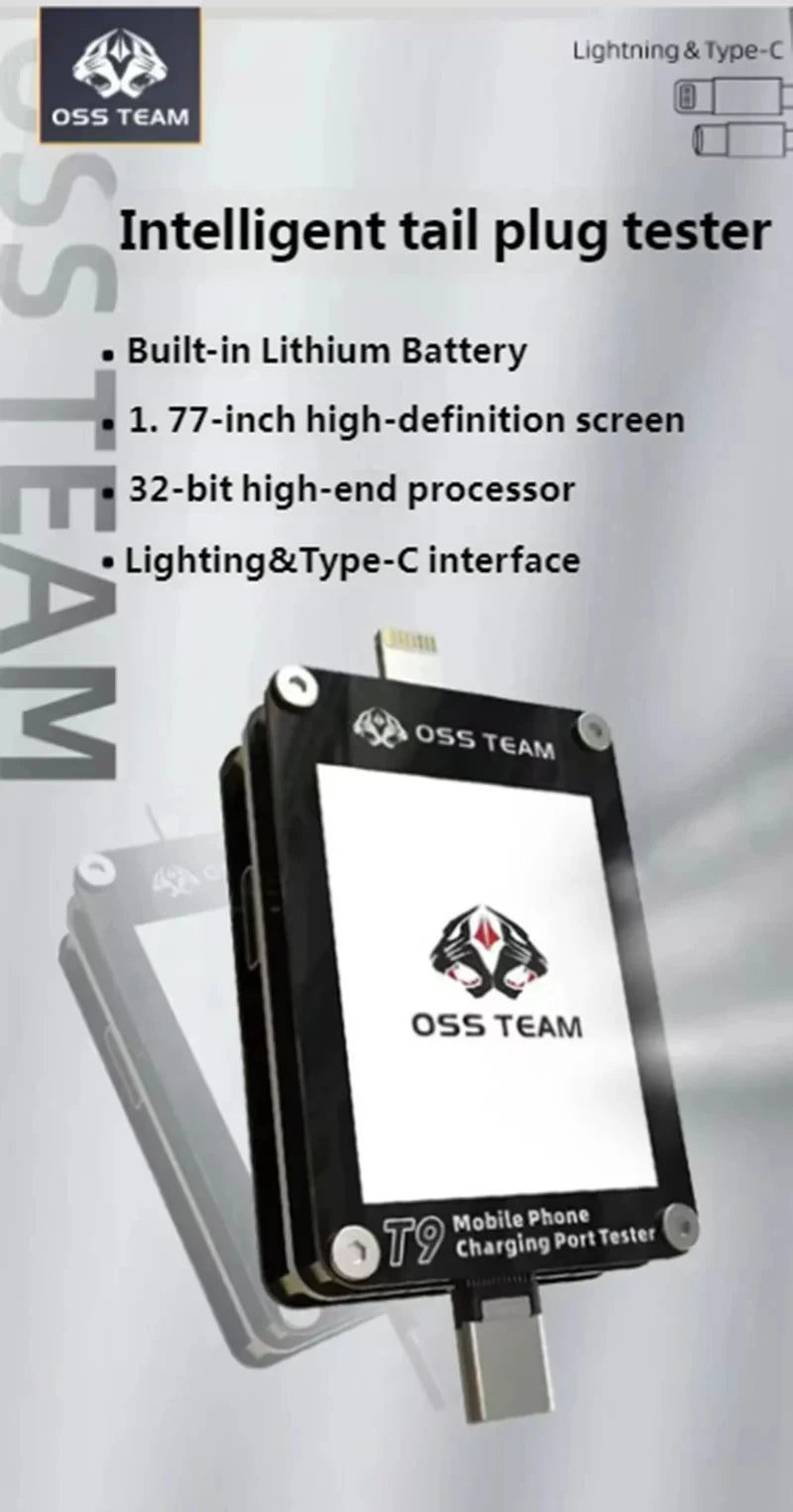

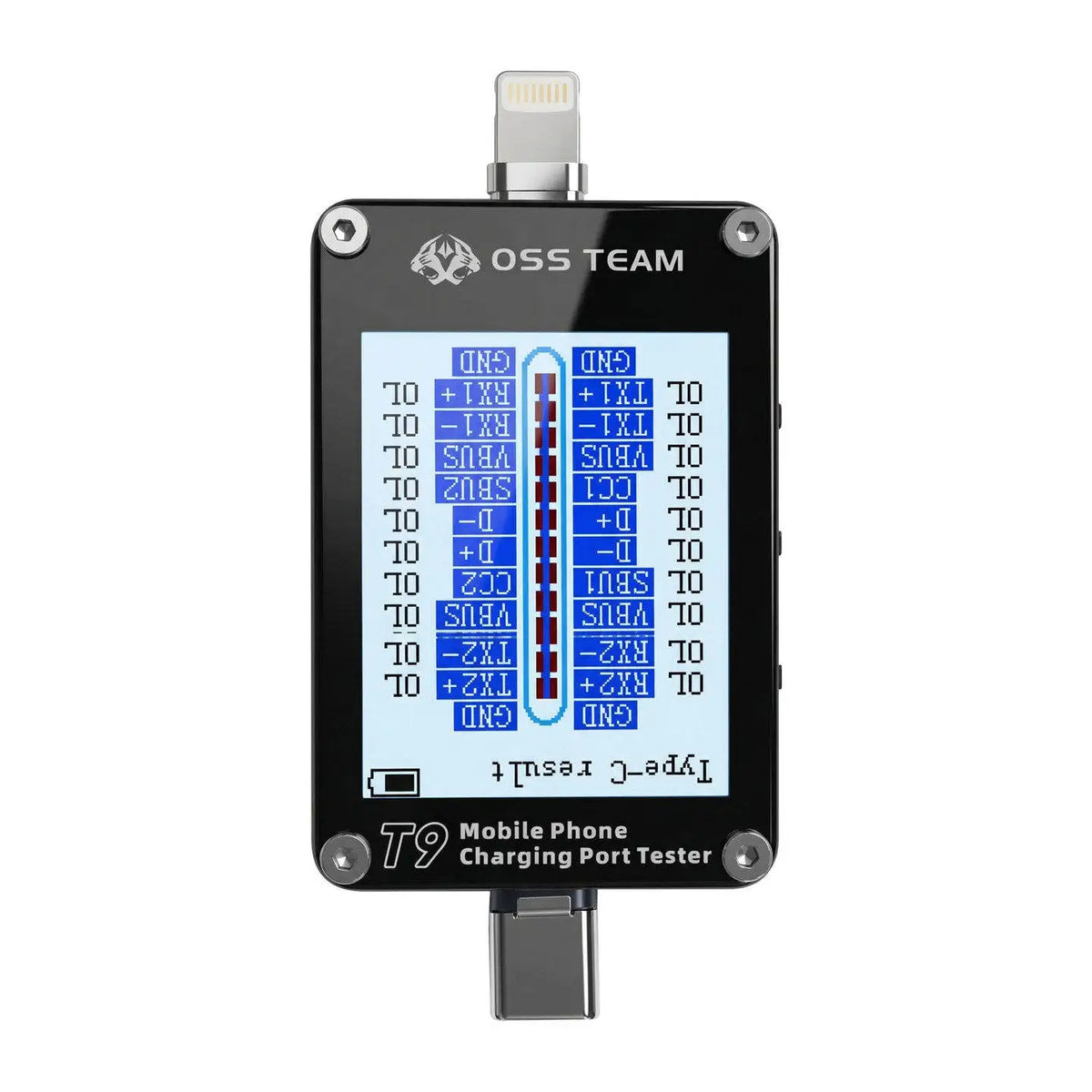

The OSS TEAM T9 Intelligent Tail Plug Tester is a fast diagnostic tool designed for smartphone repair technicians. It scans charging port pins without disassembling the device, automatically locking onto faulty pins, open circuits, and abnormal diode readings in seconds.
Key Features
No-Disassembly Diagnostics: Quickly tests smartphone charging ports directly through external connectors without opening the device housing.
Auto Fault-Point Locking: Automatically scans pins (VBUS, GND, CC1, CC2, D+, D-) and locks onto the abnormal line for rapid troubleshooting.

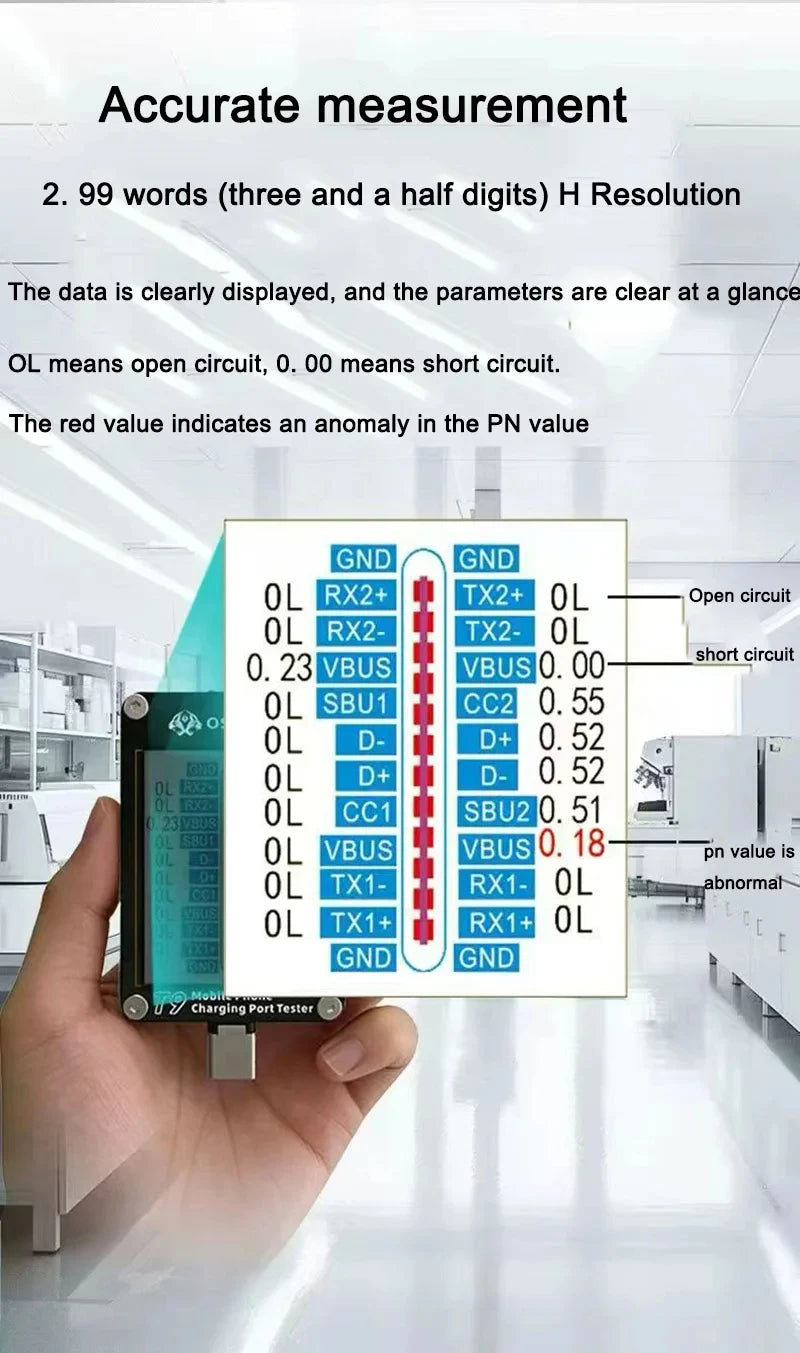

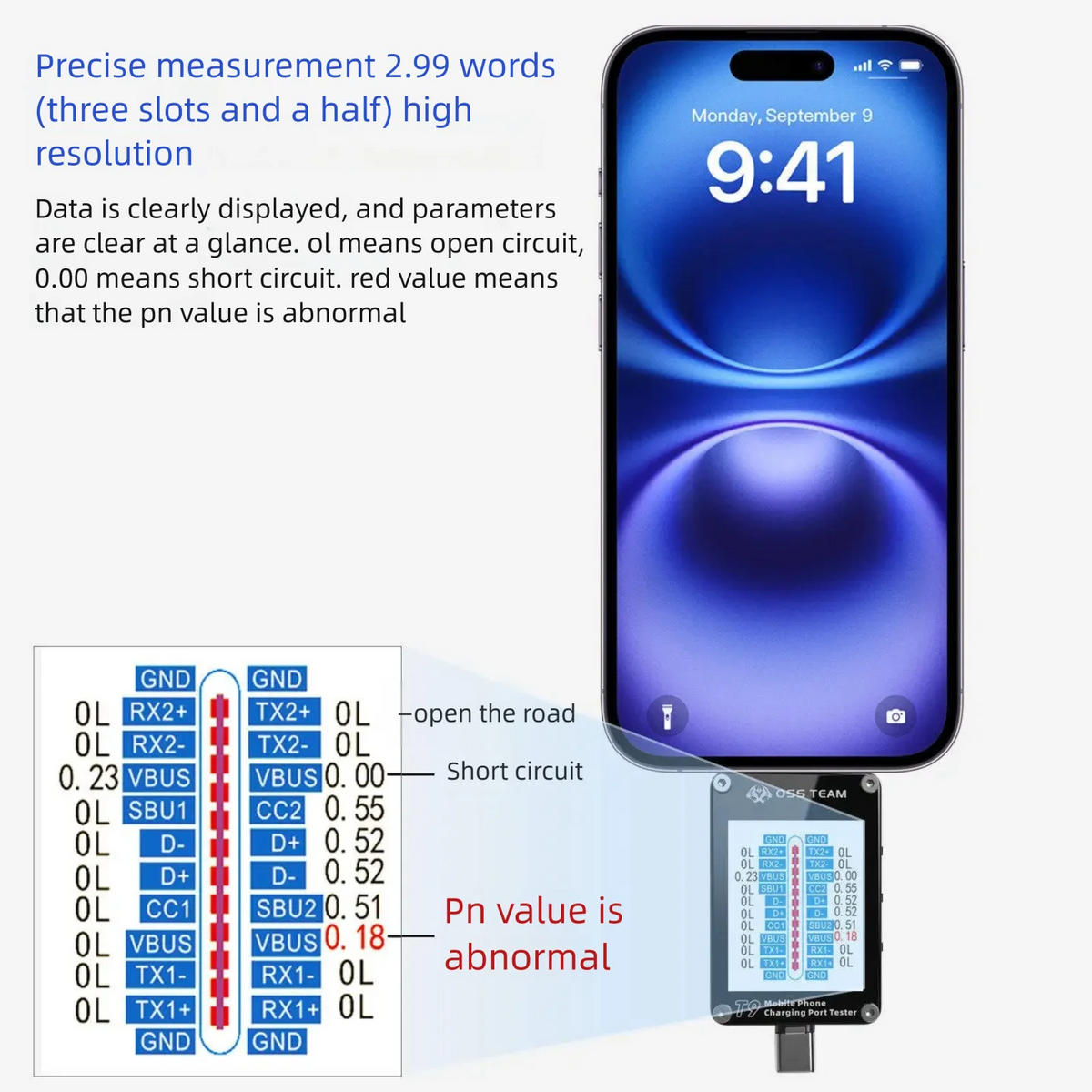

Pin Diode & Resistance Detection: Measures line continuity, ground resistance, and diode drop values to pinpoint open circuits and micro-shorts.

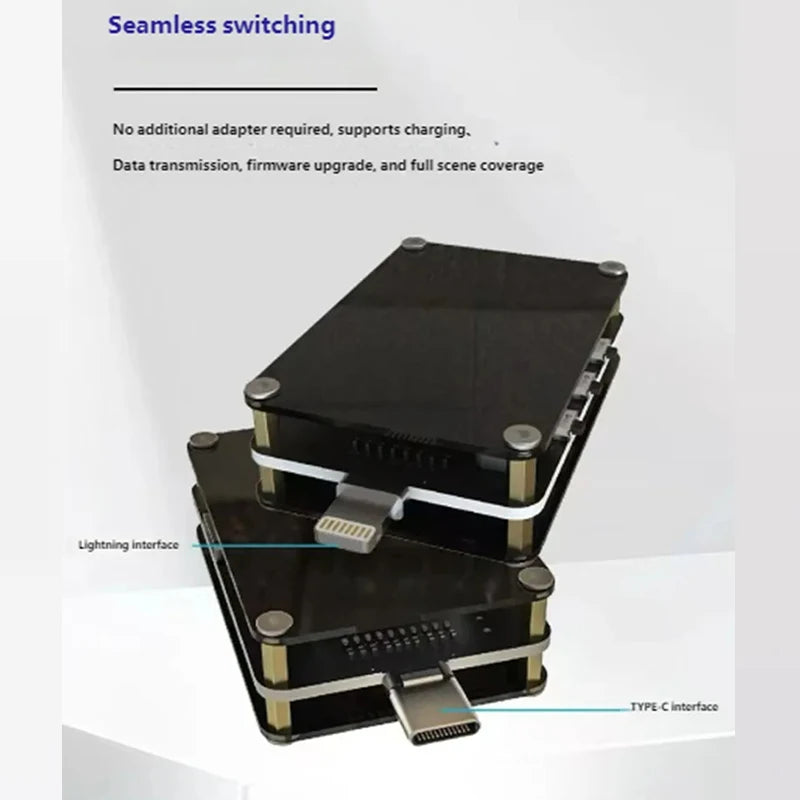

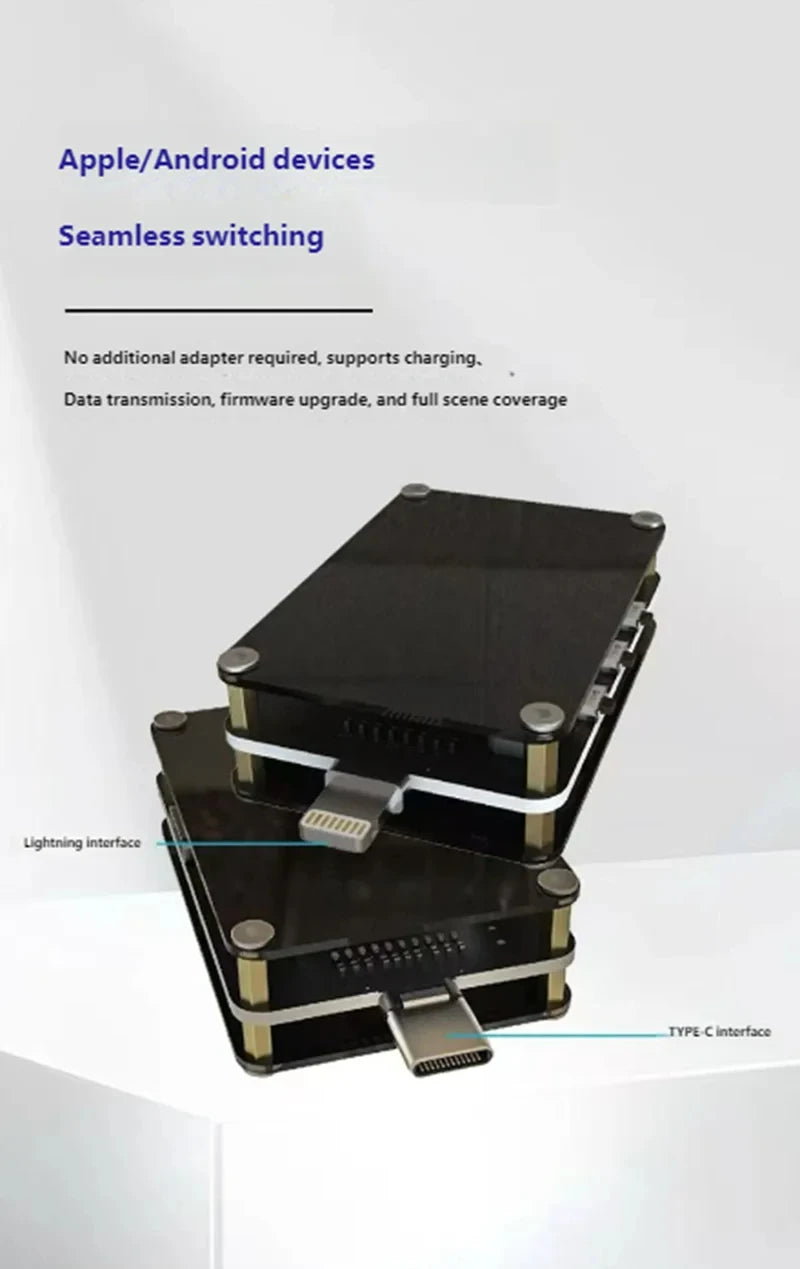

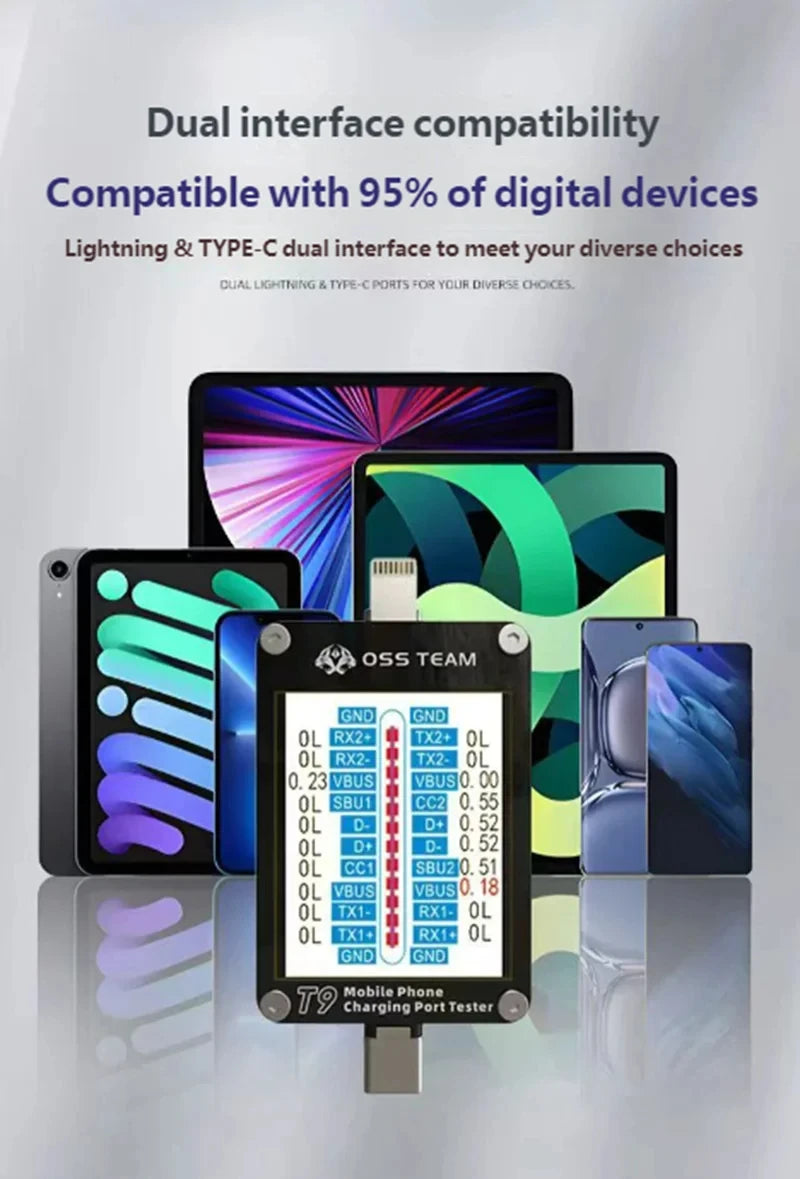

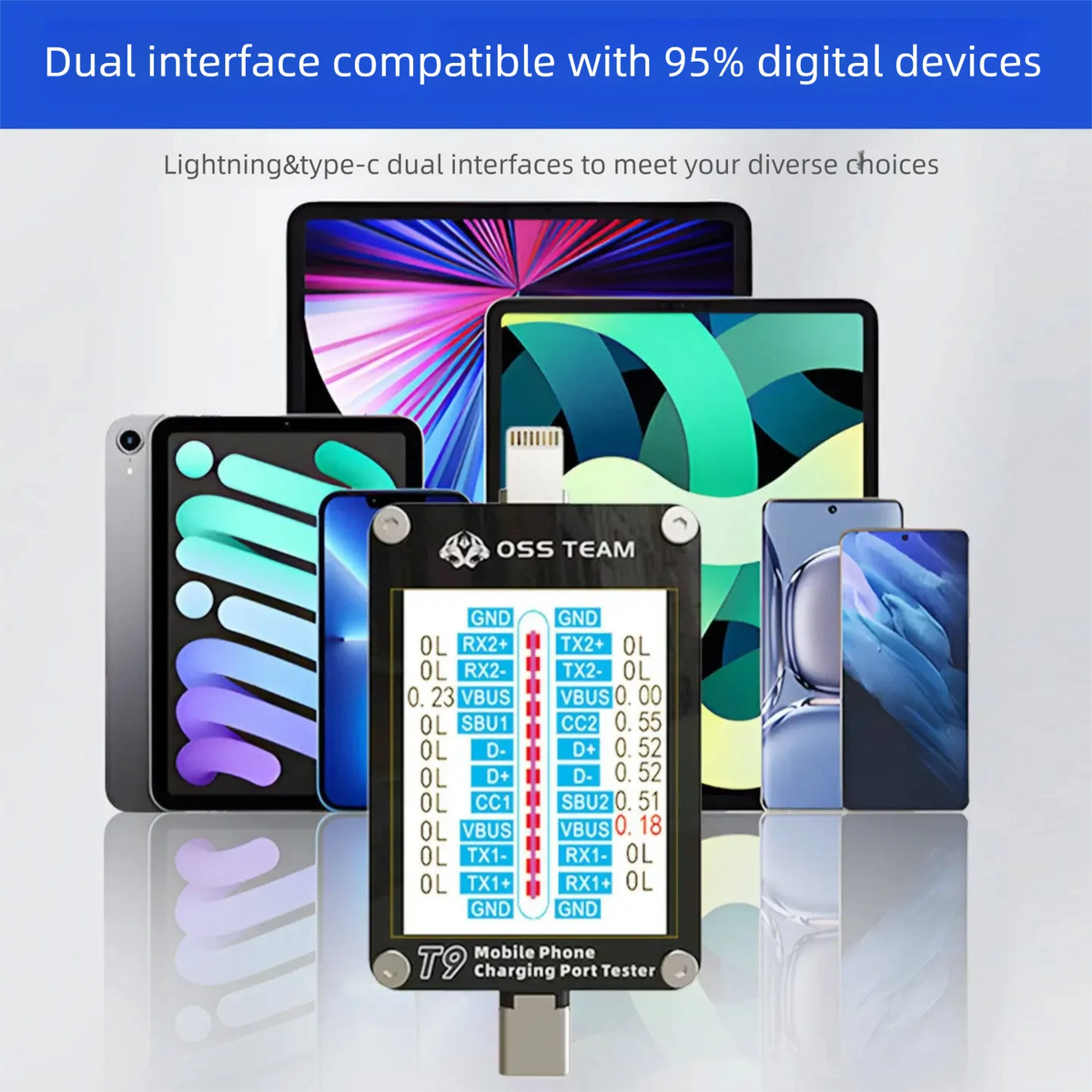

Dual-Interface Compatibility: Supports mainstream Type-C and Lightning interfaces for comprehensive iPhone and Android diagnostics.
Compact Handheld Design: Ultra-portable form factor weighing only ~50g, ideal for intake triage and workbench repair.
Product Specifications
Brand: OSS TEAM
Model: T9
Product Type: Intelligent Mobile Charging Port / Tail Plug Tester
Compatible Ports: USB Type-C & Lightning
Detection Modes: Open Circuit, Short Circuit, Diode Drop, Auto Fault-Lock
Weight: Approx. 50g
SKU: 111238
Package Includes
1 × OSS TEAM T9 Intelligent Tail Plug Tester
Target Applications
Non-invasive smartphone charging port diagnostics, intake bench triage, and logic board circuit troubleshooting.
