RT809F Programmer, BIOS Read & Write Tool Laptop Repair

RT809F Serial ISP Programmer Tool

The RT809F Serial ISP Programmer is a high-efficiency data read and write programming tool engineered for motherboard, laptop, and display repair. Featuring high-speed USB connectivity, built-in ISP interfaces, and a durable 3M gold-plated ZIF socket, it streamlines firmware reading, writing, and automatic software updating with one-click operation.

Key Features

• USB Direct Connection: Connects and programs directly via standard USB interface, eliminating complicated setup steps.
• Multi-Port ISP Support: Equipped with VGA IN, VGA ISP, and HDMI ports for versatile in-circuit programming across motherboards, VGA, DVI, and compatible displays.
• High-Speed Data Programming: Delivers fast programming speeds up to twice that of standard comparable programmers.
• Automatic Software Upgrades: Simplifies maintenance with automatic software upgrade capability, keeping tools and algorithms up to date.
• 3M Gold ZIF Socket: Integrated 16-pin zero insertion force socket with easy-to-use locking lever for secure, reliable chip insertion and removal.

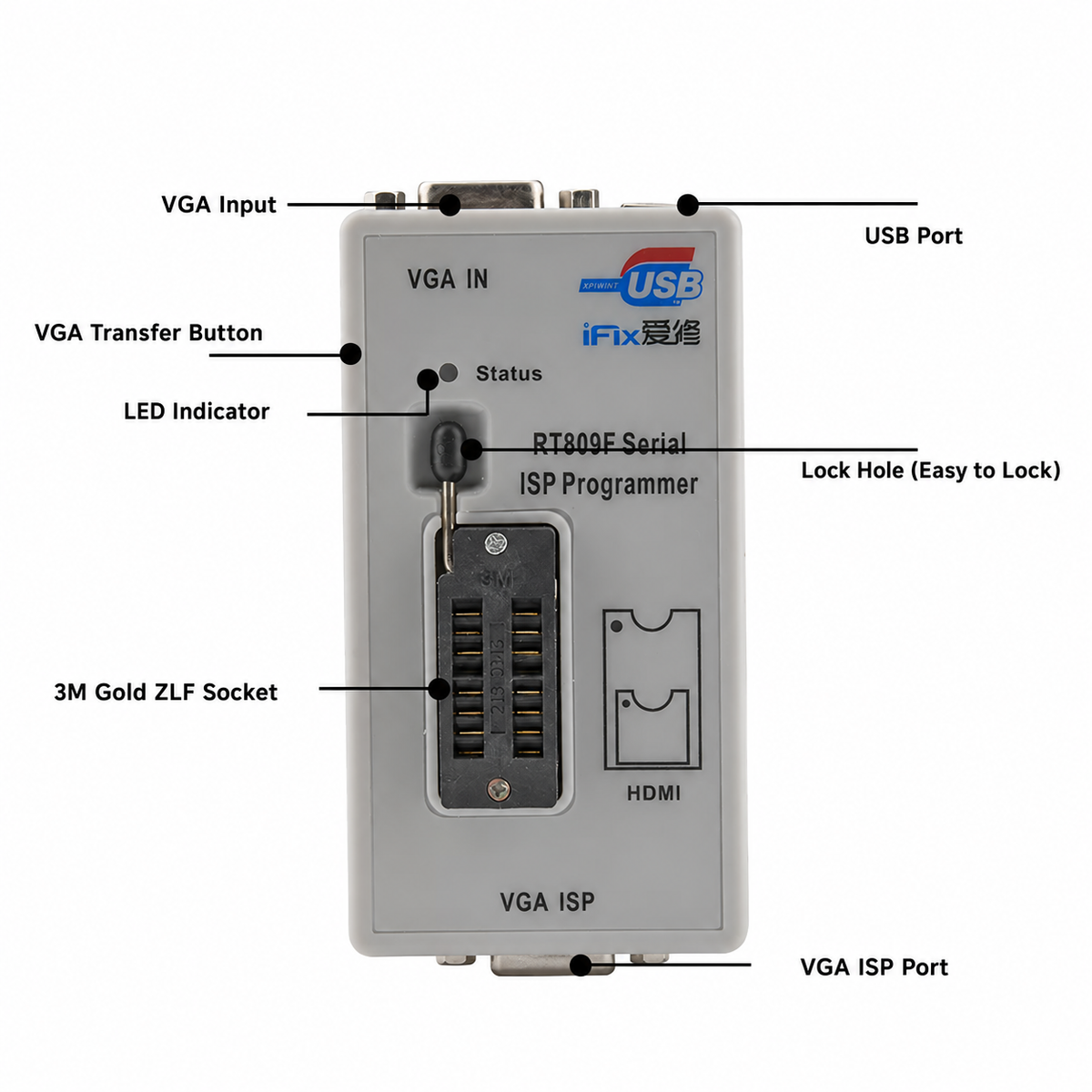

• Dedicated VGA Transfer Button & Status LED: Built-in hardware toggle button for VGA signal routing and real-time LED status indicator to monitor programming operations.

Product Specifications

• Model: RT809F Serial ISP Programmer
• Host Interface: USB Type-B Port

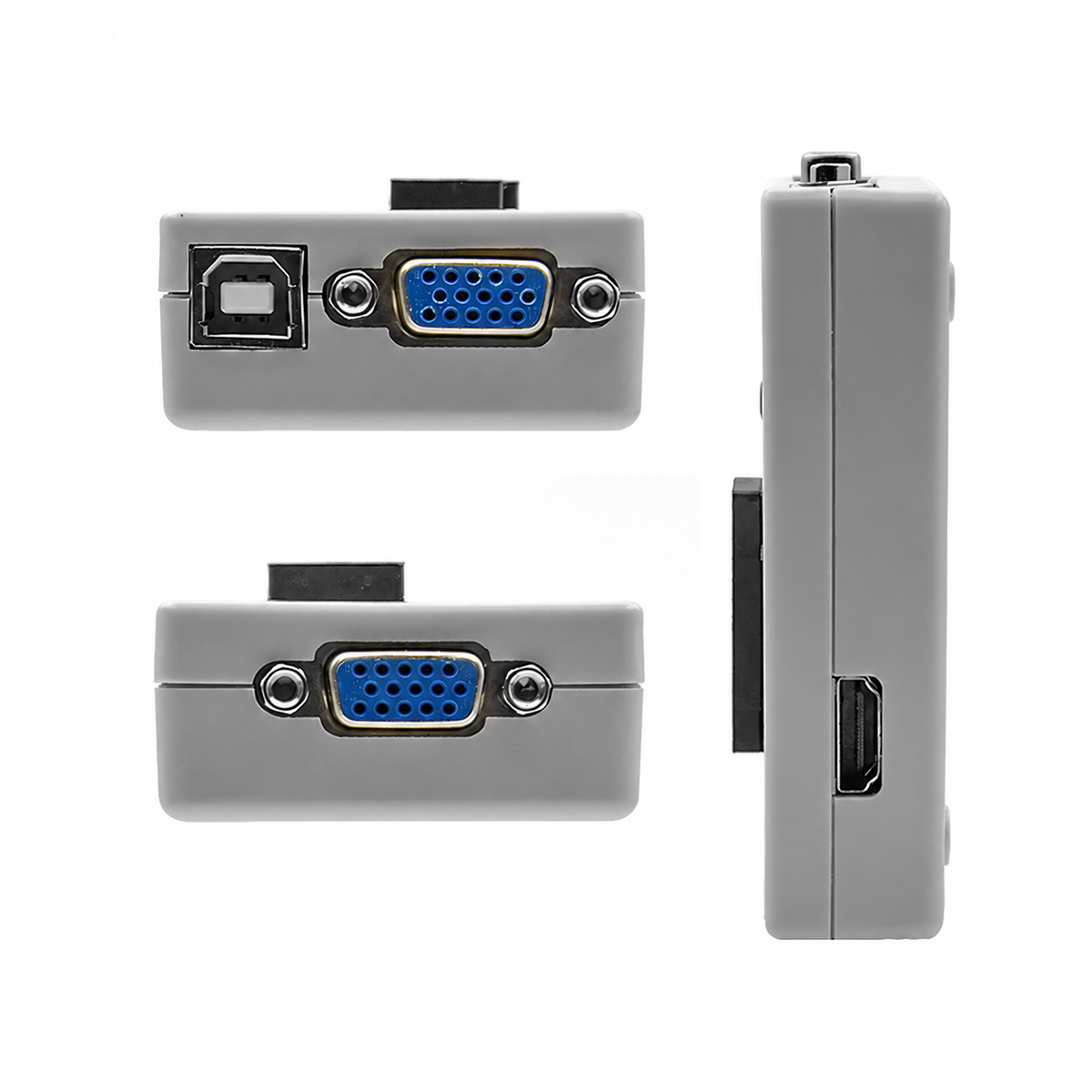

• Video & ISP Ports: 1x VGA Input, 1x VGA ISP Port, 1x HDMI Port
• IC Socket: 16-Pin 3M Gold ZIF (Zero Insertion Force) Socket with Locking Lever
• Controls & Indicators: Hardware VGA Transfer Button, LED Status Indicator
• Programming Capabilities: ISP in-circuit programming via VGA/HDMI/cables and offline socket programming

Package Includes

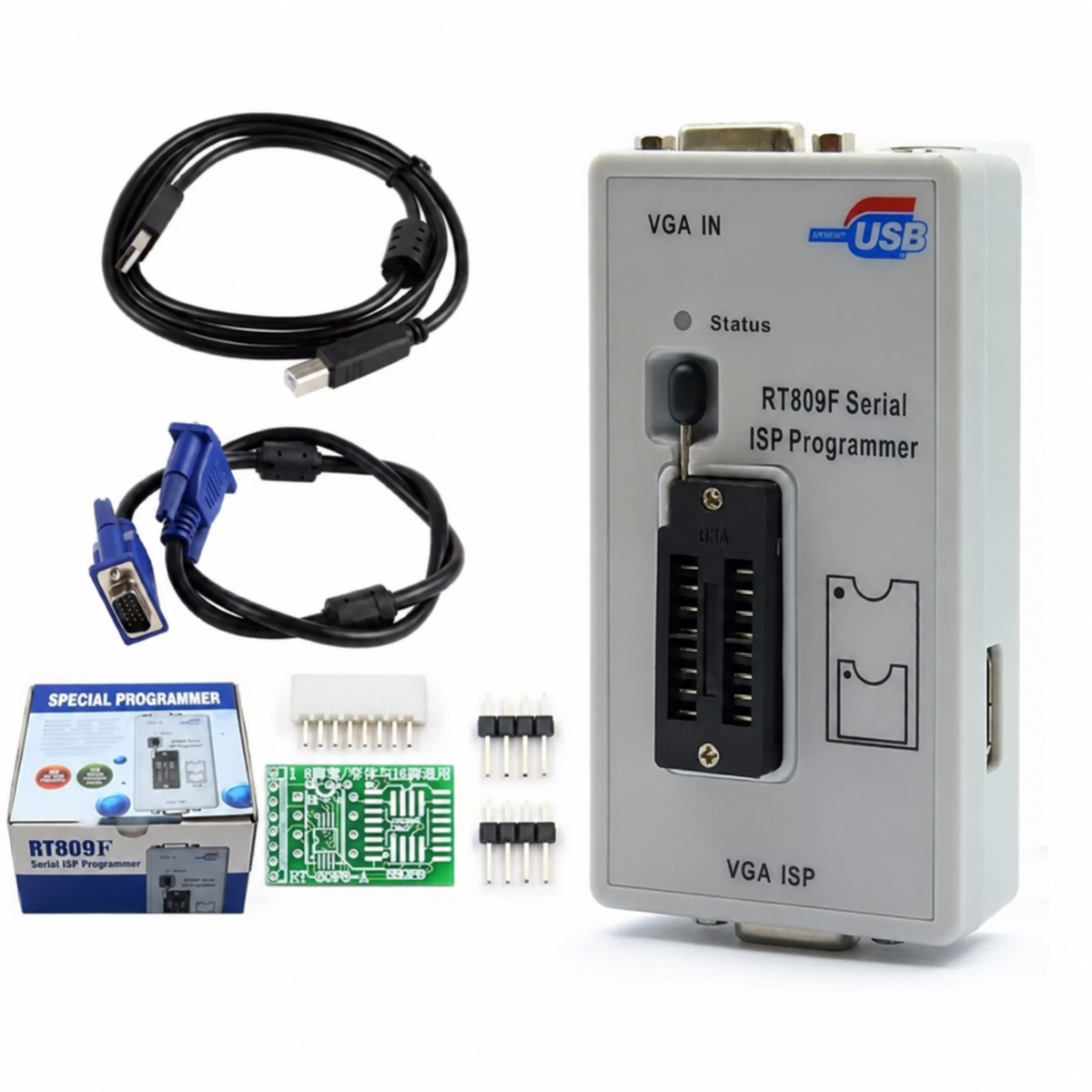

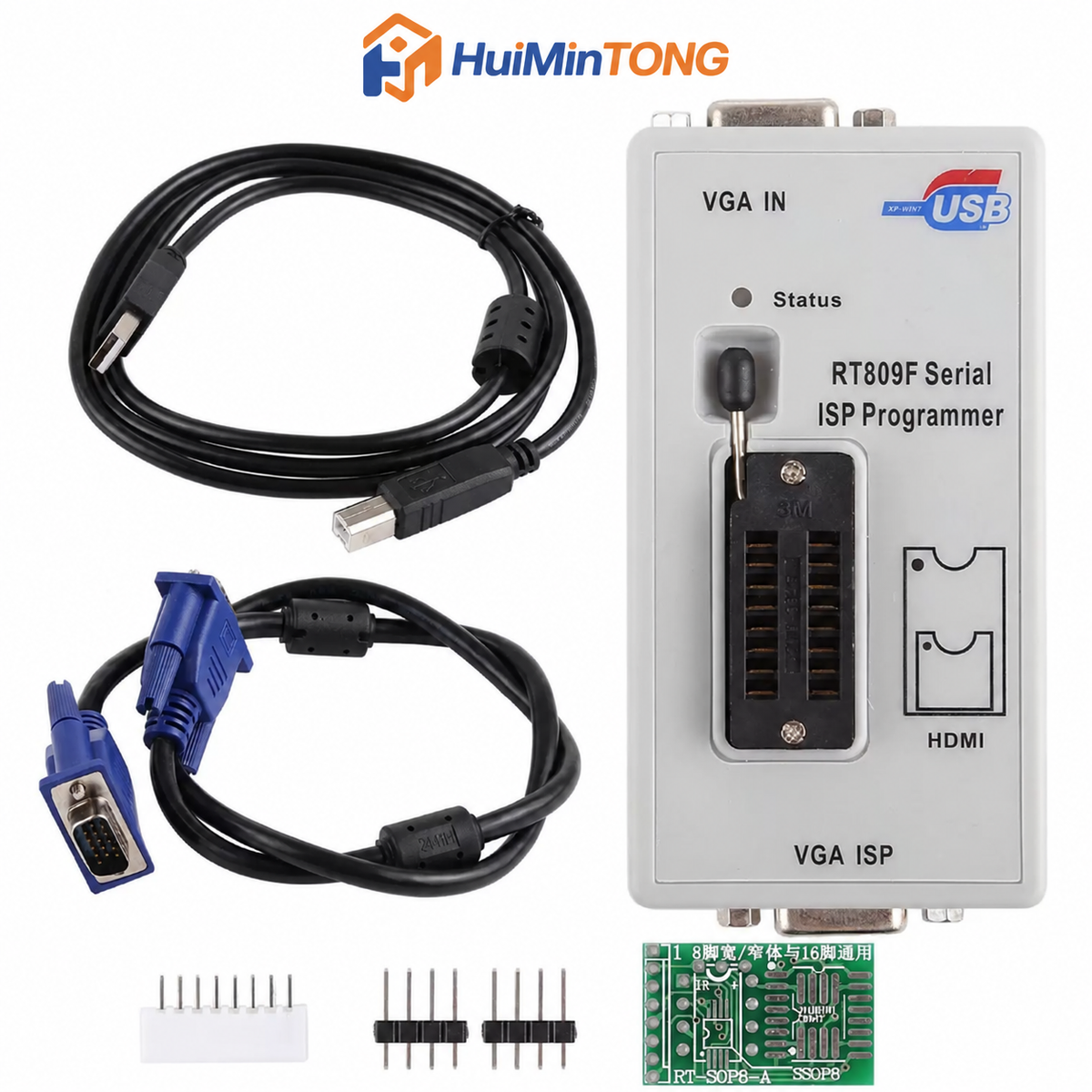

• 1 x RT809F Serial ISP Programmer Main Unit
• 1 x USB Cable (Type-A to Type-B with Ferrite Core)
• 1 x VGA Cable (Male-to-Male with Dual Ferrite Cores)
• 1 x RT-SOP8-A / SSOP8 Adapter Board (Supports 8-pin narrow/wide body & 16-pin chips)
• 1 x Multi-Pin Terminal Connector Header
• 2 x Pin Headers

Target Applications

• BIOS and serial memory flashing for laptop, desktop, and all-in-one motherboards
• Firmware programming and debugging for LCD/LED displays and TV driver boards via VGA ISP and HDMI
• Reading, writing, and backup of SOP8, SSOP8, and compatible serial EEPROM/Flash chips
