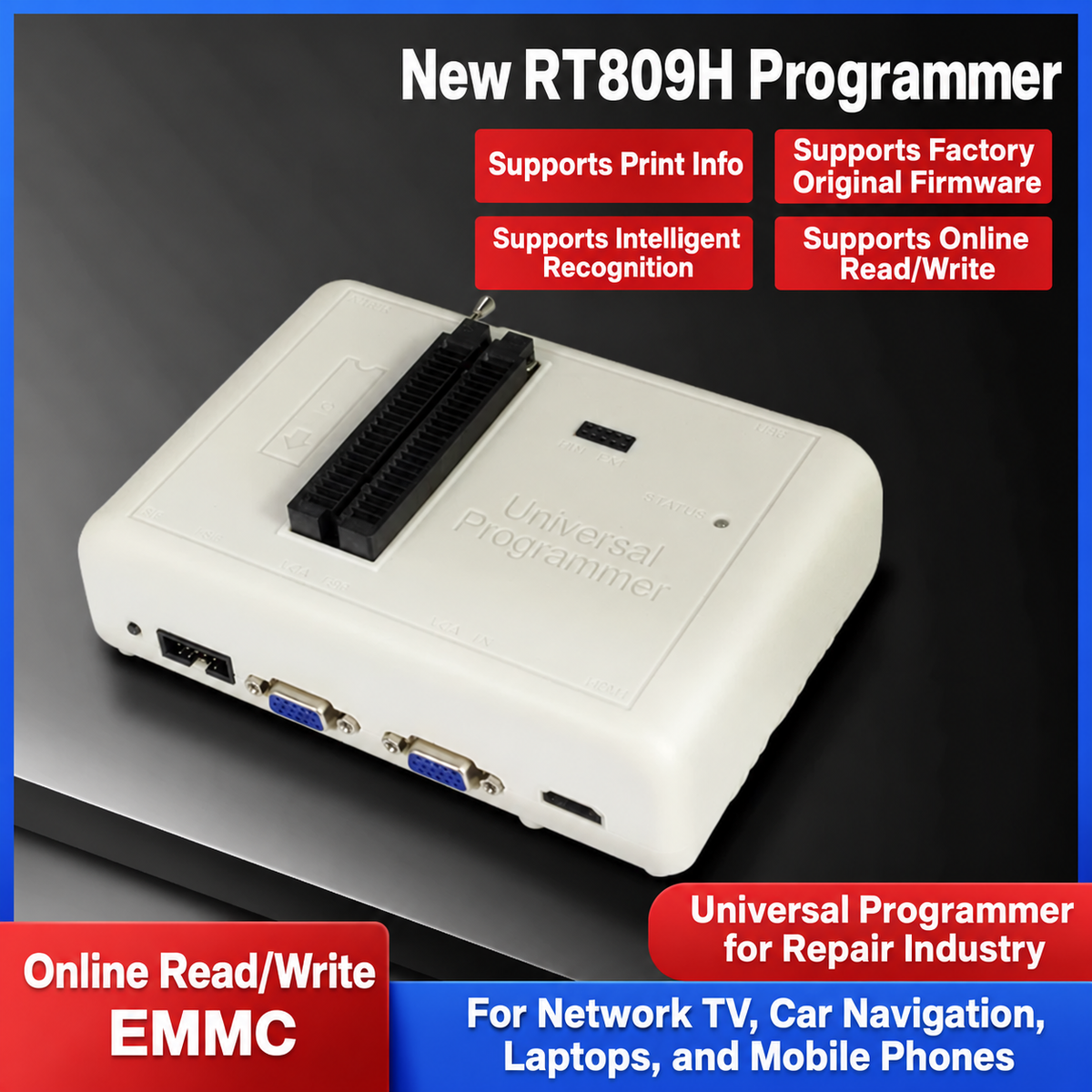

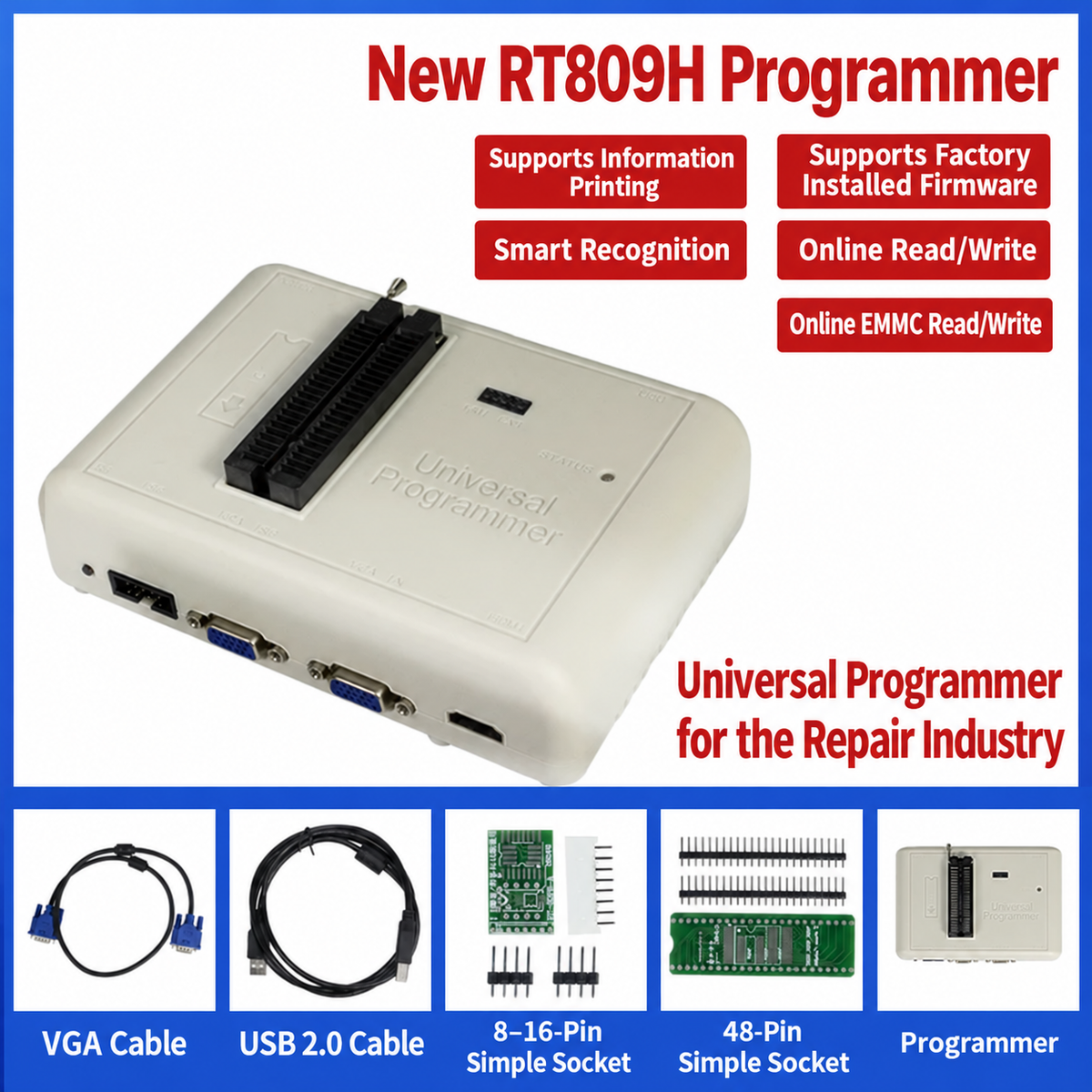

RT809H Universal Programmer for EMMC NAND Flash & Online ISP
The RT809H is a high-speed universal programmer engineered for professional electronics maintenance, chip-level recovery, and firmware programming. Designed with full-pin driving architecture, it delivers seamless online and offline read/write support for eMMC, NAND Flash, laptop EC controllers, motherboard BIOS, and display firmware without requiring complicated manual pin configuration.
Key Features

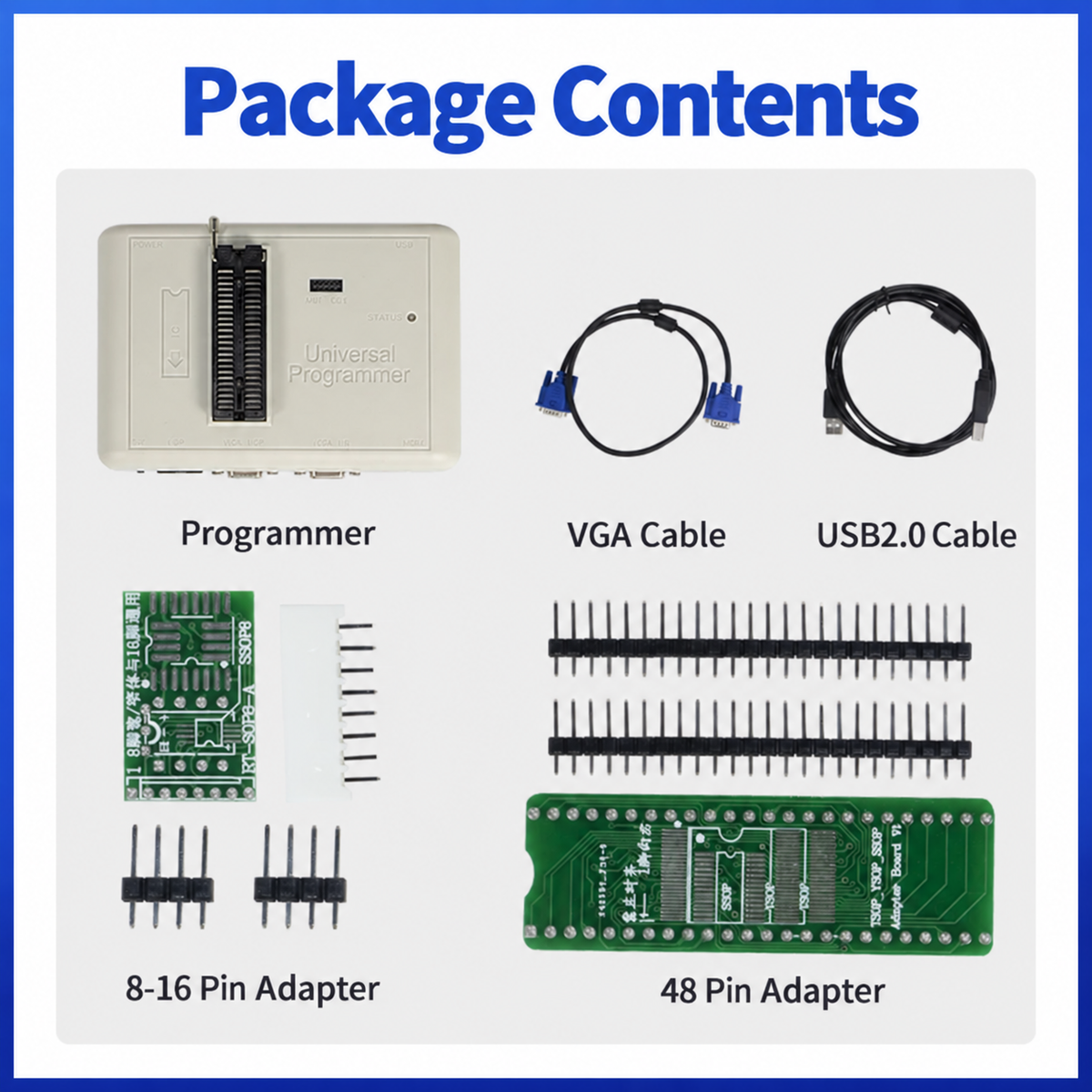

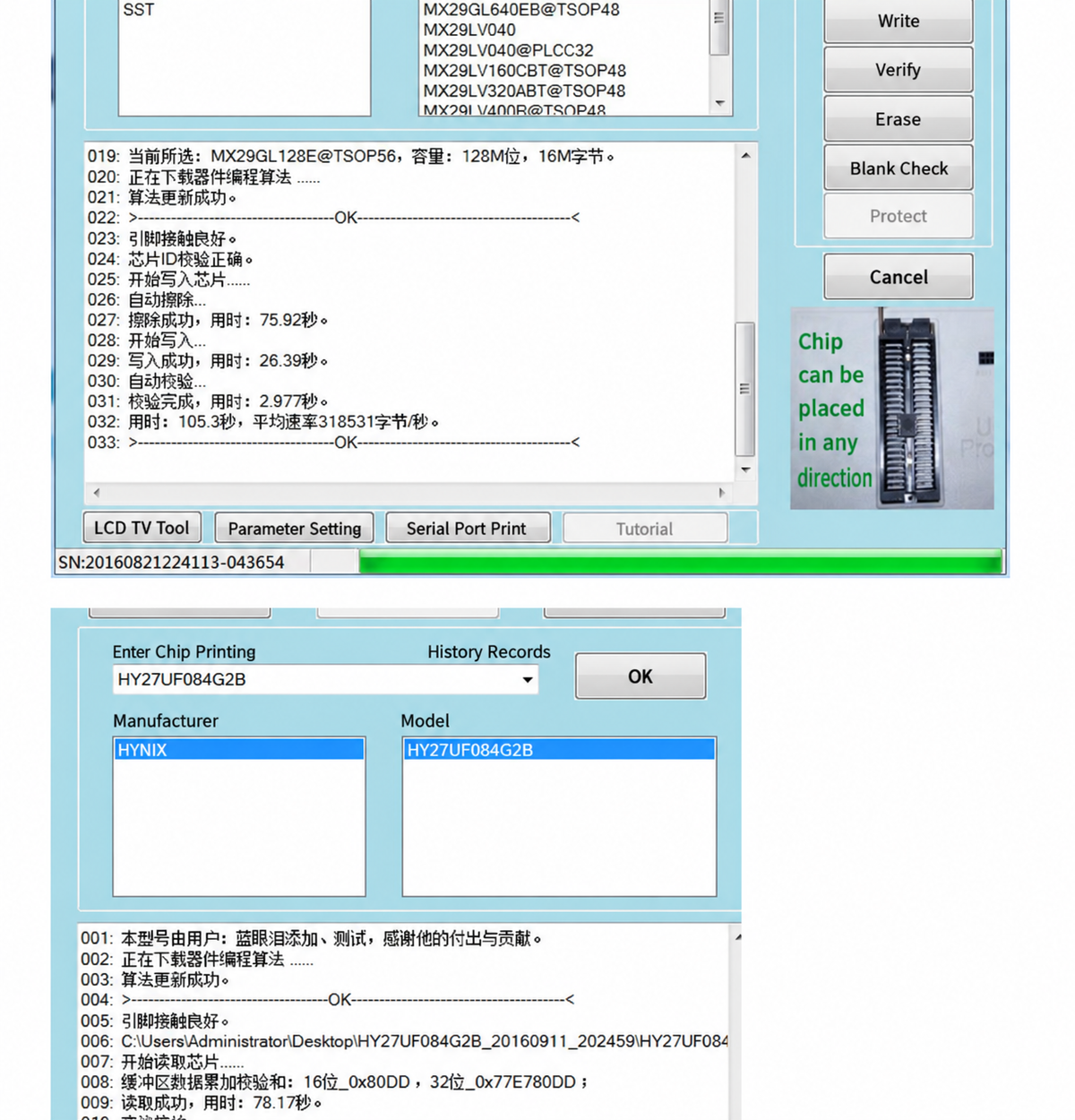

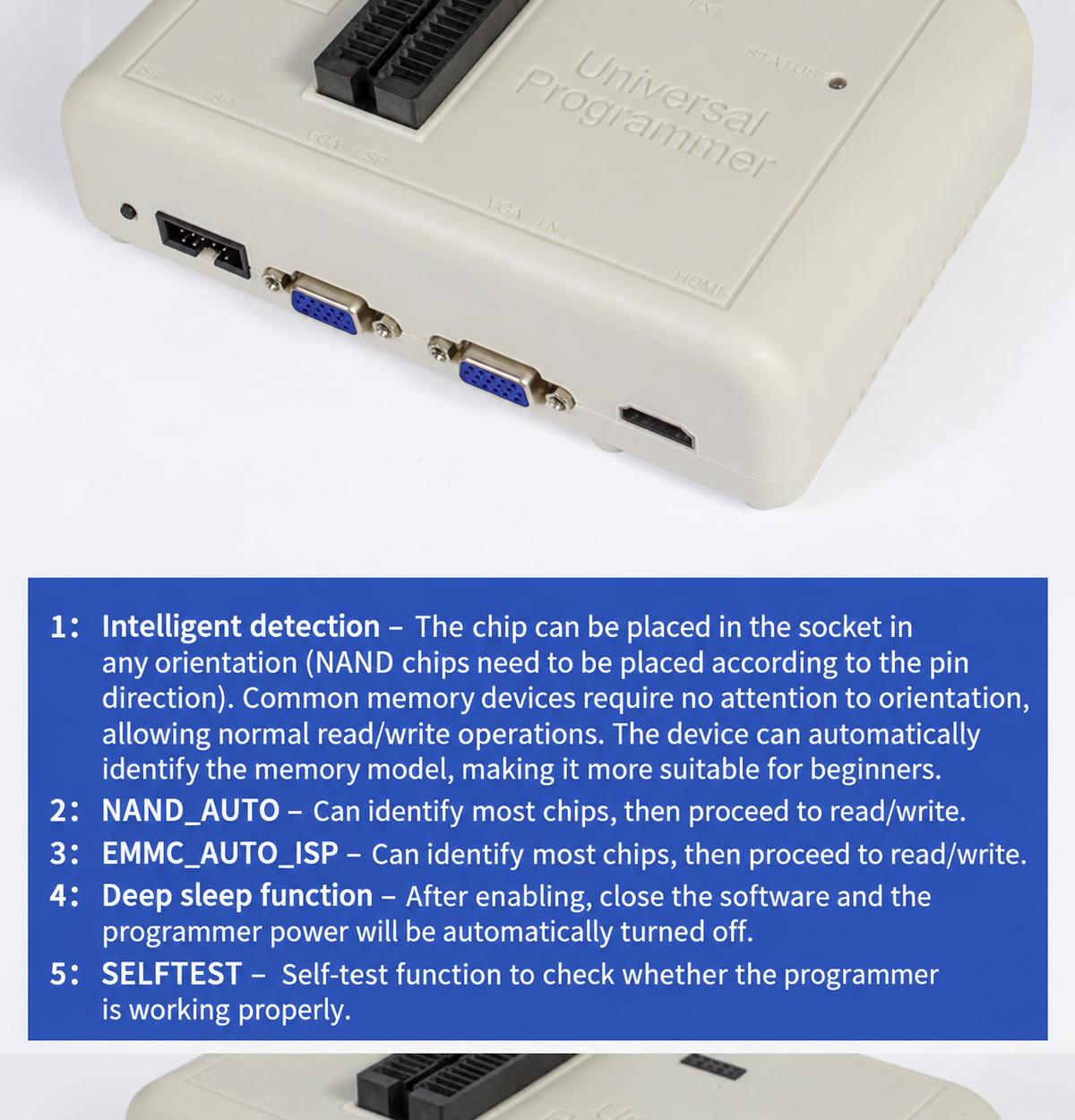

Intelligent Chip Detection: Features smart orientation recognition—common memory chips can be inserted into the socket in any direction, and the software automatically identifies the chip model (NAND chips align with pin 1).
Online eMMC & NAND Read/Write: Supports NAND_AUTO and EMMC_AUTO_ISP one-click automated identification and in-circuit programming via ISP interfaces, eliminating the need to desolder chips in many repair scenarios.
Laptop EC & BIOS Programming: Full-range library support for laptop embedded controllers (EC) including IT8, KB90, MEC16, and NPCE series with unlimited capacity, as well as desktop and laptop motherboard BIOS chips.

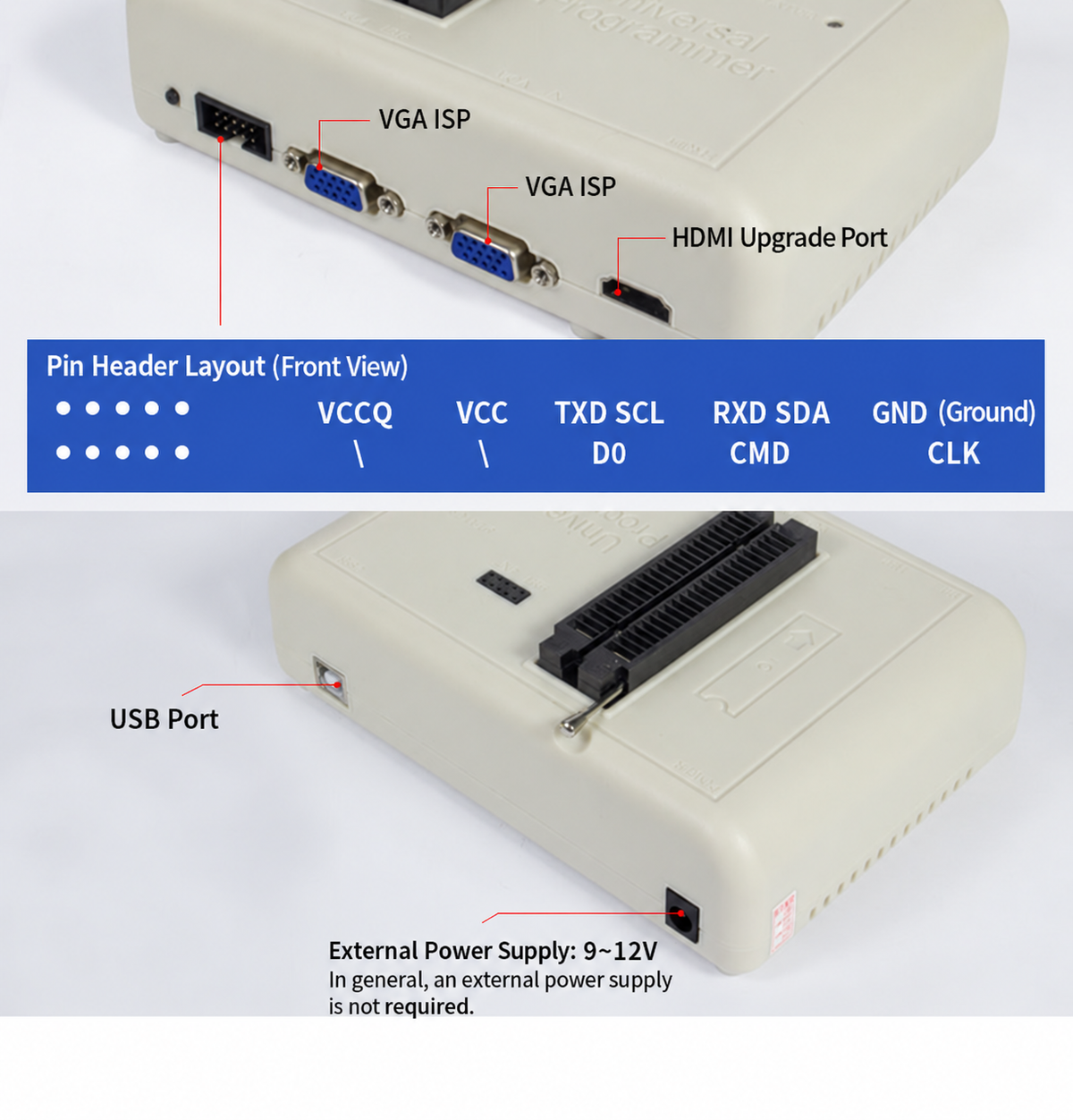

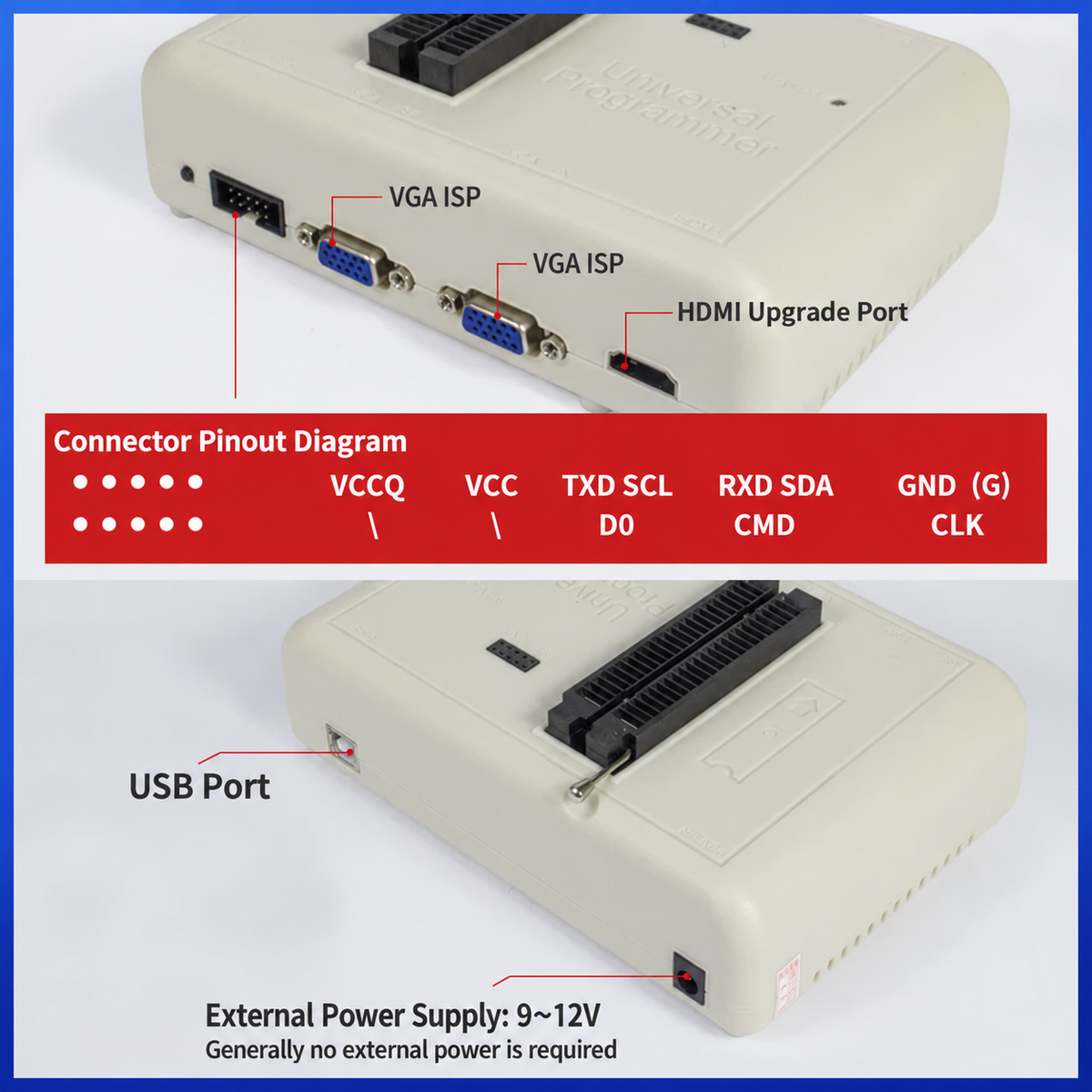

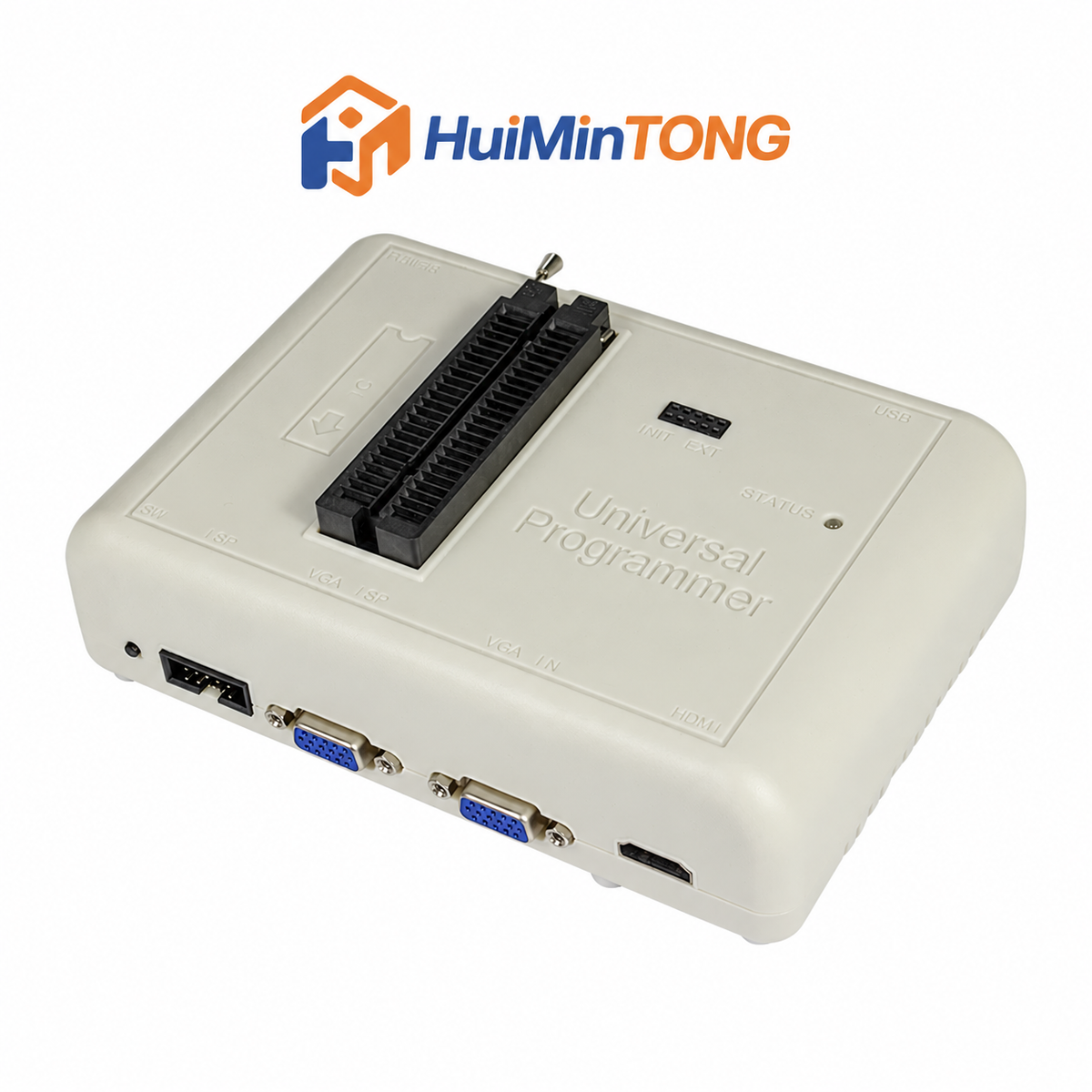

Multi-Port Interface Array: Equipped with dual VGA ISP ports, an HDMI upgrade port, a 10-pin expansion pin header (VCCQ, VCC, TXD, RXD, SCL, SDA, CMD, CLK, DO, GND), and a standard 48-pin universal ZIF locking socket.
Hardware Self-Test & Deep Sleep: Includes built-in SELFTEST functionality to diagnose hardware integrity instantly, plus an automatic deep sleep power-down mode when the PC software exits.
Serial Print & Factory Firmware Support: Supports serial port information printing, factory-original firmware read/write, DDC/EDID reading and writing, and TV logic board diagnostics.
Product Specifications
Model: RT809H
Socket Type: 48-Pin Universal ZIF Socket (Full Pin Driving)
Connectivity Ports: 1 x USB 2.0 Port, 2 x VGA ISP Ports, 1 x HDMI Upgrade Port, 1 x 10-Pin Header Expansion Interface
Power Supply: USB 5V powered (Standard operation requires no external supply; onboard 9V–12V DC auxiliary jack provided)

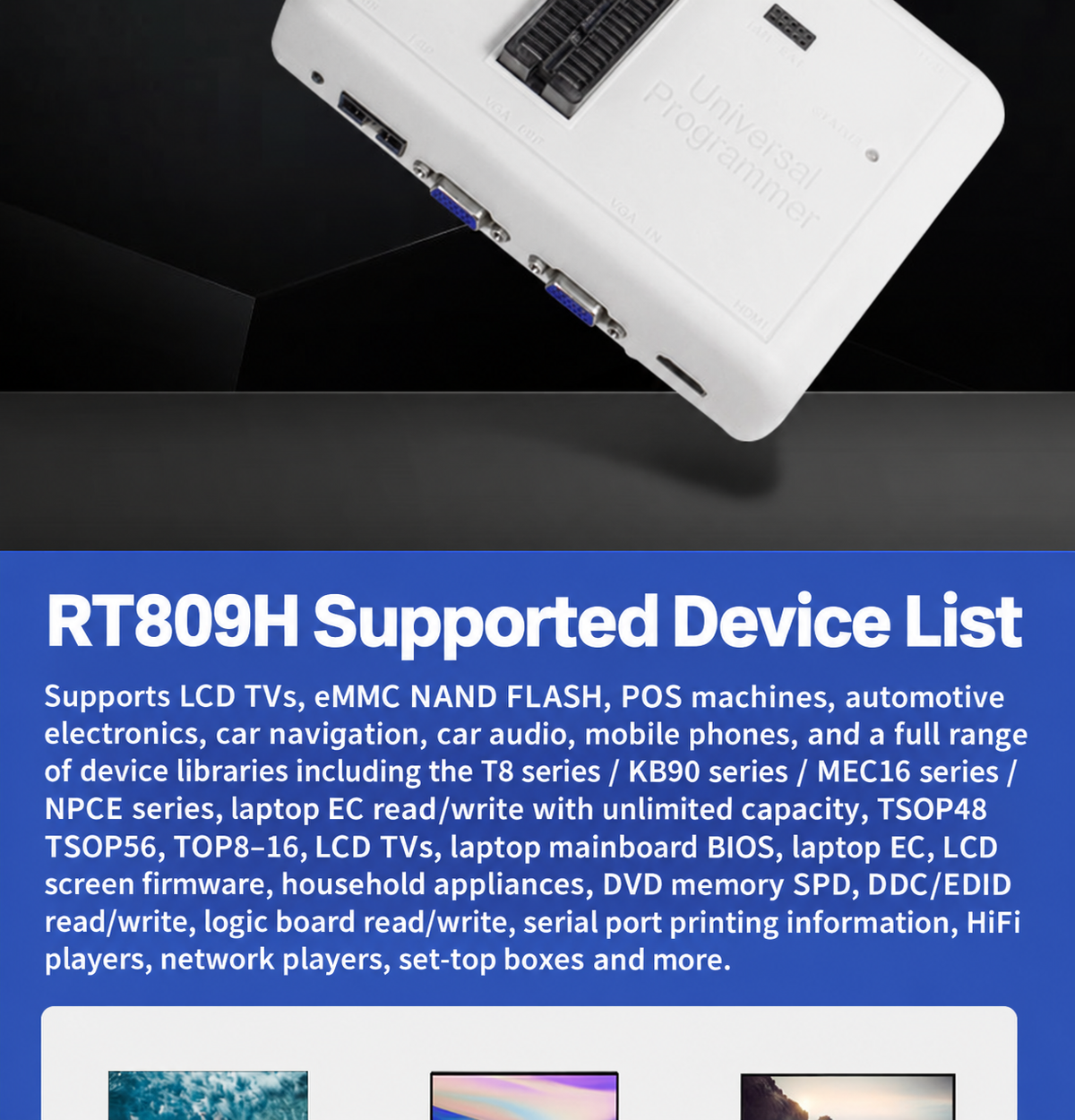

Supported Memory Types: eMMC, NAND FLASH, TSOP48, TSOP56, SOP8–16, laptop EC (IT8/KB90/MEC16/NPCE), DDC/EDID, DVD SPD

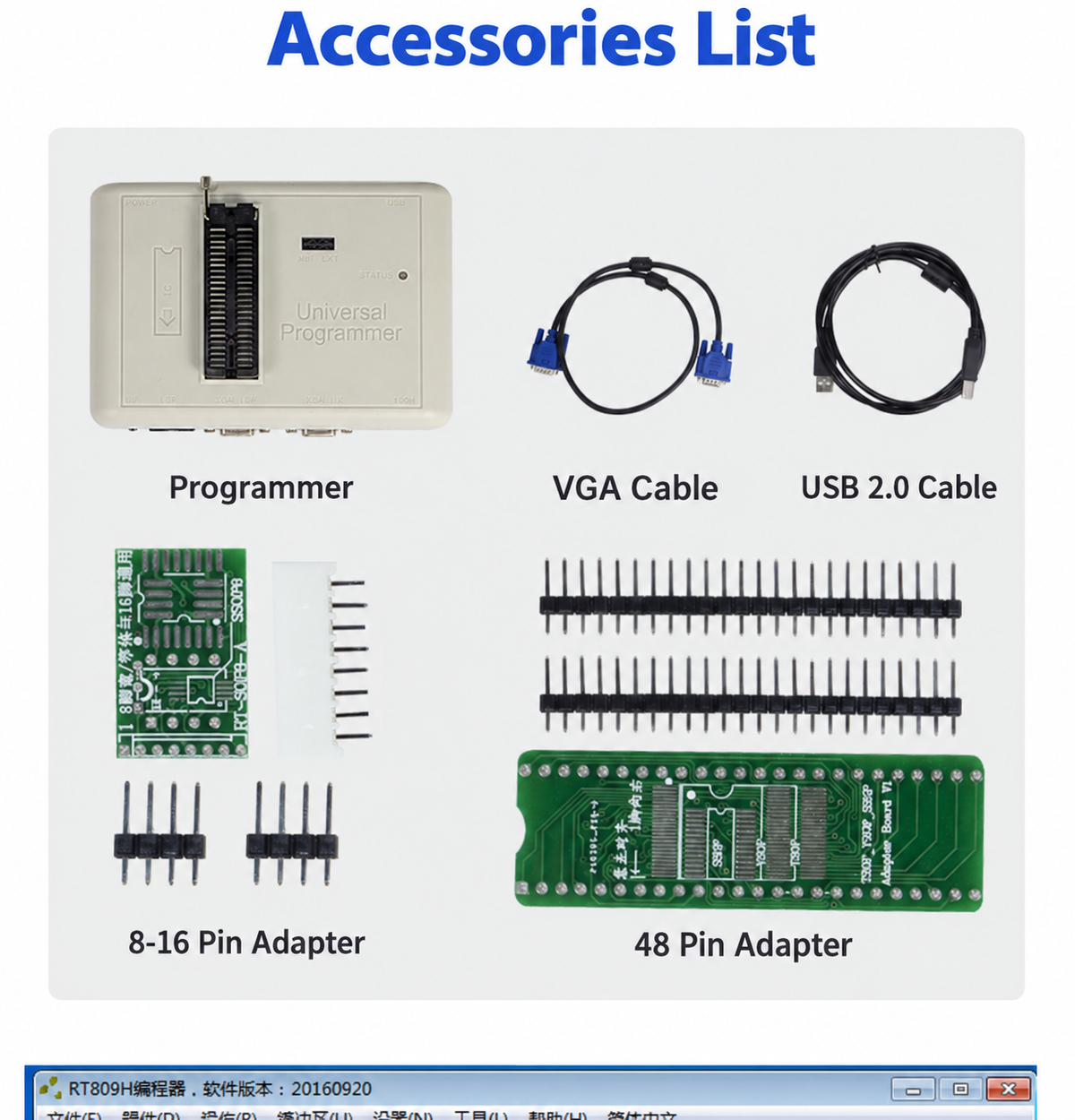

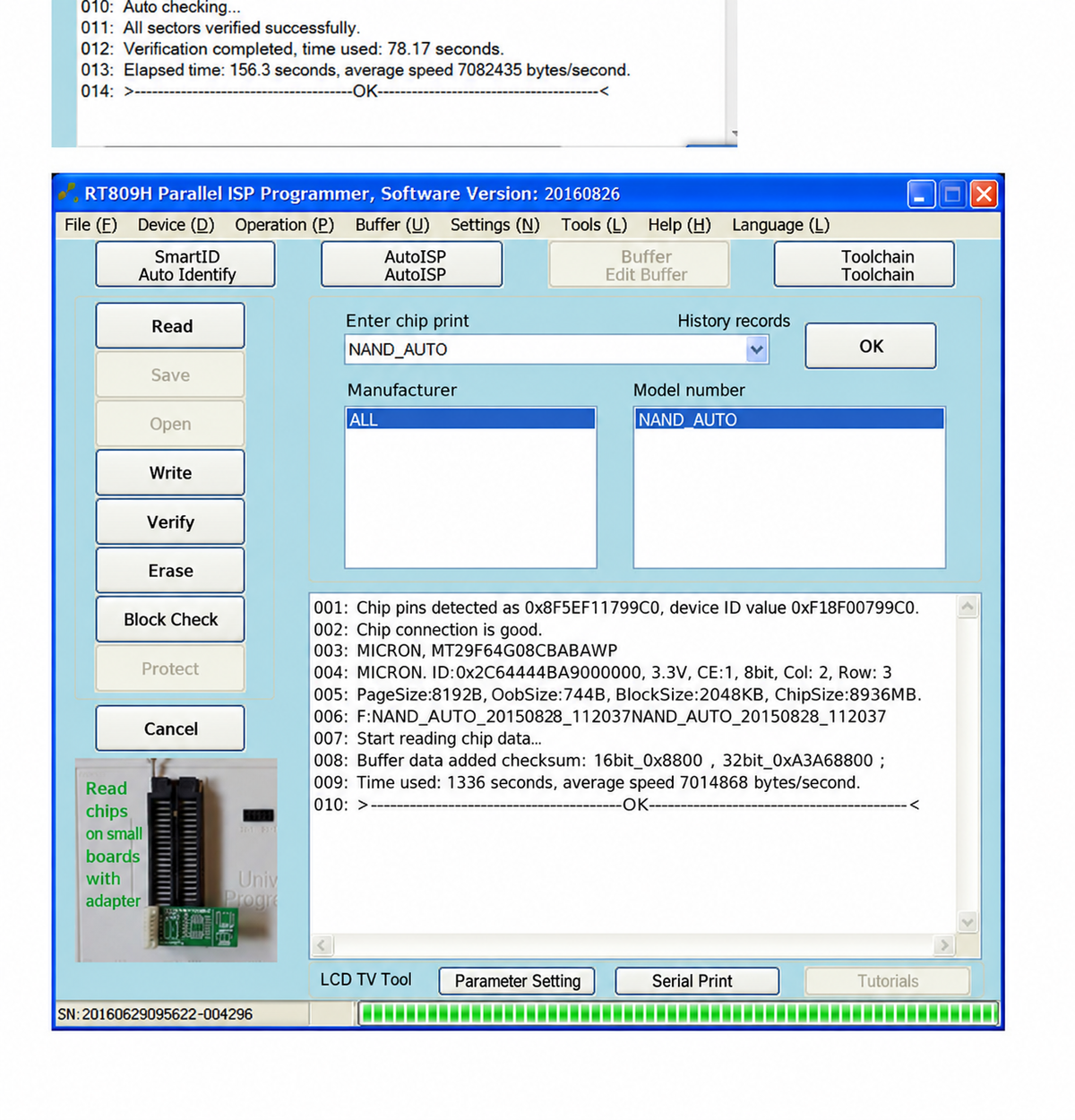

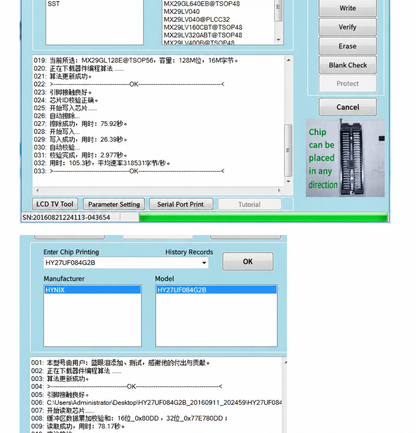

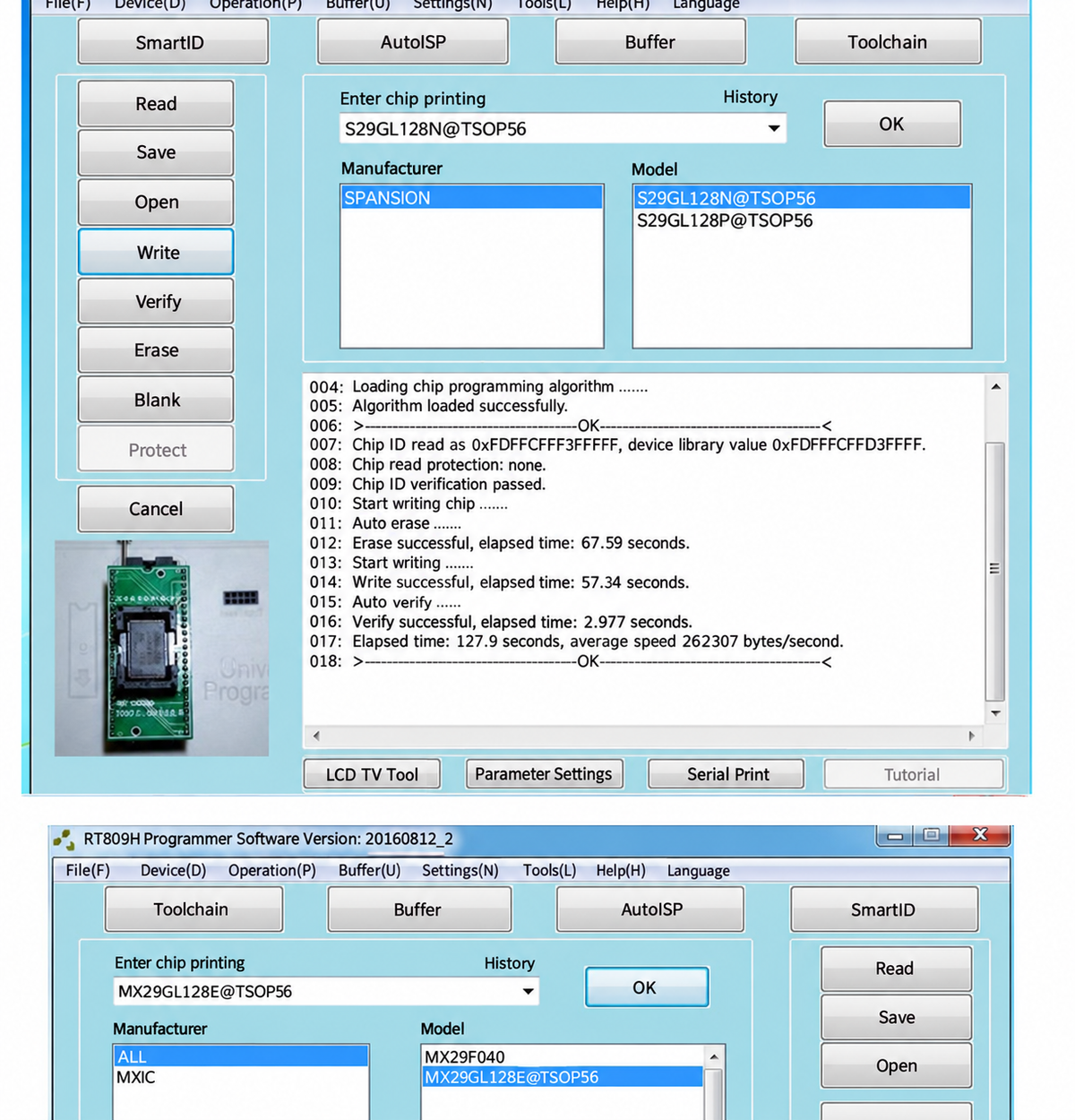

Software Functions: SmartID Auto Detection, AutoISP, Buffer Editor, Blank Check, Erase, Read, Write, Verify, Protect, Serial Print, Selftest
Target Applications
Computer Repair: Laptop and desktop motherboard BIOS flashing, laptop EC controller read/write, and display EDID recovery.
TV & Display Repair: LCD TV and monitor motherboard firmware upgrade, eMMC/NAND recovery, and logic board repair.
Automotive & Smart Devices: Car navigation and car audio infotainment systems, network set-top boxes, HiFi network players, and POS terminals.
