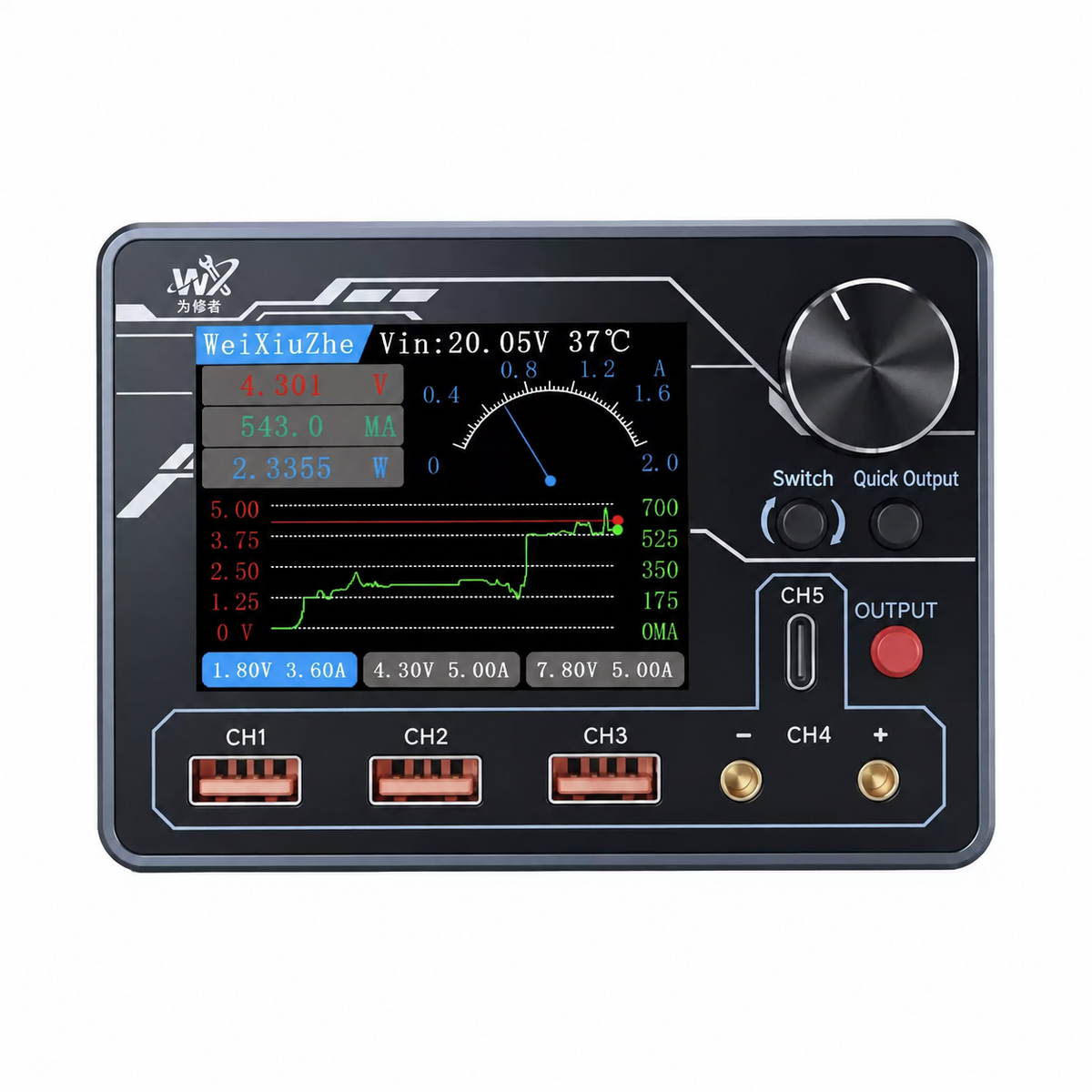

WEIXIUZHE PTV1 High-Precision Multi-Function AI Smart PD Power Supply

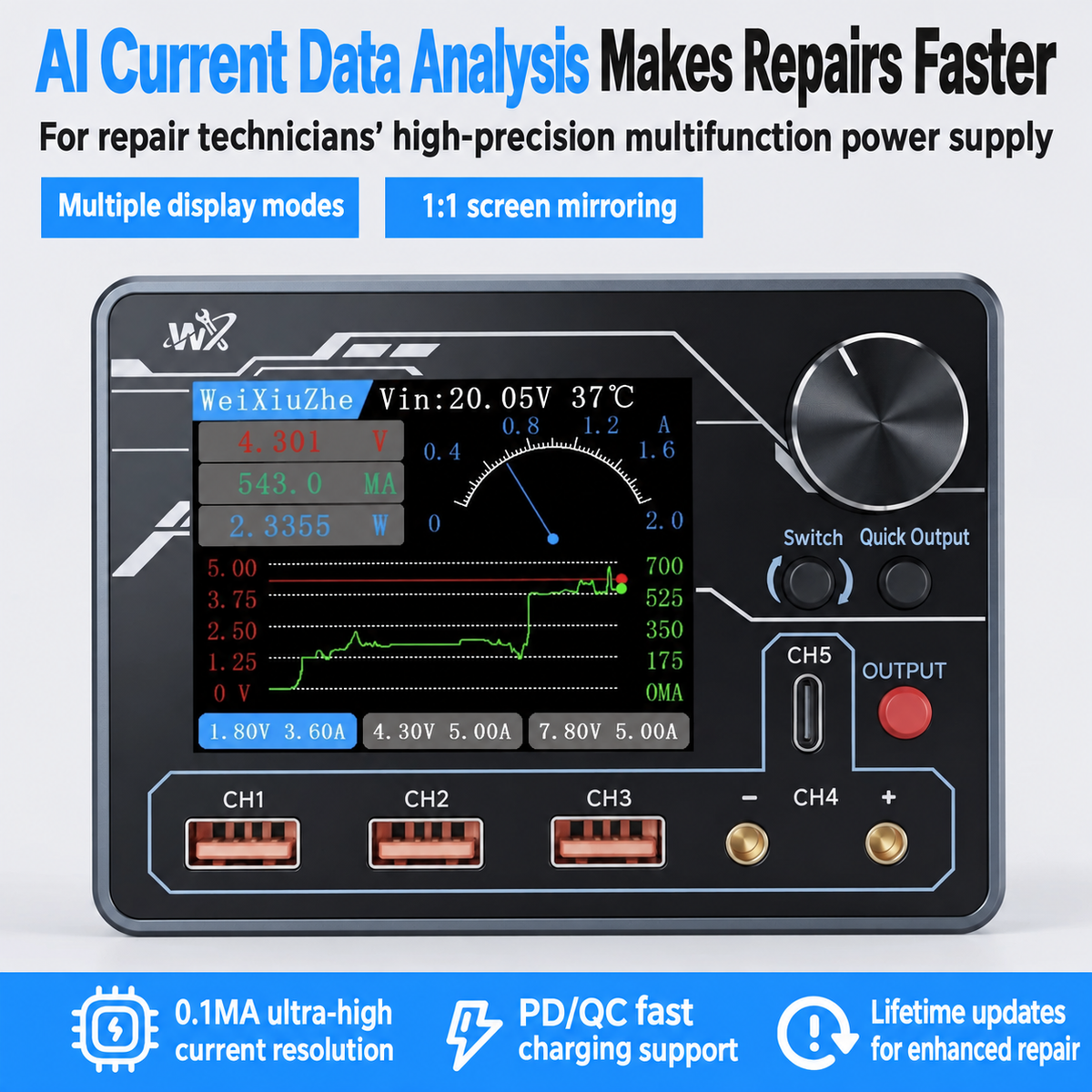

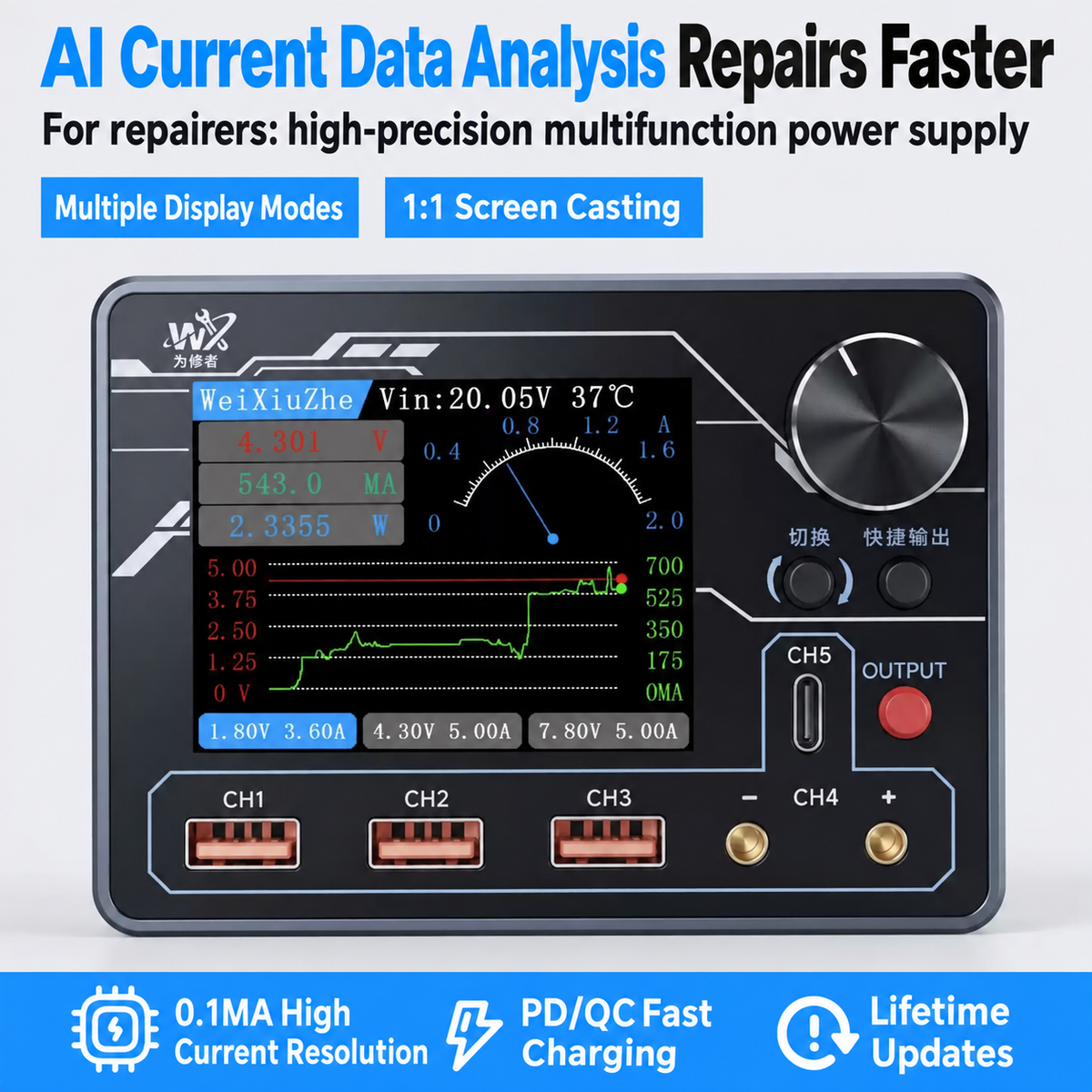

The WEIXIUZHE PTV1 High-Precision Multi-Function Smart Power Supply (jointly developed by WEIXIUZHE & FANGXINKEJI) is an ultra-compact, portable intelligent DC power source and diagnostic analyzer engineered specifically for mobile phone repair technicians, motherboard specialists, and electronics rework benches. Featuring an advanced AI current data analysis engine, 0.1mA micro-current measurement resolution, local waveform recording and playback, and 1:1 real-time PC screen casting, the PTV1 transforms motherboard troubleshooting and boot fault isolation into a fast, visual, and highly scientific workflow.
Key Features

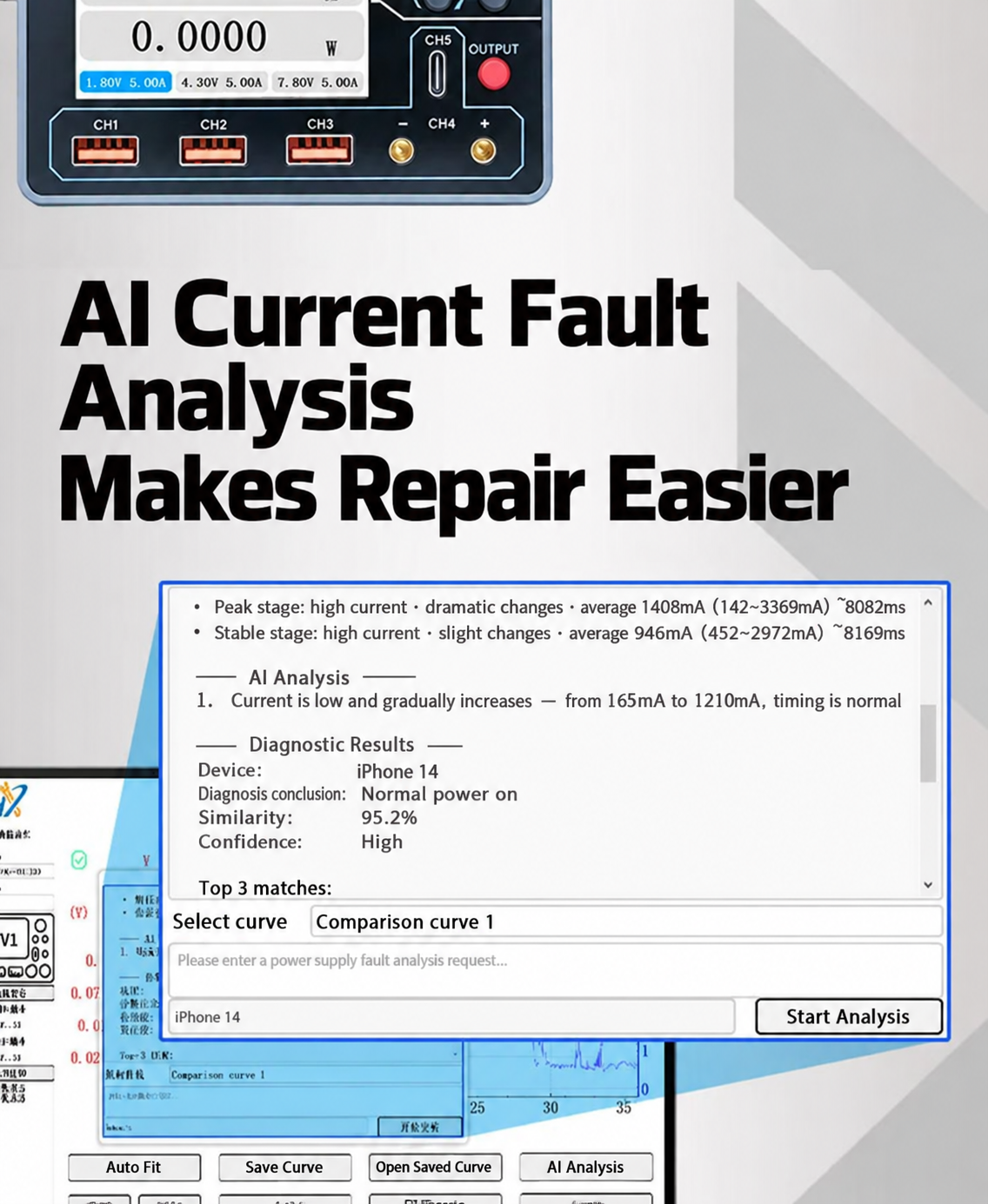

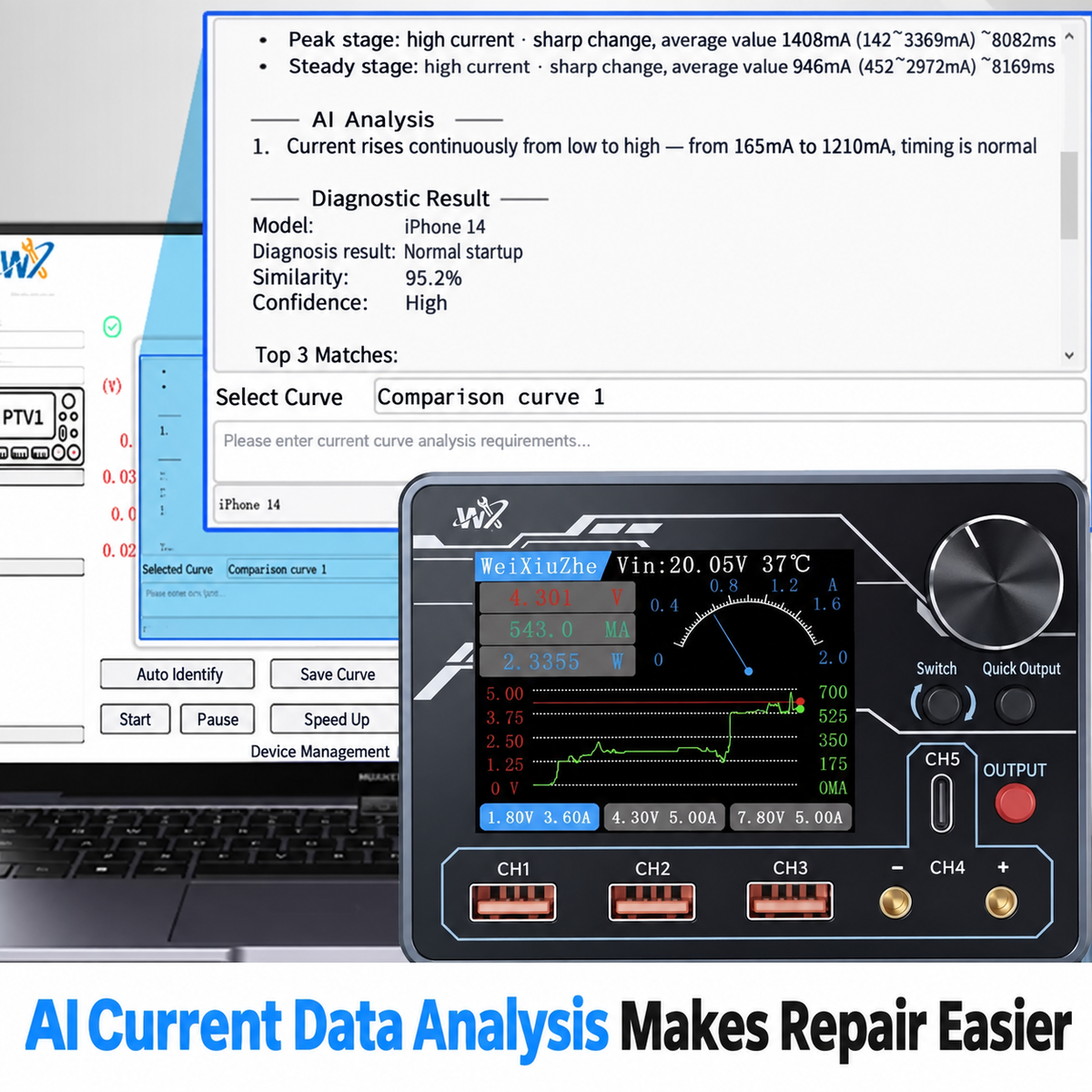

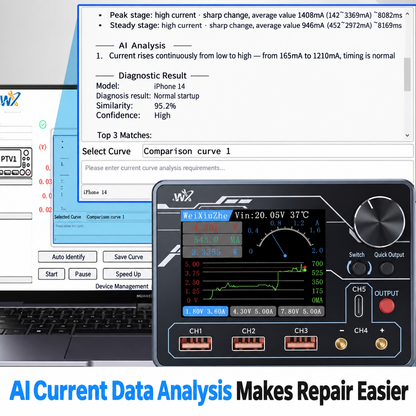

AI Current Data & Fault Analysis: Equipped with an intelligent curve-matching algorithm that compares real-time device power-up curves against standard boot profiles (such as iPhone and mainstream smartphone models), instantly reporting diagnostic conclusions (e.g., "Normal Power On"), curve similarity percentage, and confidence ratings.
0.1mA Ultra-High Current Resolution: Delivers high-sensitivity current detection down to 0.1mA, allowing technicians to capture subtle standby leakages, micro-shorts, and low-current initialization stages effortlessly.

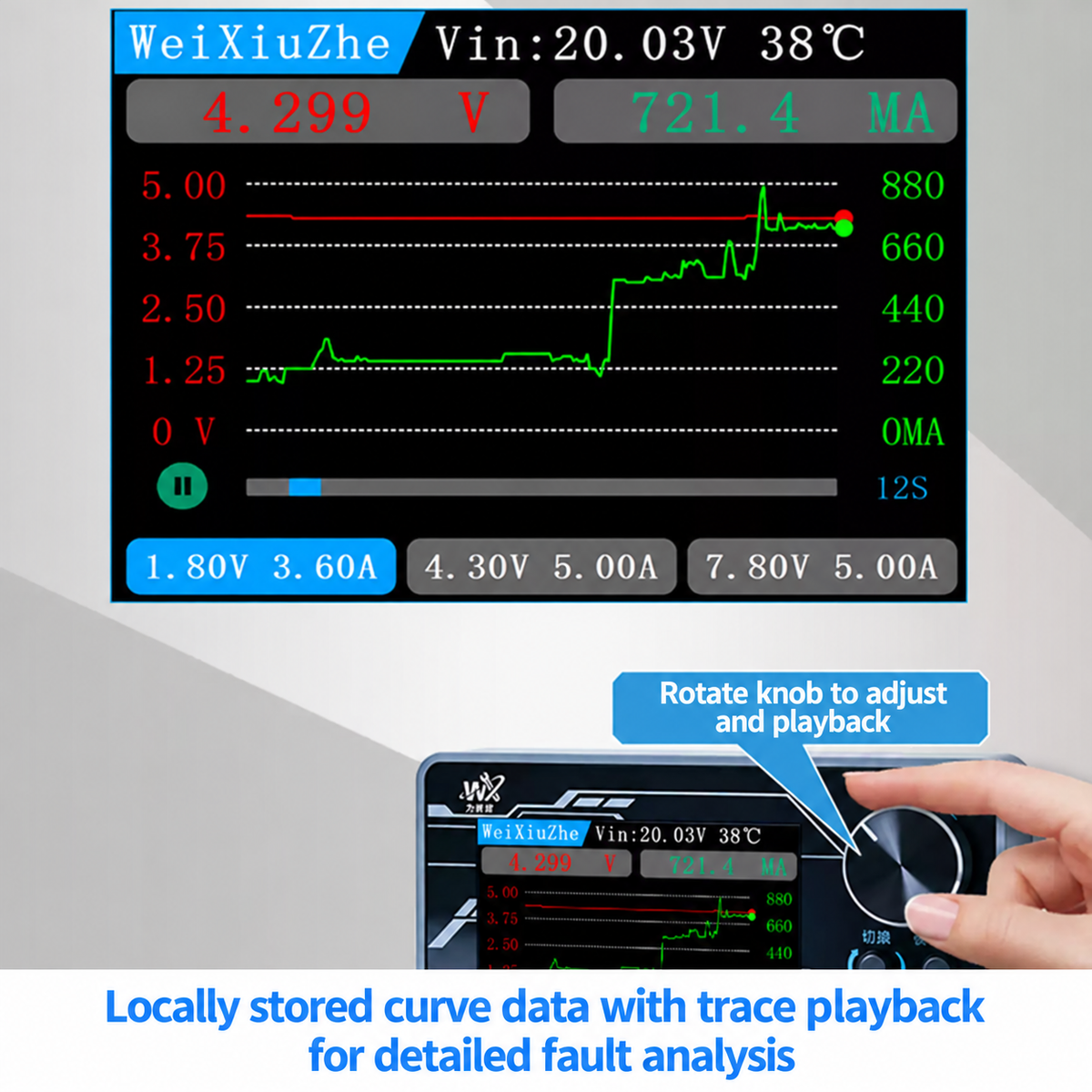

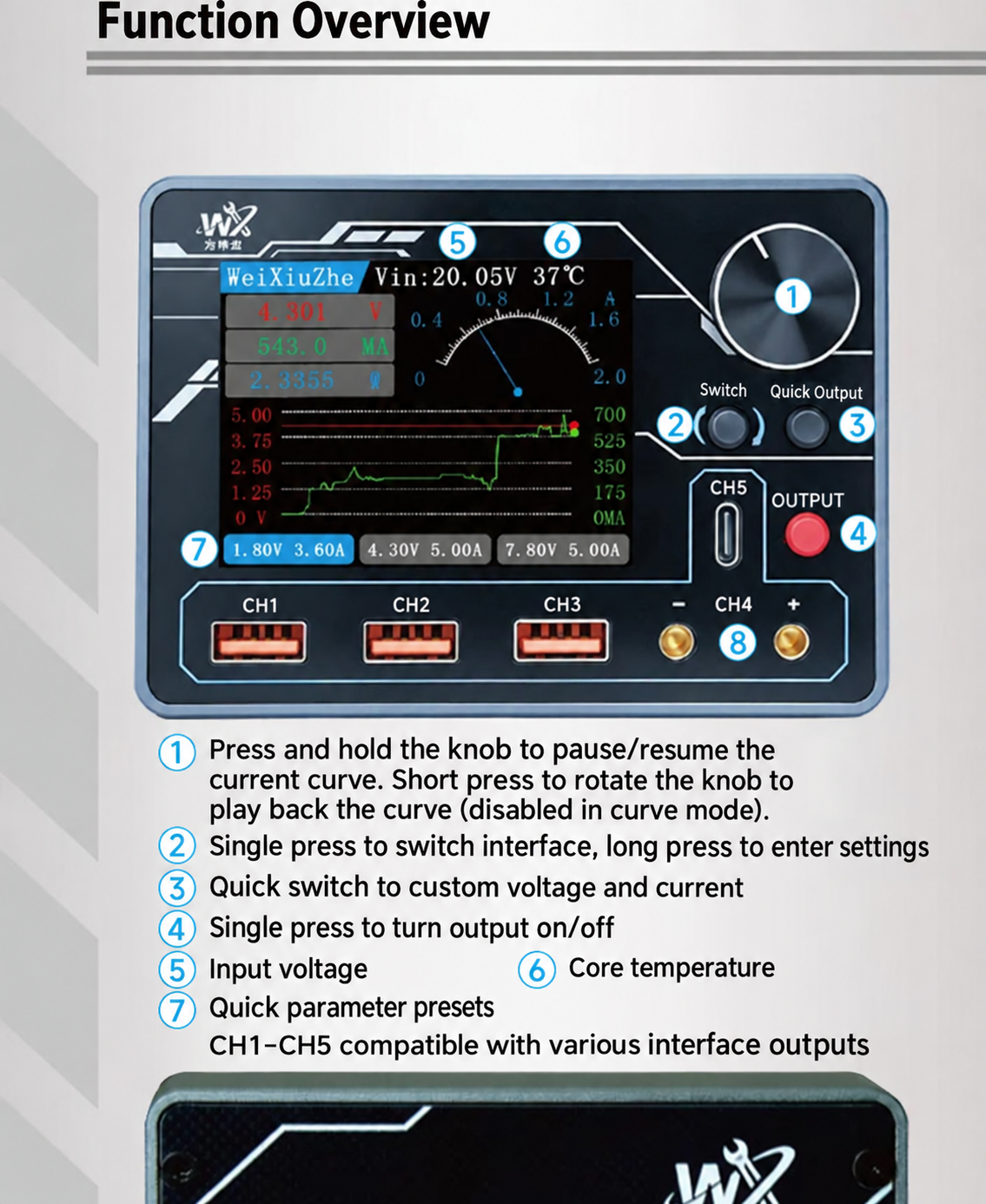

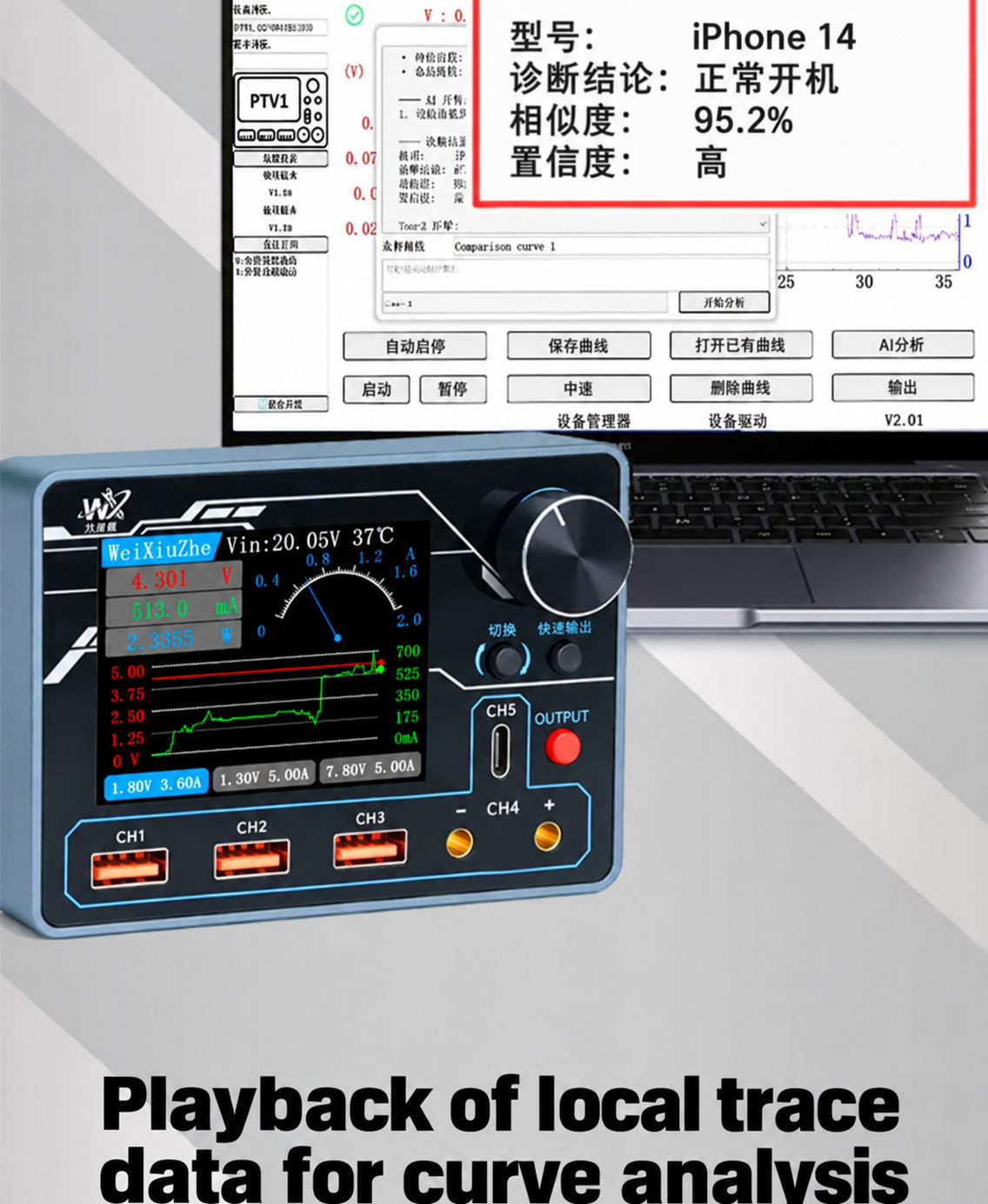

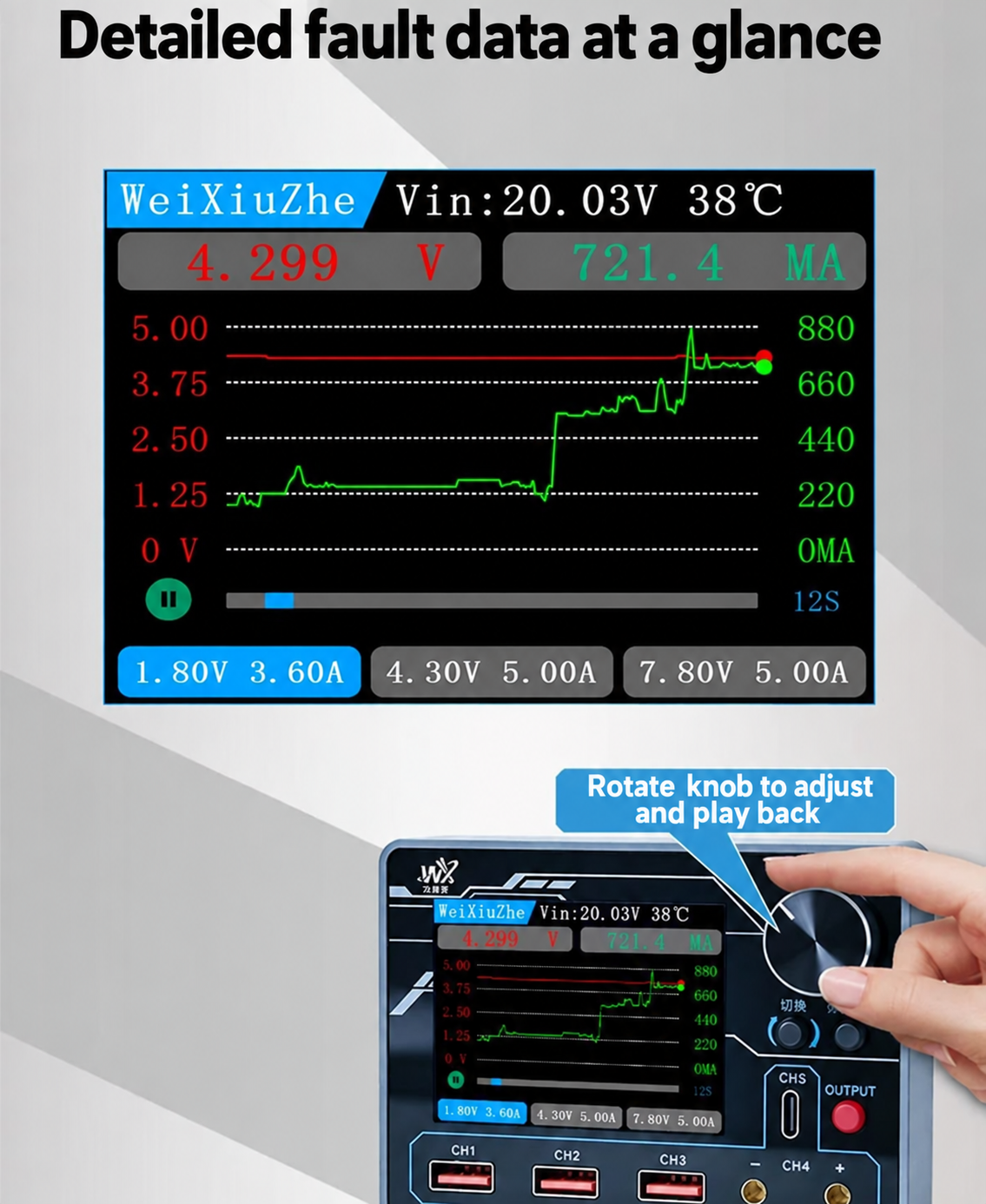

Waveform Data Local Recording & Playback: Features onboard trace caching that allows technicians to pause real-time waveforms and rotate the encoder knob to scroll back, zoom, and inspect dynamic current spikes millisecond by millisecond.

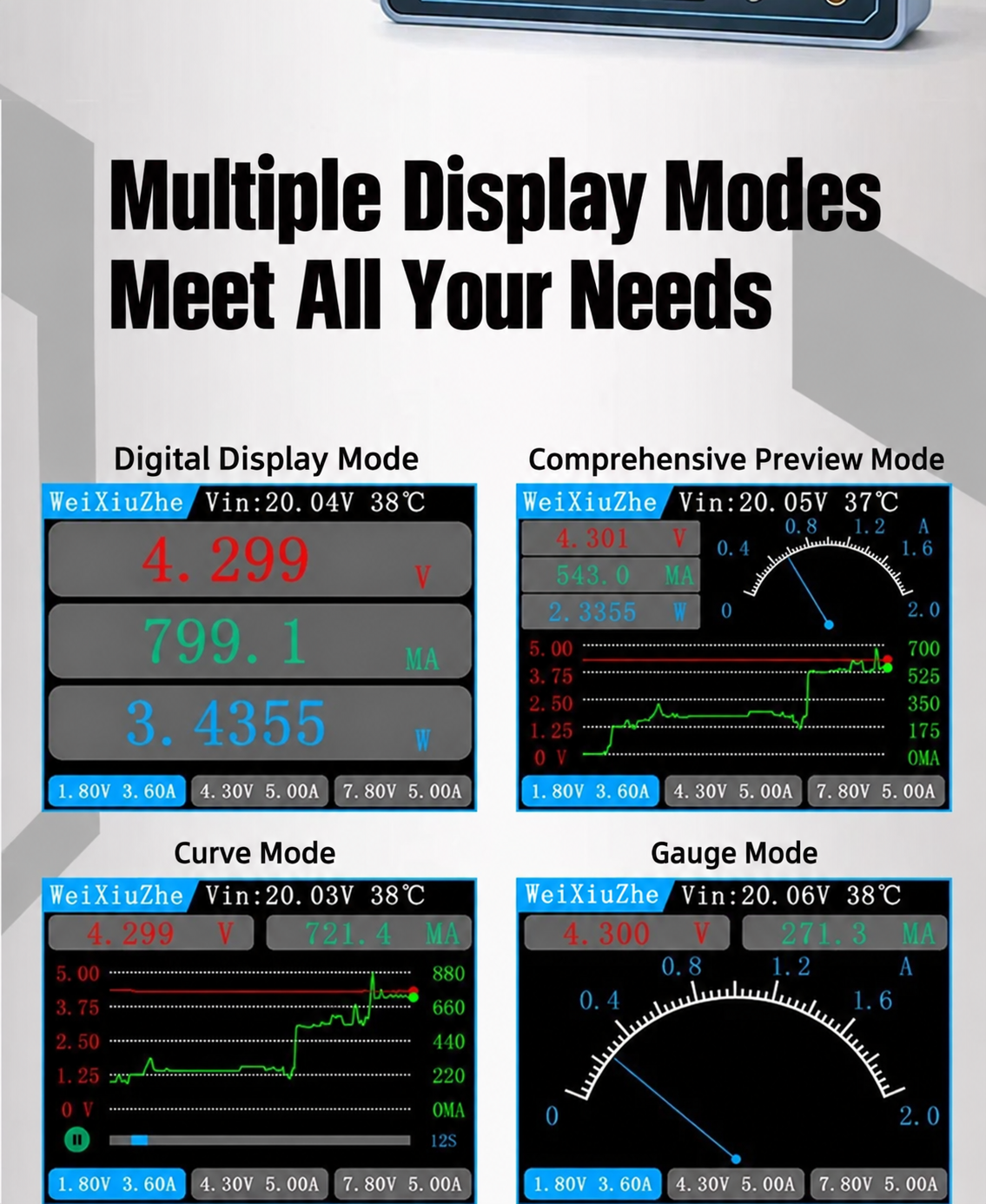

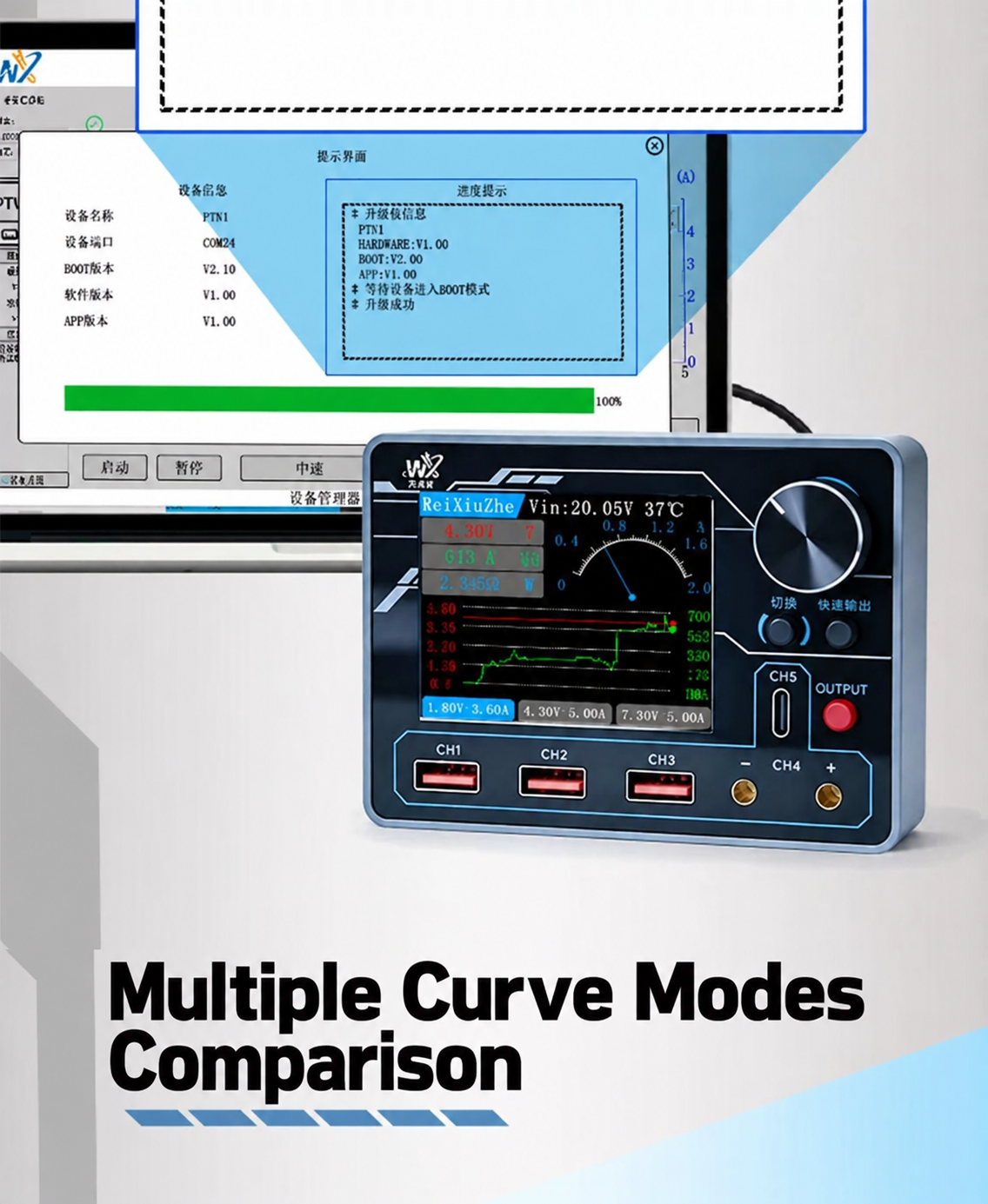

Multiple Display Modes:
Digital Readout Mode: Large, high-visibility digits displaying Voltage (V), Current (A/mA), and Power (W).

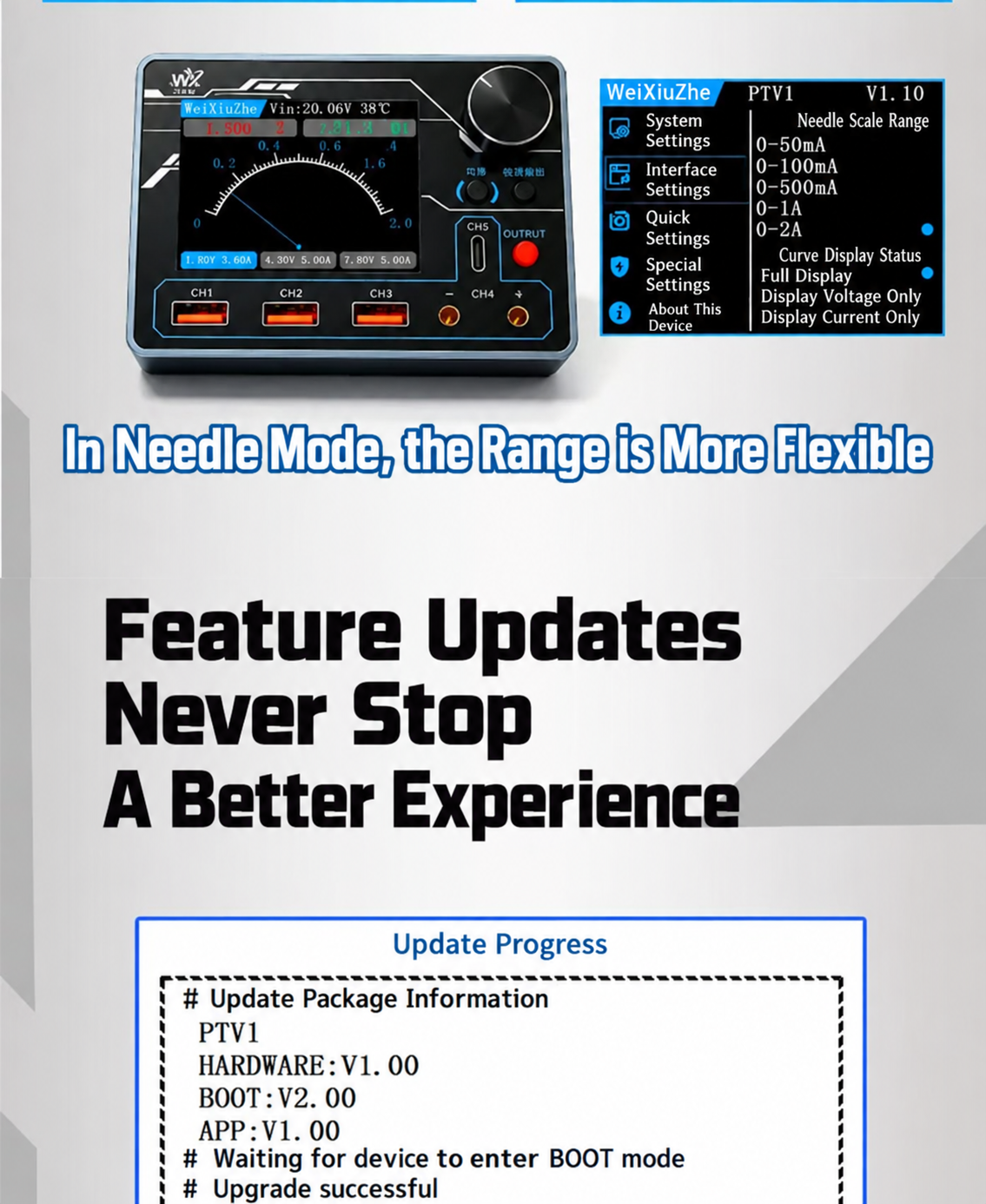

Flexible Needle Pointer Mode: Simulates classic analog needle meters with selectable multi-range scales (0–50mA, 0–100mA, 0–500mA, 0–1A, 0–2A) for intuitive observation of current fluctuations.
Waveform Curve Mode: Real-time dynamic graph supporting Full Display, Voltage Curve Only, or Current Curve Only.

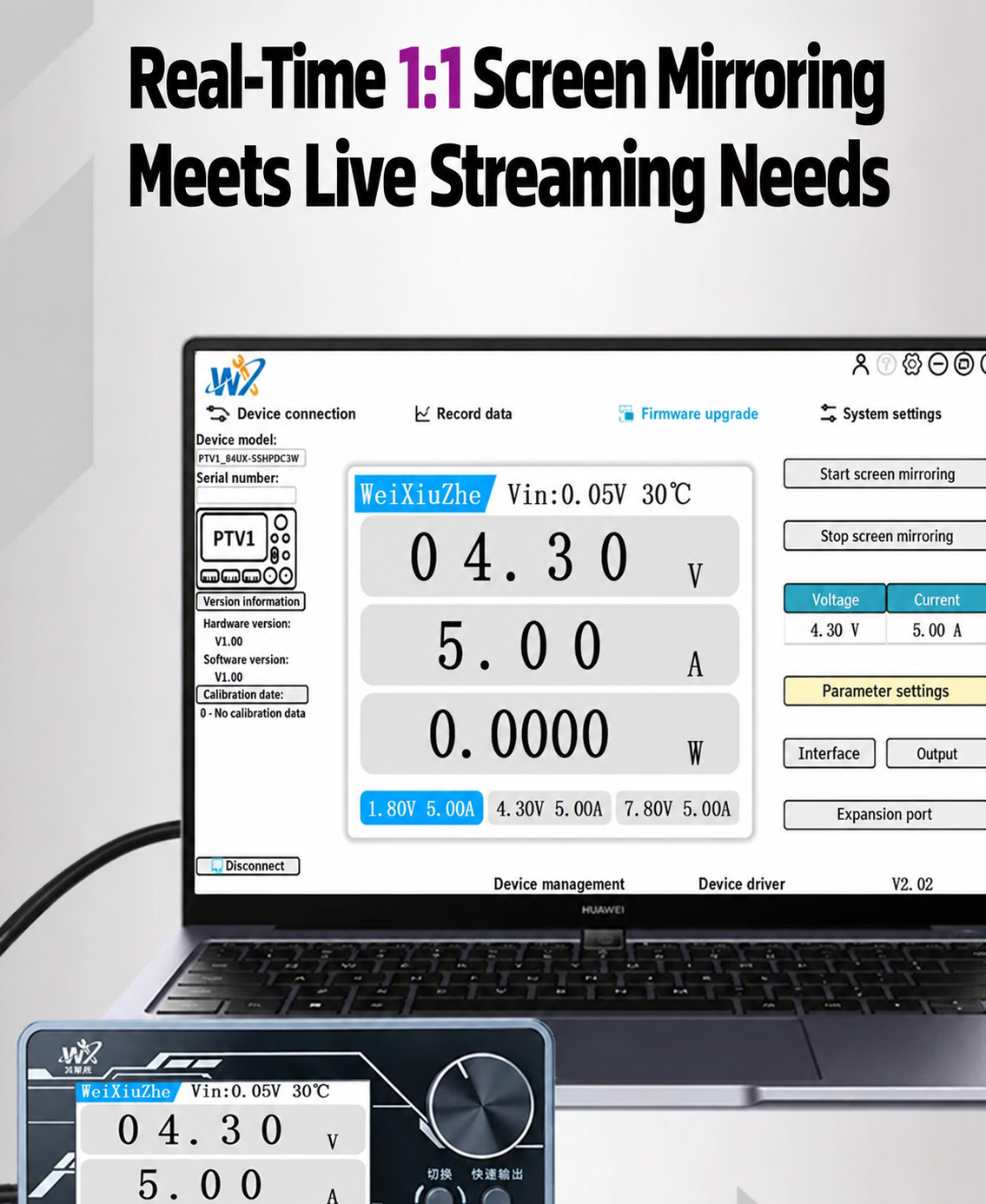

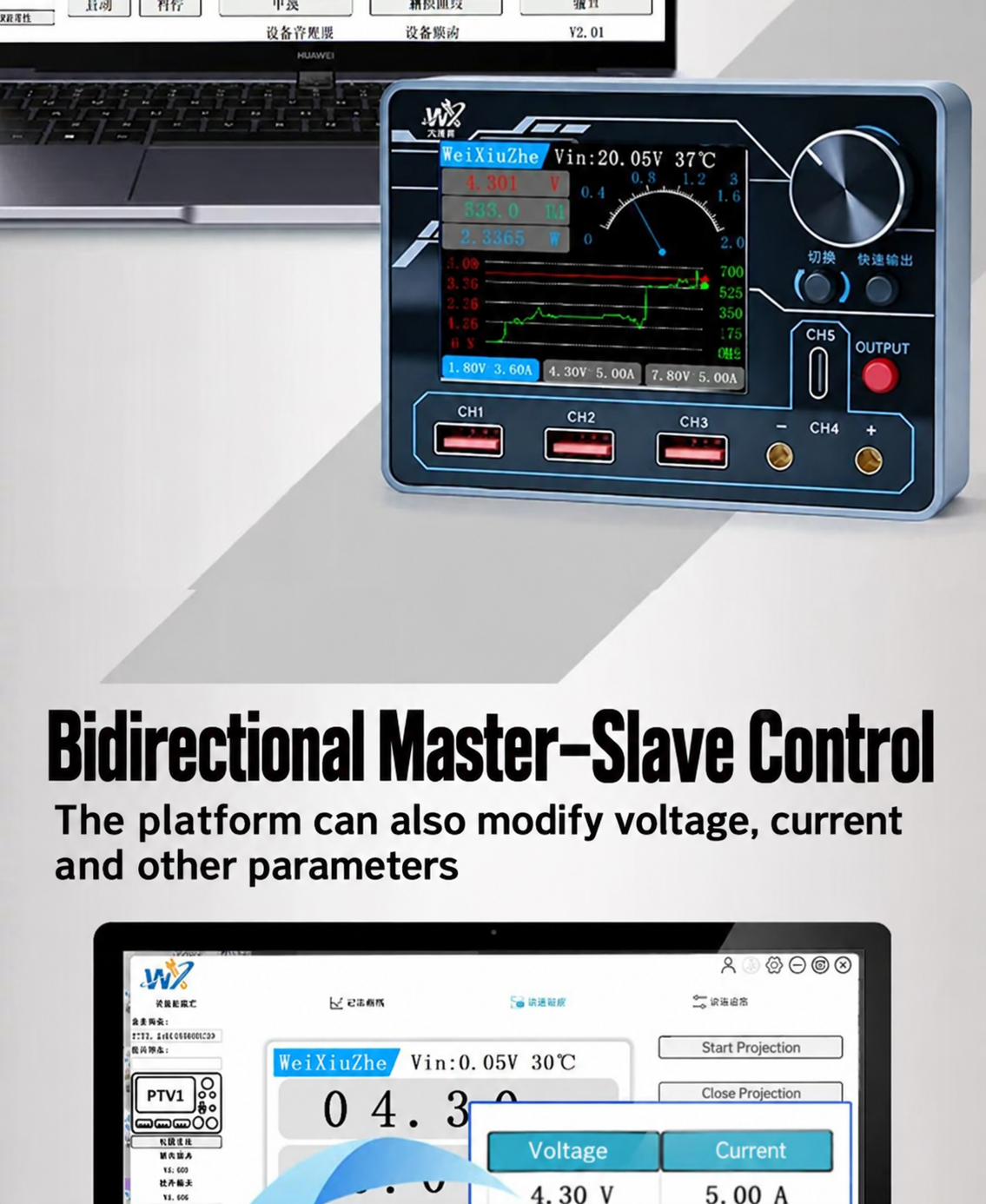

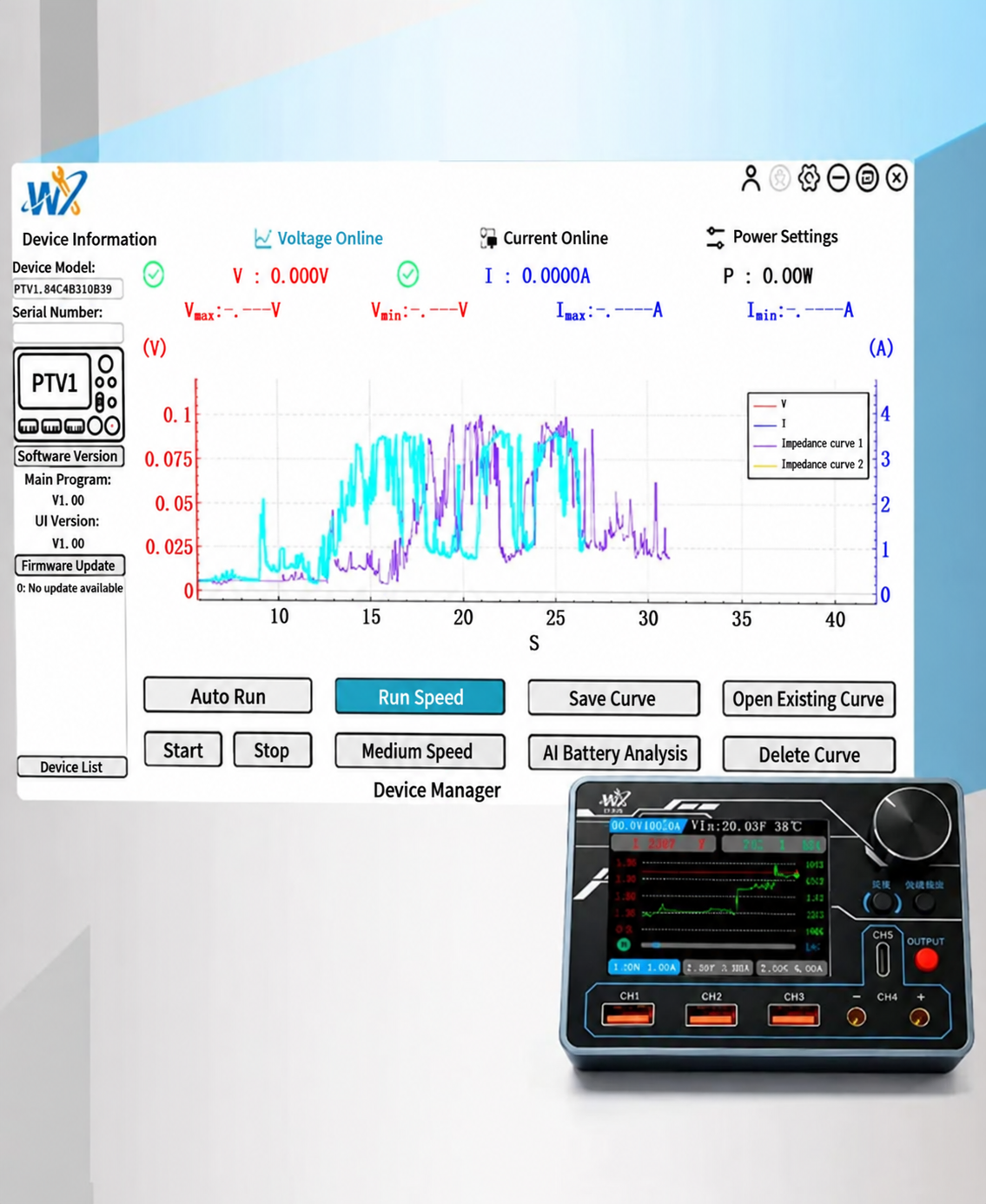

1:1 Screen Casting & Bidirectional Master-Slave Control: Connects to a PC via USB for real-time 1:1 screen mirroring and projection (ideal for teaching and workshop displays). Technicians can also modify output voltage, current limits, and parameters directly from the PC platform.
CH4: Standard heavy-duty banana plug terminal jacks (Negative & Positive) for motherboard boot cables and test clips.
CH5: High-speed Type-C output port.
Quick Output Presets: One-touch switching between frequently used repair voltages (such as 1.80V 3.60A, 4.30V 5.00A, 7.80V 5.00A).

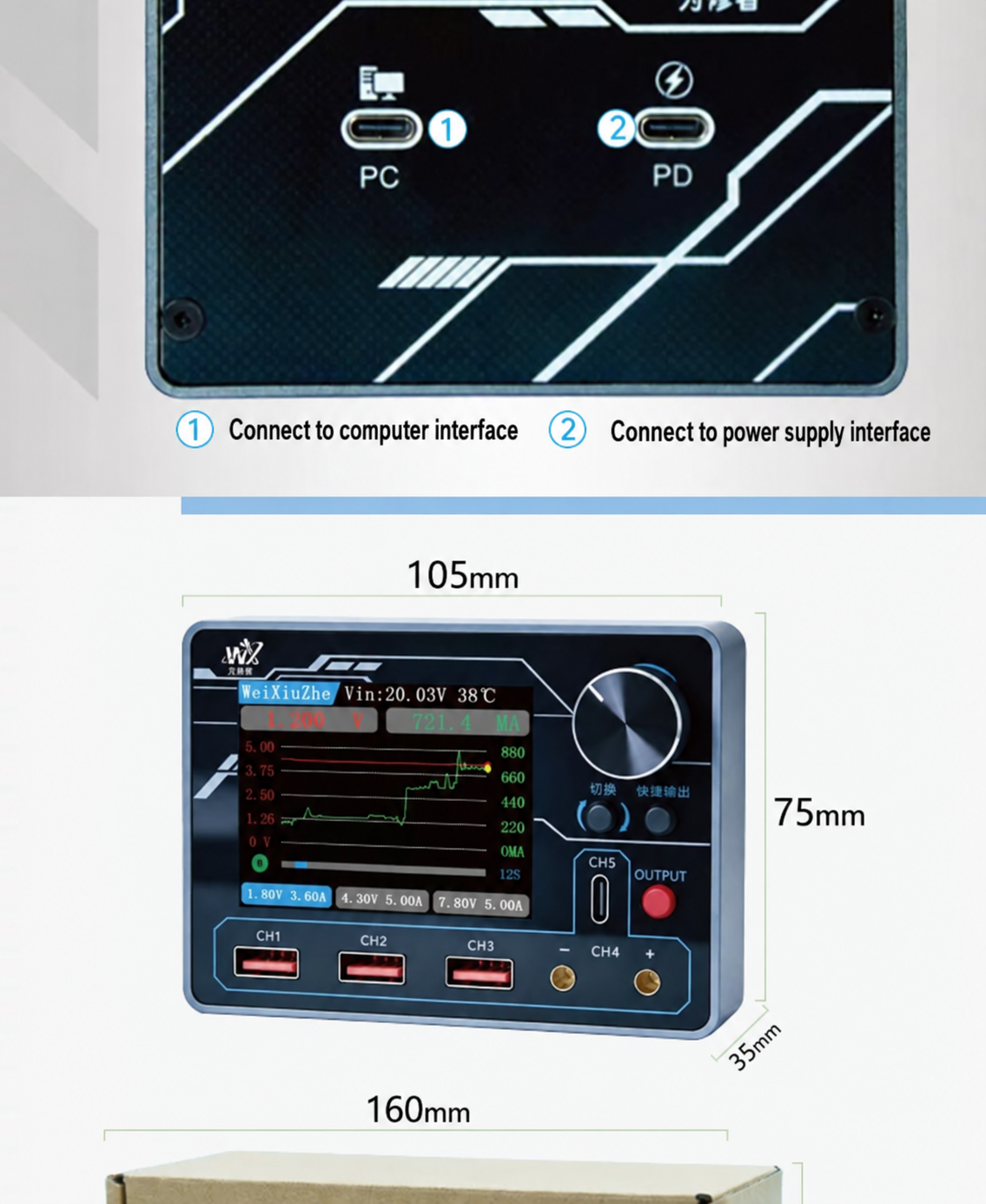

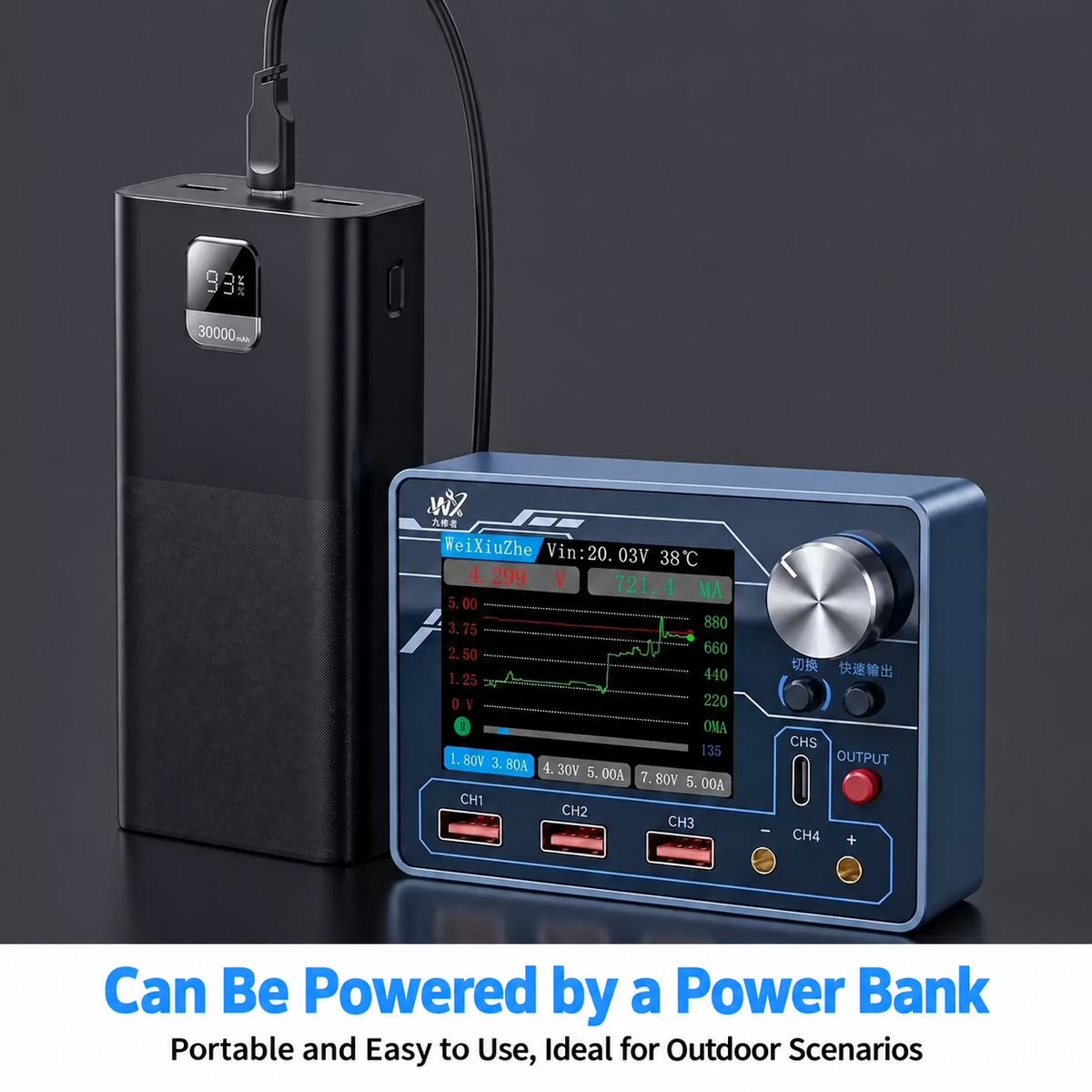

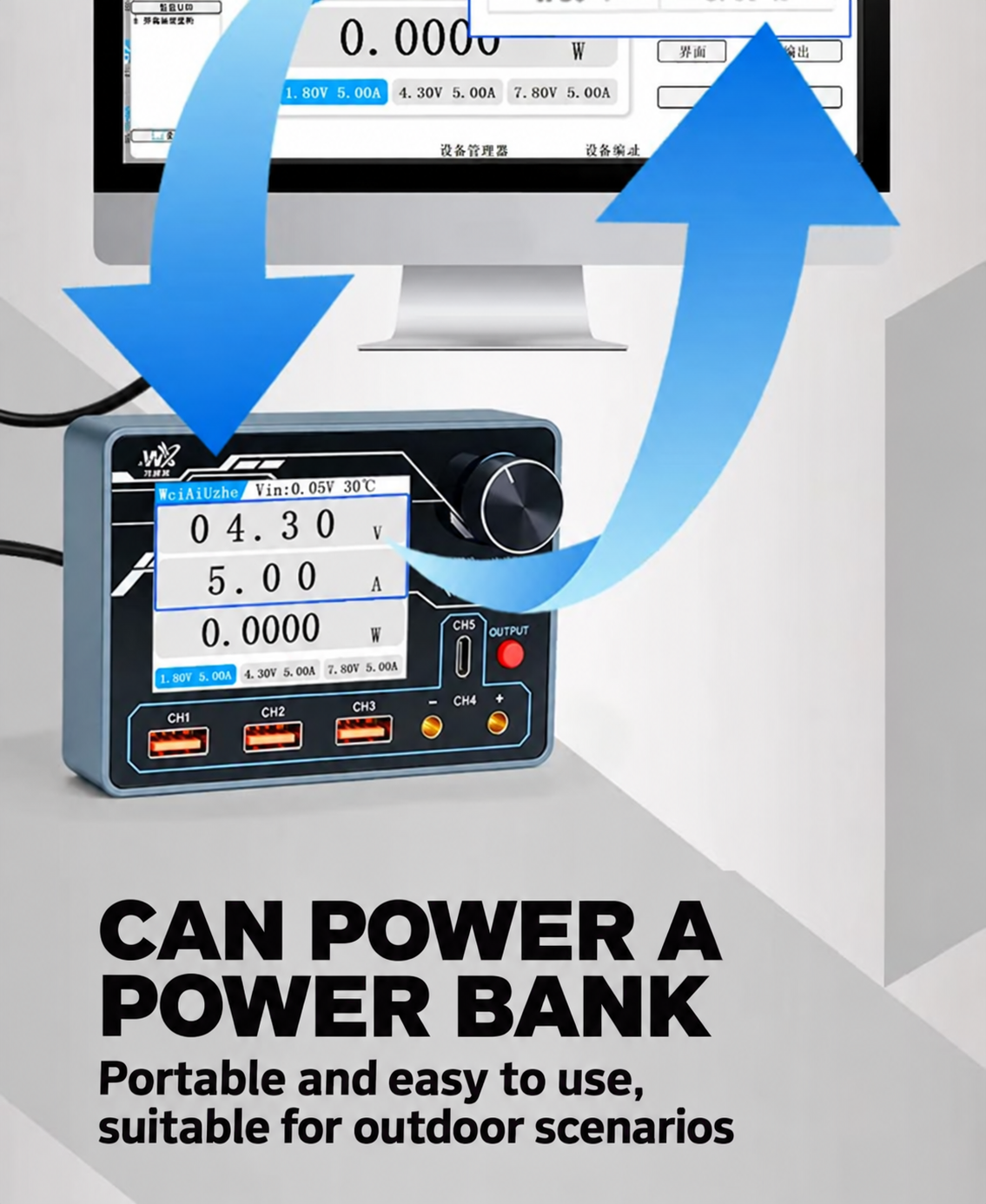

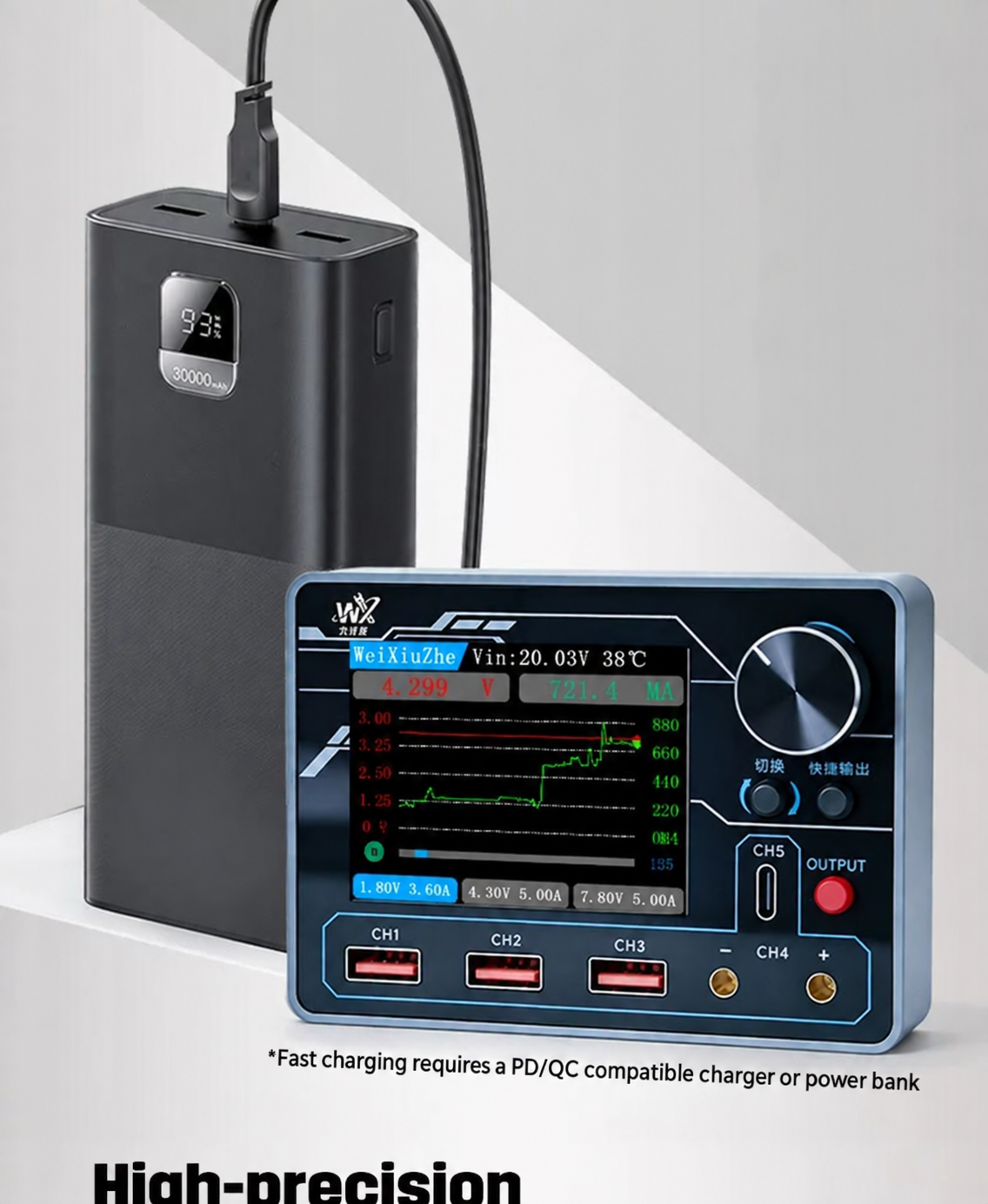

Flexible PD / Power Bank Powering: Powered via standard Type-C PD/QC fast charging protocol or DC input—can be driven by a PD fast charger or directly from a high-capacity power bank, making it portable and suitable for outdoor and on-site repair jobs.
Lifetime Free Firmware Upgrades: Supports continuous bootloader, application, and database upgrades to expand phone model support and diagnostic features over time.

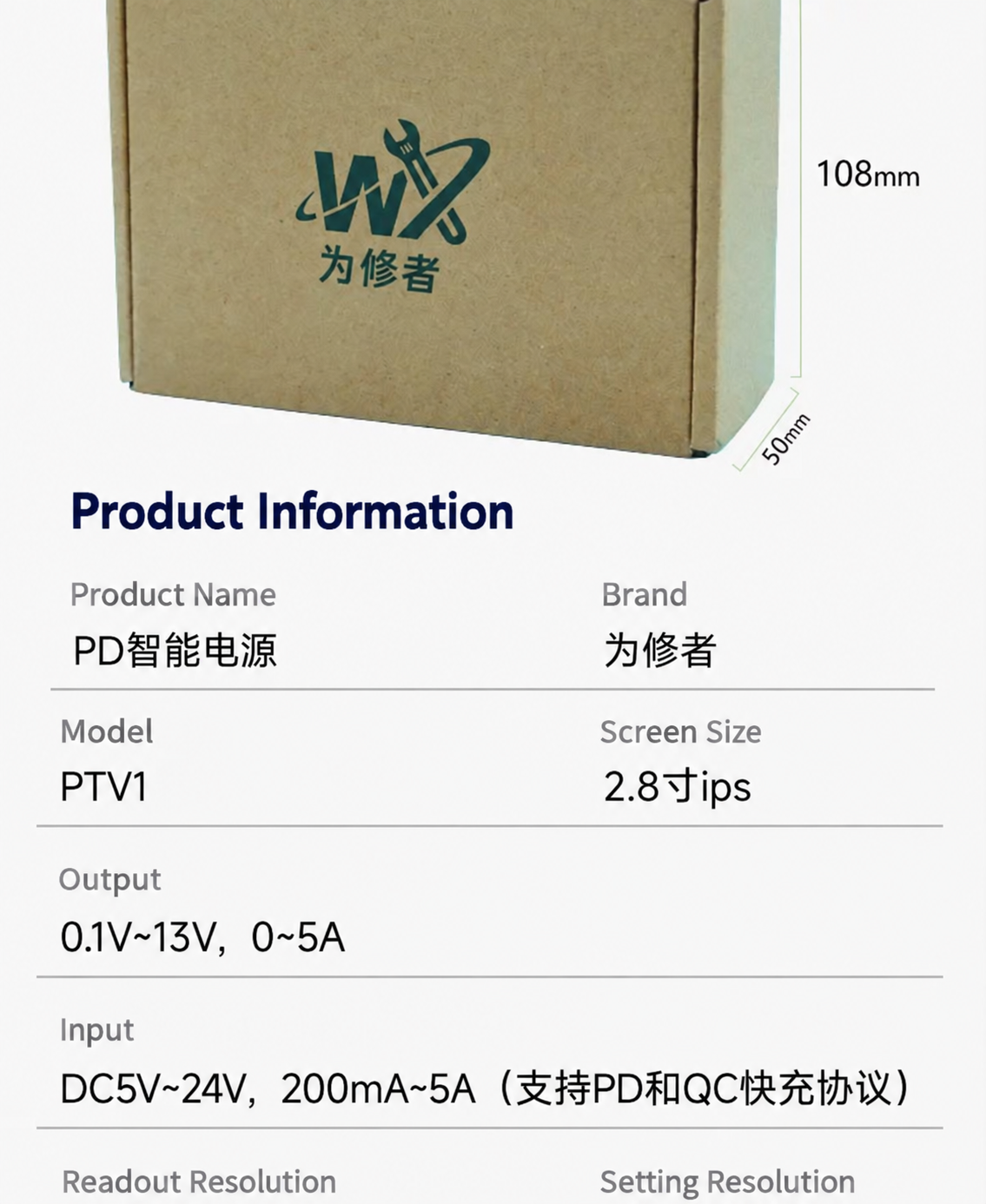

Product Specifications
Model: PTV1
Brand: WEIXIUZHE
Product Type: Intelligent Multi-Function PD DC Regulated Power Supply & AI Curve Analyzer
Power Input: Type-C PD/QC Fast Charging Protocol Input & DC IN (Power Bank Compatible)

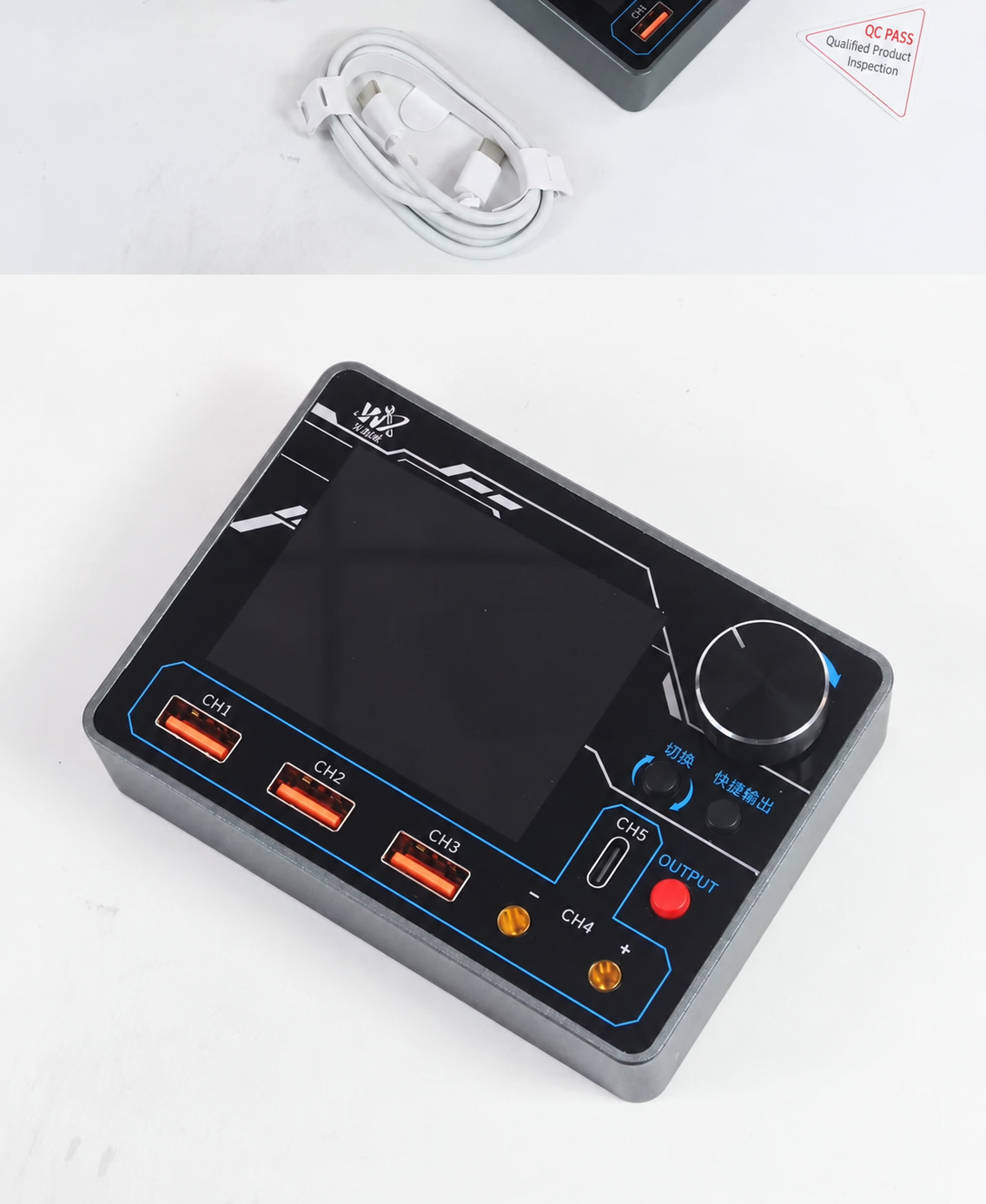

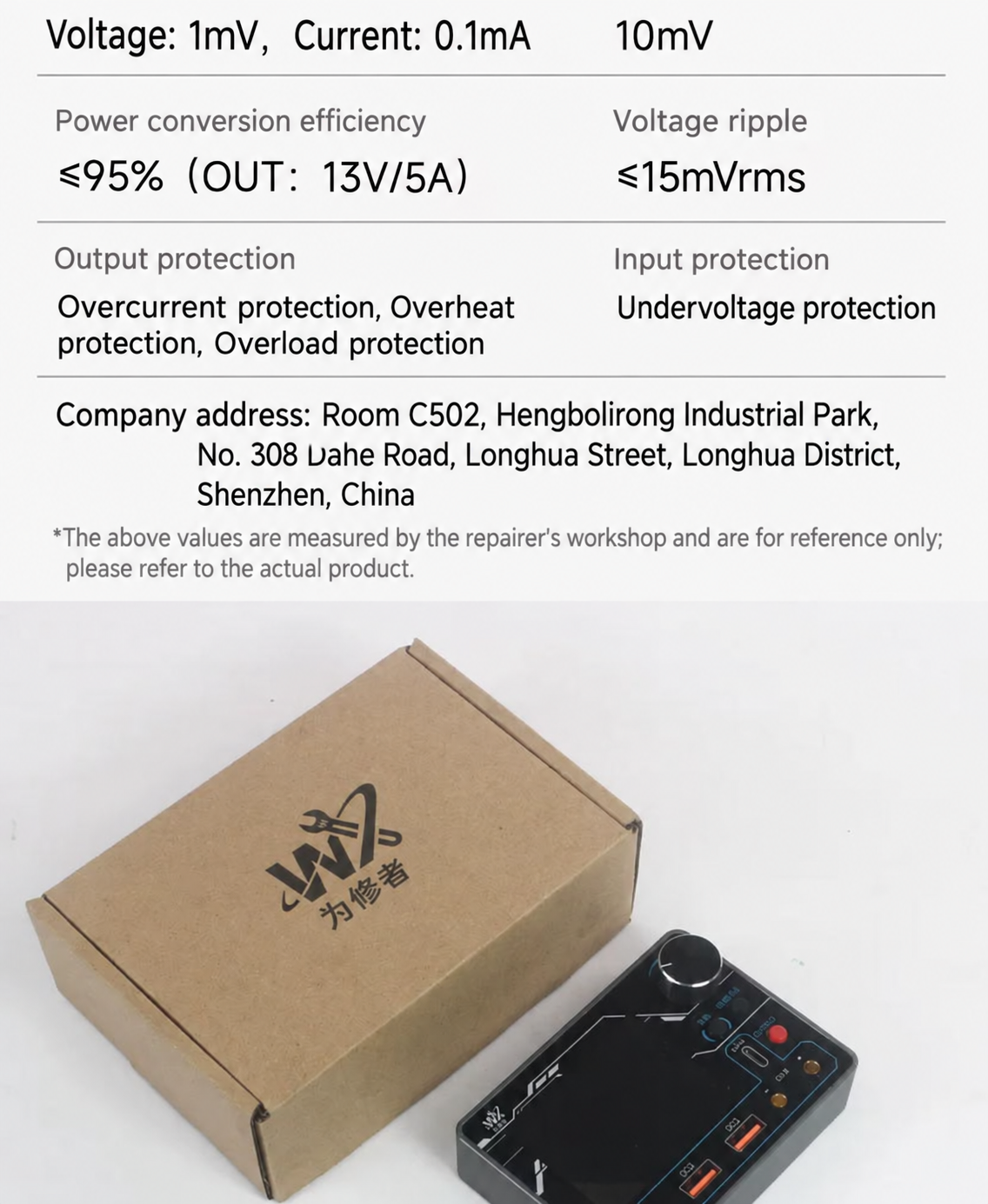

1 × WEIXIUZHE PTV1 Smart PD Power Supply Main Unit
1 × High-Grade Banana Plug Output Test Cable
1 × Type-C Connection / Power Cable
1 × Premium Packaging Box
Target Applications
Indispensable for mobile phone repair shops, motherboard unbricking technicians, electronics rework labs, on-site field repair engineers, and technical training institutions.
